We’ve been juggling with a lot of advanced concepts in the previous post. Perhaps it’s time I write something that my kids can understand too. One of the things I struggled with when re-learning elementary physics is the concept of energy. What *is* energy really? I always felt my high school teachers did a poor job in trying to explain it. So let me try to do a better job here.

A high-school level course usually introduces the topic using the gravitational force, i.e. Newton’s Third Law: F = GmM/*r*^{2}. This law states that the force of attraction is proportional to the *product *of the masses m and M, and *inversely *proportional to the square of the distance *r* between those two masses. The factor of proportionality is equal to G, i.e. the so-called *universal *gravitational constant, aka the ‘*big* G’ (G ≈ 6.674×10^{-11} N(m/kg)^{2}), as opposed to the ‘little g’, which is the gravity of Earth (g ≈ 9.80665 m/s^{2}). As far as I am concerned, it is at this point where my high-school teacher failed.

Indeed, he would just go on and simplify Newton’s Third Law by writing F = mg, noting that g = GM/*r*^{2 }and that, for all practical purposes, this g factor is constant, because we are talking small distances as compared to the radius of the Earth. Hence, we should just remember that the gravitational force is proportional to the mass only, and that one kilogram amounts to a *weight *of about 10 *newton* (9.80665 kg·m/s^{2} (N) to be precise). That simplification would then be followed by another simplification: if we are lifting an object with mass m, we are doing work *against *the gravitational force. How much work? Well, he’d say, *work *is – quite simply – the force times the distance in physics, and the work done against the force is the potential energy (usually denoted by U) of that object. So he would write U = Fh = mgh, with h the height of the object (as measured from the surface of the Earth), and he would draw a nice linear graph like the one below (I set m to 10 kg here, and h ranges from 0 to 100 m).

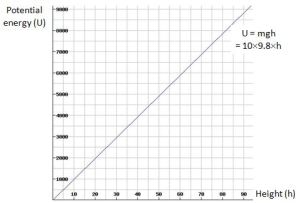

Note that the slope of this line is slightly less than 45 degrees (and also note, of course, that it’s only approximately 45 degrees because of our choice of scale: dU/dh is equal to 98.0665, so if the x and y axes would have the same scale, we’d have a line that’s almost vertical).

So what’s wrong with this graph? Nothing. It’s just that this graph sort of got stuck in my head, and it complicated a more accurate understanding of energy. Indeed, with examples like the one above, one tends to forget that:

- Such linear graphs are an approximation only. In reality, the gravitational field, and force fields in general, are

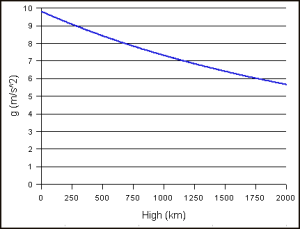

*not*uniform and, hence, g is*not*a constant: the graph below shows how g varies with the height (but the height is expressed in kilometer this time, not in meter). - Not only is potential energy usually
*not*a linear function but – equally important – it is usually*not*a*positive*real number either. In fact, in physics, U will usually take on a*negative*value*.*Why? Because we’re indeed measuring and defining it by the work done*against*the force.

So what’s the more accurate view of things? Well… Let’s start by noting that potential energy is defined in relation to some *reference point *and, taking a more *universal* point of view, that reference point will usually be infinity when discussing the gravitational (or electromagnetic) force of attraction. Now, the potential energy of the point(s) at infinity – i.e. the reference point – will, usually, be equated with zero. Hence, the potential energy curve will then take the shape of the graph below (y = –1/x), so U will vary from zero (0) to *minus* infinity (–∞) , as we bring the two masses closer together. You can readily see that the graph below makes sense: its slope is positive and, hence, as such it does capture the same idea as that linear mgh graph above: moving a mass from point 1 to point 2 requires work and, hence, the potential energy at point 2 is higher than at point 1, even if both values U(2) and U(1) are *negative* numbers, unlike the values of that linear mgh curve.

How do you get a curve like that? *Well…* I should first note another convention which is essential for making the sign come out alright: if the force is gravity, then we should write **F** = –GmM* r*/

*r*

^{3}.

**So we have a minus sign here**. And please do note the boldface type:

**F**and

**r**are vectors, and

*vectors*have both a direction and magnitude – and so that’s why they are denoted by a bold letter (

**r**), as opposed to the scalar quantities G, m, M or

*r*).

Back to the minus sign. Why do we have that here? Well… It has to do with the direction of the force, which, in case of *attraction*, will be opposite to the so-called radius vector ** r**. Just look at the illustration below, which shows, first, the direction of the force between two

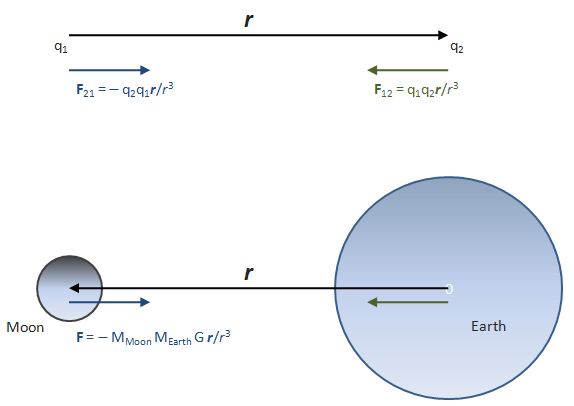

*opposite*electric charges (top) and then (bottom), the force between two masses, let’s say the Earth and the Moon.

So it’s a matter of convention really.

Now, when we’re talking the electromagnetic force, you know that *likes repel and opposites attract*, so two charges with the *same* sign will repel each other, and two charges with opposite sign will attract each other. So **F**_{12}, i.e. the force on q_{2 }because of the presence of q_{1}, will be equal to **F**_{12} = q_{1}q_{2}*r/**r*^{3}. Therefore, no minus sign is needed here because q_{1 }and q_{2} are opposite and, hence, the sign of this product will be negative. Therefore, we know that the direction of **F** comes out alright: it’s *opposite* to the direction of the radius vector ** r**. So the force on a charge q

_{2}which is placed in an electric field produced by a charge q

_{1}is equal to

**F**

_{12}= q

_{1}q

_{2}

*r/**r*

^{3}. In short,

*no minus sign needed here because we already have one*. Of course, the original charge q

_{1}will be subject to the very same force and so we should write

**F**

_{21}= –q

_{1}q

_{2}

*r/**r*

^{3}. So we’ve got that minus sign again now. In general, however, we’ll write

**F**

_{ij}= q

_{i}q

_{j}

*r/**r*

^{3}when dealing with the electromagnetic force, so that’s

*without*a minus sign, because the convention is to draw the radius vector from charge

*i*to charge

*j*and, hence, the radius vector

**in the formula**

*r***F**

_{21}would point in the other direction and, hence, the minus sign is not needed.

*In short, because of the way that the electromagnetic force works, the sign always come out right: there is no need for a minus sign in front. However, for gravity, there are no opposite charges: masses are always alike, and so likes actually attract when we’re talking gravity, and so that’s why we need the minus sign when dealing with the gravitational force*: the force between a mass *i* and another mass *j* will always be written as **F**_{ij} = –m_{i}m_{j}*r/**r*^{3}, so here we *do *have to put the minus sign, because the direction of the force needs to be opposite to the direction of the radius vector and so the sign of the ‘charges’ (i.e. the masses in this case), in the case of gravity, does *not *take care of that.

One last remark here may be useful: always watch out to not double-count forces when considering a system with many charges or many masses: both charges (or masses) feel the *same* force, but with opposite direction. OK. Let’s move on. If you are confused, don’t worry. Just remember that (1) it’s *very* important to be consistent when drawing that radius vector (it goes from the charge (or mass) *causing *the force field to the other charge (or mass) that is being brought in), and (2) that the gravitational and electromagnetic forces have a lot in common in terms of ‘geometry’ – notably that inverse proportionality relation with the square of the distance between the two charges or masses – but that we need to put a minus sign when we’re dealing with the gravitational force because, with gravitation, likes do not repel but attract each other, as opposed to *electric *charges.

Now, let’s move on indeed and get back to our discussion of potential energy. Let me copy that potential energy curve again and let’s assume we’re talking electromagnetics here, and that we’re have two *opposite *charges, so the force is one of attraction.

Hence, if we move one charge *away* from the other, we are doing work *against *the force. Conversely, if we bring them closer to each other, we’re working *with *the force and, hence, its potential energy will go down – from zero (i.e. the reference point) to… Well… Some *negative* value. How much work is being done? Well… The force changes all the time, so it’s *not *constant and so we cannot just calculate the force times the distance (Fs). We need to do one of those infinite sums, i.e. an integral, and so, for **point 1 **in the graph above, we can write:

Why the minus sign? Well… As said, we’re not *increasing *potential energy: we’re decreasing it, from zero to some negative value. If we’d move the charge from point 1 to the reference point (infinity), then we’d be doing work *against* the force and we’d be *increasing* potential energy. So then we’d have a positive value. If this is difficult, just think it through for a while and you’ll get there.

Now, this integral is somewhat special because **F** and **s** are vectors, and the **F**·d**s** product above is a so-called dot product between two vectors. The integral itself is a so-called *path integral* and so you may not have learned how to solve this one. But let me explain the dot product at least: the dot product of two vectors is the product of the magnitudes of those two vectors (i.e. their length) times the cosine of the angle between the two vectors:

**F**·d**s **=│**F**││d**s**│cosθ

Why that cosine? Well… To go from one point to another (from point 0 to point 1, for example), we can take any path really. [In fact, it is actually* not* so obvious that all paths will yield the same value for the potential energy: it is the case for so-called *conservative *forces only. But so gravity and the electromagnetic force are conservative forces and so, yes, we can take any path and we will find the same value.] Now, if the direction of the force and the direction of the displacement are the same, then that angle θ will be equal to zero and, hence, the dot product is just the product of the magnitudes (cos(0) = 1). However, if the direction of the force and the direction of the displacement are *not *the same, then *it’s only the component of the force in the direction of the displacement that’s doing work*, and the magnitude of that component is Fcosθ. So there you are: that explains why we need that cosine function.

Now, solving that ‘special’ integral is not so easy because the distance between the two charges at point 0 is zero and, hence, when we try to solve the integral by putting in the formula for **F** and finding the primitive and all that, you’ll find there’s a division by zero involved. Of course, there’s a way to solve the integral, but I won’t do it here. Just accept the general result here for U(r):

U(r) = q_{1}q_{2}** /**4πε

_{0}

*r*

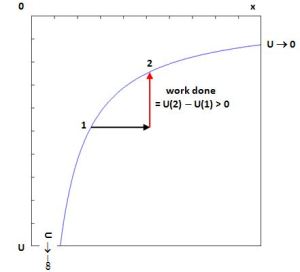

You can immediately see that, because we’re dealing with opposite charges, U(r) will always be negative, while the limit of this function for *r* going to infinity is equal to zero indeed. Conversely, its limit equals –∞ for *r* going to zero. As for the 4πε_{0 }factor in this formula, that factor plays the same role as the G-factor for gravity. Indeed, ε_{0 }is an ubiquitous electric constant: ε_{0 }≈ 8.854×10^{-12} F/m, but it can be included in the value of the charges by choosing another unit and, hence, it’s often omitted – and that’s what I’ll also do here. Now, the same formula obviously applies to point 2 in the graph as well, and so now we can calculate the *difference* in potential energy between point 1 and point 2:

Does that make sense? Yes. We’re, once again, doing work *against *the force when moving the charge from point 1 to point 2. So that’s why we have a minus sign in front. As for the signs of q_{1 }and q_{2}, remember these are opposite. As for the value of the (*r*_{2} – *r*_{1}) factor, that’s obviously positive because *r*_{2} > *r*_{1}. Hence, ΔU = U(1) – U(2) is *negative*. How do we interpret that? U(2) and U(1) are negative values, the difference between those two values, i.e. U(1) – U(2), is negative as well? Well… Just remember that ΔU is *minus *the work done to move the charge from point 1 to point 2. Hence, the change in potential energy (ΔU) is some negative value because the amount of work that needs to be done to move the charge from point 1 to point 2 is decidedly positive. Hence, yes, the charge has a *higher *energy level (albeit negative – but that’s just because of our convention which equates potential energy at infinity with zero) at point 2 as compared to point 1.

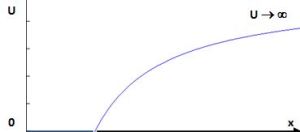

What about gravity? Well… That linear graph above is an approximation, we said, and it also takes *r* = h = 0 as the reference point but *it assigns a value of zero for the potential energy* *there* (as opposed to the –∞ value for the electromagnetic force above). So that graph is actually an linearization of a graph resembling the one below: we only start counting when we are on the Earth’s surface, so to say.

However, in a more advanced physics course, you will probably see the following potential energy function for gravity: U(r) = –GMm/r, and the graph of this function looks exactly the same as that graph we found for the potential energy between two opposite charges: the curve starts at point (0, –∞) and ends at point (∞, 0).

OK. Time to move on to another illustration or application: the covalent bond between two hydrogen atoms.

**Application: the covalent bond between two hydrogen atoms**

The graph below shows the potential energy as a function of the distance between two hydrogen atoms. Don’t worry about its exact mathematical shape: just try to understand it.

Natural hydrogen comes in H_{2 }molecules, so there is a bond between two hydrogen atoms as a result of mutual attraction. The force involved is a *chemical* bond: the two hydrogen atoms share their so-called valence electron, thereby forming a so-called *covalent bond *(which is a form of chemical bond indeed, as you should remember from your high-school courses). However, one cannot push two hydrogen atoms *too *close, because then the positively charged nuclei will start repelling each other, and so that’s what is depicted above: the potential energy goes up very rapidly because the two atoms will repel each other *very* strongly.

The right half of the graph shows how the force of attraction vanishes as the two atoms are separated. After a while, the potential energy does not increase any more and so then the two atoms are *free*.

Again, the reference point does not matter very much: in the graph above, the potential energy is assumed to be zero at infinity (i.e. the ‘free’ state) but we could have chosen another reference point: it would only *shift* the graph up or down.

This brings us to another point: the law of energy conservation. For that, we need to introduce the concept of kinetic energy once again.

**The formula for kinetic energy**

In one of my previous posts, I defined the kinetic energy of an object as the excess energy over its rest energy:

K.E. = T = m*c*^{2 }– m_{0}*c*^{2 }= γm_{0}*c*^{2 }– m_{0}*c*^{2 }= (γ–1)m_{0}*c*^{2}

γ is the Lorentz factor in this formula (γ = (1–v^{2}/*c*^{2})^{-1/2}), and I derived the **T = mv ^{2}/2** formula for the kinetic energy from a Taylor expansion of the formula above, noting that K.E. = mv

^{2}/2 is actually an approximation for non-relativistic speeds only, i.e. speeds that are much less than c and, hence, have no impact on the mass of the object: so, non-relativistic means that, for all practical purposes, m = m

_{0}. Now, if m = m

_{0}, then m

*c*

^{2 }– m

_{0}

*c*

^{2 }is equal to zero ! So how do we derive the kinetic energy formula for non-relativistic speeds then? Well… We must apply another method, using Newton’s Law: the force equals the time rate of change of the

*momentum*of an object. The momentum of an object is denoted by

**p**(it’s a vector quantity) and is the product of its mass and its velocity (

**p**= m

**), so we can write**

*v***F** = d(m** v**)/dt (again, all bold letters denote vectors).

When the speed is low (i.e. non-relativistic), then we can just treat m as a constant and so we can write **F** = md**v**/dt = m**a** (the mass times the acceleration). If m would not be constant, then we would have to apply the product rule: d(m** v**) = (dm/dt)v + m(d

**/dt), and so then we would have two terms instead of one. Treating m as a constant also allows us to derive the classical (Newtonian) formula for kinetic energy:**

*v*So if we assume that the velocity of the object at point O is equal to zero (so *v*_{o} = 0), then ΔT will be equal to T and we get what we were looking for: the kinetic energy at point P will be equal to T = m*v*^{2}/2.

**Energy conservation**

Now, the *total *energy – potential and kinetic – of an object (or a system) has to remain constant, so we have E = T + U = constant. As a consequence, the time derivative of the *total *energy must equal zero. So we have:

E = T + U = *constant*, and dE/dt = 0

Can we prove that with the formulas T = mv^{2}/2 and U = q_{1}q_{2}/4πε_{0}*r*? Yes, but the proof is a bit lengthy and so I won’t prove it here. [We need to take the derivatives ∂T/∂t and ∂U/∂t and show that these derivatives are equal except for the sign, which is opposite, and so the *sum *of those two derivatives equals zero. Note that ∂T/∂t = (dT/dv)(dv/dt) and that ∂U/∂t = (dU/dr)(dr/dt), so you have to use the chain rule for derivatives here.] So just take a mental note of that and accept the result:

**(1) mv ^{2}/2 + q_{1}q_{2}/4πε_{0}r = constant** when the electromagnetic force is involved (no minus sign, because the sign of the charges makes things come out alright), and

**(2) mv**when the gravitational force is involved (note the

^{2}/2 – GMm/*r*=*constant**minus*sign, for the reason mentioned above: when the gravitational force is involved, we need to reverse the sign).

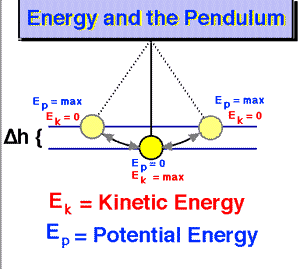

We can also take another example: an oscillating spring. When you try to compress a (linear) spring, the spring will push back with a force equal to F = kx. Hence, the energy needed to *compress *a (linear) spring a distance x from its equilibrium position can be calculated from the same integral/infinite sum formula: you will get U = kx^{2}/2 as a result. Indeed, this is an easy integral (not a path integral), and so let me quickly solve it:

While that U = kx^{2}/2 formula looks similar to the kinetic energy formula, you should note that it’s a function of the position, not of velocity, and that the formula does not involve the mass of the object we’re attaching to the string. So it’s a different animal altogether. However, because of the energy conservation law, the graph of both the potential and kinetic energy will obviously reflect each other, just like the energy graphs of a swinging pendulum, as shown below. We have:

T + U = mv^{2}/2 + kx^{2}/2 = C

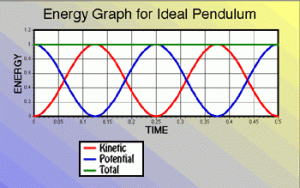

**Note**: The graph above mentions an ‘ideal’ pendulum because, in reality, there will be an energy loss due to friction and, hence, the pendulum will slowly stop, as shown below. Hence, in reality, energy is conserved, but it leaks out of the system we are observing here: it gets lost as heat, which is another form of kinetic energy actually.

**Another application: estimating the radius of an atom**

A *very *nice application of the energy concepts introduced above is the so-called Bohr model of a hydrogen atom. Feynman introduces that model as an estimate of the size (or *radius*) of an atom (see Feynman’s *Lectures*, Vol. III, p. 2-6). The argument is the following.

The radius of an atom is more or less the *spread* (usually denoted by Δ or σ) in the position of the electron, so we can write that Δx = a. In words, the uncertainty about the position is the radius a. Now, we know that the uncertainty about the position (x) also determines the uncertainty about the momentum (p = mv) of the electron because of the Uncertainty Principle ΔxΔp ≥ ħ/2 (ħ ≈ 6.6×10^{-16 }eV·s). The principle is illustrated below, and in a previous posts I proved the relationship. [Note that k in the left graph actually represents the wave number of the *de Broglie *wave, but wave number and momentum are related through the *de Broglie *relation p = ħk.]

Hence, the *order of magnitude *of the momentum of the electron will – very roughly – be p ≈ ħ/a. [Note that Feynman doesn’t care about factors 2 or π or even 2π (h = 2πħ): the idea is just to get the order of magnitude (Feynman calls it a ‘dimensional analysis’), and that he actually equates p with p = h/a, so he doesn’t use the *reduced *Planck constant (ħ).]

Now, the electron’s potential energy will be given by that U(r) = q_{1}q_{2}/4πε_{0}*r *formula above, with q_{1}= e (the charge of the proton) and q_{2}= –e (i.e. the charge of the electron), so we can simplify this to –e^{2}/a.

The *kinetic *energy of the electron is given by the usual formula: T = mv^{2}/2. This can be written as T = mv^{2}/2 = m^{2}v^{2}/2m = p^{2}/2m = h^{2}/2ma^{2}. Hence, the total energy of the electron is given by

E = T + U = h^{2}/2ma^{2 }– e^{2}/a

What does this say? It says that the potential energy becomes smaller as a gets smaller (that’s because of the minus sign: when we say ‘smaller’, we actually mean a larger *negative *value). However, as it gets closer to the nucleus, it kinetic energy increases. In fact, the shape of this function is similar to that graph depicting the *potential *energy of a covalent bond as a function of the distance, but you should note that the blue graph below is the *total *energy (so it’s not only potential energy but kinetic energy as well).

I guess you can now anticipate the rest of the story. The electron will be there where its total energy is minimized. Why? Well… We could call it the minimum energy principle, but that’s usually used in another context (thermodynamics). Let me just quote Feynman here, because I don’t have a better explanation: *“We do not know what a is, but we know that the atom is going to arrange itself to make some kind of compromise so that the energy is as little as possible.”*

He then calculates, as expected, the derivative dE/da, which equals dE/da = –h^{2}/ma^{3 }+ e^{2}/a^{2}. Setting dE/da equal to zero, we get the ‘optimal’ value for a:

a_{0 }= h^{2}/me^{2 }=0.528×10^{-10 }m = 0.528 Å (angstrom)

Note that this calculation depends on the value one uses for e: to be correct, we need to put the 4πε_{0} factor back in. You also need to ensure you use proper and compatible units for all factors. Just try a couple of times and you should find that 0.528 value.

Of course, the question is whether or not this back-of-the-envelope calculation resembles anything real? It does: this number is *very *close to the so-called **Bohr radius**, which is the most probable distance between the proton and and the electron in a hydrogen atom (in its ground state) indeed. The Bohr radius is an actual *physical constant *and has been measured to be about 0.529 angstrom. Hence, for all practical purposes, the above calculation corresponds with reality. [Of course, while Feynman started with writing that we shouldn’t trust our answer within factors like 2, π, etcetera, he concludes his calculation by noting that he used all constants in such a way that it happens to come out the right number. :-)]

The corresponding energy for this value for a can be found by putting the value a_{0 }back into the total energy equation, and then we find:

E_{0 }= –me^{4}/2h^{2 }= –13.6 eV

Again, this corresponds to reality, because this is the energy that is needed to kick an electron out of its orbit or, to use proper language, this is the energy that is needed to ionize a hydrogen atom (it’s referred to as a *Rydberg *of energy). By way of conclusion, let me quote Feynman on what this negative energy actually means: “[Negative energy] means that the electron has less energy when it is *in *the atom than when it is free. It means it is bound. It means it *takes* energy to kick the electron out.”

That being said, as we pointed out above, it is all a matter of choosing our reference point: we can add or subtract any constant C to the energy equation: E + C = T + U + C will still be *constant* and, hence, respect the energy conservation law. But so I’ll conclude here and – of course – check if my kids understand any of this.

**And what about potential?**

Oh – yes. I forgot. The title of this post suggests that I would also write something on what is referred to as ‘potential’, and it’s not the same as potential energy. So let me quickly do that.

By now, you are surely familiar with the idea of a force field. If we put a charge or a mass somewhere, then it will create a condition such that another charge or mass will feel a force. That ‘condition’ is referred to as the field, and one represents a field by field vectors. For a gravitational field, we can write:

**F** = m**C**

**C** is the field vector, and **F** is the force on the mass that we would ‘supply’ to the field for it to act on. Now, we can obviously re-write that integral for the potential energy as

U = –∫**F**·d**s = **–m∫**C**·d**s** = mΨ with Ψ (read: *psi*) = ∫**C**·d**s **= the *potential*

So we can say that the potential Ψ is the potential energy of a unit charge or a unit mass that would be placed in the field. Both **C** (a vector) as well Ψ (a scalar quantity, i.e. a real number) obviously vary in space and in time and, hence, are a function of the space coordinates x, y and z as well as the time coordinate t. However, let’s leave time out for the moment, in order to not make things too complex. [And, of course, I should not say that this *psi *has nothing to do with the probability wave function we introduced in previous posts. Nothing at all. It just happens to be the same symbol.]

Now, U is an integral, and so it can be shown that, if we know the potential energy, we also know the force. Indeed, the x-, y and z-component of the force is equal to:

F_{x }= – ∂U/∂x, F_{y }= – ∂U/∂y, F_{z }= – ∂U/∂z or, using the *grad *(gradient) operator: **F** = –∇U

Likewise, we can recover the field vectors C from the potential function Ψ:

C_{x }= – ∂Ψ/∂x, C_{y }= – ∂Ψ/∂y, C_{z }= – ∂Ψ/∂z, or **C** = –∇Ψ

That *grad* operator is nice: it makes a *vector* function out of a *scalar* function.

In the ‘electrical case’, we will write:

**F** = q**E**

** **And, likewise,

U = –∫**F**·d**s = **–q∫**E**·d**s** = qΦ with Φ (read: phi) = ∫**E**·d**s **= the *electrical **potential.*

Unlike the ‘psi’ potential, the ‘phi’ potential is well known to us, if only because it’s expressed in *volts*. In fact, when we say that a battery or a capacitor is charged to a certain voltage, we actually mean the voltage *difference *between the parallel plates of which the capacitor or battery consists, so we are actually talking the difference in electrical potential ΔΦ = Φ_{1 }– Φ_{2}., which we also express in *volts*, just like the electrical potential itself.

**Post scriptum**:

The model of the atom that is implied in the above derivation is referred to as the so-called Bohr model. It is a rather primitive model (Wikipedia calls it a ‘first-order approximation’) but, despite its limitations, it’s a proper quantum-mechanical view of the hydrogen atom and, hence, Wikipedia notes that “it is still commonly taught to introduce students to quantum mechanics.” Indeed, that’s Feynman also uses it in one of his first *Lectures* on *Quantum Mechanics *(Vol. III, Chapter 2), before he moves on to more complex things.
