# The quantum of time and distance

Post scriptum note added on 11 July 2016: This is one of the more speculative posts which led to my e-publication analyzing the wavefunction as an energy propagation. With the benefit of hindsight, I would recommend you to immediately the more recent exposé on the matter that is being presented here, which you can find by clicking on the provided link. In fact, I actually made some (small) mistakes when writing the post below.

Original post:

In my previous post, I introduced the elementary wavefunction of a particle with zero rest mass in free space (i.e. the particle also has zero potential). I wrote that wavefunction as ei(kx − ωt) ei(x/2 − t/2) = cos[(x−t)/2] + i∙sin[(x−t)/2], and we can represent that function as follows:

If the real and imaginary axis in the image above are the y- and z-axis respectively, then the x-axis here is time, so here we’d be looking at the shape of the wavefunction at some fixed point in space.

Now, we could also look at its shape at some fixed in point in time, so the x-axis would then represent the spatial dimension. Better still, we could animate the illustration to incorporate both the temporal as well as the spatial dimension. The following animation does the trick quite well:

Please do note that space is one-dimensional here: the y- and z-axis represent the real and imaginary part of the wavefunction, not the y- or z-dimension in space.

You’ve seen this animation before, of course: I took it from Wikipedia, and it actually represents the electric field vector (E) for a circularly polarized electromagnetic wave. To get a complete picture of the electromagnetic wave, we should add the magnetic field vector (B), which is not shown here. We’ll come back to that later. Let’s first look at our zero-mass particle denuded of all properties, so that’s not an electromagnetic wave—read: a photon. No. We don’t want to talk charges here.

OK. So far so good. A zero-mass particle in free space. So we got that ei(x/2 − t/2) = cos[(x−t)/2] + i∙sin[(x−t)/2] wavefunction. We got that function assuming the following:

1. Time and distance are measured in equivalent units, so = 1. Hence, the classical velocity (v) of our zero-mass particle is equal to 1, and we also find that the energy (E), mass (m) and momentum (p) of our particle are numerically the same. We wrote: E = m = p, using the p = m·v (for = c) and the E = m∙c2 formulas.
2. We also assumed that the quantum of energy (and, hence, the quantum of mass, and the quantum of momentum) was equal to ħ/2, rather than ħ. The de Broglie relations (k = p/ħ and ω = E/ħ) then gave us the rather particular argument of our wavefunction: kx − ωt = x/2 − t/2.

The latter hypothesis (E = m = p = ħ/2) is somewhat strange at first but, as I showed in that post of mine, it avoids an apparent contradiction: if we’d use ħ, then we would find two different values for the phase and group velocity of our wavefunction. To be precise, we’d find for the group velocity, but v/2 for the phase velocity. Using ħ/2 solves that problem. In addition, using ħ/2 is consistent with the Uncertainty Principle, which tells us that ΔxΔp = ΔEΔt = ħ/2.

OK. Take a deep breath. Here I need to say something about dimensions. If we’re saying that we’re measuring time and distance in equivalent units – say, in meter, or in seconds – then we are not saying that they’re the same. The dimension of time and space is fundamentally different, as evidenced by the fact that, for example, time flows in one direction only, as opposed to x. To be precise, we assumed that x and t become countable variables themselves at some point in time. However, if we’re at t = 0, then we’d count time as t = 1, 2, etcetera only. In contrast, at the point x = 0, we can go to x = +1, +2, etcetera but we may also go to x = −1, −2, etc.

I have to stress this point, because what follows will require some mental flexibility. In fact, we often talk about natural units, such as Planck units, which we get from equating fundamental constants, such as c, or ħ, to 1, but then we often struggle to interpret those units, because we fail to grasp what it means to write = 1, or ħ = 1. For example, writing = 1 implies we can measure distance in seconds, or time in meter, but it does not imply that distance becomes time, or vice versa. We still need to keep track of whether or not we’re talking a second in time, or a second in space, i.e. c meter, or, conversely, whether we’re talking a meter in space, or a meter in time, i.e. 1/c seconds. We can make the distinction in various ways. For example, we could mention the dimension of each equation between brackets, so we’d write: t = 1×10−15 s [t] ≈ 299.8×10−9 m [t]. Alternatively, we could put a little subscript (like t, or d), so as to make sure it’s clear our meter is a a ‘light-meter’, so we’d write: t = 1×10−15 s ≈ 299.8×10−9 mt. Likewise, we could add a little subscript when measuring distance in light-seconds, so we’d write x = 3×10m ≈ 1 sd, rather than x = 3×10m [x] ≈ 1 s [x].

If you wish, we could refer to the ‘light-meter’ as a ‘time-meter’ (or a meter of time), and to the light-second as a ‘distance-second’ (or a second of distance). It doesn’t matter what you call it, or how you denote it. In fact, you will never hear of a meter of time, nor will you ever see those subscripts or brackets. But that’s because physicists always keep track of the dimensions of an equation, and so they know. They know, for example, that the dimension of energy combines the dimensions of both force as well as distance, so we write: [energy] = [force]·[distance]. Read: energy amounts to applying a force over a distance. Likewise, momentum amounts to applying some force over some time, so we write: [momentum] = [force]·[time]. Using the usual symbols for energy, momentum, force, distance and time respectively, we can write this as [E] = [F]·[x] and [p] = [F]·[t]. Using the units you know, i.e. joulenewton, meter and seconds, we can also write this as: 1 J = 1 N·m and 1…

Hey! Wait a minute! What’s that N·s unit for momentum? Momentum is mass times velocity, isn’t it? It is. But it amounts to the same. Remember that mass is a measure for the inertia of an object, and so mass is measured with reference to some force (F) and some acceleration (a): F = m·⇔ m = F/a. Hence, [m] = kg = [F/a] = N/(m/s2) = N·s2/m. [Note that the m in the brackets is symbol for mass but the other m is a meter!] So the unit of momentum is (N·s2/m)·(m/s) = N·s = newton·second.

Now, the dimension of Planck’s constant is the dimension of action, which combines all dimensions: force, time and distance. We write: ħ ≈ 1.0545718×10−34 N·m·s (newton·meter·second). That’s great, and I’ll show why in a moment. But, at this point, you should just note that when we write that E = m = p = ħ/2, we’re just saying they are numerically the same. The dimensions of E, m and p are not the same. So what we’re really saying is the following:

1. The quantum of energy is ħ/2 newton·meter ≈ 0.527286×10−34 N·m.
2. The quantum of momentum is ħ/2 newton·second ≈ 0.527286×10−34 N·s.

What’s the quantum of mass? That’s where the equivalent units come in. We wrote: 1 kg = 1 N·s2/m. So we could substitute the distance unit in this equation (m) by sd/= sd/(3×108). So we get: 1 kg = 3×108 N·s2/sd. Can we scrap both ‘seconds’ and say that the quantum of mass (ħ/2) is equal to the quantum of momentum? Think about it.

[…]

The answer is… Yes and no—but much more no than yes! The two sides of the equation are only numerically equal, but we’re talking a different dimension here. If we’d write that 1 kg = 0.527286×10−34 N·s2/sd = 0.527286×10−34 N·s, you’d be equating two dimensions that are fundamentally different: space versus time. To reinforce the point, think of it the other way: think of substituting the second (s) for 3×10m. Again, you’d make a mistake. You’d have to write 0.527286×10−34 N·(mt)2/m, and you should not assume that a time-meter is equal to a distance-meter. They’re equivalent units, and so you can use them to get some number right, but they’re not equal: what they measure, is fundamentally different. A time-meter measures time, while a distance-meter measure distance. It’s as simple as that. So what is it then? Well… What we can do is remember Einstein’s energy-mass equivalence relation once more: E = m·c2 (and m is the mass here). Just check the dimensions once more: [m]·[c2] = (N·s2/m)·(m2/s2) = N·m. So we should think of the quantum of mass as the quantum of energy, as energy and mass are equivalent, really.

#### Back to the wavefunction

The beauty of the construct of the wavefunction resides in several mathematical properties of this construct. The first is its argument:

θ = kx − ωt, with k = p/ħ and ω = E/ħ

Its dimension is the dimension of an angle: we express in it in radians. What’s a radian? You might think that a radian is a distance unit because… Well… Look at how we measure an angle in radians below:

But you’re wrong. An angle’s measurement in radians is numerically equal to the length of the corresponding arc of the unit circle but… Well… Numerically only. 🙂 Just do a dimensional analysis of θ = kx − ωt = (p/ħ)·x − (E/ħ)·t. The dimension of p/ħ is (N·s)/(N·m·s) = 1/m = m−1, so we get some quantity expressed per meter, which we then multiply by x, so we get a pure number. No dimension whatsoever! Likewise, the dimension of E/ħ is (N·m)/(N·m·s) = 1/s = s−1, which we then multiply by t, so we get another pure number, which we then add to get our argument θ. Hence, Planck’s quantum of action (ħ) does two things for us:

1. It expresses p and E in units of ħ.
2. It sorts out the dimensions, ensuring our argument is a dimensionless number indeed.

In fact, I’d say the ħ in the (p/ħ)·x term in the argument is a different ħ than the ħ in the (E/ħ)·t term. Huh? What? Yes. Think of the distinction I made between s and sd, or between m and mt. Both were numerically the same: they captured a magnitude, but they measured different things. We’ve got the same thing here:

1. The meter (m) in ħ ≈ 1.0545718×10−34 N·m·s in (p/ħ)·x is the dimension of x, and so it gets rid of the distance dimension. So the m in ħ ≈ 1.0545718×10−34 m·s goes, and what’s left measures p in terms of units equal to 1.0545718×10−34 N·s, so we get a pure number indeed.
2. Likewise, the second (s) in ħ ≈ 1.0545718×10−34 N·m·s in (E/ħ)·t is the dimension of t, and so it gets rid of the time dimension. So the s in ħ ≈ 1.0545718×10−34 N·m·s goes, and what’s left measures E in terms of units equal to 1.0545718×10−34 N·m, so we get another pure number.
3. Adding both gives us the argument θ: a pure number that measures some angle.

That’s why you need to watch out when writing θ = (p/ħ)·x − (E/ħ)·t as θ = (p·x − E·t)/ħ or – in the case of our elementary wavefunction for the zero-mass particle – as θ = (x/2 − t/2) = (x − t)/2. You can do it – in fact, you should do when trying to calculate something – but you need to be aware that you’re making abstraction of the dimensions. That’s quite OK, as you’re just calculating something—but don’t forget the physics behind!

You’ll immediately ask: what are the physics behind here? Well… I don’t know. Perhaps nobody knows. As Feynman once famously said: “I think I can safely say that nobody understands quantum mechanics.” But then he never wrote that, and I am sure he didn’t really mean that. And then he said that back in 1964, which is 50 years ago now. 🙂 So let’s try to understand it at least. 🙂

Planck’s quantum of action – 1.0545718×10−34 N·m·s – comes to us as a mysterious quantity. A quantity is more than a a number. A number is something like π or e, for example. It might be a complex number, like eiθ, but that’s still a number. In contrast, a quantity has some dimension, or some combination of dimensions. A quantity may be a scalar quantity (like distance), or a vector quantity (like a field vector). In this particular case (Planck’s ħ or h), we’ve got a physical constant combining three dimensions: force, time and distance—or space, if you want.  It’s a quantum, so it comes as a blob—or a lump, if you prefer that word. However, as I see it, we can sort of project it in space as well as in time. In fact, if this blob is going to move in spacetime, then it will move in space as well as in time: t will go from 0 to 1, and x goes from 0 to ± 1, depending on what direction we’re going. So when I write that E = p = ħ/2—which, let me remind you, are two numerical equations, really—I sort of split Planck’s quantum over E = m and p respectively.

You’ll say: what kind of projection or split is that? When projecting some vector, we’ll usually have some sine and cosine, or a 1/√2 factor—or whatever, but not a clean 1/2 factor. Well… I have no answer to that, except that this split fits our mathematical construct. Or… Well… I should say: my mathematical construct. Because what I want to find is this clean Schrödinger equation:

∂ψ/∂t = i·(ħ/2m)·∇2ψ = i·∇2ψ for m = ħ/2

Now I can only get this equation if (1) E = m = p and (2) if m = ħ/2 (which amounts to writing that E = p = m = ħ/2). There’s also the Uncertainty Principle. If we are going to consider the quantum vacuum, i.e. if we’re going to look at space (or distance) and time as count variables, then Δx and Δt in the ΔxΔp = ΔEΔt = ħ/2 equations are ± 1 and, therefore, Δp and ΔE must be ± ħ/2. In any case, I am not going to try to justify my particular projection here. Let’s see what comes out of it.

#### The quantum vacuum

Schrödinger’s equation for my zero-mass particle (with energy E = m = p = ħ/2) amounts to writing:

1. Re(∂ψ/∂t) = −Im(∇2ψ)
2. Im(∂ψ/∂t) = Re(∇2ψ)

Now that reminds of the propagation mechanism for the electromagnetic wave, which we wrote as ∂B/∂t = –∇×and E/∂t = ∇×B, also assuming we measure time and distance in equivalent units. However, we’ll come back to that later. Let’s first study the equation we have, i.e.

ei(kx − ωt) = ei(ħ·x/2 − ħ·t/2)/ħ = ei(x/2 − t/2) = cos[(x−t)/2] + i∙sin[(x−t)/2]

Let’s think some more. What is that ei(x/2 − t/2) function? It’s subject to conceiving time and distance as countable variables, right? I am tempted to say: as discrete variables, but I won’t go that far—not now—because the countability may be related to a particular interpretation of quantum physics. So I need to think about that. In any case… The point is that x can only take on values like 0, 1, 2, etcetera. And the same goes for t. To make things easy, we’ll not consider negative values for x right now (and, obviously, not for t either). But you can easily check it doesn’t make a difference: if you think of the propagation mechanism – which is what we’re trying to model here – then x is always positive, because we’re moving away from some source that caused the wave. In any case, we’ve got a infinite set of points like:

• ei(0/2 − 0/2) ei(0) = cos(0) + i∙sin(0)
• ei(1/2 − 0/2) = ei(1/2) = cos(1/2) + i∙sin(1/2)
• ei(0/2 − 1/2) = ei(−1/2) = cos(−1/2) + i∙sin(−1/2)
• ei(1/2 − 1/2) = ei(0) = cos(0) + i∙sin(0)

In my previous post, I calculated the real and imaginary part of this wavefunction for x going from 0 to 14 (as mentioned, in steps of 1) and for t doing the same (also in steps of 1), and what we got looked pretty good:

I also said that, if you wonder how the quantum vacuum could possibly look like, you should probably think of these discrete spacetime points, and some complex-valued wave that travels as illustrated above. In case you wonder what’s being illustrated here: the right-hand graph is the cosine value for all possible x = 0, 1, 2,… and t = 0, 1, 2,… combinations, and the left-hand graph depicts the sine values, so that’s the imaginary part of our wavefunction. Taking the absolute square of both gives 1 for all combinations. So it’s obvious we’d need to normalize and, more importantly, we’d have to localize the particle by adding several of these waves with the appropriate contributions. But so that’s not our worry right now. I want to check whether those discrete time and distance units actually make sense. What’s their size? Is it anything like the Planck length (for distance) and/or the Planck time?

Let’s see. What are the implications of our model? The question here is: if ħ/2 is the quantum of energy, and the quantum of momentum, what’s the quantum of force, and the quantum of time and/or distance?

Huh? Yep. We treated distance and time as countable variables above, but now we’d like to express the difference between x = 0 and x = 1 and between t = 0 and t = 1 in the units we know, this is in meter and in seconds. So how do we go about that? Do we have enough equations here? Not sure. Let’s see…

We obviously need to keep track of the various dimensions here, so let’s refer to that discrete distance and time unit as tand lP respectively. The subscript (P) refers to Planck, and the refers to a length, but we’re likely to find something else than Planck units. I just need placeholder symbols here. To be clear: tand lP are expressed in meter and seconds respectively, just like the actual Planck time and distance, which are equal to 5.391×10−44 s (more or less) and  1.6162×10−35 m (more or less) respectively. As I mentioned above, we get these Planck units by equating fundamental physical constants to 1. Just check it: (1.6162×10−35 m)/(5.391×10−44 s) = ≈ 3×10m/s. So the following relation must be true: lP = c·tP, or lP/t= c.

Now, as mentioned above, there must be some quantum of force as well, which we’ll write as FP, and which is – obviously – expressed in newton (N). So we have:

1. E = ħ/2 ⇒ 0.527286×10−34 N·m = FP·lN·m
2. p = ħ/2 ⇒ 0.527286×10−34 N·s = FP·tN·s

Let’s try to divide both formulas: E/p = (FP·lN·m)/(FP·tN·s) = lP/tP m/s = lP/tP m/s = c m/s. That’s consistent with the E/p = equation. Hmm… We found what we knew already. My model is not fully determined, it seems. 😦

What about the following simplistic approach? E is numerically equal to 0.527286×10−34, and its dimension is [E] = [F]·[x], so we write: E = 0.527286×10−34·[E] = 0.527286×10−34·[F]·[x]. Hence, [x] = [E]/[F] = (N·m)/N = m. That just confirms what we already know: the quantum of distance (i.e. our fundamental unit of distance) can be expressed in meter. But our model does not give that fundamental unit. It only gives us its dimension (meter), which is stuff we knew from the start. 😦

Let’s try something else. Let’s just accept that Planck length and time, so we write:

• lP = 1.6162×10−35 m
• t= 5.391×10−44 s

Now, if the quantum of action is equal to ħ N·m·s = FP·lP·tP N·m·s = 1.0545718×10−34 N·m·s, and if the two definitions of land tP above hold, then 1.0545718×10−34 N·m·s = (FN)×(1.6162×10−35 m)×(5.391×10−44 s) ≈ FP  8.713×10−79 N·m·s ⇔ FP ≈ 1.21×1044 N.

Does that make sense? It does according to Wikipedia, but how do we relate this to our E = p = m = ħ/2 equations? Let’s try this:

1. EP = (1.0545718×10−34 N·m·s)/(5.391×10−44 s) = 1.956×109 J. That corresponds to the regular Planck energy.
2. pP = (1.0545718×10−34 N·m·s)/(1.6162×10−35 m) = 0.6525 N·s. That corresponds to the regular Planck momentum.

Is EP = pP? Let’s substitute: 1.956×109 N·m = 1.956×109 N·(s/c) = 1.956×109/2.998×10N·s = 0.6525 N·s. So, yes, it comes out alright. In fact, I omitted the 1/2 factor in the calculations, but it doesn’t matter: it does come out alright. So I did not prove that the difference between my x = 0 and x = 1 points (or my t = 0 and t  = 1 points) is equal to the Planck length (or the Planck time unit), but I did show my theory is, at the very least, compatible with those units. That’s more than enough for now. And I’ll come surely come back to it in my next post. 🙂

Post Scriptum: One must solve the following equations to get the fundamental Planck units:

We have five fundamental equations for five fundamental quantities respectively: tP, lP, FP, mP, and EP respectively, so that’s OK: it’s a fully determined system alright! But where do the expressions with G, kB (the Boltzmann constant) and ε0 come from? What does it mean to equate those constants to 1? Well… I need to think about that, and I’ll get back to you on it. 🙂

# Strings in classical and quantum physics

Pre-scriptum (dated 26 June 2020): These posts on elementary math and physics have not suffered much from the attack by the dark force—which is good because I still like them. While my views on the true nature of light, matter and the force or forces that act on them have evolved significantly as part of my explorations of a more realist (classical) explanation of quantum mechanics, I think most (if not all) of the analysis in this post remains valid and fun to read. In fact, I find the simplest stuff is often the best. 🙂

Original post:

This post is not about string theory. The goal of this post is much more limited: it’s to give you a better understanding of why the metaphor of the string is so appealing. Let’s recapitulate the basics by see how it’s used in classical as well as in quantum physics.

In my posts on music and math, or music and physics, I described how a simple single string always vibrates in various modes at the same time: every tone is a mixture of an infinite number of elementary waves. These elementary waves, which are referred to as harmonics (or as (normal) modes, indeed) are perfectly sinusoidal, and their amplitude determines their relative contribution to the composite waveform. So we can always write the waveform F(t) as the following sum:

F(t) = a1sin(ωt) + a2sin(2ωt) + a3sin(3ωt) + … + ansin(nωt) + …

[If this is your first reading of my post, and the formula shies you away, please try again. I am writing most of my posts with teenage kids in mind, and especially this one. So I will not use anything else than simple arithmetic in this post: no integrals, no complex numbers, no logarithms. Just a bit of geometry. That’s all. So, yes, you should go through the trouble of trying to understand this formula. The only thing that you may have some trouble with is ω, i.e. angular frequency: it’s the frequency expressed in radians per time unit, rather than oscillations per second, so ω = 2π·f = 2π/T, with the frequency as you know it (i.e. oscillations per second) and T the period of the wave.]

I also noted that the wavelength of these component waves (λ) is determined by the length of the string (L), and by its length only: λ1 = 2L, λ2 = L, λ3 = (2/3)·L. So these wavelengths do not depend on the material of the string, or its tension. At any point in time (so keeping t constant, rather than x, as we did in the equation above), the component waves look like this:

etcetera (1/8, 1/9,…,1/n,… 1/∞)

That the wavelengths of the harmonics of any actual string only depend on its length is an amazing result in light of the complexities behind: a simple wound guitar string, for example, is not simple at all (just click the link here for a quick introduction to guitar string construction). Simple piano wire isn’t simple either: it’s made of high-carbon steel, i.e. a very complex metallic alloy. In fact, you should never think any material is simple: even the simplest molecular structures are very complicated things. Hence, it’s quite amazing all these systems are actually linear systems and that, despite the underlying complexity, those wavelength ratios form a simple harmonic series, i.e. a simple reciprocal function y = 1/x, as illustrated below.

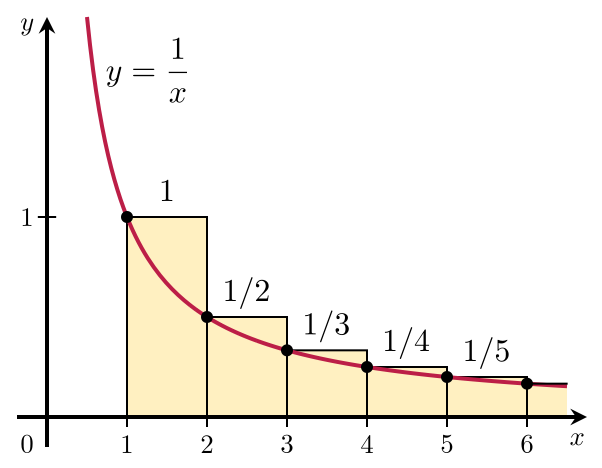

A simple harmonic series? Hmm… I can’t resist noting that the harmonic series is, in fact, a mathematical beast. While its terms approach zero as x (or n) increases, the series itself is divergent. So it’s not like 1+1/2+1/4+1/8+…+1/2n+…, which adds up to 2. Divergent series don’t add up to any specific number. Even Leonhard Euler – the most famous mathematician of all times, perhaps – struggled with this. In fact, as late as in 1826, another famous mathematician, Niels Henrik Abel (in light of the fact he died at age 26 (!), his legacy is truly amazing), exclaimed that a series like this was “an invention of the devil”, and that it should not be used in any mathematical proof. But then God intervened through Abel’s contemporary Augustin-Louis Cauchy 🙂 who finally cracked the nut by rigorously defining the mathematical concept of both convergent as well as divergent series, and equally rigorously determining their possibilities and limits in mathematical proofs. In fact, while medieval mathematicians had already grasped the essentials of modern calculus and, hence, had already given some kind of solution to Zeno’s paradox of motion, Cauchy’s work is the full and final solution to it. But I am getting distracted, so let me get back to the main story.

More remarkable than the wavelength series itself, is its implication for the respective energy levels of all these modes. The material of the string, its diameter, its tension, etc will determine the speed with which the wave travels up and down the string. [Yes, that’s what it does: you may think the string oscillates up and down, and it does, but the waveform itself travels along the string. In fact, as I explained in my previous post, we’ve got two waves traveling simultaneously: one going one way and the other going the other.] For a specific string, that speed (i.e. the wave velocity) is some constant, which we’ll denote by c. Now, is, obviously, the product of the wavelength (i.e. the distance that the wave travels during one oscillation) and its frequency (i.e. the number of oscillations per time unit), so c = λ·f. Hence, f = c/λ and, therefore, f1 = (1/2)·c/L, f2 = (2/2)·c/L, f3 = (3/2)·c/L, etcetera. More in general, we write fn = (n/2)·c/L. In short, the frequencies are equally spaced. To be precise, they are all (1/2)·c/L apart.

Now, the energy of a wave is directly proportional to its frequency, always, in classical as well as in quantum mechanics. For example, for photons, we have the Planck-Einstein relation: E = h·f = ħ·ω. So that relation states that the energy is proportional to the (light) frequency of the photon, with h (i.e. he Planck constant) as the constant of proportionality. [Note that ħ is not some different constant. It’s just the ‘angular equivalent’ of h, so we have to use ħ = h/2π when frequencies are expressed in angular frequency, i.e. radians per second rather than hertz.] Because of that proportionality, the energy levels of our simple string are also equally spaced and, hence, inserting another proportionality constant, which I’ll denote by a instead of (because it’s some other constant, obviously), we can write:

En = a·fn = (n/2)·a·c/L

Now, if we denote the fundamental frequency f1 = (1/2)·c/L, quite simply, by f (and, likewise, its angular frequency as ω), then we can re-write this as:

En = n·a·f = n·ā·ω (ā = a/2π)

This formula is exactly the same as the formula used in quantum mechanics when describing atoms as atomic oscillators, and why and how they radiate light (think of the blackbody radiation problem, for example), as illustrated below: En = n·ħ·ω = n·h·f. The only difference between the formulas is the proportionality constant: instead of a, we have Planck’s constant here: h, or ħ when the frequency is expressed as an angular frequency.

This grand result – that the energy levels associated with the various states or modes of a system are equally spaced – is referred to as the equipartition theorem in physics, and it is what connects classical and quantum physics in a very deep and fundamental way.

In fact, because they’re nothing but proportionality constants, the value of both a and h depends on our units. If w’d use the so-called natural units, i.e. equating ħ to 1, the energy formula becomes En = n·ω, and, hence, our unit of energy and our unit of frequency become one and the same. In fact, we can, of course, also re-define our time unit such that the fundamental frequency ω is one, i.e. one oscillation per (re-defined) time unit, so then we have the following remarkable formula:

En = n

Just think about it for a moment: what I am writing here is E0 = 0, E1 = 1, E2 = 2, E3 = 3, E4 = 4, etcetera. Isn’t that amazing? I am describing the structure of a system here – be it an atom emitting or absorbing photons, or a macro-thing like a guitar string – in terms of its basic components (i.e. its modes), and it’s as simple as counting: 0, 1, 2, 3, 4, etc.

You may think I am not describing anything real here, but I am. We cannot do whatever we wanna do: some stuff is grounded in reality, and in reality only—not in the math. Indeed, the fundamental frequency of our guitar string – which we used as our energy unit – is a property of the string, so that’s real: it’s not just some mathematical shape out: it depends on the string’s length (which determines its wavelength), and it also depends on the propagation speed of the wave, which depends on other basic properties of the string, such as its material, its diameter, and its tension. Likewise, the fundamental frequency of our atomic oscillator is a property of the atomic oscillator or, to use a much grander term, a property of the Universe. That’s why h is a fundamental physical constant. So it’s not like π or e. [When reading physics as a freshman, it’s always useful to clearly distinguish physical constants (like Avogadro’s number, for example) from mathematical constants (like Euler’s number).]

The theme that emerges here is what I’ve been saying a couple of times already: it’s all about structure, and the structure is amazingly simple. It’s really that equipartition theorem only: all you need to know is that the energy levels of the modes of a system – any system really: an atom, a molecular system, a string, or the Universe itself – are equally spaced, and that the space between the various energy levels depends on the fundamental frequency of the system. Moreover, if we use natural units, and also re-define our time unit so the fundamental frequency is equal to 1 (so the frequencies of the other modes are 2, 3, 4 etc), then the energy levels are just 0, 1, 2, 3, 4 etc. So, yes, God kept things extremely simple. 🙂

In order to not cause too much confusion, I should add that you should read what I am writing very carefully: I am talking the modes of a system. The system itself can have any energy level, of course, so there is no discreteness at the level of the system. I am not saying that we don’t have a continuum there. We do. What I am saying is that its energy level can always be written as a (potentially infinite) sum of the energies of its components, i.e. its fundamental modes, and those energy levels are discrete. In quantum-mechanical systems, their spacing is h·f, so that’s the product of Planck’s constant and the fundamental frequency. For our guitar, the spacing is a·f (or, using angular frequency, ā·ω: it’s the same amount). But that’s it really. That’s the structure of the Universe. 🙂

Let me conclude by saying something more about a. What information does it capture? Well… All of the specificities of the string (like its material or its tension) determine the fundamental frequency f and, hence, the energy levels of the basic modes of our string. So a has nothing to do with the particularities of our string, of our system in general. However, we can, of course, pluck our string very softly or, conversely, give it a big jolt. So our a coefficient is not related to the string as such, but to the total energy of our string. In other words, a is related to those amplitudes  a1, a2, etc in our F(t) = a1sin(ωt) + a2sin(2ωt) + a3sin(3ωt) + … + ansin(nωt) + … wave equation.

How exactly? Well… Based on the fact that the total energy of our wave is equal to the sum of the energies of all of its components, I could give you some formula. However, that formula does use an integral. It’s an easy integral: energy is proportional to the square of the amplitude, and so we’re integrating the square of the wave function over the length of the string. But then I said I would not have any integral in this post, and so I’ll stick to that. In any case, even without the formula, you know enough now. For example, one of the things you should be able to reflect on is the relation between a and h. It’s got to do with structure, of course. 🙂 But I’ll let you think about that yourself.

[…] Let me help you. Think of the meaning of Planck’s constant h. Let’s suppose we’d have some elementary ‘wavicle’, like that elementary ‘string’ that string theorists are trying to define: the smallest ‘thing’ possible. It would have some energy, i.e. some frequency. Perhaps it’s just one full oscillation. Just enough to define some wavelength and, hence, some frequency indeed. Then that thing would define the smallest time unit that makes sense: it would the time corresponding to one oscillation. In turn, because of the E = h·relation, it would define the smallest energy unit that makes sense. So, yes, h is the quantum (or fundamental unit) of energy. It’s very small indeed (h = 6.626070040(81)×10−34 J·s, so the first significant digit appears only after 33 zeroes behind the decimal point) but that’s because we’re living at the macro-scale and, hence, we’re measuring stuff in huge units: the joule (J) for energy, and the second (s) for time. In natural units, h would be one. [To be precise, physicist prefer to equate ħ, rather than h, to one when talking natural units. That’s because angular frequency is more ‘natural’ as well when discussing oscillations.]

What’s the conclusion? Well… Our will be some integer multiple of h. Some incredibly large multiple, of course, but a multiple nevertheless. 🙂

Post scriptum: I didn’t say anything about strings in this post or, let me qualify, about those elementary ‘strings’ that string theorists try to define. Do they exist? Feynman was quite skeptical about it. He was happy with the so-called Standard Model of phyics, and he would have been very happy to know that the existence Higgs field has been confirmed experimentally (that discovery is what prompted my blog!), because that confirms the Standard Model. The Standard Model distinguishes two types of wavicles: fermions and bosons. Fermions are matter particles, such as quarks and electrons. Bosons are force carriers, like photons and gluons. I don’t know anything about string theory, but my guts instinct tells me there must be more than just one mathematical description of reality. It’s the principle of duality: concepts, theorems or mathematical structures can be translated into other concepts, theorems or structures. But… Well… We’re not talking equivalent descriptions here: string theory is different theory, it seems. For a brief but totally incomprehensible overview (for novices at least), click on the following link, provided by the C.N. Yang Institute for Theoretical Physics. If anything, it shows I’ve got a lot more to study as I am inching forward on the difficult Road to Reality. 🙂
