Maxwell’s equations and the speed of light

We know how electromagnetic waves travel through space: they do so because of the mechanism described in Maxwell’s equation: a changing magnetic field causes a changing electric field, and a changing magnetic field causes a (changing) electric field, as illustrated below.

Maxwell interaction

So we need some First Cause to get it all started 🙂 i.e. some current, i.e. some moving charge, but then the electromagnetic wave travels, all by itself, through empty space, completely detached from the cause. You know that by now – indeed, you’ve heard this a thousand times before – but, if you’re reading this, you want to know how it works exactly. 🙂

In my post on the Lorentz gauge, I included a few links to Feynman’s Lectures that explain the nitty-gritty of this mechanism from various angles. However, they’re pretty horrendous to read, and so I just want to summarize them a bit—if only for myself, so as to remind myself what’s important and not. In this post, I’ll focus on the speed of light: why do electromagnetic waves – light – travel at the speed of light?

You’ll immediately say: that’s a nonsensical question. It’s light, so it travels at the speed of light. Sure, smart-arse! Let me be more precise: how can we relate the speed of light to Maxwell’s equations? That is the question here. Let’s go for it.

Feynman deals with the matter of the speed of an electromagnetic wave, and the speed of light, in a rather complicated exposé on the fields from some infinite sheet of charge that is suddenly set into motion, parallel to itself, as shown below. The situation looks – and actually is – very simple, but the math is rather messy because of the rather exotic assumptions: infinite sheets and infinite acceleration are not easy to deal with. 🙂 But so the whole point of the exposé is just to prove that the speed of propagation (v) of the electric and magnetic fields is equal to the speed of light (c), and it does a marvelous job at that. So let’s focus on that here only. So what I am saying is that I am going to leave out most of the nitty-gritty and just try to get to that v = result as fast as I possibly can. So, fasten your seat belt, please.

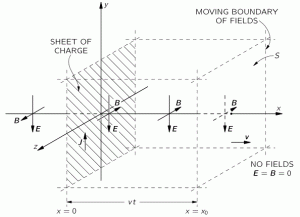

sheet of charge

Most of the nitty-gritty in Feynman’s exposé is about how to determine the direction and magnitude of the electric and magnetic fields, i.e. E and B. Now, when the nitty-gritty business is finished, the grand conclusion is that both E and B travel out in both the positive as well as the negative x-direction at some speed v and sort of ‘fill’ the entire space as they do. Now, the region they are filling extends infinitely far in both the y- and z-direction but, because they travel along the x-axis, there are no fields (yet) in the region beyond x = ± v·t (t = 0 is the moment when the sheet started moving, and it moves in the positive y-direction). As you can see, the sheet of charge fills the yz-plane, and the assumption is that its speed goes from zero to u instantaneously, or very very quickly at least. So the E and B fields move out like a tidal wave, as illustrated below, and thereby ‘fill’ the space indeed, as they move out.

tidal wave

The magnitude of E and B is constant, but it’s not the same constant, and part of the exercise here is to determine the relationship between the two constants. As for their direction, you can see it in the first illustration: B points in the negative z-direction for x > 0 and in the positive z-direction for x < 0, while E‘s direction is opposite to u‘s direction everywhere, so E points in the negative y-direction. As said, you should just take my word for it, because the nitty-gritty on this – which we do not want to deal with here – is all in Feynman and so I don’t want to copy that.

The crux of the argument revolves around what happens at the wavefront itself, as it travels out. Feynman relates flux and circulation there. It’s the typical thing to do: it’s at the wavefront itself that the fields change: before they were zero, and now they are equal to that constant. The fields do not change anywhere else, so there’s no changing flux or circulation business to be analyzed anywhere else. So we define two loops at the wavefront itself: Γ1 and Γ2. They are normal to each other (cf. the top and side view of the situation below), because the E and B fields are normal to each other. And so then we use Maxwell’s equations to check out what happens with the flux and circulation there and conclude what needs to be concluded. 🙂

top view side view

We start with rectangle Γ2. So one side is in the region where there are fields, and one side is in the region where the fields haven’t reached yet. There is some magnetic flux through this loop, and it is changing, so there is an emf around it, i.e. some circulation of E. The flux changes because the area in which B exists increases at speed v. Now, the time rate of change of the flux is, obviously, the width of the rectangle L times the rate of change of the area, so that’s (B·L·v·Δt)/Δt = B·L·v, with Δt some differential time interval co-defining how slow or how fast the field changes. Now, according to Faraday’s Law (see my previous post), this will be equal to minus the line integral of E around Γ2, which is E·L. So E·L = B·L·v and, hence, we find: E = v·B.

Interesting! To satisfy Faraday’s equation (which is just one of Maxwell’s equations in integral rather than in differential form), E must equal B times v, with v the speed of propagation of our ‘tidal’ wave. Now let’s look at Γ1. There we should apply:

IntegralNow the line integral is just B·L, and the right-hand side is E·L·v, so, not forgetting that c2 in front—i.e. the square of the speed of light, as you know!—we get: c2B = E·v, or E = (c2/v)·B.

Now, the E = v·B and E = (c2/v)·B equations must both apply (we’re talking one wave and one and the same phenomenon) and, obviously, that’s only possible if v = c2/v, i.e. if v = c. So the wavefront must travel at the speed of light! Waw ! That’s fast. 🙂 Yes. […] Jokes aside, that’s the result we wanted here: we just proved that the speed of travel of an electromagnetic wave must be equal to the speed of light.

As an added bonus, we also showed the mechanism of travel. It’s obvious from the equations we used to prove the result: it works through the derivatives of the fields with respect to time, i.e. ∂E/∂t and ∂B/∂t.

Done! Great! Enjoy the view!

Well… Yes and no. If you’re smart, you’ll say: we got this result because of the c2 factor in that equation, so Maxwell had already put it in, so to speak. Waw! You really are a smart-arse, aren’t you? 🙂

The thing is… Well… The answer is: no. Maxwell did not put it in. Well… Yes and no. Let me explain. Maxwell’s first equation was the electric flux law ·E = σ/ε0: the flux of E through a closed surface is proportional to the charge inside. So that’s basically an other way of writing Coulomb’s Law, and ε0 was just some constant in it, the electric constant. So it’s a constant of proportionality that depends on the unit in which we measure electric charge. The only reason that it’s there is to make the units come out alright, so if we’d measure charge not in coulomb (C) in a unit equal to 1 C/ε0, it would disappear. If we’d do that, our new unit would be equivalent to the charge of some 700,000 protons. You can figure that magical number yourself by checking the values of the proton charge and ε0. 🙂

OK. And then Faraday came up with the exact laws for magnetism, and they involved current and some other constant of proportionality, and Maxwell formalized that by writing ×B = μ0j, with μ0 the magnetic constant. It’s not a flux law but a circulation law: currents cause circulation of B. We get the flux rule from it by integrating it. But currents are moving charges, and so Maxwell knew magnetism was related to the same thing: electric charge. So Maxwell knew the two constants had to be related. In fact, when putting the full set of equations together – there are four, as you know – Maxwell figured out that μtimes εwould have to be equal to the reciprocal of c2, with the speed of propagation of the wave. So Maxwell knew that, whatever the unit of charge, we’d get two constants of proportionality, and electric and a magnetic constant, and that μ0·εwould be equal to 1/c2. However, while he knew that, at the time, light and electromagnetism were considered to be separate phenomena, and so Maxwell did not say that c was the speed of light: the only thing his equations told him was that is the speed of propagation of that ‘electromagnetic’ wave that came out of his equations.

The rest is history. In 1856, the great Wilhelm Eduard Weber – you’ve seen his name before, didn’t you? – did a whole bunch of experiments which measured the electric constant rather precisely, and Maxwell jumped on it and calculated all the rest, i.e. μ0, and so then he took the reciprocal of the square root of μ0·εand – Bang! – he had c, the speed of propagation of the electromagnetic wave he was thinking of. Now, was some value of the order of 3×108 m/s, and so that happened to be the same as the speed of light, which suggested that Maxwell’s c and the speed of light were actually one and the same thing!

Now, I am a smart-arse too 🙂 and, hence, when I first heard this story, I actually wondered how Maxwell could possibly know the speed of light at the time: Maxwell died many years before the Michelson-Morley experiment unequivocally established the value of the speed of light. [In case, you wonder: the Michelson-Morley experiment was done in 1887. So I check it. The fact is that the Michelson-Morley experiment concluded that the speed of light was an absolute value and that, in the process of doing so, they got a rather precise value for it, but the value of itself has already been established, more or less, that is, by a Danish astronomer, Ole Römer, in 1676 ! He did so by carefully observing the timing of the repeating eclipses of Io, one of Jupiter’s moons. Newton mentioned his results in his Principia, which he wrote in 1687, duly noting that it takes about seven to eight minutes for light to travel from the Sun to the Earth. Done! The whole story is fascinating, really, so you should check it out yourself. 🙂

In any case, to make a long story short, Maxwell was puzzled by this mysterious coincidence, but he was bold enough to immediately point to the right conclusion, tentatively at least, and so he told the Cambridge Philosophical Society, in the very same year, i.e. 1856, that “we can scarcely avoid the inference that light consists in the transverse undulations of the same medium which is the cause of electric and magnetic phenomena.”

So… Well… Maxwell still suggests light needs some medium here, so the ‘medium’ is a reference to the infamous aether theory, but that’s not the point: what he says here is what we all take for granted now: light is an electromagnetic wave. So now we know there’s absolute no reason whatsoever to avoid the ‘inference’, but… Well… 160 years ago, it was quite a big deal to suggest something like that. 🙂

So that’s the full story. I hoped you like it. Don’t underestimate what you just did: understanding an argument like this is like “climbing a great peak”, as Feynman puts it. So it is “a great moment” indeed. 🙂 The only thing left is, perhaps, to explain the ‘other’ flux rules I used above. Indeed, you know Faraday’s Law:

emf

But that other one? Well… As I explained in my previous post, Faraday’s Law is the integral form of Maxwell’s second equation: −∂B/∂t = ×E. The ‘other’ flux rule above – so that’s the one with the c2 in front and without a minus sign, is the integral form of Maxwell’s fourth equation: c2×= j+ ∂E/∂t, taking into account that we’re talking a wave traveling in free space, so there are no charges and currents (it’s just a wave in empty space—whatever that means) and, hence, the Maxwell equation reduces to c2×= ∂E/∂t. Now, I could take you through the same gymnastics as I did in my previous post but, if I were you, I’d just apply the general principle that ”the same equations must yield the same solutions” and so I’d just switch E for B and vice versa in Faraday’s equation. 🙂

So we’re done… Well… Perhaps one more thing. We’ve got these flux rules above telling us that the electromagnetic wave will travel all by itself, through empty space, completely detached from its First Cause. But… […] Well… Again you may think there’s some trick here. In other words, you may think the wavefront has to remain connected to the First Cause somehow, just like the whip below is connected to some person whipping it. 🙂

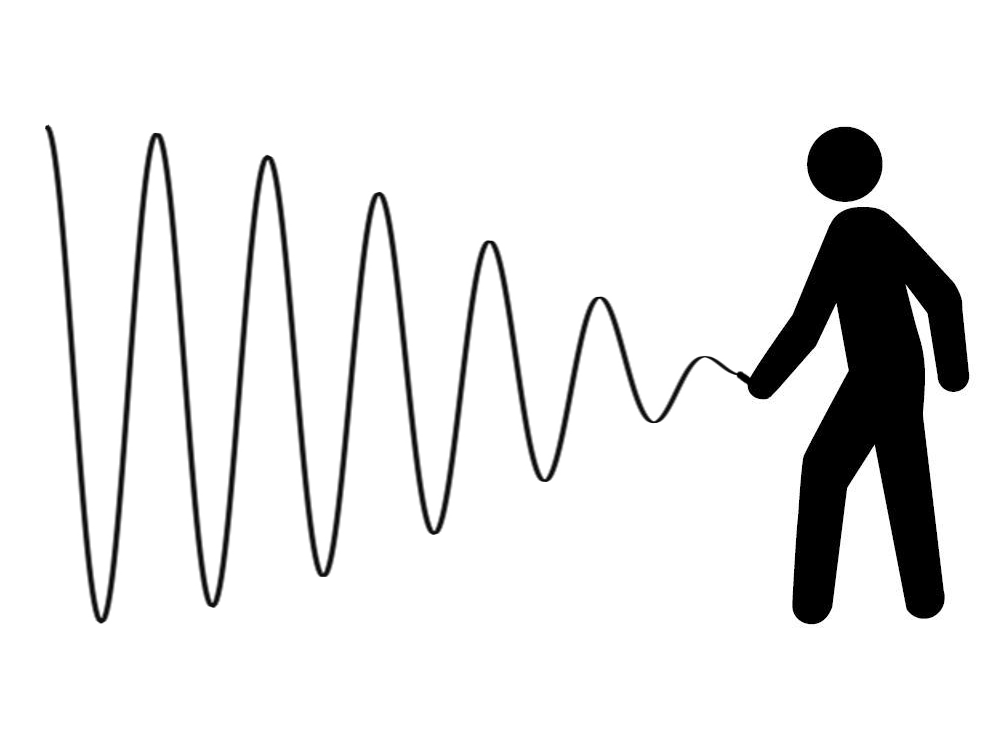

Bullwhip_effect

There’s no such connection. The whip is not needed. 🙂 If we’d switch off the First Cause after some time T, so our moving sheet stops moving, then we’d have the pulse below traveling through empty space. As Feynman puts it: “The fields have taken off: they are freely propagating through space, no longer connected in any way with the source. The caterpillar has turned into a butterfly!

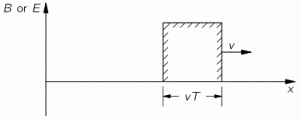

wavefront

Now, the last question is always the same: what are those fields? What’s their reality? Here, I should refer you to one of the most delightful sections in Feynman’s Lectures. It’s on the scientific imagination. I’ll just quote the introduction to it, but I warmly recommend you go and check it out for yourself: it has no formulas whatsoever, and so you should understand all of it without any problem at all. 🙂

“I have asked you to imagine these electric and magnetic fields. What do you do? Do you know how? How do I imagine the electric and magnetic field? What do I actually see? What are the demands of scientific imagination? Is it any different from trying to imagine that the room is full of invisible angels? No, it is not like imagining invisible angels. It requires a much higher degree of imagination to understand the electromagnetic field than to understand invisible angels. Why? Because to make invisible angels understandable, all I have to do is to alter their properties a little bit—I make them slightly visible, and then I can see the shapes of their wings, and bodies, and halos. Once I succeed in imagining a visible angel, the abstraction required—which is to take almost invisible angels and imagine them completely invisible—is relatively easy. So you say, “Professor, please give me an approximate description of the electromagnetic waves, even though it may be slightly inaccurate, so that I too can see them as well as I can see almost invisible angels. Then I will modify the picture to the necessary abstraction.”

I’m sorry I can’t do that for you. I don’t know how. I have no picture of this electromagnetic field that is in any sense accurate. I have known about the electromagnetic field a long time—I was in the same position 25 years ago that you are now, and I have had 25 years more of experience thinking about these wiggling waves. When I start describing the magnetic field moving through space, I speak of the and fields and wave my arms and you may imagine that I can see them. I’ll tell you what I see. I see some kind of vague shadowy, wiggling lines—here and there is an E and a B written on them somehow, and perhaps some of the lines have arrows on them—an arrow here or there which disappears when I look too closely at it. When I talk about the fields swishing through space, I have a terrible confusion between the symbols I use to describe the objects and the objects themselves. I cannot really make a picture that is even nearly like the true waves. So if you have some difficulty in making such a picture, you should not be worried that your difficulty is unusual.

Our science makes terrific demands on the imagination. The degree of imagination that is required is much more extreme than that required for some of the ancient ideas. The modern ideas are much harder to imagine. We use a lot of tools, though. We use mathematical equations and rules, and make a lot of pictures. What I realize now is that when I talk about the electromagnetic field in space, I see some kind of a superposition of all of the diagrams which I’ve ever seen drawn about them. I don’t see little bundles of field lines running about because it worries me that if I ran at a different speed the bundles would disappear, I don’t even always see the electric and magnetic fields because sometimes I think I should have made a picture with the vector potential and the scalar potential, for those were perhaps the more physically significant things that were wiggling.

Perhaps the only hope, you say, is to take a mathematical view. Now what is a mathematical view? From a mathematical view, there is an electric field vector and a magnetic field vector at every point in space; that is, there are six numbers associated with every point. Can you imagine six numbers associated with each point in space? That’s too hard. Can you imagine even one number associated with every point? I cannot! I can imagine such a thing as the temperature at every point in space. That seems to be understandable. There is a hotness and coldness that varies from place to place. But I honestly do not understand the idea of a number at every point.

So perhaps we should put the question: Can we represent the electric field by something more like a temperature, say like the displacement of a piece of jello? Suppose that we were to begin by imagining that the world was filled with thin jello and that the fields represented some distortion—say a stretching or twisting—of the jello. Then we could visualize the field. After we “see” what it is like we could abstract the jello away. For many years that’s what people tried to do. Maxwell, Ampère, Faraday, and others tried to understand electromagnetism this way. (Sometimes they called the abstract jello “ether.”) But it turned out that the attempt to imagine the electromagnetic field in that way was really standing in the way of progress. We are unfortunately limited to abstractions, to using instruments to detect the field, to using mathematical symbols to describe the field, etc. But nevertheless, in some sense the fields are real, because after we are all finished fiddling around with mathematical equations—with or without making pictures and drawings or trying to visualize the thing—we can still make the instruments detect the signals from Mariner II and find out about galaxies a billion miles away, and so on.

The whole question of imagination in science is often misunderstood by people in other disciplines. They try to test our imagination in the following way. They say, “Here is a picture of some people in a situation. What do you imagine will happen next?” When we say, “I can’t imagine,” they may think we have a weak imagination. They overlook the fact that whatever we are allowed to imagine in science must be consistent with everything else we know: that the electric fields and the waves we talk about are not just some happy thoughts which we are free to make as we wish, but ideas which must be consistent with all the laws of physics we know. We can’t allow ourselves to seriously imagine things which are obviously in contradiction to the known laws of nature. And so our kind of imagination is quite a difficult game. One has to have the imagination to think of something that has never been seen before, never been heard of before. At the same time the thoughts are restricted in a strait jacket, so to speak, limited by the conditions that come from our knowledge of the way nature really is. The problem of creating something which is new, but which is consistent with everything which has been seen before, is one of extreme difficulty.”

Isn’t that great? I mean: Feynman, one of the greatest physicists of all time, didn’t write what he wrote above when he was a undergrad student or so. No. He did so in 1964, when he was 45 years old, at the height of his scientific career! And it gets better, because Feynman then starts talking about beauty. What is beauty in science? Well… Just click and check what Feynman thinks about it. 🙂

Oh… Last thing. So what is the magnitude of the E and B field? Well… You can work it out yourself, but I’ll give you the answer. The geometry of the situation makes it clear that the electric field has a y-component only, and the magnetic field a z-component only. Their magnitudes are given in terms of J, i.e. the surface current density going in the positive y-direction:

equation

The Strange Theory of Light and Matter (III)

This is my third and final comments on Feynman’s popular little booklet: The Strange Theory of Light and Matter, also known as Feynman’s Lectures on Quantum Electrodynamics (QED).

The origin of this short lecture series is quite moving: the death of Alix G. Mautner, a good friend of Feynman’s. She was always curious about physics but her career was in English literature and so she did not manage the math. Hence, Feynman introduces this 1985 publication by writing: “Here are the lectures I really prepared for Alix, but unfortunately I can’t tell them to her directly, now.”

Alix Mautner died from a brain tumor, and it is her husband, Leonard Mautner, who sponsored the QED lectures series at the UCLA, which Ralph Leigton transcribed and published as the booklet that we’re talking about here. Feynman himself died a few years later, at the relatively young age of 69. Tragic coincidence: he died of cancer too. Despite all this weirdness, Feynman’s QED never quite got the same iconic status of, let’s say, Stephen Hawking’s Brief History of Time. I wonder why, but the answer to that question is probably in the realm of chaos theory. 🙂 I actually just saw the movie on Stephen Hawking’s life (The Theory of Everything), and I noted another strange coincidence: Jane Wilde, Hawking’s first wife, also has a PhD in literature. It strikes me that, while the movie documents that Jane Wilde gave Hawking three children, after which he divorced her to marry his nurse, Elaine, the movie does not mention that he separated from Elaine too, and that he has some kind of ‘working relationship’ with Jane again.

Hmm… What to say? I should get back to quantum mechanics here or, to be precise, to quantum electrodynamics.

One reason why Feynman’s Strange Theory of Light and Matter did not sell like Hawking’s Brief History of Time, might well be that, in some places, the text is not entirely accurate. Why? Who knows? It would make for an interesting PhD thesis in History of Science. Unfortunately, I have no time for such PhD thesis. Hence, I must assume that Richard Feynman simply didn’t have much time or energy left to correct some of the writing of Ralph Leighton, who transcribed and edited these four short lectures a few years before Feynman’s death. Indeed, when everything is said and done, Ralph Leighton is not a physicist and, hence, I think he did compromise – just a little bit – on accuracy for the sake of readability. Ralph Leighton’s father, Robert Leighton, an eminent physicist who worked with Feynman, would probably have done a much better job.

I feel that one should not compromise on accuracy, even when trying to write something reader-friendly. That’s why I am writing this blog, and why I am writing three posts specifically on this little booklet. Indeed, while I’d warmly recommend that little book on QED as an excellent non-mathematical introduction to the weird world of quantum mechanics, I’d also say that, while Ralph Leighton’s story is great, it’s also, in some places, not entirely accurate indeed.

So… Well… I want to do better than Ralph Leighton here. Nothing more. Nothing less. 🙂 Let’s go for it.

I. Probability amplitudes: what are they?

The greatest achievement of that little QED publication is that it manages to avoid any reference to wave functions and other complicated mathematical constructs: all of the complexity of quantum mechanics is reduced to three basic events or actions and, hence, three basic amplitudes which are represented as ‘arrows’—literally.

Now… Well… You may or may not know that a (probability) amplitude is actually a complex number, but it’s not so easy to intuitively understand the concept of a complex number. In contrast, everyone easily ‘gets’ the concept of an ‘arrow’. Hence, from a pedagogical point of view, representing complex numbers by some ‘arrow’ is truly a stroke of genius.

Whatever we call it, a complex number or an ‘arrow’, a probability amplitude is something with (a) a magnitude and (b) a phase. As such, it resembles a vector, but it’s not quite the same, if only because we’ll impose some restrictions on the magnitude. But I shouldn’t get ahead of myself. Let’s start with the basics.

A magnitude is some real positive number, like a length, but you should not associate it with some spatial dimension in physical space: it’s just a number. As for the phase, we could associate that concept with some direction but, again, you should just think of it as a direction in a mathematical space, not in the real (physical) space.

Let me insert a parenthesis here. If I say the ‘real’ or ‘physical’ space, I mean the space in which the electrons and photons and all other real-life objects that we’re looking at exist and move. That’s a non-mathematical definition. In fact, in math, the real space is defined as a coordinate space, with sets of real numbers (vectors) as coordinates, so… Well… That’s a mathematical space only, not the ‘real’ (physical) space. So the real (vector) space is not real. 🙂 The mathematical real space may, or may not, accurately describe the real (physical) space. Indeed, you may have heard that physical space is curved because of the presence of massive objects, which means that the real coordinate space will actually not describe it very accurately. I know that’s a bit confusing but I hope you understand what I mean: if mathematicians talk about the real space, they do not mean the real space. They refer to a vector space, i.e. a mathematical construct. To avoid confusion, I’ll use the term ‘physical space’ rather than ‘real’ space in the future. So I’ll let the mathematicians get away with using the term ‘real space’ for something that isn’t real actually. 🙂

End of digression. Let’s discuss these two mathematical concepts – magnitude and phase – somewhat more in detail.

A. The magnitude

Let’s start with the magnitude or ‘length’ of our arrow. We know that we have to square these lengths to find some probability, i.e. some real number between 0 and 1. Hence, the length of our arrows cannot be larger than one. That’s the restriction I mentioned already, and this ‘normalization’ condition reinforces the point that these ‘arrows’ do not have any spatial dimension (not in any real space anyway): they represent a function. To be specific, they represent a wavefunction.

If we’d be talking complex numbers instead of ‘arrows’, we’d say the absolute value of the complex number cannot be larger than one. We’d also say that, to find the probability, we should take the absolute square of the complex number, so that’s the square of the magnitude or absolute value of the complex number indeed. We cannot just square the complex number: it has to be the square of the absolute value.

Why? Well… Just write it out. [You can skip this section if you’re not interested in complex numbers, but I would recommend you try to understand. It’s not that difficult. Indeed, if you’re reading this, you’re most likely to understand something of complex numbers and, hence, you should be able to work your way through it. Just remember that a complex number is like a two-dimensional number, which is why it’s sometimes written using bold-face (z), rather than regular font (z). However, I should immediately add this convention is usually not followed. I like the boldface though, and so I’ll try to use it in this post.] The square of a complex number z = a + bi is equal to z= a+ 2abi – b2, while the square of its absolute value (i.e. the absolute square) is |z|= [√(a+ b2)]2 = a+ b2. So you can immediately see that the square and the absolute square of a complex numbers are two very different things indeed: it’s not only the 2abi term, but there’s also the minus sign in the first expression, because of the i= –1 factor. In case of doubt, always remember that the square of a complex number may actually yield a negative number, as evidenced by the definition of the imaginary unit itself: i= –1.

End of digression. Feynman and Leighton manage to avoid any reference to complex numbers in that short series of four lectures and, hence, all they need to do is explain how one squares a length. Kids learn how to do that when making a square out of rectangular paper: they’ll fold one corner of the paper until it meets the opposite edge, forming a triangle first. They’ll then cut or tear off the extra paper, and then unfold. Done. [I could note that the folding is a 90 degree rotation of the original length (or width, I should say) which, in mathematical terms, is equivalent to multiplying that length with the imaginary unit (i). But I am sure the kids involved would think I am crazy if I’d say this. 🙂 So let me get back to Feynman’s arrows.

B. The phase

Feynman and Leighton’s second pedagogical stroke of genius is the metaphor of the ‘stopwatch’ and the ‘stopwatch hand’ for the variable phase. Indeed, although I think it’s worth explaining why z = a + bi = rcosφ + irsinφ in the illustration below can be written as z = reiφ = |z|eiφ, understanding Euler’s representation of complex number as a complex exponential requires swallowing a very substantial piece of math and, if you’d want to do that, I’ll refer you to one of my posts on complex numbers).

Complex_number_illustration

The metaphor of the stopwatch represents a periodic function. To be precise, it represents a sinusoid, i.e. a smooth repetitive oscillation. Now, the stopwatch hand represents the phase of that function, i.e. the φ angle in the illustration above. That angle is a function of time: the speed with which the stopwatch turns is related to some frequency, i.e. the number of oscillations per unit of time (i.e. per second).

You should now wonder: what frequency? What oscillations are we talking about here? Well… As we’re talking photons and electrons here, we should distinguish the two:

  1. For photons, the frequency is given by Planck’s energy-frequency relation, which relates the energy (E) of a photon (1.5 to 3.5 eV for visible light) to its frequency (ν). It’s a simple proportional relation, with Planck’s constant (h) as the proportionality constant: E = hν, or ν = E/h.
  2. For electrons, we have the de Broglie relation, which looks similar to the Planck relation (E = hf, or f = E/h) but, as you know, it’s something different. Indeed, these so-called matter waves are not so easy to interpret because there actually is no precise frequency f. In fact, the matter wave representing some particle in space will consist of a potentially infinite number of waves, all superimposed one over another, as illustrated below.

Sequential_superposition_of_plane_waves

For the sake of accuracy, I should mention that the animation above has its limitations: the wavetrain is complex-valued and, hence, has a real as well as an imaginary part, so it’s something like the blob underneath. Two functions in one, so to speak: the imaginary part follows the real part with a phase difference of 90 degrees (or π/2 radians). Indeed, if the wavefunction is a regular complex exponential reiθ, then rsin(φ–π/2) = rcos(φ), which proves the point: we have two functions in one here. 🙂 I am actually just repeating what I said before already: the probability amplitude, or the wavefunction, is a complex number. You’ll usually see it written as Ψ (psi) or Φ (phi). Here also, using boldface (Ψ or Φ instead of Ψ or Φ) would usefully remind the reader that we’re talking something ‘two-dimensional’ (in mathematical space, that is), but this convention is usually not followed.

Photon wave

In any case… Back to frequencies. The point to note is that, when it comes to analyzing electrons (or any other matter-particle), we’re dealing with a range of frequencies f really (or, what amounts to the same, a range of wavelengths λ) and, hence, we should write Δf = ΔE/h, which is just one of the many expressions of the Uncertainty Principle in quantum mechanics.

Now, that’s just one of the complications. Another difficulty is that matter-particles, such as electrons, have some rest mass, and so that enters the energy equation as well (literally). Last but not least, one should distinguish between the group velocity and the phase velocity of matter waves. As you can imagine, that makes for a very complicated relationship between ‘the’ wavelength and ‘the’ frequency. In fact, what I write above should make it abundantly clear that there’s no such thing as the wavelength, or the frequency: it’s a range really, related to the fundamental uncertainty in quantum physics. I’ll come back to that, and so you shouldn’t worry about it here. Just note that the stopwatch metaphor doesn’t work very well for an electron!

In his postmortem lectures for Alix Mautner, Feynman avoids all these complications. Frankly, I think that’s a missed opportunity because I do not think it’s all that incomprehensible. In fact, I write all that follows because I do want you to understand the basics of waves. It’s not difficult. High-school math is enough here. Let’s go for it.

One turn of the stopwatch corresponds to one cycle. One cycle, or 1 Hz (i.e. one oscillation per second) covers 360 degrees or, to use a more natural unit, 2π radians. [Why is radian a more natural unit? Because it measures an angle in terms of the distance unit itself, rather than in arbitrary 1/360 cuts of a full circle. Indeed, remember that the circumference of the unit circle is 2π.] So our frequency ν (expressed in cycles per second) corresponds to a so-called angular frequency ω = 2πν. From this formula, it should be obvious that ω is measured in radians per second.

We can also link this formula to the period of the oscillation, T, i.e. the duration of one cycle. T = 1/ν and, hence, ω = 2π/T. It’s all nicely illustrated below. [And, yes, it’s an animation from Wikipedia: nice and simple.]

AngularFrequency

The easy math above now allows us to formally write the phase of a wavefunction – let’s denote the wavefunction as φ (phi), and the phase as θ (theta) – as a function of time (t) using the angular frequency ω. So we can write: θ = ωt = 2π·ν·t. Now, the wave travels through space, and the two illustrations above (i.e. the one with the super-imposed waves, and the one with the complex wave train) would usually represent a wave shape at some fixed point in time. Hence, the horizontal axis is not t but x. Hence, we can and should write the phase not only as a function of time but also of space. So how do we do that? Well… If the hypothesis is that the wave travels through space at some fixed speed c, then its frequency ν will also determine its wavelength λ. It’s a simple relationship: c = λν (the number of oscillations per second times the length of one wavelength should give you the distance traveled per second, so that’s, effectively, the wave’s speed).

Now that we’ve expressed the frequency in radians per second, we can also express the wavelength in radians per unit distance too. That’s what the wavenumber does: think of it as the spatial frequency of the wave. We denote the wavenumber by k, and write: k = 2π/λ. [Just do a numerical example when you have difficulty following. For example, if you’d assume the wavelength is 5 units distance (i.e. 5 meter) – that’s a typical VHF radio frequency: ν = (3×10m/s)/(5 m) = 0.6×108 Hz = 60 MHz – then that would correspond to (2π radians)/(5 m) ≈ 1.2566 radians per meter. Of course, we can also express the wave number in oscillations per unit distance. In that case, we’d have to divide k by 2π, because one cycle corresponds to 2π radians. So we get the reciprocal of the wavelength: 1/λ. In our example, 1/λ is, of course, 1/5 = 0.2, so that’s a fifth of a full cycle. You can also think of it as the number of waves (or wavelengths) per meter: if the wavelength is λ, then one can fit 1/λ waves in a meter.

waveform-showing-wavelength

Now, from the ω = 2πν, c = λν and k = 2π/λ relations, it’s obvious that k = 2π/λ = 2π/(c/ν) = (2πν)/c = ω/c. To sum it all up, frequencies and wavelengths, in time and in space, are all related through the speed of propagation of the wave c. More specifically, they’re related as follows:

c = λν = ω/k

From that, it’s easy to see that k = ω/c, which we’ll use in a moment. Now, it’s obvious that the periodicity of the wave implies that we can find the same phase by going one oscillation (or a multiple number of oscillations back or forward in time, or in space. In fact, we can also find the same phase by letting both time and space vary. However, if we want to do that, it should be obvious that we should either (a) go forward in space and back in time or, alternatively, (b) go back in space and forward in time. In other words, if we want to get the same phase, then time and space sort of substitute for each other. Let me quote Feynman on this: “This is easily seen by considering the mathematical behavior of a(tr/c). Evidently, if we add a little time Δt, we get the same value for a(tr/c) as we would have if we had subtracted a little distance: ΔcΔt.” The variable a stands for the acceleration of an electric charge here, causing an electromagnetic wave, but the same logic is valid for the phase, with a minor twist though: we’re talking a nice periodic function here, and so we need to put the angular frequency in front. Hence, the rate of change of the phase in respect to time is measured by the angular frequency ω. In short, we write:

θ = ω(t–x/c) = ωt–kx

Hence, we can re-write the wavefunction, in terms of its phase, as follows:

φ(θ) = φ[θ(x, t)] = φ[ωt–kx]

Note that, if the wave would be traveling in the ‘other’ direction (i.e. in the negative x-direction), we’d write φ(θ) = φ[kx+ωt]. Time travels in one direction only, of course, but so one minus sign has to be there because of the logic involved in adding time and subtracting distance. You can work out an example (with a sine or cosine wave, for example) for yourself.

So what, you’ll say? Well… Nothing. I just hope you agree that all of this isn’t rocket science: it’s just high-school math. But so it shows you what that stopwatch really is and, hence, – but who am I? – would have put at least one or two footnotes on this in a text like Feynman’s QED.

Now, let me make a much longer and more serious digression:

Digression 1: on relativity and spacetime

As you can see from the argument (or phase) of that wave function φ(θ) = φ[θ(x, t)] = φ[ωt–kx] = φ[–k(x–ct)], any wave equation establishes a deep relation between the wave itself (i.e. the ‘thing’ we’re describing) and space and time. In fact, that’s what the whole wave equation is all about! So let me say a few things more about that.

Because you know a thing or two about physics, you may ask: when we’re talking time, whose time are we talking about? Indeed, if we’re talking photons going from A to B, these photons will be traveling at or near the speed of light and, hence, their clock, as seen from our (inertial) frame of reference, doesn’t move. Likewise, according to the photon, our clock seems to be standing still.

Let me put the issue to bed immediately: we’re looking at things from our point of view. Hence, we’re obviously using our clock, not theirs. Having said that, the analysis is actually fully consistent with relativity theory. Why? Well… What do you expect? If it wasn’t, the analysis would obviously not be valid. 🙂 To illustrate that it’s consistent with relativity theory, I can mention, for example, that the (probability) amplitude for a photon to travel from point A to B depends on the spacetime interval, which is invariant. Hence, A and B are four-dimensional points in spacetime, involving both spatial as well as time coordinates: A = (xA, yA, zA, tA) and B = (xB, yB, zB, tB). And so the ‘distance’ – as measured through the spacetime interval – is invariant.

Now, having said that, we should draw some attention to the intimate relationship between space and time which, let me remind you, results from the absoluteness of the speed of light. Indeed, one will always measure the speed of light c as being equal to 299,792,458 m/s, always and everywhere. It does not depend on your reference frame (inertial or moving). That’s why the constant c anchors all laws in physics, and why we can write what we write above, i.e. include both distance (x) as well as time (t) in the wave function φ = φ(x, t) = φ[ωt–kx] = φ[–k(x–ct)]. The k and ω are related through the ω/k = c relationship: the speed of light links the frequency in time (ν = ω/2π = 1/T) with the frequency in space (i.e. the wavenumber or spatial frequency k). There is only degree of freedom here: the frequency—in space or in time, it doesn’t matter: ν and ω are not independent.  [As noted above, the relationship between the frequency in time and in space is not so obvious for electrons, or for matter waves in general: for those matter-waves, we need to distinguish group and phase velocity, and so we don’t have a unique frequency.]

Let me make another small digression within the digression here. Thinking about travel at the speed of light invariably leads to paradoxes. In previous posts, I explained the mechanism of light emission: a photon is emitted – one photon only – when an electron jumps back to its ground state after being excited. Hence, we may imagine a photon as a transient electromagnetic wave–something like what’s pictured below. Now, the decay time of this transient oscillation (τ) is measured in nanoseconds, i.e. billionths of a second (1 ns = 1×10–9 s): the decay time for sodium light, for example, is some 30 ns only.

decay time

However, because of the tremendous speed of light, that still makes for a wavetrain that’s like ten meter long, at least (30×10–9 s times 3×10m/s is nine meter, but you should note that the decay time measures the time for the oscillation to die out by a factor 1/e, so the oscillation itself lasts longer than that). Those nine or ten meters cover like 16 to 17 million oscillations (the wavelength of sodium light is about 600 nm and, hence, 10 meter fits almost 17 million oscillations indeed). Now, how can we reconcile the image of a photon as a ten-meter long wavetrain with the image of a photon as a point particle?

The answer to that question is paradoxical: from our perspective, anything traveling at the speed of light – including this nine or ten meter ‘long’ photon – will have zero length because of the relativistic length contraction effect. Length contraction? Yes. I’ll let you look it up, because… Well… It’s not easy to grasp. Indeed, from the three measurable effects on objects moving at relativistic speeds – i.e. (1) an increase of the mass (the energy needed to further accelerate particles in particle accelerators increases dramatically at speeds nearer to c), (2) time dilation, i.e. a slowing down of the (internal) clock (because of their relativistic speeds when entering the Earth’s atmosphere, the measured half-life of muons is five times that when at rest), and (3) length contraction – length contraction is probably the most paradoxical of all.

Let me end this digression with yet another short note. I said that one will always measure the speed of light c as being equal to 299,792,458 m/s, always and everywhere and, hence, that it does not depend on your reference frame (inertial or moving). Well… That’s true and not true at the same time. I actually need to nuance that statement a bit in light of what follows: an individual photon does have an amplitude to travel faster or slower than c, and when discussing matter waves (such as the wavefunction that’s associated with an electron), we can have phase velocities that are faster than light! However, when calculating those amplitudes, is a constant.

That doesn’t make sense, you’ll say. Well… What can I say? That’s how it is unfortunately. I need to move on and, hence, I’ll end this digression and get back to the main story line. Part I explained what probability amplitudes are—or at least tried to do so. Now it’s time for part II: the building blocks of all of quantum electrodynamics (QED).

II. The building blocks: P(A to B), E(A to B) and j

The three basic ‘events’ (and, hence, amplitudes) in QED are the following:

1. P(A to B)

P(A to B) is the (probability) amplitude for a photon to travel from point A to B. However, I should immediately note that A and B are points in spacetime. Therefore, we associate them not only with some specific (x, y, z) position in space, but also with a some specific time t. Now, quantum-mechanical theory gives us an easy formula for P(A to B): it depends on the so-called (spacetime) interval between the two points A and B, i.e. I = Δr– Δt= (x2–x1)2+(y2–y1)2+(z2–z1)– (t2–t1)2. The point to note is that the spacetime interval takes both the distance in space as well as the ‘distance’ in time into account. As I mentioned already, this spacetime interval does not depend on our reference frame and, hence, it’s invariant (as long as we’re talking reference frames that move with constant speed relative to each other). Also note that we should measure time and distance in equivalent units when using that Δr– Δtformula for I. So we either measure distance in light-seconds or, else, we measure time in units that correspond to the time that’s needed for light to travel one meter. If no equivalent units are adopted, the formula is I = Δrc·Δt2.

Now, in quantum theory, anything is possible and, hence, not only do we allow for crooked paths, but we also allow for the difference in time to differ from  the time you’d expect a photon to need to travel along some curve (whose length we’ll denote by l), i.e. l/c. Hence, our photon may actually travel slower or faster than the speed of light c! There is one lucky break, however, that makes all come out alright: it’s easy to show that the amplitudes associated with the odd paths and strange timings generally cancel each other out. [That’s what the QED booklet shows.] Hence, what remains, are the paths that are equal or, importantly, those that very near to the so-called ‘light-like’ intervals in spacetime only. The net result is that light – even one single photon – effectively uses a (very) small core of space as it travels, as evidenced by the fact that even one single photon interferes with itself when traveling through a slit or a small hole!

[If you now wonder what it means for a photon to interfere for itself, let me just give you the easy explanation: it may change its path. We assume it was traveling in a straight line – if only because it left the source at some point in time and then arrived at the slit obviously – but so it no longer travels in a straight line after going through the slit. So that’s what we mean here.]

2. E(A to B)

E(A to B) is the (probability) amplitude for an electron to travel from point A to B. The formula for E(A to B) is much more complicated, and it’s the one I want to discuss somewhat more in detail in this post. It depends on some complex number j (see the next remark) and some real number n.

3. j

Finally, an electron could emit or absorb a photon, and the amplitude associated with this event is denoted by j, for junction number. It’s the same number j as the one mentioned when discussing E(A to B) above.

Now, this junction number is often referred to as the coupling constant or the fine-structure constant. However, the truth is, as I pointed out in my previous post, that these numbers are related, but they are not quite the same: α is the square of j, so we have α = j2. There is also one more, related, number: the gauge parameter, which is denoted by g (despite the g notation, it has nothing to do with gravitation). The value of g is the square root of 4πε0α, so g= 4πε0α. I’ll come back to this. Let me first make an awfully long digression on the fine-structure constant. It will be awfully long. So long that it’s actually part of the ‘core’ of this post actually.

Digression 2: on the fine-structure constant, Planck units and the Bohr radius

The value for j is approximately –0.08542454.

How do we know that?

The easy answer to that question is: physicists measured it. In fact, they usually publish the measured value as the square root of the (absolute value) of j, which is that fine-structure constant α. Its value is published (and updated) by the US National Institute on Standards and Technology. To be precise, the currently accepted value of α is 7.29735257×10−3. In case you doubt, just check that square root:

j = –0.08542454 ≈ –√0.00729735257 = –√α

As noted in Feynman’s (or Leighton’s) QED, older and/or more popular books will usually mention 1/α as the ‘magical’ number, so the ‘special’ number you may have seen is the inverse fine-structure constant, which is about 137, but not quite:

1/α = 137.035999074 ± 0.000000044

I am adding the standard uncertainty just to give you an idea of how precise these measurements are. 🙂 About 0.32 parts per billion (just divide the 137.035999074 number by the uncertainty). So that‘s the number that excites popular writers, including Leighton. Indeed, as Leighton puts it:

“Where does this number come from? Nobody knows. It’s one of the greatest damn mysteries of physics: a magic number that comes to us with no understanding by man. You might say the “hand of God” wrote that number, and “we don’t know how He pushed his pencil.” We know what kind of a dance to do experimentally to measure this number very accurately, but we don’t know what kind of dance to do on the computer to make this number come out, without putting it in secretly!”

Is it Leighton, or did Feynman really say this? Not sure. While the fine-structure constant is a very special number, it’s not the only ‘special’ number. In fact, we derive it from other ‘magical’ numbers. To be specific, I’ll show you how we derive it from the fundamental properties – as measured, of course – of the electron. So, in fact, I should say that we do know how to make this number come out, which makes me doubt whether Feynman really said what Leighton said he said. 🙂

So we can derive α from some other numbers. That brings me to the more complicated answer to the question as to what the value of j really is: j‘s value is the electron charge expressed in Planck units, which I’ll denote by –eP:

j = –eP

[You may want to reflect on this, and quickly verify on the Web. The Planck unit of electric charge, expressed in Coulomb, is about 1.87555×10–18 C. If you multiply that j = –eP, so with –0.08542454, you get the right answer: the electron charge is about –0.160217×10–18 C.]

Now that is strange.

Why? Well… For starters, when doing all those quantum-mechanical calculations, we like to think of j as a dimensionless number: a coupling constant. But so here we do have a dimension: electric charge.

Let’s look at the basics. If is –√α, and it’s also equal to –eP, then the fine-structure constant must also be equal to the square of the electron charge eP, so we can write:

α = eP2

You’ll say: yes, so what? Well… I am pretty sure that, if you’ve ever seen a formula for α, it’s surely not this simple j = –eP or α = eP2 formula. What you’ve seen, most likely, is one or more of the following expressions below :

Fine-structure constant formula

That’s a pretty impressive collection of physical constants, isn’t it? 🙂 They’re all different but, somehow, when we combine them in one or the other ratio (we have not less than five different expressions here (each identity is a separate expression), and I could give you a few more!), we get the very same number: α. Now that is what I call strange. Truly strange. Incomprehensibly weird!

You’ll say… Well… Those constants must all be related… Of course! That’s exactly the point I am making here. They are, but look how different they are: mmeasures mass, rmeasures distance, e is a charge, and so these are all very different numbers with very different dimensions. Yet, somehow, they are all related through this α number. Frankly, I do not know of any other expression that better illustrates some kind of underlying unity in Nature than the one with those five identities above.

Let’s have a closer look at those constants. You know most of them already. The only constants you may not have seen before are μ0Rand, perhaps, ras well as m. However, these can easily be defined as some easy function of the constants that you did see before, so let me quickly do that:

  1. The μ0 constant is the so-called magnetic constant. It’s something similar as ε0 and it’s referred to as the magnetic permeability of the vacuum. So it’s just like the (electric) permittivity of the vacuum (i.e. the electric constant ε0) and the only reason why this blog hasn’t mentioned this constant before is because I haven’t really discussed magnetic fields so far. I only talked about the electric field vector. In any case, you know that the electric and magnetic force are part and parcel of the same phenomenon (i.e. the electromagnetic interaction between charged particles) and, hence, they are closely related. To be precise, μ0ε0 = 1/c= c–2. So that shows the first and second expression for α are, effectively, fully equivalent. [Just in case you’d doubt that μ0ε0 = 1/c2, let me give you the values: μ0 = 4π·10–7 N/A2, and ε0 = (1/4π·c2)·10C2/N·m2. Just plug them in, and you’ll see it’s bang on. Moreover, note that the ampere (A) unit is equal to the coulomb per second unit (C/s), so even the units come out alright. 🙂 Of course they do!]
  2. The ke constant is the Coulomb constant and, from its definition ke = 1/4πε0, it’s easy to see how those two expressions are, in turn, equivalent with the third expression for α.
  3. The Rconstant is the so-called von Klitzing constant. Huh? Yes. I know. I am pretty sure you’ve never ever heard of that one before. Don’t worry about it. It’s, quite simply, equal to Rh/e2. Hence, substituting (and don’t forget that h = 2πħ) will demonstrate the equivalence of the fourth expression for α.
  4. Finally, the re factor is the classical electron radius, which is usually written as a function of me, i.e. the electron mass: re = e2/4πε0mec2. Also note that this also implies that reme = e2/4πε0c2. In words: the product of the electron mass and the electron radius is equal to some constant involving the electron (e), the electric constant (ε0), and c (the speed of light).

I am sure you’re under some kind of ‘formula shock’ now. But you should just take a deep breath and read on. The point to note is that all these very different things are all related through α.

So, again, what is that α really? Well… A strange number indeed. It’s dimensionless (so we don’t measure in kg, m/s, eV·s or whatever) and it pops up everywhere. [Of course, you’ll say: “What’s everywhere? This is the first time I‘ve heard of it!” :-)]

Well… Let me start by explaining the term itself. The fine structure in the name refers to the splitting of the spectral lines of atoms. That’s a very fine structure indeed. 🙂 We also have a so-called hyperfine structure. Both are illustrated below for the hydrogen atom. The numbers n, JI, and are quantum numbers used in the quantum-mechanical explanation of the emission spectrum, which is  also depicted below, but note that the illustration gives you the so-called Balmer series only, i.e. the colors in the visible light spectrum (there are many more ‘colors’ in the high-energy ultraviolet and the low-energy infrared range).

Fine_hyperfine_levels

Prism_5902760665342950662

To be precise: (1) n is the principal quantum number: here it takes the values 1 or 2, and we could say these are the principal shells; (2) the S, P, D,… orbitals (which are usually written in lower case: s, p, d, f, g, h and i) correspond to the (orbital) angular momentum quantum number l = 0, 1, 2,…, so we could say it’s the subshell; (3) the J values correspond to the so-called magnetic quantum number m, which goes from –l to +l; (4) the fourth quantum number is the spin angular momentum s. I’ve copied another diagram below so you see how it works, more or less, that is.

hydrogen spectrum

Now, our fine-structure constant is related to these quantum numbers. How exactly is a bit of a long story, and so I’ll just copy Wikipedia’s summary on this: ” The gross structure of line spectra is the line spectra predicted by the quantum mechanics of non-relativistic electrons with no spin. For a hydrogenic atom, the gross structure energy levels only depend on the principal quantum number n. However, a more accurate model takes into account relativistic and spin effects, which break the degeneracy of the the energy levels and split the spectral lines. The scale of the fine structure splitting relative to the gross structure energies is on the order of ()2, where Z is the atomic number and α is the fine-structure constant.” There you go. You’ll say: so what? Well… Nothing. If you aren’t amazed by that, you should stop reading this.

It is an ‘amazing’ number, indeed, and, hence, it does quality for being “one of the greatest damn mysteries of physics”, as Feynman and/or Leighton put it. Having said that, I would not go as far as to write that it’s “a magic number that comes to us with no understanding by man.” In fact, I think Feynman/Leighton could have done a much better job when explaining what it’s all about. So, yes, I hope to do better than Leighton here and, as he’s still alive, I actually hope he reads this. 🙂

The point is: α is not the only weird number. What’s particular about it, as a physical constant, is that it’s dimensionless, because it relates a number of other physical constants in such a way that the units fall away. Having said that, the Planck or Boltzmann constant are at least as weird.

So… What is this all about? Well… You’ve probably heard about the so-called fine-tuning problem in physics and, if you’re like me, your first reaction will be to associate fine-tuning with fine-structure. However, the two terms have nothing in common, except for four letters. 🙂 OK. Well… I am exaggerating here. The two terms are actually related, to some extent at least, but let me explain how.

The term fine-tuning refers to the fact that all the parameters or constants in the so-called Standard Model of physics are, indeed, all related to each other in the way they are. We can’t sort of just turn the knob of one and change it, because everything falls apart then. So, in essence, the fine-tuning problem in physics is more like a philosophical question: why is the value of all these physical constants and parameters exactly what it is? So it’s like asking: could we change some of the ‘constants’ and still end up with the world we’re living in? Or, if it would be some different world, how would it look like? What if was some other number? What if ke or ε0 was some other number? In short, and in light of those expressions for α, we may rephrase the question as: why is α what is is?

Of course, that’s a question one shouldn’t try to answer before answering some other, more fundamental, question: how many degrees of freedom are there really? Indeed, we just saw that ke and εare intimately related through some equation, and other constants and parameters are related too. So the question is like: what are the ‘dependent’ and the ‘independent’ variables in this so-called Standard Model?

There is no easy answer to that question. In fact, one of the reasons why I find physics so fascinating is that one cannot easily answer such questions. There are the obvious relationships, of course. For example, the ke = 1/4πεrelationship, and the context in which they are used (Coulomb’s Law) does, indeed, strongly suggest that both constants are actually part and parcel of the same thing. Identical, I’d say. Likewise, the μ0ε0 = 1/crelation also suggests there’s only one degree of freedom here, just like there’s only one degree of freedom in that ω/k = relationship (if we set a value for ω, we have k, and vice versa). But… Well… I am not quite sure how to phrase this, but… What physical constants could be ‘variables’ indeed?

It’s pretty obvious that the various formulas for α cannot answer that question: you could stare at them for days and weeks and months and years really, but I’d suggest you use your time to read more of Feynman’s real Lectures instead. 🙂 One point that may help to come to terms with this question – to some extent, at least – is what I casually mentioned above already: the fine-structure constant is equal to the square of the electron charge expressed in Planck units: α = eP2.

Now, that’s very remarkable because Planck units are some kind of ‘natural units’ indeed (for the detail, see my previous post: among other things, it explains what these Planck units really are) and, therefore, it is quite tempting to think that we’ve actually got only one degree of freedom here: α itself. All the rest should follow from it.

[…]

It should… But… Does it?

The answer is: yes and no. To be frank, it’s more no than yes because, as I noted a couple of times already, the fine-structure constant relates a lot of stuff but it’s surely not the only significant number in the Universe. For starters, I said that our E(A to B) formula has two ‘variables’:

  1. We have that complex number j, which, as mentioned, is equal to the electron charge expressed in Planck units. [In case you wonder why –eP ≈ –0.08542455 is said to be an amplitude, i.e. a complex number or an ‘arrow’… Well… Complex numbers include the real numbers and, hence, –0.08542455 is both real and complex. When combining ‘arrows’ or, to be precise, when multiplying some complex number with –0.08542455, we will (a) shrink the original arrow to about 8.5% of its original value (8.542455% to be precise) and (b) rotate it over an angle of plus or minus 180 degrees. In other words, we’ll reverse its direction. Hence, using Euler’s notation for complex numbers, we can write: –1 = eiπ eiπ and, hence, –0.085 = 0.085·eiπ = 0.085·eiπ. So, in short, yes, j is a complex number, or an ‘arrow’, if you prefer that term.]
  2. We also have some some real number n in the E(A to B) formula. So what’s the n? Well… Believe it or not, it’s the electron mass! Isn’t that amazing?

You’ll say: “Well… Hmm… I suppose so.” But then you may – and actually should – also wonder: the electron mass? In what units? Planck units again? And are we talking relativistic mass (i.e. its total mass, including the equivalent mass of its kinetic energy) or its rest mass only? And we were talking α here, so can we relate it to α too, just like the electron charge?

These are all very good questions. Let’s start with the second one. We’re talking rather slow-moving electrons here, so the relativistic mass (m) and its rest mass (m0) is more or less the same. Indeed, the Lorentz factor γ in the m = γm0 equation is very close to 1 for electrons moving at their typical speed. So… Well… That question doesn’t matter very much. Really? Yes. OK. Because you’re doubting, I’ll quickly show it to you. What is their ‘typical’ speed?

We know we shouldn’t attach too much importance to the concept of an electron in orbit around some nucleus (we know it’s not like some planet orbiting around some star) and, hence, to the concept of speed or velocity (velocity is speed with direction) when discussing an electron in an atom. The concept of momentum (i.e. velocity combined with mass or energy) is much more relevant. There’s a very easy mathematical relationship that gives us some clue here: the Uncertainty Principle. In fact, we’ll use the Uncertainty Principle to relate the momentum of an electron (p) to the so-called Bohr radius r (think of it as the size of a hydrogen atom) as follows: p ≈ ħ/r. [I’ll come back on this in a moment, and show you why this makes sense.]

Now we also know its kinetic energy (K.E.) is mv2/2, which we can write as p2/2m. Substituting our p ≈ ħ/r conjecture, we get K.E. = mv2/2 = ħ2/2mr2. This is equivalent to m2v2 = ħ2/r(just multiply both sides with m). From that, we get v = ħ/mr. Now, one of the many relations we can derive from the formulas for the fine-structure constant is re = α2r. [I haven’t showed you that yet, but I will shortly. It’s a really amazing expression. However, as for now, just accept it as a simple formula for interim use in this digression.] Hence, r = re2. The rfactor in this expression is the so-called classical electron radius. So we can now write v = ħα2/mre. Let’s now throw c in: v/c = α2ħ/mcre. However, from that fifth expression for α, we know that ħ/mcre = α, so we get v/c = α. We have another amazing result here: the v/c ratio for an electron (i.e. its speed expressed as a fraction of the speed of light) is equal to that fine-structure constant α. So that’s about 1/137, so that’s less than 1% of the speed of light. Now… I’ll leave it to you to calculate the Lorentz factor γ but… Well… It’s obvious that it will be very close to 1. 🙂 Hence, the electron’s speed – however we want to visualize that – doesn’t matter much indeed, so we should not worry about relativistic corrections in the formulas.

Let’s now look at the question in regard to the Planck units. If you know nothing at all about them, I would advise you to read what I wrote about them in my previous post. Let me just note we get those Planck units by equating not less than five fundamental physical constants to 1, notably (1) the speed of light, (2) Planck’s (reduced) constant, (3) Boltzmann’s constant, (4) Coulomb’s constant and (5) Newton’s constant (i.e. the gravitational constant). Hence, we have a set of five equations here (ħ = kB = ke = G = 1), and so we can solve that to get the five Planck units, i.e. the Planck length unit, the Planck time unit, the Planck mass unit, the Planck energy unit, the Planck charge unit and, finally (oft forgotten), the Planck temperature unit. Of course, you should note that all mass and energy units are directly related because of the mass-energy equivalence relation E = mc2, which simplifies to E = m if c is equated to 1. [I could also say something about the relation between temperature and (kinetic) energy, but I won’t, as it would only further confuse you.]

Now, you may or may not remember that the Planck time and length units are unimaginably small, but that the Planck mass unit is actually quite sizable—at the atomic scale, that is. Indeed, the Planck mass is something huge, like the mass of an eyebrow hair, or a flea egg. Is that huge? Yes. Because if you’d want to pack it in a Planck-sized particle, it would make for a tiny black hole. 🙂 No kidding. That’s the physical significance of the Planck mass and the Planck length and, yes, it’s weird. 🙂

Let me give you some values. First, the Planck mass itself: it’s about 2.1765×10−8 kg. Again, if you think that’s tiny, think again. From the E = mc2 equivalence relationship, we get that this is equivalent to 2 giga-joule, approximately. Just to give an idea, that’s like the monthly electricity consumption of an average American family. So that’s huge indeed! 🙂 [Many people think that nuclear energy involves the conversion of mass into energy, but the story is actually more complicated than that. In any case… I need to move on.]

Let me now give you the electron mass expressed in the Planck mass unit:

  1. Measured in our old-fashioned super-sized SI kilogram unit, the electron mass is me = 9.1×10–31 kg.
  2. The Planck mass is mP = 2.1765×10−8 kg.
  3. Hence, the electron mass expressed in Planck units is meP = me/mP = (9.1×10–31 kg)/(2.1765×10−8 kg) = 4.181×10−23.

We can, once again, write that as some function of the fine-structure constant. More specifically, we can write:

meP = α/reP = α/α2rP  = 1/αrP

So… Well… Yes: yet another amazing formula involving α.

In this formula, we have reP and rP, which are the (classical) electron radius and the Bohr radius expressed in Planck (length) units respectively. So you can see what’s going on here: we have all kinds of numbers here expressed in Planck units: a charge, a radius, a mass,… And we can relate all of them to the fine-structure constant

Why? Who knows? I don’t. As Leighton puts it: that’s just the way “God pushed His pencil.” 🙂

Note that the beauty of natural units ensures that we get the same number for the (equivalent) energy of an electron. Indeed, from the E = mc2 relation, we know the mass of an electron can also be written as 0.511 MeV/c2. Hence, the equivalent energy is 0.511 MeV (so that’s, quite simply, the same number but without the 1/cfactor). Now, the Planck energy EP (in eV) is 1.22×1028 eV, so we get EeP = Ee/EP = (0.511×10eV)/(1.22×1028 eV) = 4.181×10−23. So it’s exactly the same as the electron mass expressed in Planck units. Isn’t that nice? 🙂

Now, are all these numbers dimensionless, just like α? The answer to that question is complicated. Yes, and… Well… No:

  1. Yes. They’re dimensionless because they measure something in natural units, i.e. Planck units, and, hence, that’s some kind of relative measure indeed so… Well… Yes, dimensionless.
  2. No. They’re not dimensionless because they do measure something, like a charge, a length, or a mass, and when you chose some kind of relative measure, you still need to define some gauge, i.e. some kind of standard measure. So there’s some ‘dimension’ involved there.

So what’s the final answer? Well… The Planck units are not dimensionless. All we can say is that they are closely related, physically. I should also add that we’ll use the electron charge and mass (expressed in Planck units) in our amplitude calculations as a simple (dimensionless) number between zero and one. So the correct answer to the question as to whether these numbers have any dimension is: expressing some quantities in Planck units sort of normalizes them, so we can use them directly in dimensionless calculations, like when we multiply and add amplitudes.

Hmm… Well… I can imagine you’re not very happy with this answer but it’s the best I can do. Sorry. I’ll let you further ponder that question. I need to move on.

Note that that 4.181×10−23 is still a very small number (23 zeroes after the decimal point!), even if it’s like 46 million times larger than the electron mass measured in our conventional SI unit (i.e. 9.1×10–31 kg). Does such small number make any sense? The answer is: yes, it does. When we’ll finally start discussing that E(A to B) formula (I’ll give it to you in a moment), you’ll see that a very small number for n makes a lot of sense.

Before diving into it all, let’s first see if that formula for that alpha, that fine-structure constant, still makes sense with me expressed in Planck units. Just to make sure. 🙂 To do that, we need to use the fifth (last) expression for a, i.e. the one with re in it. Now, in my previous post, I also gave some formula for re: re = e2/4πε0mec2, which we can re-write as reme = e2/4πε0c2. If we substitute that expression for reme  in the formula for α, we can calculate α from the electron charge, which indicates both the electron radius and its mass are not some random God-given variable, or “some magic number that comes to us with no understanding by man“, as Feynman – well… Leighton, I guess – puts it. No. They are magic numbers alright, one related to another through the equally ‘magic’ number α, but so I do feel we actually can create some understanding here.

At this point, I’ll digress once again, and insert some quick back-of-the-envelope argument from Feynman’s very serious Caltech Lectures on Physics, in which, as part of the introduction to quantum mechanics, he calculates the so-called Bohr radius from Planck’s constant h. Let me quickly explain: the Bohr radius is, roughly speaking, the size of the simplest atom, i.e. an atom with one electron (so that’s hydrogen really). So it’s not the classical electron radius re. However, both are also related to that ‘magical number’ α. To be precise, if we write the Bohr radius as r, then re = α2r ≈ 0.000053… times r, which we can re-write as:

α = √(re /r) = (re /r)1/2

So that’s yet another amazing formula involving the fine-structure constant. In fact, it’s the formula I used as an ‘interim’ expression to calculate the relative speed of electrons. I just used it without any explanation there, but I am coming back to it here. Alpha again…

Just think about it for a while. In case you’d still doubt the magic of that number, let me write what we’ve discovered so far:

(1) α is the square of the electron charge expressed in Planck units: α = eP2.

(2) α is the square root of the ratio of (a) the classical electron radius and (b) the Bohr radius: α = √(re /r). You’ll see this more often written as re = α2r. Also note that this is an equation that does not depend on the units, in contrast to equation 1 (above), and 4 and 5 (below), which require you to switch to Planck units. It’s the square of a ratio and, hence, the units don’t matter. They fall away.

(3) α is the (relative) speed of an electron: α = v/c. [The relative speed is the speed as measured against the speed of light. Note that the ‘natural’ unit of speed in the Planck system of units is equal to c. Indeed, if you divide one Planck length by one Planck time unit, you get (1.616×10−35 m)/(5.391×10−44 s) = m/s. However, this is another equation, just like (2), that does not depend on the units: we can express v and c in whatever unit we want, as long we’re consistent and express both in the same units.]

(4) Finally – I’ll show you in a moment – α is also equal to the product of (a) the electron mass (which I’ll simply write as me here) and (b) the classical electron radius re (if both are expressed in Planck units): α = me·re. Now think that’s, perhaps, the most amazing of all of the expressions for α. If you don’t think that’s amazing, I’d really suggest you stop trying to study physics. 🙂

Note that, from (2) and (4), we find that:

(5) The electron mass (in Planck units) is equal me = α/r= α/α2r = 1/αr. So that gives us an expression, using α once again, for the electron mass as a function of the Bohr radius r expressed in Planck units.

Finally, we can also substitute (1) in (5) to get:

(6) The electron mass (in Planck units) is equal to me = α/r = eP2/re. Using the Bohr radius, we get me = 1/αr = 1/eP2r.

So… As you can see, this fine-structure constant really links ALL of the fundamental properties of the electron: its charge, its radius, its distance to the nucleus (i.e. the Bohr radius), its velocity, its mass (and, hence, its energy),… In short,

IT IS ALL IN ALPHA!

Now that should answer the question in regard to the degrees of freedom we have here, doesn’t it? It looks like we’ve got only one degree of freedom here. Indeed, if we’ve got some value for α, then we’ve have the electron charge, and from the electron charge, we can calculate the Bohr radius r (as I will show below), and if we have r, we have mand re. And then we can also calculate v, which gives us its momentum (mv) and its kinetic energy (mv2/2). In short,

ALPHA GIVES US EVERYTHING!

Isn’t that amazing? Hmm… You should reserve your judgment as for now, and carefully go over all of the formulas above and verify my statement. If you do that, you’ll probably struggle to find the Bohr radius from the charge (i.e. from α). So let me show you how you do that, because it will also show you why you should, indeed, reserve your judgment. In other words, I’ll show you why alpha does NOT give us everything! The argument below will, finally, prove some of the formulas that I didn’t prove above. Let’s go for it:

1. If we assume that (a) an electron takes some space – which I’ll denote by r 🙂 – and (b) that it has some momentum p because of its mass m and its velocity v, then the ΔxΔp = ħ relation (i.e. the Uncertainty Principle in its roughest form) suggests that the order of magnitude of r and p should be related in the very same way. Hence, let’s just boldly write r ≈ ħ/p and see what we can do with that. So we equate Δx with r and Δp with p. As Feynman notes, this is really more like a ‘dimensional analysis’ (he obviously means something very ‘rough’ with that) and so we don’t care about factors like 2 or 1/2. [Indeed, note that the more precise formulation of the Uncertainty Principle is σxσ≥ ħ/2.] In fact, we didn’t even bother to define r very rigorously. We just don’t care about precise statements at this point. We’re only concerned about orders of magnitude. [If you’re appalled by the rather rude approach, I am sorry for that, but just try to go along with it.]

2. From our discussions on energy, we know that the kinetic energy is mv2/2, which we can write as p2/2m so we get rid of the velocity factor. [Why? Because we can’t really imagine what it is anyway. As I said a couple of times already, we shouldn’t think of electrons as planets orbiting around some star. That model doesn’t work.] So… What’s next? Well… Substituting our p ≈ ħ/r conjecture, we get K.E. = ħ2/2mr2. So that’s a formula for the kinetic energy. Next is potential.

3. Unfortunately, the discussion on potential energy is a bit more complicated. You’ll probably remember that we had an easy and very comprehensible formula for the energy that’s needed (i.e. the work that needs to be done) to bring two charges together from a large distance (i.e. infinity). Indeed, we derived that formula directly from Coulomb’s Law (and Newton’s law of force) and it’s U = q1q2/4πε0r12. [If you think I am going too fast, sorry, please check for yourself by reading my other posts.] Now, we’re actually talking about the size of an atom here in my previous post, so one charge is the proton (+e) and the other is the electron (–e), so the potential energy is U = P.E. = –e2/4πε0r, with r the ‘distance’ between the proton and the electron—so that’s the Bohr radius we’re looking for!

[In case you’re struggling a bit with those minus signs when talking potential energy  – I am not ashamed to admit I did! – let me quickly help you here. It has to do with our reference point: the reference point for measuring potential energy is at infinity, and it’s zero there (that’s just our convention). Now, to separate the proton and the electron, we’d have to do quite a lot of work. To use an analogy: imagine we’re somewhere deep down in a cave, and we have to climb back to the zero level. You’ll agree that’s likely to involve some sweat, don’t you? Hence, the potential energy associated with us being down in the cave is negative. Likewise, if we write the potential energy between the proton and the electron as U(r), and the potential energy at the reference point as U(∞) = 0, then the work to be done to separate the charges, i.e. the potential difference U(∞) – U(r), will be positive. So U(∞) – U(r) = 0 – U(r) > 0 and, hence, U(r) < 0. If you still don’t ‘get’ this, think of the electron being in some (potential) well, i.e. below the zero level, and so it’s potential energy is less than zero. Huh? Sorry. I have to move on. :-)]

4. We can now write the total energy (which I’ll denote by E, but don’t confuse it with the electric field vector!) as

E = K.E. + P.E. =  ħ2/2mr– e2/4πε0r

Now, the electron (whatever it is) is, obviously, in some kind of equilibrium state. Why is that obvious? Well… Otherwise our hydrogen atom wouldn’t or couldn’t exist. 🙂 Hence, it’s in some kind of energy ‘well’ indeed, at the bottom. Such equilibrium point ‘at the bottom’ is characterized by its derivative (in respect to whatever variable) being equal to zero. Now, the only ‘variable’ here is r (all the other symbols are physical constants), so we have to solve for dE/dr = 0. Writing it all out yields:

dE/dr = –ħ2/mr+ e2/4πε0r= 0 ⇔ r = 4πε0ħ2/me2

You’ll say: so what? Well… We’ve got a nice formula for the Bohr radius here, and we got it in no time! 🙂 But the analysis was rough, so let’s check if it’s any good by putting the values in:

r = 4πε0h2/me2

= [(1/(9×109) C2/N·m2)·(1.055×10–34 J·s)2]/[(9.1×10–31 kg)·(1.6×10–19 C)2]

= 53×10–12 m = 53 pico-meter (pm)

So what? Well… Double-check it on the Internet: the Bohr radius is, effectively, about 53 trillionths of a meter indeed! So we’re right on the spot!

[In case you wonder about the units, note that mass is a measure of inertia: one kg is the mass of an object which, subject to a force of 1 newton, will accelerate at the rate of 1 m/s per second. Hence, we write F = m·a, which is equivalent to m = F/a. Hence, the kg, as a unit, is equivalent to 1 N/(m/s2). If you make this substitution, we get r in the unit we want to see: [(C2/N·m2)·(N2·m2·s2)/[(N·s2/m)·C2] = m.]

Moreover, if we take that value for r and put it in the (total) energy formula above, we’d find that the energy of the electron is –13.6 eV. [Don’t forget to convert from joule to electronvolt when doing the calculation!] Now you can check that on the Internet too: 13.6 eV is exactly the amount of energy that’s needed to ionize a hydrogen atom (i.e. the energy that’s needed to kick the electron out of that energy well)!

Waw ! Isn’t it great that such simple calculations yield such great results? 🙂 [Of course, you’ll note that the omission of the 1/2 factor in the Uncertainty Principle was quite strategic. :-)] Using the r = 4πε0ħ2/meformula for the Bohr radius, you can now easily check the re = α2r formula. You should find what we jotted down already: the classical electron radius is equal to re = e2/4πε0mec2. To be precise, re = (53×10–6)·(53×10–12m) = 2.8×10–15 m. Now that’s again something you should check on the Internet. Guess what? […] It’s right on the spot again. 🙂

We can now also check that α = m·re formula: α = m·r= 4.181×10−23 times… Hey! Wait! We have to express re in Planck units as well, of course! Now, (2.81794×10–15 m)/(1.616×10–35 m) ≈ 1.7438 ×1020. So now we get 4.181×10−23 times 1.7438×1020 = 7.29×10–3 = 0.00729 ≈ 1/137. Bingo! We got the magic number once again. 🙂

So… Well… Doesn’t that confirm we actually do have it all with α?

Well… Yes and no… First, you should note that I had to use h in that calculation of the Bohr radius. Moreover, the other physical constants (most notably c and the Coulomb constant) were actually there as well, ‘in the background’ so to speak, because one needs them to derive the formulas we used above. And then we have the equations themselves, of course, most notably that Uncertainty Principle… So… Well…

It’s not like God gave us one number only (α) and that all the rest flows out of it. We have a whole bunch of ‘fundamental’ relations and ‘fundamental’ constants here.

Having said that, it’s true that statement still does not diminish the magic of alpha.

Hmm… Now you’ll wonder: how many? How many constants do we need in all of physics?

Well… I’d say, you should not only ask about the constants: you should also ask about the equations: how many equations do we need in all of physics? [Just for the record, I had to smile when the Hawking of the movie says that he’s actually looking for one formula that sums up all of physics. Frankly, that’s a nonsensical statement. Hence, I think the real Hawking never said anything like that. Or, if he did, that it was one of those statements one needs to interpret very carefully.]

But let’s look at a few constants indeed. For example, if we have c, h and α, then we can calculate the electric charge e and, hence, the electric constant ε= e2/2αhc. From that, we get Coulomb’s constant ke, because ke is defined as 1/4πε0… But…

Hey! Wait a minute! How do we know that ke = 1/4πε0? Well… From experiment. But… Yes? That means 1/4π is some fundamental proportionality coefficient too, isn’t it?

Wow! You’re smart. That’s a good and valid remark. In fact, we use the so-called reduced Planck constant ħ in a number of calculations, and so that involves a 2π factor too (ħ = h/2π). Hence… Well… Yes, perhaps we should consider 2π as some fundamental constant too! And, then, well… Now that I think of it, there’s a few other mathematical constants out there, like Euler’s number e, for example, which we use in complex exponentials.

?!?

I am joking, right? I am not saying that 2π and Euler’s number are fundamental ‘physical’ constants, am I? [Note that it’s a bit of a nuisance we’re also using the symbol for Euler’s number, but so we’re not talking the electron charge here: we’re talking that 2.71828…etc number that’s used in so-called ‘natural’ exponentials and logarithms.]

Well… Yes and no. They’re mathematical constants indeed, rather than physical, but… Well… I hope you get my point. What I want to show here, is that it’s quite hard to say what’s fundamental and what isn’t. We can actually pick and choose a bit among all those constants and all those equations. As one physicist puts its: it depends on how we slice it. The one thing we know for sure is that a great many things are related, in a physical way (α connects all of the fundamental properties of the electron, for example) and/or in a mathematical way (2π connects not only the circumference of the unit circle with the radius but quite a few other constants as well!), but… Well… What to say? It’s a tough discussion and I am not smart enough to give you an unambiguous answer. From what I gather on the Internet, when looking at the whole Standard Model (including the strong force, the weak force and the Higgs field), we’ve got a few dozen physical ‘fundamental’ constants, and then a few mathematical ones as well.

That’s a lot, you’ll say. Yes. At the same time, it’s not an awful lot. Whatever number it is, it does raise a very fundamental question: why are they what they are? That brings us back to that ‘fine-tuning’ problem. Now, I can’t make this post too long (it’s way too long already), so let me just conclude this discussion by copying Wikipedia on that question, because what it has on this topic is not so bad:

“Some physicists have explored the notion that if the physical constants had sufficiently different values, our Universe would be so radically different that intelligent life would probably not have emerged, and that our Universe therefore seems to be fine-tuned for intelligent life. The anthropic principle states a logical truism: the fact of our existence as intelligent beings who can measure physical constants requires those constants to be such that beings like us can exist.

I like this. But the article then adds the following, which I do not like so much, because I think it’s a bit too ‘frivolous’:

“There are a variety of interpretations of the constants’ values, including that of a divine creator (the apparent fine-tuning is actual and intentional), or that ours is one universe of many in a multiverse (e.g. the many-worlds interpretation of quantum mechanics), or even that, if information is an innate property of the universe and logically inseparable from consciousness, a universe without the capacity for conscious beings cannot exist.”

Hmm… As said, I am quite happy with the logical truism: we are there because alpha (and a whole range of other stuff) is what it is, and we can measure alpha (and a whole range of other stuff) as what it is, because… Well… Because we’re here. Full stop. As for the ‘interpretations’, I’ll let you think about that for yourself. 🙂

I need to get back to the lesson. Indeed, this was just a ‘digression’. My post was about the three fundamental events or actions in quantum electrodynamics, and so I was talking about that E(A to B) formula. However, I had to do that digression on alpha to ensure you understand what I want to write about that. So let me now get back to it. End of digression. 🙂

The E(A to B) formula

Indeed, I must assume that, with all these digressions, you are truly despairing now. Don’t. We’re there! We’re finally ready for the E(A to B) formula! Let’s go for it.

We’ve now got those two numbers measuring the electron charge and the electron mass in Planck units respectively. They’re fundamental indeed and so let’s loosen up on notation and just write them as e and m respectively. Let me recap:

1. The value of e is approximately –0.08542455, and it corresponds to the so-called junction number j, which is the amplitude for an electron-photon coupling. When multiplying it with another amplitude (to find the amplitude for an event consisting of two sub-events, for example), it corresponds to a ‘shrink’ to less than one-tenth (something like 8.5% indeed, corresponding to the magnitude of e) and a ‘rotation’ (or a ‘turn’) over 180 degrees, as mentioned above.

Please note what’s going on here: we have a physical quantity, the electron charge (expressed in Planck units), and we use it in a quantum-mechanical calculation as a dimensionless (complex) number, i.e. as an amplitude. So… Well… That’s what physicists mean when they say that the charge of some particle (usually the electric charge but, in quantum chromodynamics, it will be the ‘color’ charge of a quark) is a ‘coupling constant’.

2. We also have m, the electron mass, and we’ll use in the same way, i.e. as some dimensionless amplitude. As compared to j, it’s is a very tiny number: approximately 4.181×10−23. So if you look at it as an amplitude, indeed, then it corresponds to an enormous ‘shrink’ (but no turn) of the amplitude(s) that we’ll be combining it with.

So… Well… How do we do it?

Well… At this point, Leighton goes a bit off-track. Just a little bit. 🙂 From what he writes, it’s obvious that he assumes the frequency (or, what amounts to the same, the de Broglie wavelength) of an electron is just like the frequency of a photon. Frankly, I just can’t imagine why and how Feynman let this happen. It’s wrong. Plain wrong. As I mentioned in my introduction already, an electron traveling through space is not like a photon traveling through space.

For starters, an electron is much slower (because it’s a matter-particle: hence, it’s got mass). Secondly, the de Broglie wavelength and/or frequency of an electron is not like that of a photon. For example, if we take an electron and a photon having the same energy, let’s say 1 eV (that corresponds to infrared light), then the de Broglie wavelength of the electron will be 1.23 nano-meter (i.e. 1.23 billionths of a meter). Now that’s about one thousand times smaller than the wavelength of our 1 eV photon, which is about 1240 nm. You’ll say: how is that possible? If they have the same energy, then the f = E/h and ν = E/h should give the same frequency and, hence, the same wavelength, no?

Well… No! Not at all! Because an electron, unlike the photon, has a rest mass indeed – measured as not less than 0.511 MeV/c2, to be precise (note the rather particular MeV/c2 unit: it’s from the E = mc2 formula) – one should use a different energy value! Indeed, we should include the rest mass energy, which is 0.511 MeV. So, almost all of the energy here is rest mass energy! There’s also another complication. For the photon, there is an easy relationship between the wavelength and the frequency: it has no mass and, hence, all its energy is kinetic, or movement so to say, and so we can use that ν = E/h relationship to calculate its frequency ν: it’s equal to ν = E/h = (1 eV)/(4.13567×10–15 eV·s) ≈ 0.242×1015 Hz = 242 tera-hertz (1 THz = 1012 oscillations per second). Now, knowing that light travels at the speed of light, we can check the result by calculating the wavelength using the λ = c/ν relation. Let’s do it: (2.998×10m/s)/(242×1012 Hz) ≈ 1240 nm. So… Yes, done!

But so we’re talking photons here. For the electron, the story is much more complicated. That wavelength I mentioned was calculated using the other of the two de Broglie relations: λ = h/p. So that uses the momentum of the electron which, as you know, is the product of its mass (m) and its velocity (v): p = mv. You can amuse yourself and check if you find the same wavelength (1.23 nm): you should! From the other de Broglie relation, f = E/h, you can also calculate its frequency: for an electron moving at non-relativistic speeds, it’s about 0.123×1021 Hz, so that’s like 500,000 times the frequency of the photon we we’re looking at! When multiplying the frequency and the wavelength, we should get its speed. However, that’s where we get in trouble. Here’s the problem with matter waves: they have a so-called group velocity and a so-called phase velocity. The idea is illustrated below: the green dot travels with the wave packet – and, hence, its velocity corresponds to the group velocity – while the red dot travels with the oscillation itself, and so that’s the phase velocity. [You should also remember, of course, that the matter wave is some complex-valued wavefunction, so we have both a real as well as an imaginary part oscillating and traveling through space.]

Wave_group (1)

To be precise, the phase velocity will be superluminal. Indeed, using the usual relativistic formula, we can write that p = γm0v and E = γm0c2, with v the (classical) velocity of the electron and what it always is, i.e. the speed of light. Hence, λ = h/γm0v and = γm0c2/h, and so λf = c2/v. Because v is (much) smaller than c, we get a superluminal velocity. However, that’s the phase velocity indeed, not the group velocity, which corresponds to v. OK… I need to end this digression.

So what? Well, to make a long story short, the ‘amplitude framework’ for electrons is differerent. Hence, the story that I’ll be telling here is different from what you’ll read in Feynman’s QED. I will use his drawings, though, and his concepts. Indeed, despite my misgivings above, the conceptual framework is sound, and so the corrections to be made are relatively minor.

So… We’re looking at E(A to B), i.e. the amplitude for an electron to go from point A to B in spacetime, and I said the conceptual framework is exactly the same as that for a photon. Hence, the electron can follow any path really. It may go in a straight line and travel at a speed that’s consistent with what we know of its momentum (p), but it may also follow other paths. So, just like the photon, we’ll have some so-called propagator function, which gives you amplitudes based on the distance in space as well as in the distance in ‘time’ between two points. Now, Ralph Leighton identifies that propagator function with the propagator function for the photon, i.e. P(A to B), but that’s wrong: it’s not the same.

The propagator function for an electron depends on its mass and its velocity, and/or on the combination of both (like it momentum p = mv and/or its kinetic energy: K.E. = mv2 = p2/2m). So we have a different propagator function here. However, I’ll use the same symbol for it: P(A to B).

So, the bottom line is that, because of the electron’s mass (which, remember, is a measure for inertia), momentum and/or kinetic energy (which, remember, are conserved in physics), the straight line is definitely the most likely path, but (big but!), just like the photon, the electron may follow some other path as well.

So how do we formalize that? Let’s first associate an amplitude P(A to B) with an electron traveling from point A to B in a straight line and in a time that’s consistent with its velocity. Now, as mentioned above, the P here stands for propagator function, not for photon, so we’re talking a different P(A to B) here than that P(A to B) function we used for the photon. Sorry for the confusion. 🙂 The left-hand diagram below then shows what we’re talking about: it’s the so-called ‘one-hop flight’, and so that’s what the P(A to B) amplitude is associated with.

Diagram 1Now, the electron can follow other paths. For photons, we said the amplitude depended on the spacetime interval I: when negative or positive (i.e. paths that are not associated with the photon traveling in a straight line and/or at the speed of light), the contribution of those paths to the final amplitudes (or ‘final arrow’, as it was called) was smaller.

For an electron, we have something similar, but it’s modeled differently. We say the electron could take a ‘two-hop flight’ (via point C or C’), or a ‘three-hop flight’ (via D and E) from point A to B. Now, it makes sense that these paths should be associated with amplitudes that are much smaller. Now that’s where that n-factor comes in. We just put some real number n in the formula for the amplitude for an electron to go from A to B via C, which we write as:

P(A to C)∗n2∗P(C to B)

Note what’s going on here. We multiply two amplitudes, P(A to C) and P(C to B), which is OK, because that’s what the rules of quantum mechanics tell us: if an ‘event’ consists of two sub-events, we need to multiply the amplitudes (not the probabilities) in order to get the amplitude that’s associated with both sub-events happening. However, we add an extra factor: n2. Note that it must be some very small number because we have lots of alternative paths and, hence, they should not be very likely! So what’s the n? And why n2 instead of just n?

Well… Frankly, I don’t know. Ralph Leighton boldly equates n to the mass of the electron. Now, because he obviously means the mass expressed in Planck units, that’s the same as saying n is the electron’s energy (again, expressed in Planck’s ‘natural’ units), so n should be that number m = meP = EeP = 4.181×10−23. However, I couldn’t find any confirmation on the Internet, or elsewhere, of the suggested n = m identity, so I’ll assume n = m indeed, but… Well… Please check for yourself. It seems the answer is to be found in a mathematical theory that helps physicists to actually calculate j and n from experiment. It’s referred to as perturbation theory, and it’s the next thing on my study list. As for now, however, I can’t help you much. I can only note that the equation makes sense.

Of course, it does: inserting a tiny little number n, close to zero, ensures that those other amplitudes don’t contribute too much to the final ‘arrow’. And it also makes a lot of sense to associate it with the electron’s mass: if mass is a measure of inertia, then it should be some factor reducing the amplitude that’s associated with the electron following such crooked path. So let’s go along with it, and see what comes out of it.

A three-hop flight is even weirder and uses that n2 factor two times:

P(A to E)∗n2∗P(E to D)∗n2∗P(D to B)

So we have an (n2)= nfactor here, which is good, because two hops should be much less likely than one hop. So what do we get? Well… (4.181×10−23)≈ 305×10−92. Pretty tiny, huh? 🙂 Of course, any point in space is a potential hop for the electron’s flight from point A to B and, hence, there’s a lot of paths and a lot of amplitudes (or ‘arrows’ if you want), which, again, is consistent with a very tiny value for n indeed.

So, to make a long story short, E(A to B) will be a giant sum (i.e. some kind of integral indeed) of a lot of different ways an electron can go from point A to B. It will be a series of terms P(A to E) + P(A to C)∗n2∗P(C to B) + P(A to E)∗n2∗P(E to D)∗n2∗P(D to B) + … for all possible intermediate points C, D, E, and so on.

What about the j? The junction number of coupling constant. How does that show up in the E(A to B) formula? Well… Those alternative paths with hops here and there are actually the easiest bit of the whole calculation. Apart from taking some strange path, electrons can also emit and/or absorb photons during the trip. In fact, they’re doing that constantly actually. Indeed, the image of an electron ‘in orbit’ around the nucleus is that of an electron exchanging so-called ‘virtual’ photons constantly, as illustrated below. So our image of an electron absorbing and then emitting a photon (see the diagram on the right-hand side) is really like the tiny tip of a giant iceberg: most of what’s going on is underneath! So that’s where our junction number j comes in, i.e. the charge (e) of the electron.

So, when you hear that a coupling constant is actually equal to the charge, then this is what it means: you should just note it’s the charge expressed in Planck units. But it’s a deep connection, isn’t? When everything is said and done, a charge is something physical, but so here, in these amplitude calculations, it just shows up as some dimensionless negative number, used in multiplications and additions of amplitudes. Isn’t that remarkable?

d2 d3

The situation becomes even more complicated when more than one electron is involved. For example, two electrons can go in a straight line from point 1 and 2 to point 3 and 4 respectively, but there’s two ways in which this can happen, and they might exchange photons along the way, as shown below. If there’s two alternative ways in which one event can happen, you know we have to add amplitudes, rather than multiply them. Hence, the formula for E(A to B) becomes even more complicated.

D5d4

Moreover, a single electron may first emit and then absorb a photon itself, so there’s no need for other particles to be there to have lots of j factors in our calculation. In addition, that photon may briefly disintegrate into an electron and a positron, which then annihilate each other to again produce a photon: in case you wondered, that’s what those little loops in those diagrams depicting the exchange of virtual photons is supposed to represent. So, every single junction (i.e. every emission and/or absorption of a photon) involves a multiplication with that junction number j, so if there are two couplings involved, we have a j2 factor, and so that’s 0.085424552 = α ≈ 0.0073. Four couplings implies a factor of 0.085424554 ≈ 0.000053.

Just as an example, I copy two diagrams involving four, five or six couplings indeed. They all have some ‘incoming’ photon, because Feynman uses them to explain something else (the so-called magnetic moment of a photon), but it doesn’t matter: the same illustrations can serve multiple purposes.

d6 d7

Now, it’s obvious that the contributions of the alternatives with many couplings add almost nothing to the final amplitude – just like the ‘many-hop’ flights add almost nothing – but… Well… As tiny as these contributions are, they are all there, and so they all have to be accounted for. So… Yes. You can easily appreciate how messy it all gets, especially in light of the fact that there are so many points that can serve as a ‘hop’ or a ‘coupling’ point!

So… Well… Nothing. That’s it! I am done! I realize this has been another long and difficult story, but I hope you appreciated and that it shed some light on what’s really behind those simplified stories of what quantum mechanics is all about. It’s all weird and, admittedly, not so easy to understand, but I wouldn’t say an understanding is really beyond the reach of us, common mortals. 🙂

Post scriptum: When you’ve reached here, you may wonder: so where’s the final formula then for E(A to B)? Well… I have no easy formula for you. From what I wrote above, it should be obvious that we’re talking some really awful-looking integral and, because it’s so awful, I’ll let you find it yourself. 🙂

I should also note another reason why I am reluctant to identify n with m. The formulas in Feynman’s QED are definitely not the standard ones. The more standard formulations will use the gauge coupling parameter about which I talked already. I sort of discussed it, indirectly, in my first comments on Feynman’s QED, when I criticized some other part of the book, notably its explanation of the phenomenon of diffraction of light, which basically boiled down to: “When you try to squeeze light too much [by forcing it to go through a small hole], it refuses to cooperate and begins to spread out”, because “there are not enough arrows representing alternative paths.”

Now that raises a lot of questions, and very sensible ones, because that simplification is nonsensical. Not enough arrows? That statement doesn’t make sense. We can subdivide space in as many paths as we want, and probability amplitudes don’t take up any physical space. We can cut up space in smaller and smaller pieces (so we analyze more paths within the same space). The consequence – in terms of arrows – is that directions of our arrows won’t change but their length will be much and much smaller as we’re analyzing many more paths. That’s because of the normalization constraint. However, when adding them all up – a lot of very tiny ones, or a smaller bunch of bigger ones – we’ll still get the same ‘final’ arrow. That’s because the direction of those arrows depends on the length of the path, and the length of the path doesn’t change simply because we suddenly decide to use some other ‘gauge’.

Indeed, the real question is: what’s a ‘small’ hole? What’s ‘small’ and what’s ‘large’ in quantum electrodynamics? Now, I gave an intuitive answer to that question in that post of mine, but it’s much more accurate than Feynman’s, or Leighton’s. The answer to that question is: there’s some kind of natural ‘gauge’, and it’s related to the wavelength. So the wavelength of a photon, or an electron, in this case, comes with some kind of scale indeed. That’s why the fine-structure constant is often written in yet another form:

α = 2πree = rek

λe and kare the Compton wavelength and wavenumber of the electron (so kis not the Coulomb constant here). The Compton wavelength is the de Broglie wavelength of the electron. [You’ll find that Wikipedia defines it as “the wavelength that’s equivalent to the wavelength of a photon whose energy is the same as the rest-mass energy of the electron”, but that’s a very confusing definition, I think.]

The point to note is that the spatial dimension in both the analysis of photons as well as of matter waves, especially in regard to studying diffraction and/or interference phenomena, is related to the frequencies, wavelengths and/or wavenumbers of the wavefunctions involved. There’s a certain ‘gauge’ involved indeed, i.e. some measure that is relative, like the gauge pressure illustrated below. So that’s where that gauge parameter g comes in. And the fact that it’s yet another number that’s closely related to that fine-structure constant is… Well… Again… That alpha number is a very magic number indeed… 🙂

abs-gauge-press

Post scriptum (5 October 2015):

Much stuff is physics is quite ‘magical’, but it’s never ‘too magical’. I mean: there’s always an explanation. So there is a very logical explanation for the above-mentioned deep connection between the charge of an electron, its energy and/or mass, its various radii (or physical dimensions) and the coupling constant too. I wrote a piece about that, much later than when I wrote the piece above. I would recommend you read that piece too. It’s a piece in which I do take the magic out of ‘God’s number’. Understanding it involves a deep understanding of electromagnetism, however, and that requires some effort. It’s surely worth the effort, though.

The Strange Theory of Light and Matter (II)

If we limit our attention to the interaction between light and matter (i.e. the behavior of photons and electrons only—so we we’re not talking quarks and gluons here), then the ‘crazy ideas’ of quantum mechanics can be summarized as follows:

  1. At the atomic or sub-atomic scale, we can no longer look at light as an electromagnetic wave. It consists of photons, and photons come in blobs. Hence, to some extent, photons are ‘particle-like’.
  2. At the atomic or sub-atomic scale, electrons don’t behave like particles. For example, if we send them through a slit that’s small enough, we’ll observe a diffraction pattern. Hence, to some extent, electrons are ‘wave-like’.

In short, photons aren’t waves, but they aren’t particles either. Likewise, electrons aren’t particles, but they aren’t waves either. They are neither. The weirdest thing of all, perhaps, is that, while light and matter are two very different things in our daily experience – light and matter are opposite concepts, I’d say, just like particles and waves are opposite concepts) – they look pretty much the same in quantum physics: they are both represented by a wavefunction.

Let me immediately make a little note on terminology here. The term ‘wavefunction’ is a bit ambiguous, in my view, because it makes one think of a real wave, like a water wave, or an electromagnetic wave. Real waves are described by real-valued wave functions describing, for example, the motion of a ball on a spring, or the displacement of a gas (e.g. air) as a sound wave propagates through it, or – in the case of an electromagnetic wave – the strength of the electric and magnetic field.

You may have questions about the ‘reality’ of fields, but electromagnetic waves – i.e. the classical description of light – are quite ‘real’ too, even if:

  1. Light doesn’t travel in a medium (like water or air: there is no aether), and
  2. The magnitude of the electric and magnetic field (they are usually denoted by E and B) depend on your reference frame: if you calculate the fields using a moving coordinate system, you will get a different mixture of E and B. Therefore, E and B may not feel very ‘real’ when you look at them separately, but they are very real when we think of them as representing one physical phenomenon: the electromagnetic interaction between particles. So the E and B mix is, indeed, a dual representation of one reality. I won’t dwell on that, as I’ve done that in another post of mine.

How ‘real’ is the quantum-mechanical wavefunction?

The quantum-mechanical wavefunction is not like any of these real waves. In fact, I’d rather use the term ‘probability wave’ but, apparently, that’s used only by bloggers like me 🙂 and so it’s not very scientific. That’s for a good reason, because it’s not quite accurate either: the wavefunction in quantum mechanics represents probability amplitudes, not probabilities. So we should, perhaps, be consistent and term it a ‘probability amplitude wave’ – but then that’s too cumbersome obviously, so the term ‘probability wave’ may be confusing, but it’s not so bad, I think.

Amplitudes and probabilities are related as follows:

  1. Probabilities are real numbers between 0 and 1: they represent the probability of something happening, e.g. a photon moves from point A to B, or a photon is absorbed (and emitted) by an electron (i.e. a ‘junction’ or ‘coupling’, as you know).
  2. Amplitudes are complex numbers, or ‘arrows’ as Feynman calls them: they have a length (or magnitude) and a direction.
  3. We get the probabilities by taking the (absolute) square of the amplitudes.

So photons aren’t waves, but they aren’t particles either. Likewise, electrons aren’t particles, but they aren’t waves either. They are neither. So what are they? We don’t have words to describe what they are. Some use the term ‘wavicle’ but that doesn’t answer the question, because who knows what a ‘wavicle’ is? So we don’t know what they are. But we do know how they behave. As Feynman puts it, when comparing the behavior of light and then of electrons in the double-slit experiment—struggling to find language to describe what’s going on: “There is one lucky break: electrons behave just like light.”

He says so because of that wave function: the mathematical formalism is the same, for photons and for electrons. Exactly the same? […] But that’s such a weird thing to say, isn’t it? We can’t help thinking of light as waves, and of electrons as particles. They can’t be the same. They’re different, aren’t they? They are.

Scales and senses

To some extent, the weirdness can be explained because the scale of our world is not atomic or sub-atomic. Therefore, we ‘see’ things differently. Let me say a few words about the instrument we use to look at the world: our eye.

Our eye is particular. The retina has two types of receptors: the so-called cones are used in bright light, and distinguish color, but when we are in a dark room, the so-called rods become sensitive, and it is believed that they actually can detect a single photon of light. However, neural filters only allow a signal to pass to the brain when at least five photons arrive within less than a tenth of a second. A tenth of a second is, roughly, the averaging time of our eye. So, as Feynman puts it: “If we were evolved a little further so we could see ten times more sensitively, we wouldn’t have this discussion—we would all have seen very dim light of one color as a series of intermittent little flashes of equal intensity.” In other words, the ‘particle-like’ character of light would have been obvious to us.

Let me make a few more remarks here, which you may or may not find useful. The sense of ‘color’ is not something ‘out there’:  colors, like red or brown, are experiences in our eye and our brain. There are ‘pigments’ in the cones (cones are the receptors that work only if the intensity of the light is high enough) and these pigments absorb the light spectrum somewhat differently, as a result of which we ‘see’ color. Different animals see different things. For example, a bee can distinguish between white paper using zinc white versus lead white, because they reflect light differently in the ultraviolet spectrum, which the bee can see but we don’t. Bees can also tell the direction of the sun without seeing the sun itself, because they are sensitive to polarized light, and the scattered light of the sky (i.e. the blue sky as we see it) is polarized. The bee can also notice flicker up to 200 oscillations per second, while we see it only up to 20, because our averaging time is like a tenth of a second, which is short for us, but so the averaging time of the bee is much shorter. So we cannot see the quick leg movements and/or wing vibrations of bees, but the bee can!

Sometimes we can’t see any color. For example, we see the night sky in ‘black and white’ because the light intensity is very low, and so it’s our rods, not the cones, that process the signal, and so these rods can’t ‘see’ color. So those beautiful color pictures of nebulae are not artificial (although the pictures are often enhanced). It’s just that the camera that is used to take those pictures (film or, nowadays, digital) is much more sensitive than our eye.

Regardless, color is a quality which we add to our experience of the outside world ourselves. What’s out there are electromagnetic waves with this or that wavelength (or, what amounts to the same, this or that frequency). So when critics of the exact sciences say so much is lost when looking at (visible) light as an electromagnetic wave in the range of 430 to 790 teraherz, they’re wrong. Those critics will say that physics reduces reality. That is not the case.

What’s going on is that our senses process the signal that they are receiving, especially when it comes to vision. As Feynman puts it: “None of the other senses involves such a large amount of calculation, so to speak, before the signal gets into a nerve that one can make measurements on. The calculations for all the rest of the senses usually happen in the brain itself, where it is very difficult to get at specific places to make measurements, because there are so many interconnections. Here, with the visual sense, we have the light, three layers of cells making calculations, and the results of the calculations being transmitted through the optic nerve.”

Hence, things like color and all of the other sensations that we have are the object of study of other sciences, including biochemistry and neurobiology, or physiology. For all we know, what’s ‘out there’ is, effectively, just ‘boring’ stuff, like electromagnetic radiation, energy and ‘elementary particles’—whatever they are. No colors. Just frequencies. 🙂

Light versus matter

If we accept the crazy ideas of quantum mechanics, then the what and the how become one and the same. Hence we can say that photons and electrons are a wavefunction somewhere in space. Photons, of course, are always traveling, because they have energy but no rest mass. Hence, all their energy is in the movement: it’s kinetic, not potential. Electrons, on the other hand, usually stick around some nucleus. And, let’s not forget, they have an electric charge, so their energy is not only kinetic but also potential.

But, otherwise, it’s the same type of ‘thing’ in quantum mechanics: a wavefunction, like those below.

QuantumHarmonicOscillatorAnimation

Why diagram A and B? It’s just to emphasize the difference between a real-valued wave function and those ‘probability waves’ we’re looking at here (diagram C to H). A and B represent a mass on a spring, oscillating at more or less the same frequency but a different amplitude. The amplitude here means the displacement of the mass. The function describing the displacement of a mass on a spring (so that’s diagram A and B) is an example of a real-valued wave function: it’s a simple sine or cosine function, as depicted below. [Note that a sine and a cosine are the same function really, except for a phase difference of 90°.]

cos and sine

Let’s now go back to our ‘probability waves’. Photons and electrons, light and matter… The same wavefunction? Really? How can the sunlight that warms us up in the morning and makes trees grow be the same as our body, or the tree? The light-matter duality that we experience must be rooted in very different realities, isn’t it?

Well… Yes and no. If we’re looking at one photon or one electron only, it’s the same type of wavefunction indeed. The same type… OK, you’ll say. So they are the same family or genus perhaps, as they say in biology. Indeed, both of them are, obviously, being referred to as ‘elementary particles’ in the so-called Standard Model of physics. But so what makes an electron and a photon specific as a species? What are the differences?

There’re  quite a few, obviously:

1. First, as mentioned above, a photon is a traveling wave function and, because it has no rest mass, it travels at the ultimate speed, i.e. the speed of light (c). An electron usually sticks around or, if it travels through a wire, it travels at very low speeds. Indeed, you may find it hard to believe, but the drift velocity of the free electrons in a standard copper wire is measured in cm per hour, so that’s very slow indeed—and while the electrons in an electron microscope beam may be accelerated up to 70% of the speed of light, and close to in those huge accelerators, you’re not likely to find an electron microscope or accelerator in Nature. In fact, you may want to remember that a simple thing like electricity going through copper wires in our houses is a relatively modern invention. 🙂

So, yes, those oscillating wave functions in those diagrams above are likely to represent some electron, rather than a photon. To be precise, the wave functions above are examples of standing (or stationary) waves, while a photon is a traveling wave: just extend that sine and cosine function in both directions if you’d want to visualize it or, even better, think of a sine and cosine function in an envelope traveling through space, such as the one depicted below.

Photon wave

Indeed, while the wave function of our photon is traveling through space, it is likely to be limited in space because, when everything is said and done, our photon is not everywhere: it must be somewhere.

At this point, it’s good to pause and think about what is traveling through space. It’s the oscillation. But what’s the oscillation? There is no medium here, and even if there would be some medium (like water or air or something like aether—which, let me remind you, isn’t there!), the medium itself would not be moving, or – I should be precise here – it would only move up and down as the wave propagates through space, as illustrated below. To be fully complete, I should add we also have longitudinal waves, like sound waves (pressure waves): in that case, the particles oscillate back and forth along the direction of wave propagation. But you get the point: the medium does not travel with the wave.

Simple_harmonic_motion_animation

When talking electromagnetic waves, we have no medium. These E and B vectors oscillate but is very wrong to assume they use ‘some core of nearby space’, as Feynman puts it. They don’t. Those field vectors represent a condition at one specific point (admittedly, a point along the direction of travel) in space but, for all we know, an electromagnetic wave travels in a straight line and, hence, we can’t talk about its diameter or so.

Still, as mentioned above, we can imagine, more or less, what E and B stand for (we can use field line to visualize them, for instance), even if we have to take into account their relativity (calculating their values from a moving reference frame results in different mixtures of E and B). But what are those amplitudes? How should we visualize them?

The honest answer is: we can’t. They are what they are: two mathematical quantities which, taken together, form a two-dimensional vector, which we square to find a value for a real-life probability, which is something that – unlike the amplitude concept – does make sense to us. Still, that representation of a photon above (i.e. the traveling envelope with a sine and cosine inside) may help us to ‘understand’ it somehow. Again, you absolute have to get rid of the idea that these ‘oscillations’ would somehow occupy some physical space. They don’t. The wave itself has some definite length, for sure, but that’s a measurement in the direction of travel, which is often denoted as x when discussing uncertainty in its position, for example—as in the famous Uncertainty Principle (ΔxΔp > h).

You’ll say: Oh!—but then, at the very least, we can talk about the ‘length’ of a photon, can’t we? So then a photon is one-dimensional at least, not zero-dimensional! The answer is yes and no. I’ve talked about this before and so I’ll be short(er) on it now. A photon is emitted by an atom when an electron jumps from one energy level to another. It thereby emits a wave train that lasts about 10–8 seconds. That’s not very long but, taking into account the rather spectacular speed of light (3×10m/s), that still makes for a wave train with a length of not less than 3 meter. […] That’s quite a length, you’ll say. You’re right. But you forget that light travels at the speed of light and, hence, we will see this length as zero because of the relativistic length contraction effect. So… Well… Let me get back to the question: if photons and electrons are both represented by a wavefunction, what makes them different?

2. A more fundamental difference between photons and electrons is how they interact with each other.

From what I’ve written above, you understand that probability amplitudes are complex numbers, or ‘arrows’, or ‘two-dimensional vectors’. [Note that all of these terms have precise mathematical definitions and so they’re actually not the same, but the difference is too subtle to matter here.] Now, there are two ways of combining amplitudes, which are referred to as ‘positive’ and ‘negative’ interference respectively. I should immediately note that there’s actually nothing ‘positive’ or ‘negative’ about the interaction: we’re just putting two arrows together, and there are two ways to do that. That’s all.

The diagrams below show you these two ways. You’ll say: there are four! However, remember that we square an arrow to get a probability. Hence, the direction of the final arrow doesn’t matter when we’re taking the square: we get the same probability. It’s the direction of the individual amplitudes that matters when combining them. So the square of A+B is the same as the square of –(A+B) = –A+(–B) = –AB. Likewise, the square of AB is the same as the square of –(AB) = –A+B.

vector addition

These are the only two logical possibilities for combining arrows. I’ve written ad nauseam about this elsewhere: see my post on amplitudes and statistics, and so I won’t go into too much detail here. Or, in case you’d want something less than a full mathematical treatment, I can refer you to my previous post also, where I talked about the ‘stopwatch’ and the ‘phase’: the convention for the stopwatch is to have its hand turn clockwise (obviously!) while, in quantum physics, the phase of a wave function will turn counterclockwise. But so that’s just convention and it doesn’t matter, because it’s the phase difference between two amplitudes that counts. To use plain language: it’s the difference in the angles of the arrows, and so that difference is just the same if we reverse the direction of both arrows (which is equivalent to putting a minus sign in front of the final arrow).

OK. Let me get back to the lesson. The point is: this logical or mathematical dichotomy distinguishes bosons (i.e. force-carrying ‘particles’, like photons, which carry the electromagnetic force) from fermions (i.e. ‘matter-particles’, such as electrons and quarks, which make up protons and neutrons). Indeed, the so-called ‘positive’ and ‘negative’ interference leads to two very different behaviors:

  1. The probability of getting a boson where there are already present, is n+1 times stronger than it would be if there were none before.
  2. In contrast, the probability of getting two electrons into exactly the same state is zero.

The behavior of photons makes lasers possible: we can pile zillions of photon on top of each other, and then release all of them in one powerful burst. [The ‘flickering’ of a laser beam is due to the quick succession of such light bursts. If you want to know how it works in detail, check my post on lasers.]

The behavior of electrons is referred to as Fermi’s exclusion principle: it is only because real-life electrons can have one of two spin polarizations (i.e. two opposite directions of angular momentum, which are referred to as ‘up’ or ‘down’, but they might as well have been referred to as ‘left’ or ‘right’) that we find two electrons (instead of just one) in any atomic or molecular orbital.

So, yes, while both photons and electrons can be described by a similar-looking wave function, their behavior is fundamentally different indeed. How is that possible? Adding and subtracting ‘arrows’ is a very similar operation, isn’it?

It is and it isn’t. From a mathematical point of view, I’d say: yes. From a physics point of view, it’s obviously not very ‘similar’, as it does lead to these two very different behaviors: the behavior of photons allows for laser shows, while the behavior of electrons explain (almost) all the peculiarities of the material world, including us walking into doors. 🙂 If you want to check it out for yourself, just check Feynman’s Lectures for more details on this or, else, re-read my posts on it indeed.

3. Of course, there are even more differences between photons and electrons than the two key differences I mentioned above. Indeed, I’ve simplified a lot when I wrote what I wrote above. The wavefunctions of electrons in orbit around a nucleus can take very weird shapes, as shown in the illustration below—and please do google a few others if you’re not convinced. As mentioned above, they’re so-called standing waves, because they occupy a well-defined position in space only, but standing waves can look very weird. In contrast, traveling plane waves, or envelope curves like the one above, are much simpler.

1280px-D_orbitals

In short: yes, the mathematical representation of photons and electrons (i.e. the wavefunction) is very similar, but photons and electrons are very different animals indeed.

Potentiality and interconnectedness

I guess that, by now, you agree that quantum theory is weird but, as you know, quantum theory does explain all of the stuff that couldn’t be explained before: “It works like a charm”, as Feynman puts it. In fact, he’s often quoted as having said the following:

“It is often stated that of all the theories proposed in this century, the silliest is quantum theory. Some say the the only thing that quantum theory has going for it, in fact, is that it is unquestionably correct.”

Silly? Crazy? Uncommon-sensy? Truth be told, you do get used to thinking in terms of amplitudes after a while. And, when you get used to them, those ‘complex’ numbers are no longer complicated. 🙂 Most importantly, when one thinks long and hard enough about it (as I am trying to do), it somehow all starts making sense.

For example, we’ve done away with dualism by adopting a unified mathematical framework, but the distinction between bosons and fermions still stands: an ‘elementary particle’ is either this or that. There are no ‘split personalities’ here. So the dualism just pops up at a different level of description, I’d say. In fact, I’d go one step further and say it pops up at a deeper level of understanding.

But what about the other assumptions in quantum mechanics. Some of them don’t make sense, do they? Well… I struggle for quite a while with the assumption that, in quantum mechanics, anything is possible really. For example, a photon (or an electron) can take any path in space, and it can travel at any speed (including speeds that are lower or higher than light). The probability may be extremely low, but it’s possible.

Now that is a very weird assumption. Why? Well… Think about it. If you enjoy watching soccer, you’ll agree that flying objects (I am talking about the soccer ball here) can have amazing trajectories. Spin, lift, drag, whatever—the result is a weird trajectory, like the one below:

soccer

But, frankly, a photon taking the ‘southern’ route in the illustration below? What are the ‘wheels and gears’ there? There’s nothing sensible about that route, is there?

615px-Three_paths_from_A_to_B

In fact, there’s at least three issues here:

  1. First, you should note that strange curved paths in the real world (such as the trajectories of billiard or soccer balls) are possible only because there’s friction involved—between the felt of the pool table cloth and the ball, or between the balls, or, in the case of soccer, between the ball and the air. There’s no friction in the vacuum. Hence, in empty space, all things should go in a straight line only.
  2. While it’s quite amazing what’s possible, in the real world that is, in terms of ‘weird trajectories’, even the weirdest trajectories of a billiard or soccer ball can be described by a ‘nice’ mathematical function. We obviously can’t say the same of that ‘southern route’ which a photon could follow, in theory that is. Indeed, you’ll agree the function describing that trajectory cannot be ‘nice’. So even we’d allow all kinds of ‘weird’ trajectories, shouldn’t we limit ourselves to ‘nice’ trajectories only? I mean: it doesn’t make sense to allow the photons traveling from your computer screen to your retina take some trajectory to the Sun and back, does it?
  3. Finally, and most fundamentally perhaps, even when we would assume that there’s some mechanism combining (a) internal ‘wheels and gears’ (such as spin or angular momentum) with (b) felt or air or whatever medium to push against, what would be the mechanism determining the choice of the photon in regard to these various paths? In Feynman’s words: How does the photon ‘make up its mind’?

Feynman answers these questions, fully or partially (I’ll let you judge), when discussing the double-slit experiment with photons:

“Saying that a photon goes this or that way is false. I still catch myself saying, “Well, it goes either this way or that way,” but when I say that, I have to keep in mind that I mean in the sense of adding amplitudes: the photon has an amplitude to go one way, and an amplitude to go the other way. If the amplitudes oppose each other, the light won’t get there—even though both holes are open.”

It’s probably worth re-calling the results of that experiment here—if only to help you judge whether or not Feynman fully answer those questions above!

The set-up is shown below. We have a source S, two slits (A and B), and a detector D. The source sends photons out, one by one. In addition, we have two special detectors near the slits, which may or may not detect a photon, depending on whether or not they’re switched on as well as on their accuracy.

set-up photons

First, we close one of the slits, and we find that 1% of the photons goes through the other (so that’s one photon for every 100 photons that leave S). Now, we open both slits to study interference. You know the results already:

  1. If we switch the detectors off (so we have no way of knowing where the photon went), we get interference. The interference pattern depends on the distance between A and B and varies from 0% to 4%, as shown in diagram (a) below. That’s pretty standard. As you know, classical theory can explain that too assuming light is an electromagnetic wave. But so we have blobs of energy – photons – traveling one by one. So it’s really that double-slit experiment with electrons, or whatever other microscopic particles (as you know, they’ve done these interference electrons with large molecules as well—and they get the same result!). We get the interference pattern by using those quantum-mechanical rules to calculate probabilities: we first add the amplitudes, and it’s only when we’re finished adding those amplitudes, that we square the resulting arrow to the final probability.
  2. If we switch those special detectors on, and if they are 100% reliable (i.e. all photons going through are being detected), then our photon suddenly behaves like a particle, instead of as a wave: they will go through one of the slits only, i.e. either through A, or, alternatively, through B. So the two special detectors never go off together. Hence, as Feynman puts it: we shouldn’t think there is “sneaky way that the photon divides in two and then comes back together again.” It’s one or the other way and, and there’s no interference: the detector at D goes off 2% of the time, which is the simple sum of the probabilities for A and B (i.e. 1% + 1%).
  3. When the special detectors near A and B are not 100% reliable (and, hence, do not detect all photons going through), we have three possible final conditions: (i) A and D go off, (ii) B and D go off, and (iii) D goes off alone (none of the special detectors went off). In that case, we have a final curve that’s a mixture, as shown in diagram (c) and (d) below. We get it using the same quantum-mechanical rules: we add amplitudes first, and then we square to get the probabilities.

double-slit photons - results

Now, I think you’ll agree with me that Feynman doesn’t answer my (our) question in regard to the ‘weird paths’. In fact, all of the diagrams he uses assume straight or nearby paths. Let me re-insert two of those diagrams below, to show you what I mean.

 Many arrowsFew arrows

So where are all the strange non-linear paths here? Let me, in order to make sure you get what I am saying here, insert that illustration with the three crazy routes once again. What we’ve got above (Figure 33 and 34) is not like that. Not at all: we’ve got only straight lines there! Why? The answer to that question is easy: the crazy paths don’t matter because their amplitudes cancel each other out, and so that allows Feynman to simplify the whole situation and show all the relevant paths as straight lines only.

615px-Three_paths_from_A_to_B

Now, I struggled with that for quite a while. Not because I can’t see the math or the geometry involved. No. Feynman does a great job showing why those amplitudes cancel each other out indeed (if you want a summary, see my previous post once again).  My ‘problem’ is something else. It’s hard to phrase it, but let me try: why would we even allow for the logical or mathematical possibility of ‘weird paths’ (and let me again insert that stupid diagram below) if our ‘set of rules’ ensures that the truly ‘weird’ paths (like that photon traveling from your computer screen to your eye doing a detour taking it to the Sun and back) cancel each other out anyway? Does that respect Occam’s Razor? Can’t we devise some theory including ‘sensible’ paths only?

Of course, I am just an autodidact with limited time, and I know hundreds (if not thousands) of the best scientists have thought long and hard about this question and, hence, I readily accept the answer is quite simply: no. There is no better theory. I accept that answer, ungrudgingly, not only because I think I am not so smart as those scientists but also because, as I pointed out above, one can’t explain any path that deviates from a straight line really, as there is no medium, so there are no ‘wheels and gears’. The only path that makes sense is the straight line, and that’s only because…

Well… Thinking about it… We think the straight path makes sense because we have no good theory for any of the other paths. Hmm… So, from a logical point of view, assuming that the straight line is the only reasonable path is actually pretty random too. When push comes to shove, we have no good theory for the straight line either!

You’ll say I’ve just gone crazy. […] Well… Perhaps you’re right. 🙂 But… Somehow, it starts to make sense to me. We allow for everything to, then, indeed weed out the crazy paths using our interference theory, and so we do end up with what we’re ending up with: some kind of vague idea of “light not really traveling in a straight line but ‘smelling’ all of the neighboring paths around it and, hence, using a small core of nearby space“—as Feynman puts it.

Hmm… It brings me back to Richard Feynman’s introduction to his wonderful little book, in which he says we should just be happy to know how Nature works and not aspire to know why it works that way. In fact, he’s basically saying that, when it comes to quantum mechanics, the ‘how’ and the ‘why’ are one and the same, so asking ‘why’ doesn’t make sense, because we know ‘how’. He compares quantum theory with the system of calculation used by the Maya priests, which was based on a system of bars and dots, which helped them to do complex multiplications and divisions, for example. He writes the following about it: “The rules were tricky, but they were a much more efficient way of getting an answer to complicated questions (such as when Venus would rise again) than by counting beans.”

When I first read this, I thought the comparison was flawed: if a common Maya Indian did not want to use the ‘tricky’ rules of multiplication and what have you (or, more likely, if he didn’t understand them), he or she could still resort to counting beans. But how do we count beans in quantum mechanics? We have no ‘simpler’ rules than those weird rules about adding amplitudes and taking the (absolute) square of complex numbers so… Well… We actually are counting beans here then:

  1. We allow for any possibility—any path: straight, curved or crooked. Anything is possible.
  2. But all those possibilities are inter-connected. Also note that every path has a mirror image: for every route ‘south’, there is a similar route ‘north’, so to say, except for the straight line, which is a mirror image of itself.
  3. And then we have some clock ticking. Time goes by. It ensures that the paths that are too far removed from the straight line cancel each other. [Of course, you’ll ask: what is too far? But I answered that question –  convincingly, I hope – in my previous post: it’s not about the ‘number of arrows’ (as suggested in the caption under that Figure 34 above), but about the frequency and, hence, the ‘wavelength’ of our photon.]
  4. And so… Finally, what’s left is a limited number of possibilities that interfere with each other, which results in what we ‘see’: light seems to use a small core of space indeed–a limited number of nearby paths.

You’ll say… Well… That still doesn’t ‘explain’ why the interference pattern disappears with those special detectors or – what amounts to the same – why the special detectors at the slits never click simultaneously.

You’re right. How do we make sense of that? I don’t know. You should try to imagine what happens for yourself. Everyone has his or her own way of ‘conceptualizing’ stuff, I’d say, and you may well be content and just accept all of the above without trying to ‘imagine’ what’s happening really when a ‘photon’ goes through one or both of those slits. In fact, that’s the most sensible thing to do. You should not try to imagine what happens and just follow the crazy calculus rules.

However, when I think about it, I do have some image in my head. The image is of one of those ‘touch-me-not’ weeds. I quickly googled one of these images, but I couldn’t quite find what I am looking for: it would be more like something that, when you touch it, curls up in a little ball. Any case… You know what I mean, I hope.

Mimosa_Pudica

You’ll shake your head now and solemnly confirm that I’ve gone mad. Touch-me-not weeds? What’s that got to do with photons?

Well… It’s obvious you and I cannot really imagine how a photon looks like. But I think of it as a blob of energy indeed, which is inseparable, and which effectively occupies some space (in three dimensions that is). I also think that, whatever it is, it actually does travel through both slits, because, as it interferes with itself, the interference pattern does depend on the space between the two slits as well as the width of those slits. In short, the whole ‘geometry’ of the situation matters, and so the ‘interaction’ is some kind of ‘spatial’ thing. [Sorry for my awfully imprecise language here.]

Having said that, I think it’s being detected by one detector only because only one of them can sort of ‘hook’ it, somehow. Indeed, because it’s interconnected and inseparable, it’s the whole blob that gets hooked, not just one part of it. [You may or may not imagine that the detectors that’s got the best hold of it gets it, but I think that’s pushing the description too much.] In any case, the point is that a photon is surely not like a lizard dropping its tail while trying to escape. Perhaps it’s some kind of unbreakable ‘string’ indeed – and sorry for summarizing string theory so unscientifically here – but then a string oscillating in dimensions we can’t imagine (or in some dimension we can’t observe, like the Kaluza-Klein theory suggests). It’s something, for sure, and something that stores energy in some kind of oscillation, I think.

What it is, exactly, we can’t imagine, and we’ll probably never find out—unless we accept that the how of quantum mechanics is not only the why, but also the what. 🙂

Does this make sense? Probably not but, if anything, I hope it fired your imagination at least. 🙂

The Strange Theory of Light and Matter (I)

I am of the opinion that Richard Feynman’s wonderful little common-sense introduction to the ‘uncommon-sensy‘ theory of quantum electrodynamics (The Strange Theory of Light and Matter), which were published a few years before his death only, should be mandatory reading for high school students.

I actually mean that: it should just be part of the general education of the first 21st century generation. Either that or, else, the Education Board should include a full-fledged introduction to complex analysis and quantum physics in the curriculum. 🙂

Having praised it (just now, as well as in previous posts), I re-read it recently during a trek in Nepal with my kids – I just grabbed the smallest book I could find the morning we left 🙂 – and, frankly, I now think Ralph Leighton, who transcribed and edited these four short lectures, could have cross-referenced it better. Moreover, there are two or three points where Feynman (or Leighton?) may have sacrificed accuracy for readability. Let me recapitulate the key points and try to improve here and there.

Amplitudes and arrows

The booklet avoids scary mathematical terms and formulas but doesn’t avoid the fundamental concepts behind, and it doesn’t avoid the kind of ‘deep’ analysis one needs to get some kind of ‘feel’ for quantum mechanics either. So what are the simplifications?

A probability amplitude (i.e. a complex number) is, quite simply, an arrow, with a direction and a length. Thus Feynman writes: “Arrows representing probabilities from 0% to 16% [as measured by the surface of the square which has the arrow as its side] have lengths from 0 to 0.4.” That makes sense: such geometrical approach does away, for example, with the need to talk about the absolute square (i.e. the square of the absolute value, or the squared norm) of a complex number – which is what we need to calculate probabilities from probability amplitudes. So, yes, it’s a wonderful metaphor. We have arrows and surfaces now, instead of wave functions and absolute squares of complex numbers.

The way he combines these arrows make sense too. He even notes the difference between photons (bosons) and electrons (fermions): for bosons, we just add arrows; for fermions, we need to subtract them (see my post on amplitudes and statistics in this regard).

There is also the metaphor for the phase of a wave function, which is a stroke of genius really (I mean it): the direction of the ‘arrow’ is determined by a stopwatch hand, which starts turning when a photon leaves the light source, and stops when it arrives, as shown below.

front and back reflection amplitude

OK. Enough praise. What are the drawbacks?

The illustration above accompanies an analysis of how light is either reflected from the front surface of a sheet of a glass or, else, from the back surface. Because it takes more time to bounce off the back surface (the path is associated with a greater distance), the front and back reflection arrows point in different directions indeed (the stopwatch is stopped somewhat later when the photon reflects from the back surface). Hence, the difference in phase (but that’s a term that Feynman also avoids) is determined by the thickness of the glass. Just look at it. In the upper part of the illustration above, the thickness is such that the chance of a photon reflecting off the front or back surface is 5%: we add two arrows, each with a length of 0.2, and then we square the resulting (aka final) arrow. Bingo! We get a surface measuring 0.05, or 5%.

Huh? Yes. Just look at it: if the angle between the two arrows would be 90° exactly, it would be 0.08 or 8%, but the angle is a bit less. In the lower part of the illustration, the thickness of the glass is such that the two arrows ‘line up’ and, hence, they form an arrow that’s twice the length of either arrow alone (0.2 + 0.2 = 0.4), with a square four times as large (0.16 = 16%). So… It all works like a charm, as Feynman puts it.

[…]

But… Hey! Look at the stopwatch for the front reflection arrows in the upper and lower diagram: they point in the opposite direction of the stopwatch hand! Well… Hmm… You’re right. At this point, Feynman just notes that we need an extra rule: “When we are considering the path of a photon bouncing off the front surface of the glass, we reverse the direction of the arrow.

He doesn’t say why. He just adds this random rule to the other rules – which most readers who read this book already know. But why this new rule? Frankly, this inconsistency – or lack of clarity – would wake me up at night. This is Feynman: there must be a reason. Why?

Initially, I suspected it had something to do with the two types of ‘statistics’ in quantum mechanics (i.e. those different rules for combining amplitudes of bosons and fermions respectively, which I mentioned above). But… No. Photons are bosons anyway, so we surely need to add, not subtract. So what is it?

[…] Feynman explains it later, much later – in the third of the four chapters of this little book, to be precise. It’s, quite simply, the result of the simplified model he uses in that first chapter. The photon can do anything really, and so there are many more arrows than just two. We actually should look at an infinite number of arrows, representing all possible paths in spacetime, and, hence, the two arrows (i.e. the one for the reflection from the front and back surface respectively) are combinations of many other arrows themselves. So how does that work?

An analysis of partial reflection (I)

The analysis in Chapter 3 of the same phenomenon (i.e. partial reflection by glass) is a simplified analysis too, but it’s much better – because there are no ‘random’ rules here. It is what Leighton promises to the reader in his introduction: “A complete description, accurate in every detail, of a framework onto which more advanced concepts can be attached without modification. Nothing has to be ‘unlearned’ later.

Well… Accurate in every detail? Perhaps not. But it’s good, and I still warmly recommend a reading of this delightful little book to anyone who’d ask me what to read as a non-mathematical introduction to quantum mechanics. I’ll limit myself here to just some annotations.

The first drawing (a) depicts the situation:

  1. A photon from a light source is being reflected by the glass. Note that it may also go straight through, but that’s a possibility we’ll analyze separately. We first assume that the photon is effectively being reflected by the glass, and so we want to calculate the probability of that event using all these ‘arrows’, i.e. the underlying probability amplitudes.
  2. As for the geometry of the situation: while the light source and the detector seem to be positioned at some angle from the normal, that is not the case: the photon travels straight down (and up again when reflected). It’s just a limitation of the drawing. It doesn’t really matter much for the analysis: we could look at a light beam coming in at some angle, but so we’re not doing that. It’s the simplest situation possible, in terms of experimental set-up that is. I just want to be clear on that.

partial reflection

Now, rather than looking at the front and back surface only (as Feynman does in Chapter 1), the glass sheet is now divided into a number of very thin sections: five, in this case, so we have six points from which the photon can be scattered into the detector at A: X1 to X6. So that makes six possible paths. That’s quite a simplification but it’s easy to see it doesn’t matter: adding more sections would result in many more arrows, but these arrows would also be much smaller, and so the final arrow would be the same.

The more significant simplification is that the paths are all straight paths, and that the photon is assumed to travel at the speed of light, always. If you haven’t read the booklet, you’ll say that’s obvious, but it’s not: a photon has an amplitude to go faster or slower than c but, as Feynman points out, these amplitudes cancel out over longer distances. Likewise, a photon can follow any path in space really, including terribly crooked paths, but these paths also cancel out. As Feynman puts it: “Only the paths near the straight-line path have arrows pointing in nearly the same direction, because their timings are nearly the same, and only these arrows are important, because it is from them that we accumulate a large final arrow.” That makes perfect sense, so there’s no problem with the analysis here either.

So let’s have a look at those six arrows in illustration (b). They point in a slightly different direction because the paths are slightly different and, hence, the distances (and, therefore, the timings) are different too. Now, Feynman (but I think it’s Leighton really) loses himself here in a digression on monochromatic light sources. A photon is a photon: it will have some wave function with a phase that varies in time and in space and, hence, illustration (b) makes perfect sense. [I won’t quote what he writes on a ‘monochromatic light source’ because it’s quite confusing and, IMHO, not correct.]

The stopwatch metaphor has only one minor shortcoming: the hand of a stopwatch rotates clockwise (obviously!), while the phase of an actual wave function goes counterclockwise with time. That’s just convention, and I’ll come back to it when I discuss the mathematical representation of the so-called wave function, which gives you these amplitudes. However, it doesn’t change the analysis, because it’s the difference in the phase that matters when combining amplitudes, so the clock can turn in either way indeed, as long as we’re agreed on it.

At this point, I can’t resist: I’ll just throw the math in. If you don’t like it, you can just skip the section that follows.

Feynman’s arrows and the wave function

The mathematical representation of Feynman’s ‘arrows’ is the wave function:

f = f(x–ct)

Is that the wave function? Yes. It is: it’s a function whose argument is x – ct, with x the position in space, and t the time variable. As for c, that’s the speed of light. We throw it in to make the units in which we measure time and position compatible.

Really? Yes: f is just a regular wave function. To make it look somewhat more impressive, I could use the Greek symbol Φ (phi) or Ψ (psi) for it, but it’s just what it is: a function whose value depends on position and time indeed, so we write f = f(x–ct). Let me explain the minus sign and the c in the argument.

Time and space are interchangeable in the argument, provided we measure time in the ‘right’ units, and so that’s why we multiply the time in seconds with c, so the new unit of time becomes the time that light needs to travel a distance of one meter. That also explains the minus sign in front of ct: if we add one distance unit (i.e. one meter) to the argument, we have to subtract one time unit from it – the new time unit of course, so that’s the time that light needs to travel one meter – in order to get the same value for f. [If you don’t get that x–ct thing, just think a while about this, or make some drawing of a wave function. Also note that the spacetime diagram in illustration (b) above assumes the same: time is measured in an equivalent unit as distance, so the 45% line from the south-west to the north-east, that bounces back to the north-west, represents a photon traveling at speed c in space indeed: one unit of time corresponds to one meter of travel.]

Now I want to be a bit more aggressive. I said is a simple function. That’s true and not true at the same time. It’s a simple function, but it gives you probability amplitudes, which are complex numbers – and you may think that complex numbers are, perhaps, not so simple. However, you shouldn’t be put off. Complex numbers are really like Feynman’s ‘arrows’ and, hence, fairly simple things indeed. They have two dimensions, so to say: an a– and a b-coordinate. [I’d say an x– and y-coordinate, because that’s what you usually see, but then I used the x symbol already for the position variable in the argument of the function, so you have to switch to a and b for a while now.]

This a– and b-coordinate are referred to as the real and imaginary part of a complex number respectively. The terms ‘real’ and ‘imaginary’ are confusing because both parts are ‘real’ – well… As real as numbers can be, I’d say. 🙂 They’re just two different directions in space: the real axis is the a-axis in coordinate space, and the imaginary axis is the b-axis. So we could write it as an ordered pair of numbers (a, b). However, we usually write it as a number itself, and we distinguish the b-coordinate from the a-coordinate by writing an i in front: (a, b) = a + ib. So our function f = f(x–ct) is a complex-valued function: it will give you two numbers (an a and a b) instead of just one when you ‘feed’ it with specific values for x and t. So we write:

f = f(x–ct) = (a, b) = a + ib

So what’s the shape of this function? Is it linear or irregular or what? We’re talking a very regular wave function here, so it’s shape is ‘regular’ indeed. It’s a periodic function, so it repeats itself again and again. The animations below give you some idea of such ‘regular’ wave functions. Animation A and B shows a real-valued ‘wave’: a ball on a string that goes up and down, for ever and ever. Animations C to H are – believe it or not – basically the same thing, but so we have two numbers going up and down. That’s all.

QuantumHarmonicOscillatorAnimation

The wave functions above are, obviously, confined in space, and so the horizontal axis represents the position in space. What we see, then, is how the real and imaginary part of these wave functions varies as time goes by. [Think of the blue graph as the real part, and the imaginary part as the pinkish thing – or the other way around. It doesn’t matter.] Now, our wave function – i.e. the one that Feynman uses to calculate all those probabilities – is even more regular than those shown above: its real part is an ordinary cosine function, and it’s imaginary part is a sine. Let me write this in math:

f = f(x–ct) = a + ib = r(cosφ + isinφ)

It’s really the most regular wave function in the world: the very simple illustration below shows how the two components of f vary as a function in space (i.e. the horizontal axis) while we keep the time fixed, or vice versa: it could also show how the function varies in time at one particular point in space, in which case the horizontal axis would represent the time variable. It is what it is: a sine and a cosine function, with the angle φ as its argument.

cos and sine

Note that a sine function is the same as a cosine function, but it just lags a bit. To be precise, the phase difference is 90°, or π/2 in radians (the radian (i.e. the length of the arc on the unit circle) is a much more natural unit to express angles, as it’s fully compatible with our distance unit and, hence, most – if not all – of our other units). Indeed, you may or may not remember the following trigonometric identities: sinφ = cos(π/2–φ) = cos(φ–π/2).

In any case, now we have some r and φ here, instead of a and b. You probably wonder where I am going with all of this. Where are the x and t variables? Be patient! You’re right. We’ll get there. I have to explain that r and φ first. Together, they are the so-called polar coordinates of Feynman’s ‘arrow’ (i.e. the amplitude). Polar coordinates are just as good as coordinates as these Cartesian coordinates we’re used to (i.e. a and b). It’s just a different coordinate system. The illustration below shows how they are related to each other. If you remember anything from your high school trigonometry course, you’ll immediately agree that a is, obviously, equal to rcosφ, and b is rsinφ, which is what I wrote above. Just as good? Well… The polar coordinate system has some disadvantages (all of those expressions and rules we learned in vector analysis assume rectangular coordinates, and so we should watch out!) but, for our purpose here, polar coordinates are actually easier to work with, so they’re better.

Complex_number_illustration

Feynman’s wave function is extremely simple because his ‘arrows’ have a fixed length, just like the stopwatch hand. They’re just turning around and around and around as time goes by. In other words, is constant and does not depend on position and time. It’s the angle φ that’s turning and turning and turning as the stopwatch ticks while our photon is covering larger and larger distances. Hence, we need to find a formula for φ that makes it explicit how φ changes as a function in spacetime. That φ variable is referred to as the phase of the wave function. That’s a term you’ll encounter frequently and so I had better mention it. In fact, it’s generally used as a synonym for any angle, as you can see from my remark on the phase difference between a sine and cosine function.

So how do we express φ as a function of x and t? That’s where Euler’s formula comes in. Feynman calls it the most remarkable formula in mathematics – our jewel! And he’s probably right: of all the theorems and formulas, I guess this is the one we can’t do without when studying physics. I’ve written about this in another post, and repeating what I wrote there would eat up too much space, so I won’t do it and just give you that formula. A regular complex-valued wave function can be represented as a complex (natural) exponential function, i.e. an exponential function with Euler’s number e (i.e. 2.728…) as the base, and the complex number iφ as the (variable) exponent. Indeed, according to Euler’s formula, we can write:

f = f(x–ct) = a + ib = r(cosφ + isinφ) = r·eiφ

As I haven’t explained Euler’s formula (you should really have a look at my posts on it), you should just believe me when I say that r·eiφ is an ‘arrow’ indeed, with length r and angle φ (phi), as illustrated above, with a and b coordinates arcosφ and b = rsinφ. What you should be able to do now, is to imagine how that φ angle goes round and round as time goes by, just like Feynman’s ‘arrow’ goes round and round – just like a stopwatch hand indeed, but note our φ angle turns counterclockwise indeed.

Fine, you’ll say – but so we need a mathematical expression, don’t we? Yes,we do. We need to know how that φ angle (i.e. the variable in our r·eiφ function) changes as a function of x and t indeed. It turns out that the φ in r·eiφ can be substituted as follows:

eiφ = r·ei(ωt–kx) = r·eik(x–ct)

Huh? Yes. The phase (φ) of the probability amplitude (i.e. the ‘arrow’) is a simple linear function of x and t indeed: φ = ωt–kx = –k(x–ct). What about all these new symbols, k and ω? The ω and k in this equation are the so-called angular frequency and the wave number of the wave. The angular frequency is just the frequency expressed in radians, and you should think of the wave number as the frequency in space. [I could write some more here, but I can’t make it too long, and you can easily look up stuff like this on the Web.] Now, the propagation speed c of the wave is, quite simply, the ratio of these two numbers: c = ω/k. [Again, it’s easy to show how that works, but I won’t do it here.]

Now you know it all, and so it’s time to get back to the lesson.

An analysis of partial reflection (II)

Why did I digress? Well… I think that what I write above makes much more sense than Leighton’s rather convoluted description of a monochromatic light source as he tries to explain those arrows in diagram (b) above. Whatever it is, a monochromatic light source is surely not “a device that has been carefully arranged so that the amplitude for a photon to be emitted at a certain time can be easily calculated.” That’s plain nonsense. Monochromatic light is light of a specific color, so all photons have the same frequency (or, to be precise, their wave functions have all the same well-defined frequency), but these photons are not in phase. Photons are emitted by atoms, as an electron moves from one energy level to the other. Now, when a photon is emitted, what actually happens is that the atom radiates a train of waves only for about 10–8 sec, so that’s about 10 billionths of a second. After 10–8 sec, some other atom takes over, and then another atom, and so on. Each atom emits one photon, whose energy is the difference between the two energy levels that the electron is jumping to or from. So the phase of the light that is being emitted can really only stay the same for about 10–8 sec. Full stop.

Now, what I write above on how atoms actually emit photons is a paraphrase of Feynman’s own words in his much more serious series of Lectures on Mechanics, Radiation and Heat. Therefore, I am pretty sure it’s Leighton who gets somewhat lost when trying to explain what’s happening. It’s not photons that interfere. It’s the probability amplitudes associated with the various paths that a photon can take. To be fully precise, we’re talking the photon here, i.e. the one that ends up in the detector, and so what’s going on is that the photon is interfering with itself. Indeed, that’s exactly what the ‘craziness’ of quantum mechanics is all about: we sent electrons, one by one, through two slits, and we observe an interference pattern. Likewise, we got one photon here, that can go various ways, and it’s those amplitudes that interfere, so… Yes: the photon interferes with itself.

OK. Let’s get back to the lesson and look at diagram (c) now, in which the six arrows are added. As mentioned above, it would not make any difference if we’d divide the glass in 10 or 20 or 1000 or a zillion ‘very thin’ sections: there would be many more arrows, but they would be much smaller ones, and they would cover the same circular segment: its two endpoints would define the same arc, and the same chord on the circle that we can draw when extending that circular segment. Indeed, the six little arrows define a circle, and that’s the key to understanding what happens in the first chapter of Feynman’s QED, where he adds two arrows only, but with a reversal of the direction of the ‘front reflection’ arrow. Here there’s no confusion – Feynman (or Leighton) eloquently describe what they do:

“There is a mathematical trick we can use to get the same answer [i.e. the same final arrow]: Connecting the arrows in order from 1 to 6, we get something like an arc, or part of a circle. The final arrow forms the chord of this arc. If we draw arrows from the center of the ‘circle’ to the tail of arrow 1 and to the head of arrow 6, we get two radii. If the radius arrow from the center to arrow 1 is turned 180° (“subtracted”), then it can be combined with the other radius arrow to give us the same final arrow! That’s what I was doing in the first lecture: these two radii are the two arrows I said represented the ‘front surface’ and ‘back surface’ reflections. They each have the famous length of 0.2.”

That’s what’s shown in part (d) of the illustration above and, in case you’re still wondering what’s going on, the illustration below should help you to make your own drawings now.

CircularsegmentSo… That explains the phenomenon Feynman wanted to explain, which is a phenomenon that cannot be explained in classical physics. Let me copy the original here:

Iridescence

Partial reflection by glass—a phenomenon that cannot be explained in classical physics? Really?

You’re right to raise an objection: partial reflection by glass can, in fact, be explained by the classical theory of light as an electromagnetic wave. The assumption then is that light is effectively being reflected by both the front and back surface and the reflected waves combine or cancel out (depending on the thickness of the glass and the angle of reflection indeed) to match the observed pattern. In fact, that’s how the phenomenon was explained for hundreds of years! The point to note is that the wave theory of light collapsed as technology advanced, and experiments could be made with very weak light hitting photomultipliers. As Feynman writes: “As the light got dimmer and dimmer, the photomultipliers kept making full-sized clicks—there were just fewer of them. Light behaved as particles!”

The point is that a photon behaves like an electron when going through two slits: it interferes with itself! As Feynman notes, we do not have any ‘common-sense’ theory to explain what’s going on here. We only have quantum mechanics, and quantum mechanics is an “uncommon-sensy” theory: a “strange” or even “absurd” theory, that looks “cockeyed” and incorporates “crazy ideas”. But… It works.

Now that we’re here, I might just as well add a few more paragraphs to fully summarize this lovely publication – if only because summarizing stuff like this helps me to come to terms with understanding things better myself!

Calculating amplitudes: the basic actions

So it all boils down to calculating amplitudes: an event is divided into alternative ways of how the event can happen, and the arrows for each way are ‘added’. Now, every way an event can happen can be further subdivided into successive steps. The amplitudes for these steps are then ‘multiplied’. For example, the amplitude for a photon to go from A to C via B is the ‘product’ of the amplitude to go from A to B and the amplitude to go from B to C.

I marked the terms ‘multiplied’ and ‘product’ with apostrophes, as if to say it’s not a ‘real’ product. But it is an actual multiplication: it’s the product of two complex numbers. Feynman does not explicitly compare this product to other products, such as the dot (•) or cross (×) product of two vectors, but he uses the ∗ symbol for multiplication here, which clearly distinguishes VW from VW or V×W indeed or, more simply, from the product of two ordinary numbers. [Ordinary numbers? Well… With ‘ordinary’ numbers, I mean real numbers, of course, but once you get used to complex numbers, you won’t like that term anymore, because complex numbers start feeling just as ‘real’ as other numbers – especially when you get used to the idea of those complex-valued wave functions underneath reality.]

Now, multiplying complex numbers, or ‘arrows’ using QED’s simpler language, consists of adding their angles and multiplying their lengths. That being said, the arrows here all have a length smaller than one (because their square cannot be larger than one, because that square is a probability, i.e. a (real) number between 0 and 1), Feynman defines successive multiplication as successive ‘shrinks and turns’ of the unit arrow. That all makes sense – very much sense.

But what’s the basic action? As Feynman puts the question: “How far can we push this process of splitting events into simpler and simpler subevents? What are the smallest possible bits and pieces? Is there a limit?” He immediately answers his own question. There are three ‘basic actions’:

  1. A photon goes from one point (in spacetime) to another: this amplitude is denoted by P(A to B).
  2. An electron goes from one point to another: E(A to B).
  3. An electron emits and/or absorbs a photon: this is referred to as a ‘junction’ or a ‘coupling’, and the amplitude for this is denoted by the symbol j, i.e. the so-called junction number.

How do we find the amplitudes for these?

The amplitudes for (1) and (2) are given by a so-called propagator functions, which give you the probability amplitude for a particle to travel from one place to another in a given time indeed, or to travel with a certain energy and momentum. Judging from the Wikipedia article on these functions, the subject-matter is horrendously complicated, and the formulas are too, even if Feynman says it’s ‘very simple’ – for a photon, that is. The key point to note is that any path is possible. Moreover, there are also amplitudes for photons to go faster or slower than the speed of light (c)! However, these amplitudes make smaller contributions, and cancel out over longer distances. The same goes for the crooked paths: the amplitudes cancel each other out as well.

What remains are the ‘nearby paths’. In my previous post (check the section on electromagnetic radiation), I noted that, according to classical wave theory, a light wave does not occupy any physical space: we have electric and magnetic field vectors that oscillate in a direction that’s perpendicular to the direction of propagation, but these do not take up any space. In quantum mechanics, the situation is quite different. As Feynman puts it: “When you try to squeeze light too much [by forcing it to go through a small hole, for example, as illustrated below], it refuses to cooperate and begins to spread out.” He explains this in the text below the second drawing: “There are not enough arrows representing the paths to Q to cancel each other out.”

Many arrowsFew arrows

Not enough arrows? We can subdivide space in as many paths as we want, can’t we? Do probability amplitudes take up space? And now that we’re asking the tougher questions, what’s a ‘small’ hole? What’s ‘small’ and what’s ‘large’ in this funny business?

Unfortunately, there’s not much of an attempt in the booklet to try to answer these questions. One can begin to formulate some kind of answer when doing some more thinking about these wave functions. To be precise, we need to start looking at their wavelength. The frequency of a typical photon (and, hence, of the wave function representing that photon) is astronomically high. For visible light, it’s in the range of 430 to 790 teraherz, i.e. 430–790×1012 Hz. We can’t imagine such incredible numbers. Because the frequency is so high, the wavelength is unimaginably small. There’s a very simple and straightforward relation between wavelength (λ) and frequency (ν) indeed: c = λν. In words: the speed of a wave is the wavelength (i.e. the distance (in space) of one cycle) times the frequency (i.e. the number of cycles per second). So visible light has a wavelength in the range of 390 to 700 nanometer, i.e. 390–700 billionths of a meter. A meter is a rather large unit, you’ll say, so let me express it differently: it’s less than one thousandth of a micrometer, and a micrometer itself is one thousandth of a millimeter. So, no, we can’t imagine that distance either.

That being said, that wavelength is there, and it does imply that some kind of scale is involved. A wavelength covers one full cycle of the oscillation: it means that, if we travel one wavelength in space, our ‘arrow’ will point in the same direction again. Both drawings above (Figure 33 and 34) suggest the space between the two blocks is less than one wavelength. It’s a bit hard to make sense of the direction of the arrows but note the following:

  1. The phase difference between (a) the ‘arrow’ associated with the straight route (i.e. the ‘middle’ path) and (b) the ‘arrow’ associated with the ‘northern’ or ‘southern’ route (i.e. the ‘highest’ and ‘lowest’ path) in Figure 33 is like quarter of a full turn, i.e. 90°. [Note that the arrows for the northern and southern route to P point in the same direction, because they are associated with the same timing. The same is true for the two arrows in-between the northern/southern route and the middle path.]
  2. In Figure 34, the phase difference between the longer routes and the straight route is much less, like 10° only.

Now, the calculations involved in these analyses are quite complicated but you can see the explanation makes sense: the gap between the two blocks is much narrower in Figure 34 and, hence, the geometry of the situation does imply that the phase difference between the amplitudes associated with the ‘northern’ and ‘southern’ routes to Q is much smaller than the phase difference between those amplitudes in Figure 33. To be precise,

  1. The phase difference between (a) the ‘arrow’ associated with the ‘northern route’ to Q and (b) the ‘arrow’ associated with the ‘southern’ route to Q (i.e. the ‘highest’ and ‘lowest’ path) in Figure 33 is like three quarters of a full turn, i.e. 270°. Hence, the final arrow is very short indeed, which means that the probability of the photon going to Q is very low indeed. [Note that the arrows for the northern and southern route no longer point in the same direction, because they are associated with very different timings: the ‘southern route’ is shorter and, hence, faster.]
  2. In Figure 34, we have a phase difference between the shortest and longest route that is like 60° only and, hence, the final arrow is very sizable and, hence, the probability of the photon going to Q is, accordingly, quite substantial.

OK… What did I say here about P(A to B)? Nothing much. I basically complained about the way Feynman (or Leighton, more probably) explained the interference or diffraction phenomenon and tried to do a better job before tacking the subject indeed: how do we get that P(A to B)?

A photon can follow any path from A to B, including the craziest ones (as shown below). Any path? Good players give a billiard ball extra spin that may make the ball move in a curved trajectory, and will also affect its its collision with any other ball – but a trajectory like the one below? Why would a photon suddenly take a sharp turn left, or right, or up, or down? What’s the mechanism here? What are the ‘wheels and gears inside’ of the photon that (a) make a photon choose this path in the first place and (b) allow it to whirl, swirl and twirl like that?

615px-Three_paths_from_A_to_B

We don’t know. In fact, the question may make no sense, because we don’t know what actually happens when a photon travels through space. We know it leaves as a lump of energy, and we know it arrives as a similar lump of energy. When we actually put a detector to check which path is followed – by putting special detectors at the slits in the famous double-slit experiment, for example – the interference pattern disappears. So… Well… We don’t know how to describe what’s going on: a photon is not a billiard ball, and it’s not a classical electromagnetic wave either. It is neither. The only thing that we know is that we get probabilities that match with the results of experiment if we accept this nonsensical assumptions and do all of the crazy arithmetic involved. Let me get back to the lesson.

Photons can also travel faster or slower than the speed of light (c is some 3×108 meter per second but, in our special time unit, it’s equal to one). Does that violate relativity? It doesn’t, apparently, but for the reasoning behind I must, once again, refer you to more sophisticated writing.

In any case, if the mathematicians and physicists have to take into account both of these assumptions (any path is possible, and speeds higher or lower than c are possible too!), they must be looking at some kind of horrendous integral, don’t they?

They are. When everything is said and done, that propagator function is some monstrous integral indeed, and I can’t explain it to you in a couple of words – if only because I am struggling with it myself. 🙂 So I will just believe Feynman when he says that, when the mathematicians and physicists are finished with that integral, we do get some simple formula which depends on the value of the so-called spacetime interval between two ‘points’ – let’s just call them 1 and 2 – in space and time. You’ve surely heard about it before: it’s denoted by sor I (or whatever) and it’s zero if an object moves at the speed of light, which is what light is supposed to do – but so we’re dealing with a different situation here. 🙂 To be precise, I consists of two parts:

  1. The distance d between the two points (1 and 2), i.e. Δr, which is just the square root of d= Δr= (x2–x2)2+(y2–y1)2+(z2–z1)2. [This formula is just a three-dimensional version of the Pythagorean Theorem.]
  2. The ‘distance’ (or difference) in time, which is usually expressed in those ‘equivalent’ time units that we introduced above already, i.e. the time that light – traveling at the speed of light 🙂 – needs to travel one meter. We will usually see that component of I in a squared version too: Δt= (t2–t1)2, or, if time is expressed in the ‘old’ unit (i.e. seconds), then we write c2Δt2 = c2(t2–t1)2.

Now, the spacetime interval itself is defined as the excess of the squared distance (in space) over the squared time difference:

s= I = Δr– Δt= (x2–x2)2+(y2–y1)2+(z2–z1)– (t2–t1)2

You know we can then define time-like, space-like and light-like intervals, and these, in turn, define the so-called light cone. The spacetime interval can be negative, for example. In that case, Δt2 will be greater than Δr2, so there is no ‘excess’ of distance over time: it means that the time difference is large enough to allow for a cause–effect relation between the two events, and the interval is said to be time-like. In any case, that’s not the topic of this post, and I am sorry I keep digressing.

The point to note is that the formula for the propagator favors light-like intervals: they are associated with large arrows. Space- and time-like intervals, on the other hand, will contribute much smaller arrows. In addition, the arrows for space- and time-like intervals point in opposite directions, so they will cancel each other out. So, when everything is said and done, over longer distances, light does tend to travel in a straight line and at the speed of light. At least, that’s what Feynman tells us, and I tend to believe him. 🙂

But so where’s the formula? Feynman doesn’t give it, probably because it would indeed confuse us. Just google ‘propagator for a photon’ and you’ll see what I mean. He does integrate the above conclusions in that illustration (b) though. What illustration?

Oh… Sorry. You probably forgot what I am trying to do here, but so we’re looking at that analysis of partial reflection of light by glass. Let me insert it once again so you don’t have to scroll all the way up.

partial reflection

You’ll remember that Feynman divided the glass sheet into five sections and, hence, there are six points from which the photon can be scattered into the detector at A: X1 to X6. So that makes six possible paths: these paths are all straight (so Feynman makes abstraction of all of the crooked paths indeed), and the other assumption is that the photon effectively traveled at the speed of light, whatever path it took (so Feynman also assumes the amplitudes for speeds higher or lower than c cancel each other out). So that explains the difference in time at emission from the light source. The longest path is the path to point X6 and then back up to the detector. If the photon would have taken that path, it would have to be emitted earlier in time – earlier as compared to the other possibilities, which take less time. So it would have to be emitted at T = T6. The direction of the ‘arrow’ is like one o’clock. The shorter paths are associated with shorter times (the difference between the time of arrival and departure is shorter) and so T5 is associated with an arrow in the 12 o’clock direction, T5 is 11 o’clock, and so on, till T5, which points at the 9 o’clock direction.

But… What? These arrows also include the reflection, i.e. the interaction between the photon and some electron in the glass, don’t they? […] Right you are. Sorry. So… Yes. The action above involves four ‘basic actions’:

  1. A photon is emitted by the source at a time T = T1, T2, T3, T4, T5 or T6: we don’t know. Quantum-mechanical uncertainty. 🙂
  2. It goes from the source to one of the points X = X1, X2, X3, X4, X5 or Xin the glass: we don’t know which one, because we don’t have a detector there.
  3. The photon interacts with an electron at that point.
  4. It makes it way back up to the detector at A.

Step 1 does not have any amplitude. It’s just the start of the event. Well… We start with the unit arrow pointing north actually, so its length is one and its direction is 12 o’clock. And so we’ll shrink and turn it, i.e. multiply it with other arrows, in the next steps.

Steps 2 and 4 are straightforward and are associated with arrows of the same length. Their direction depends on the distance traveled and/or the time of emission: it amounts to the same because we assume the speed is constant and exactly the same for the six possibilities (that speed is c = 1 obviously). But what length? Well… Some length according to that formula which Feynman didn’t give us. 🙂

So now we need to analyze the third of those three basic actions: a ‘junction’ or ‘coupling’ between an electron and a photon. At this point, Feynman embarks on a delightful story highlighting the difficulties involved in calculating that amplitude. A photon can travel following crooked paths and at devious speeds, but an electron is even worse: it can take what Feynman refers to as ‘one-hop flights’, ‘two-hop flights’, ‘three-hop flights’,… any ‘n-hop flight’ really. Each stop involves an additional amplitude, which is represented by n2, with n some number that has been determined from experiment. The formula for E(A to B) then becomes a series of terms: P(A to B) + (P(A to C)∗n2∗(P(C to B) + (P(A to D)∗n2∗P(D to E)∗n2∗P(E to C)+…

P(A to B) is the ‘one-hop flight’ here, while C, D and E are intermediate points, and (P(A to C)∗n2∗(P(C to B) and (P(A to D)∗n2∗P(D to E)∗n2∗P(E to C) are the ‘two-hop’ and ‘three-hop’ flight respectively. Note that this calculation has to be made for all possible intermediate points C, D, E and so on. To make matters worse, the theory assumes that electrons can emit and absorb photons along the way, and then there’s a host of other problems, which Feynman tries to explain in the last and final chapter of his little book. […]

Hey! Stop it!

What?

You’re talking about E(A to B) here. You’re supposed to be talking about that junction number j.

Oh… Sorry. You’re right. Well… That junction number j is about –0.1. I know that looks like an ordinary number, but it’s an amplitude, so you should interpret it as an arrow. When you multiply it with another arrow, it amounts to a shrink to one-tenth, and half a turn. Feynman entertains us also on the difficulties of calculating this number but, you’re right, I shouldn’t be trying to copy him here – if only because it’s about time I finish this post. 🙂

So let me conclude it indeed. We can apply the same transformation (i.e. we multiply with j) to each of the six arrows we’ve got so far, and the result is those six arrows next to the time axis in illustration (b). And then we combine them to get that arc, and then we apply that mathematical trick to show we get the same result as in a classical wave-theoretical analysis of partial reflection.

Done. […] Are you happy now?

[…] You shouldn’t be. There are so many questions that have been left unanswered. For starters, Feynman never gives that formula for the length of P(A to B), so we have no clue about the length of these arrows and, hence, about that arc. If physicists know their length, it seems to have been calculated backwards – from those 0.2 arrows used in the classical wave theory of light. Feynman is actually quite honest about that, and simply writes:

“The radius of the arc [i.e. the arc that determines the final arrow] evidently depends on the length of the arrow for each section, which is ultimately determined by the amplitude S that an electron in an atom of glass scatters a photon. This radius can be calculated using the formulas for the three basic actions. […] It must be said, however, that no direct calculation from first principles for a substance as complex as glass has actually been done. In such cases, the radius is determined by experiment. For glass, it has been determined from experiment that the radius is approximately 0.2 (when the light shines directly onto the glass at right angles).”

Well… OK. I think that says enough. So we have a theory – or first principles at last – but we don’t them to calculate. That actually sounds a bit like metaphysics to me. 🙂 In any case… Well… Bye for now!

But… Hey! You said you’d analyze how light goes straight through the glass as well?

Yes. I did. But I don’t feel like doing that right now. I think we’ve got enough stuff to think about right now, don’t we? 🙂

End of the Road to Reality?

Or the end of theoretical physics?

In my previous post, I mentioned the Goliath of science and engineering: the Large Hadron Collider (LHC), built by the European Organization for Nuclear Research (CERN) under the Franco-Swiss border near Geneva. I actually started uploading some pictures, but then I realized I should write a separate post about it. So here we go.

The first image (see below) shows the LHC tunnel, while the other shows (a part of) one of the two large general-purpose particle detectors that are part of this Large Hadron Collider. A detector is the thing that’s used to look at those collisions. This is actually the smallest of the two general-purpose detectors: it’s the so-called CMS detector (the other one is the ATLAS detector), and it’s ‘only’ 21.6 meter long and 15 meter in diameter – and it weighs about 12,500 tons. But so it did detect a Higgs particle – just like the ATLAS detector. [That’s actually not 100% sure but it was sure enough for the Nobel Prize committee – so I guess that should be good enough for us common mortals :-)]

LHC tunnelLHC - CMS detector

image of collision

The picture above shows one of these collisions in the CMS detector. It’s not the one with the trace of the Higgs particle though. In fact, I have not found any image that actually shows the Higgs particle: the closest thing to such image are some impressionistic images on the ATLAS site. See http://atlas.ch/news/2013/higgs-into-fermions.html

In case you wonder what’s being scattered here… Well… All kinds of things – but so the original collision is usually between protons (so these are hydrogen ions: Hnuclei), although the LHC can produce other nucleon beams as well (collectively referred to as hadrons). These protons have energy levels of 4 TeV (tera-electronVolt: 1 TeV = 1000 GeV = 1 trillion eV = 1×1012 eV).

Now, let’s think about scale once again. Remember (from that same previous post) that we calculated a wavelength of 0.33 nanometer (1 nm = 1×10–9 m, so that’s a billionth of a meter) for an electron. Well, this LHC is actually exploring the sub-femtometer (fm) frontier. One femtometer (fm) is 1×10–15 m so that’s another million times smaller. Yes: so we are talking a millionth of a billionth of a meter. The size of a proton is an estimated 1.7 femtometer indeed and, as you surely know, a proton is a point-like thing occupying a very tiny space, so it’s not like an electron ‘cloud’ swirling around: it’s much smaller. In fact, quarks – three of them make up a proton (or a neutron) – are usually thought of as being just a little bit less than half that size – so that’s about 0.7 fm.

It may also help you to use the value I mentioned for high-energy electrons when I was discussing the LEP (the Large Electron-Positron Collider, which preceded the LHC) – so that was 104.5 GeV – and calculate the associated de Broglie wavelength using E = hf and λ = v/f. The velocity is close to and, hence, if we plug everything in, we get a value close to 1.2×10–15 m indeed, so that’s the femtometer scale indeed. [If you don’t want to calculate anything, then just note we’re going from eV to giga-eV energy levels here, and so our wavelength decreases accordingly: one billion times smaller. Also remember (from the previous posts) that we calculated a wavelength of 0.33×10–6 m and an associated energy level of 70 eV for a slow-moving electron – i.e. one going at 2200 km per second ‘only’, i.e. less than 1% of the speed of light.]  Also note that, at these energy levels, it doesn’t matter whether or not we include the rest mass of the electron: 0.511 MeV is nothing as compared to the GeV realm. In short, we are talking very very tiny stuff here.

But so that’s the LEP scale. I wrote that the LHC is probing things at the sub-femtometer scale. So how much sub-something is that? Well… Quite a lot: the LHC is looking at stuff at a scale that’s more than a thousand times smaller. Indeed, if collision experiments in the giga-electronvolt (GeV) energy range correspond to probing stuff at the femtometer scale, then tera-electronvolt (TeV) energy levels correspond to probing stuff that’s, once again, another thousand times smaller, so we’re looking at distances of less than a thousandth of a millionth of a billionth of a meter. Now, you can try to ‘imagine’ that, but you can’t really.

So what do we actually ‘see’ then? Well… Nothing much one could say: all we can ‘see’ are traces of point-like ‘things’ being scattered, which then disintegrate or just vanish from the scene – as shown in the image above. In fact, as mentioned above, we do not even have such clear-cut ‘trace’ of a Higgs particle: we’ve got a ‘kinda signal’ only. So that’s it? Yes. But then these images are beautiful, aren’t they? If only to remind ourselves that particle physics is about more than just a bunch of formulas. It’s about… Well… The essence of reality: its intrinsic nature so to say. So… Well…

Let me be skeptical. So we know all of that now, don’t we? The so-called Standard Model has been confirmed by experiment. We now know how Nature works, don’t we? We observe light (or, to be precise, radiation: most notably that cosmic background radiation that reaches us from everywhere) that originated nearly 14 billion years ago  (to be precise: 380,000 years after the Big Bang – but what’s 380,000 years  on this scale?) and so we can ‘see’ things that are 14 billion light-years away. In fact, things that were 14 billion light-years away: indeed, because of the expansion of the universe, they are further away now and so that’s why the so-called observable universe is actually larger. So we can ‘see’ everything we need to ‘see’ at the cosmic distance scale and now we can also ‘see’ all of the particles that make up matter, i.e. quarks and electrons mainly (we also have some other so-called leptons, like neutrinos and muons), and also all of the particles that make up anti-matter of course (i.e. antiquarks, positrons etcetera). As importantly – or even more – we can also ‘see’ all of the ‘particles’ carrying the forces governing the interactions between the ‘matter particles’ – which are collectively referred to as fermions, as opposed to the ‘force carrying’ particles, which are collectively referred to as bosons (see my previous post on Bose and Fermi). Let me quickly list them – just to make sure we’re on the same page:

  1. Photons for the electromagnetic force.
  2. Gluons for the so-called strong force, which explains why positively charged protons ‘stick’ together in nuclei – in spite of their electric charge, which should push them away from each other. [You might think it’s the neutrons that ‘glue’ them together but so, no, it’s the gluons.]
  3. W+, W, and Z bosons for the so-called ‘weak’ interactions (aka as Fermi’s interaction), which explain how one type of quark can change into another, thereby explaining phenomena such as beta decay. [For example, carbon-14 will – through beta decay – spontaneously decay into nitrogen-14. Indeed, carbon-12 is the stable isotope, while carbon-14 has a life-time of 5,730 ± 40 years ‘only’ 🙂 and, hence, measuring how much carbon-14 is left in some organic substance allows us to date it (that’s what (radio)carbon-dating is about). As for the name, a beta particle can refer to an electron or a positron, so we can have β decay (e.g. the above-mentioned carbon-14 decay) as well as βdecay (e.g. magnesium-23 into sodium-23). There’s also alpha and gamma decay but that involves different things. In any case… Let me end this digression within the digression.]
  4. Finally, the existence of the Higgs particle – and, hence, of the associated Higgs field – has been predicted since 1964 already, but so it was only experimentally confirmed (i.e. we saw it, in the LHC) last year, so Peter Higgs – and a few others of course – got their well-deserved Nobel prize only 50 years later. The Higgs field gives fermions, and also the W+, W, and Z bosons, mass (but not photons and gluons, and so that’s why the weak force has such short range – as compared to the electromagnetic and strong forces).

So there we are. We know it all. Sort of. Of course, there are many questions left – so it is said. For example, the Higgs particle does actually not explain the gravitational force, so it’s not the (theoretical) graviton, and so we do not have a quantum field theory for the gravitational force. [Just Google it and you’ll see why: there’s theoretical as well as practical (experimental) reasons for that.] Secondly, while we do have a quantum field theory for all of the forces (or ‘interactions’ as physicists prefer to call them), there are a lot of constants in them (much more than just that Planck constant I introduced in my posts!) that seem to be ‘unrelated and arbitrary.’ I am obviously just quoting Wikipedia here – but it’s true.

Just look at it: three ‘generations’ of matter with various strange properties, four force fields (and some ‘gauge theory’ to provide some uniformity), bosons that have mass (the W+, W, and Z bosons, and then the Higgs particle itself) but then photons and gluons don’t… It just doesn’t look good, and then Feynman himself wrote, just a few years before his death (QED, 1985, p. 128), that the math behind calculating some of these constants (the coupling constant j for instance, or the rest mass n of an electron), which he actually invented (it makes use of a mathematical approximation method called perturbation theory) and for which he got a Nobel Prize, is a “dippy process” and that “having to resort to such hocus-pocus has prevented us from proving that the theory of quantum electrodynamics is mathematically self-consistent“. He adds: “It’s surprising that the theory still hasn’t been proved self-consistent one way or the other by now; I suspect that renormalization [“the shell game that we play to find n and j” as he calls it]  is not mathematically legitimate.” And so he writes this about quantum electrodynamics, not about “the rest of physics” (and so that’s quantum chromodynamics (QCD) – the theory of the strong interactions – and quantum flavordynamics (QFD) – the theory of weak interactions) which, he adds, “has not been checked anywhere near as well as electrodynamics.”

Waw ! That’s a pretty damning statement, isn’t it? In short, all of the celebrations around the experimental confirmation of the Higgs particle cannot hide the fact that it all looks a bit messy. There are other questions as well – most of which I don’t understand so I won’t mention them. To make a long story short, physicists and mathematicians alike seem to think there must be some ‘more fundamental’ theory behind. But – Hey! – you can’t have it all, can you? And, of course, all these theoretical physicists and mathematicians out there do need to justify their academic budget, don’t they? And so all that talk about a Grand Unification Theory (GUT) is probably just what is it: talk. Isn’t it? Maybe.

The key question is probably easy to formulate: what’s beyond this scale of a thousandth of a proton diameter (0.001×10–15 m) – a thousandth of a millionth of a billionth of a meter that is. Well… Let’s first note that this so-called ‘beyond’ is a ‘universe’ which mankind (or let’s just say ‘we’) will never see. Never ever. Why? Because there is no way to go substantially beyond the 4 TeV energy levels that were reached last year – at great cost – in the world’s largest particle collider (the LHC). Indeed, the LHC is widely regarded not only as “the most complex and ambitious scientific project ever accomplished by humanity” (I am quoting a CERN scientist here) but – with a cost of more than 7.5 billion Euro – also as one of the most expensive ones. Indeed, taking into account inflation and all that, it was like the Manhattan project indeed (although scientists loathe that comparison). So we should not have any illusions: there will be no new super-duper LHC any time soon, and surely not during our lifetime: the current LHC is the super-duper thing!

Indeed, when I write ‘substantially‘ above, I really mean substantially. Just to put things in perspective: the LHC is currently being upgraded to produce 7 TeV beams (it was shut down for this upgrade, and it should come back on stream in 2015). That sounds like an awful lot (from 4 to 7 is +75%), and it is: it amounts to packing the kinetic energy of seven flying mosquitos (instead of four previously :-)) into each and every particle that makes up the beam. But that’s not substantial, in the sense that it is very much below the so-called GUT energy scale, which is the energy level above which, it is believed (by all those GUT theorists at least), the electromagnetic force, the weak force and the strong force will all be part and parcel of one and the same unified force. Don’t ask me why (I’ll know when I finished reading Penrose, I hope) but that’s what it is (if I should believe what I am reading currently that is). In any case, the thing to remember is that the GUT energy levels are in the 1016 GeV range, so that’s – sorry for all these numbers – a trillion TeV. That amounts to pumping more than 160,000 Joule in each of those tiny point-like particles that make up our beam. So… No. Don’t even try to dream about it. It won’t happen. That’s science fiction – with the emphasis on fiction. [Also don’t dream about a trillion flying mosquitos packed into one proton-sized super-mosquito either. :-)]

So what?

Well… I don’t know. Physicists refer to the zone beyond the above-mentioned scale (so things smaller than 0.001×10–15 m) as the Great Desert. That’s a very appropriate name I think – for more than one reason. And so it’s this ‘desert’ that Roger Penrose is actually trying to explore in his ‘Road to Reality’. As for me, well… I must admit I have great trouble following Penrose on this road. I’ve actually started to doubt that Penrose’s Road leads to Reality. Maybe it takes us away from it. Huh? Well… I mean… Perhaps the road just stops at that 0.001×10–15 m frontier?

In fact, that’s a view which one of the early physicists specialized in high-energy physics, Raoul Gatto, referred to as the zeroth scenarioI am actually not quoting Gatto here, but another theoretical physicist: Gerard ‘t Hooft, another Nobel prize winner (you may know him better because he’s a rather fervent Mars One supporter, but so here I am referring to his popular 1996 book In Search of the Ultimate Building Blocks). In any case, Gatto, and most other physicists, including ‘T Hooft (despite the fact ‘T Hooft got his Nobel prize for his contribution to gauge theory – which, together with Feynman’s application of perturbation theory to QED, is actually the backbone of the Standard Model) firmly reject this zeroth scenario. ‘T Hooft himself thinks superstring theory (i.e. supersymmetric string theory – which has now been folded into M-theory or – back to the original term – just string theory – the terminology is quite confusing) holds the key to exploring this desert.

But who knows? In fact, we can’t – because of the above-mentioned practical problem of experimental confirmation. So I am likely to stay on this side of the frontier for quite a while – if only because there’s still so much to see here and, of course, also because I am just at the beginning of this road. 🙂 And then I also realize I’ll need to understand gauge theory and all that to continue on this road – which is likely to take me another six months or so (if not more) and then, only then, I might try to look at those little strings, even if we’ll never see them because… Well… Their theoretical diameter is the so-called Planck length. So what? Well… That’s equal to 1.6×10−35 m. So what? Well… Nothing. It’s just that 1.6×10−35 m is 1/10 000 000 000 000 000 of that sub-femtometer scale. I don’t even want to write this in trillionths of trillionths of trillionths etcetera because I feel that’s just not making any sense. And perhaps it doesn’t. One thing is for sure: that ‘desert’ that GUT theorists want us to cross is not just ‘Great’: it’s ENORMOUS!

Richard Feynman – another Nobel Prize scientist whom I obviously respect a lot – surely thought trying to cross a desert like that amounts to certain death. Indeed, he’s supposed to have said the following about string theorists, about a year or two before he died (way too young): I don’t like that they’re not calculating anything. I don’t like that they don’t check their ideas. I don’t like that for anything that disagrees with an experiment, they cook up an explanation–a fix-up to say, “Well, it might be true.” For example, the theory requires ten dimensions. Well, maybe there’s a way of wrapping up six of the dimensions. Yes, that’s all possible mathematically, but why not seven? When they write their equation, the equation should decide how many of these things get wrapped up, not the desire to agree with experiment. In other words, there’s no reason whatsoever in superstring theory that it isn’t eight out of the ten dimensions that get wrapped up and that the result is only two dimensions, which would be completely in disagreement with experience. So the fact that it might disagree with experience is very tenuous, it doesn’t produce anything; it has to be excused most of the time. It doesn’t look right.”

Hmm…  Feynman and ‘T Hooft… Two giants in science. Two Nobel Prize winners – and for stuff that truly revolutionized physics. The amazing thing is that those two giants – who are clearly at loggerheads on this one – actually worked closely together on a number of other topics – most notably on the so-called Feynman-‘T Hooft gauge, which – as far as I understand – is the one that is most widely used in quantum field calculations. But I’ll leave it at that here – and I’ll just make a mental note of the terminology here. The Great Desert… Probably an appropriate term. ‘T Hooft says that most physicists think that desert is full of tiny flowers. I am not so sure – but then I am not half as smart as ‘T Hooft. Much less actually. So I’ll just see where the road I am currently following leads me. With Feynman’s warning in mind, I should probably expect the road condition to deteriorate quickly.

Post scriptum: You will not be surprised to hear that there’s a word for 1×10–18 m: it’s called an attometer (with two t’s, and abbreviated as am). And beyond that we have zeptometer (1 zm = 1×10–21 m) and yoctometer (1 ym = 1×10–23 m). In fact, these measures actually represent something: 20 yoctometer is the estimated radius of a 1 MeV neutrino – or, to be precise, its the radius of the cross section, which is “the effective area that governs the probability of some scattering or absorption event.” But so then there are no words anymore. The next measure is the Planck length: 1.62 × 10−35 m – but so that’s a trillion (1012) times smaller than a yoctometer. Unimaginable, isn’t it? Literally.

Note: A 1 MeV neutrino? Well… Yes. The estimated rest mass of an (electron) neutrino is tiny: at least 50,000 times smaller than the mass of the electron and, therefore, neutrinos are often assumed to be massless, for all practical purposes that is. However, just like the massless photon, they can carry high energy. High-energy gamma ray photons, for example, are also associated with MeV energy levels. Neutrinos are one of the many particles produced in high-energy particle collisions in particle accelerators, but they are present everywhere: they’re produced by stars (which, as you know, are nuclear fusion reactors). In fact, most neutrinos passing through Earth are produced by our Sun. The largest neutrino detector on Earth is called IceCube. It sits on the South Pole – or under it, as it’s suspended under the Antarctic ice, and it regularly captures high-energy neutrinos in the range of 1 to 10 TeV. Last year (in November 2013), it captured two with energy levels around 1000 TeV – so that’s the peta-electronvolt level (1 PeV = 1×1015 eV). If you think that’s amazing, it is. But also remember that 1 eV is 1.6×10−19 Joule, so it’s ‘only’ a ten-thousandth of a Joule. In other words, you would need at least ten thousand of them to briefly light up an LED. The PeV pair was dubbed Bert and Ernie and the illustration below (from IceCube’s website) conveys how the detectors sort of lit up when they passed. It was obviously a pretty clear ‘signal’ – but so the illustration also makes it clear that we don’t really ‘see’ at such small scale: we just know ‘something’ happened.

Bert and Ernie

An easy piece: introducing quantum mechanics and the wave function

After all those boring pieces on math, it is about time I got back to physics. Indeed, what’s all that stuff on differential equations and complex numbers good for? This blog was supposed to be a journey into physics, wasn’t it? Yes. But wave functions – functions describing physical waves (in classical mechanics) or probability amplitudes (in quantum mechanics) – are the solution to some differential equation, and they will usually involve complex-number notation. However, I agree we have had enough of that now. Let’s see how it works. By the way, the title of this post – An Easy Piece – is an obvious reference to (some of) Feynman’s 1965 Lectures on Physics, some of which were re-packaged in 1994 (six years after his death that is) in ‘Six Easy Pieces’ indeed – but, IMHO, it makes more sense to read all of them as part of the whole series.

Let’s first look at one of the most used mathematical shapes: the sinusoidal wave. The illustration below shows the basic concepts: we have a wave here – some kind of cyclic thing – with a wavelength λ, an amplitude (or height) of (maximum) A0, and a so-called phase shift equal to φ. The Wikipedia definition of a wave is the following: “a wave is a disturbance or oscillation that travels through space and matter, accompanied by a transfer of energy.” Indeed, a wave transports energy as it travels (oh – I forgot to mention the speed or velocity of a wave (v) as an important characteristic of a wave), and the energy it carries is directly proportional to the square of the amplitude of the wave: E ∝ A2 (this is true not only for waves like water waves, but also for electromagnetic waves, like light).

Cosine wave concepts

Let’s now look at how these variables get into the argument – literally: into the argument of the wave function. Let’s start with that phase shift. The phase shift is usually defined referring to some other wave or reference point (in this case the origin of the x and y axis). Indeed, the amplitude – or ‘height’ if you want (think of a water wave, or the strength of the electric field) – of the wave above depends on (1) the time t (not shown above) and (2) the location (x), but so we will need to have this phase shift φ in the argument of the wave function because at x = 0 we do not have a zero height for the wave. So, as we can see, we can shift the x-axis left or right with this φ. OK. That’s simple enough. Let’s look at the other independent variables now: time and position.

The height (or amplitude) of the wave will obviously vary both in time as well as in space. On this graph, we fixed time (t = 0) – and so it does not appear as a variable on the graph – and show how the amplitude y = A varies in space (i.e. along the x-axis). We could also have looked at one location only (x = 0 or x1 or whatever other location) and shown how the amplitude varies over time at that location only. The graph would be very similar, except that we would have a ‘time distance’ between two crests (or between two troughs or between any other two points separated by a full cycle of the wave) instead of the wavelength λ (i.e. a distance in space). This ‘time distance’ is the time needed to complete one cycle and is referred to as the period of the wave (usually denoted by the symbol T or T– in line with the notation for the maximum amplitude A0). In other words, we will also see time (t) as well as location (x) in the argument of this cosine or sine wave function. By the way, it is worth noting that it does not matter if we use a sine or cosine function because we can go from one to the other using the basic trigonometric identities cos θ = sin(π/2 – θ) and sin θ = cos(π/2 – θ). So all waves of the shape above are referred to as sinusoidal waves even if, in most cases, the convention is to actually use the cosine function to represent them.

So we will have x, t and φ in the argument of the wave function. Hence, we can write A = A(x, t, φ) = cos(x + t + φ) and there we are, right? Well… No. We’re adding very different units here: time is measured in seconds, distance in meter, and the phase shift is measured in radians (i.e. the unit of choice for angles). So we can’t just add them up. The argument of a trigonometric function (like this cosine function) is an angle and, hence, we need to get everything in radians – because that’s the unit we use to measure angles. So how do we do that? Let’s do it step by step.

First, it is worth noting that waves are usually caused by something. For example, electromagnetic waves are caused by an oscillating point charge somewhere, and radiate out from there. Physical waves – like water waves, or an oscillating string – usually also have some origin. In fact, we can look at a wave as a way of transmitting energy originating elsewhere. In the case at hand here – i.e. the nice regular sinusoidal wave illustrated above – it is obvious that the amplitude at some time t = tat some point x = x1 will be the same as the amplitude of that wave at point x = 0 some time ago. How much time ago? Well… The time (t) that was needed for that wave to travel from point x = 0 to point x = xis easy to calculate: indeed, if the wave originated at t = 0 and x = 0, then x1 (i.e. the distance traveled by the wave) will be equal to its velocity (v) multiplied by t1, so we have x1= v.t1 (note that we assume the wave velocity is constant – which is a very reasonable assumption). In other words, inserting x1and t1 in the argument of our cosine function should yield the same value as inserting zero for x and t. Distance and time can be substituted so to say, and that’s we will have something like x – vt or vt – x in the argument in that cosine function: we measure both time and distance in units of distance so to say. [Note that x – vt and –(x-vt) = vt – x are equivalent because cos θ = cos (-θ)]

Does this sound fishy? It shouldn’t. Think about it. In the (electric) field equation for electromagnetic radiation (that’s one of the examples of a wave which I mentioned above), you’ll find the so-called retarded acceleration a(t – x/c) in the argument: that’s the acceleration (a)of the charge causing the electric field at point x to change not at time t but at time t – x/c. So that’s the retarded acceleration indeed: x/c is the time it took for the wave to travel from its origin (the oscillating point charge) to x and so we subtract that from t. [When talking electromagnetic radiation (e.g. light), the wave velocity v is obviously equal to c, i.e. the speed of light, or of electromagnetic radiation in general.] Of course, you will now object that t – x/c is not the same as vt – x, and you are right: we need time units in the argument of that acceleration function, not distance. We can get to distance units if we would multiply the time with the wave velocity v but that’s complicated business because the velocity of that moving point charge is not a constant.

[…] I am not sure if I made myself clear here. If not, so be it. The thing to remember is that we need an input expressed in radians for our cosine function, not time, nor distance. Indeed, the argument in a sine or cosine function is an angle, not some distance. We will call that angle the phase of the wave, and it is usually denoted by the symbol θ  – which we also used above. But so far we have been talking about amplitude as a function of distance, and we expressed time in distance units too – by multiplying it with v. How can we go from some distance to some angle? It is simple: we’ll multiply x – vt with 2π/λ.

Huh? Yes. Think about it. The wavelength will be expressed in units of distance – typically 1 m in the SI International System of Units but it could also be angstrom (10–10 m = 0.1 nm) or nano-meter (10–9 m = 10 Å). A wavelength of two meter (2 m) means that the wave only completes half a cycle per meter of travel. So we need to translate that into radians, which – once again – is the measure used to… well… measure angles, or the phase of the wave as we call it here. So what’s the ‘unit’ here? Well… Remember that we can add or subtract 2π (and any multiple of 2π, i.e. ± 2nπ with n = ±1, ±2, ±3,…) to the argument of all trigonometric functions and we’ll get the same value as for the original argument. In other words, a cycle characterized by a wavelength λ corresponds to the angle θ going around the origin and describing one full circle, i.e. 2π radians. Hence, it is easy: we can go from distance to radians by multiplying our ‘distance argument’ x – vt with 2π/λ. If you’re not convinced, just work it out for the example I gave: if the wavelength is 2 m, then 2π/λ equals 2π/2 = π. So traveling 6 meters along the wave – i.e. we’re letting x go from 0 to 6 m while fixing our time variable – corresponds to our phase θ going from 0 to 6π: both the ‘distance argument’ as well as the change in phase cover three cycles (three times two meter for the distance, and three times 2π for the change in phase) and so we’re fine. [Another way to think about it is to remember that the circumference of the unit circle is also equal to 2π (2π·r = 2π·1 in this case), so the ratio of 2π to λ measures how many times the circumference contains the wavelength.]

In short, if we put time and distance in the (2π/λ)(x-vt) formula, we’ll get everything in radians and that’s what we need for the argument for our cosine function. So our sinusoidal wave above can be represented by the following cosine function:

A = A(x, t) = A0cos[(2π/λ)(x-vt)]

We could also write A = A0cosθ with θ = (2π/λ)(x-vt). […] Both representations look rather ugly, don’t they? They do. And it’s not only ugly: it’s not the standard representation of a sinusoidal wave either. In order to make it look ‘nice’, we have to introduce some more concepts here, notably the angular frequency and the wave number. So let’s do that.

The angular frequency is just like the… well… the frequency you’re used to, i.e. the ‘non-angular’ frequency f,  as measured in cycles per second (i.e. in Hertz). However, instead of measuring change in cycles per second, the angular frequency (usually denoted by the symbol ω) will measure the rate of change of the phase with time, so we can write or define ω as ω = ∂θ/∂t. In this case, we can easily see that ω = –2πv/λ. [Note that we’ll take the absolute value of that derivative because we want to work with positive numbers for such properties of functions.] Does that look complicated? In doubt, just remember that ω is measured in radians per second and then you can probably better imagine what it is really. Another way to understand ω somewhat better is to remember that the product of ω and the period T is equal to 2π, so that’s a full cycle. Indeed, the time needed to complete one cycle multiplied with the phase change per second (i.e. per unit time) is equivalent to going round the full circle: 2π = ω.T. Because f = 1/T, we can also relate ω to f and write ω = 2π.f = 2π/T.

Likewise, we can measure the rate of change of the phase with distance, and that gives us the wave number k = ∂θ/∂x, which is like the spatial frequency of the wave. So it is just like the wavelength but then measured in radians per unit distance. From the function above, it is easy to see that k = 2π/λ. The interpretation of this equality is similar to the ω.T = 2π equality. Indeed, we have a similar equation for k: 2π = k.λ, so the wavelength (λ) is for k what the period (T) is for ω. If you’re still uncomfortable with it, just play a bit with some numerical examples and you’ll be fine.

To make a long story short, this, then, allows us to re-write the sinusoidal wave equation above in its final form (and let me include the phase shift φ again in order to be as complete as possible at this stage):

A(x, t) = A0cos(kx – ωt + φ)

You will agree that this looks much ‘nicer’ – and also more in line with what you’ll find in textbooks or on Wikipedia. 🙂 I should note, however, that we’re not adding any new parameters here. The wave number k and the angular frequency ω are not independent: this is still the same wave (A = A0cos[(2π/λ)(x-vt)]), and so we are not introducing anything more than the frequency and – equally important – the speed with which the wave travels, which is usually referred to as the phase velocity. In fact, it is quite obvious from the ω.T = 2π and the k = 2π/λ identities that kλ = ω.T and, hence, taking into account that λ is obviously equal to λ = v.T (the wavelength is – by definition – the distance traveled by the wave in one period), we find that the phase (or wave) velocity v is equal to the ratio of ω and k, so we have that v = ω/k. So x, t, ω and k could be re-scaled or so but their ratio cannot change: the velocity of the wave is what it is. In short, I am introducing two new concepts and symbols (ω and k) but there are no new degrees of freedom in the system so to speak.

[At this point, I should probably say something about the difference between the phase velocity and the so-called group velocity of a wave. Let me do that in as brief a way as I can manage. Most real-life waves travel as a wave packet, aka a wave train. So that’s like a burst, or an “envelope” (I am shamelessly quoting Wikipedia here…), of “localized wave action that travels as a unit.” Such wave packet has no single wave number or wavelength: it actually consists of a (large) set of waves with phases and amplitudes such that they interfere constructively only over a small region of space, and destructively elsewhere. The famous Fourier analysis (or infamous if you have problems understanding what it is really) decomposes this wave train in simpler pieces. While these ‘simpler’ pieces – which, together, add up to form the wave train – are all ‘nice’ sinusoidal waves (that’s why I call them ‘simple’), the wave packet as such is not. In any case (I can’t be too long on this), the speed with which this wave train itself is traveling through space is referred to as the group velocity. The phase velocity and the group velocity are usually very different: for example, a wave packet may be traveling forward (i.e. its group velocity is positive) but the phase velocity may be negative, i.e. traveling backward. However, I will stop here and refer to the Wikipedia article on group and phase velocity: it has wonderful illustrations which are much and much better than anything I could write here. Just one last point that I’ll use later: regardless of the shape of the wave (sinusoidal, sawtooth or whatever), we have a very obvious relationship relating wavelength and frequency to the (phase) velocity: v = λ.f, or f = v/λ. For example, the frequency of a wave traveling 3 meter per second and wavelength of 1 meter will obviously have a frequency of three cycles per second (i.e. 3 Hz). Let’s go back to the main story line now.]

With the rather lengthy ‘introduction’ to waves above, we are now ready for the thing I really wanted to present here. I will go much faster now that we have covered the basics. Let’s go.

From my previous posts on complex numbers (or from what you know on complex numbers already), you will understand that working with cosine functions is much easier when writing them as the real part of a complex number A0eiθ = A0ei(kx – ωt + φ). Indeed, A0eiθ = A0(cosθ + isinθ) and so the cosine function above is nothing else but the real part of the complex number A0eiθ. Working with complex numbers makes adding waves and calculating interference effects and whatever we want to do with these wave functions much easier: we just replace the cosine functions by complex numbers in all of the formulae, solve them (algebra with complex numbers is very straightforward), and then we look at the real part of the solution to see what is happening really. We don’t care about the imaginary part, because that has no relationship to the actual physical quantities – for physical and electromagnetic waves that is, or for any other problem in classical wave mechanics. Done. So, in classical mechanics, the use of complex numbers is just a mathematical tool.

Now, that is not the case for the wave functions in quantum mechanics: the imaginary part of a wave equation – yes, let me write one down here – such as Ψ = Ψ(x, t) = (1/x)ei(kx – ωt) is very much part and parcel of the so-called probability amplitude that describes the state of the system here. In fact, this Ψ function is an example taken from one of Feynman’s first Lectures on Quantum Mechanics (i.e. Volume III of his Lectures) and, in this case, Ψ(x, t) = (1/x)ei(kx – ωt) represents the probability amplitude of a tiny particle (e.g. an electron) moving freely through space – i.e. without any external forces acting upon it – to go from 0 to x and actually be at point x at time t. [Note how it varies inversely with the distance because of the 1/x factor, so that makes sense.] In fact, when I started writing this post, my objective was to present this example – because it illustrates the concept of the wave function in quantum mechanics in a fairly easy and relatively understandable way. So let’s have a go at it.

First, it is necessary to understand the difference between probabilities and probability amplitudes. We all know what a probability is: it is a real number between o and 1 expressing the chance of something happening. It is usually denoted by the symbol P. An example is the probability that monochromatic light (i.e. one or more photons with the same frequency) is reflected from a sheet of glass. [To be precise, this probability is anything between 0 and 16% (i.e. P = 0 to 0.16). In fact, this example comes from another fine publication of Richard Feynman – QED (1985) – in which he explains how we can calculate the exact probability, which depends on the thickness of the sheet.]

A probability amplitude is something different. A probability amplitude is a complex number (3 + 2i, or 2.6ei1.34, for example) and – unlike its equivalent in classical mechanics – both the real and imaginary part matter. That being said, probabilities and probability amplitudes are obviously related: to be precise, one calculates the probability of an event actually happening by taking the square of the modulus (or the absolute value) of the probability amplitude associated with that event. Huh? Yes. Just let it sink in. So, if we denote the probably amplitude by Φ, then we have the following relationship:

P =|Φ|2

P = probability

Φ = probability amplitude

In addition, where we would add and multiply probabilities in the classical world (for example, to calculate the probability of an event which can happen in two different ways – alternative 1 and alternative 2 let’s say – we would just add the individual probabilities to arrive at the probably of the event happening in one or the other way, so P = P1+ P2), in the quantum-mechanical world we should add and multiply probability amplitudes, and then take the square of the modulus of that combined amplitude to calculate the combined probability. So, formally, the probability of a particle to reach a given state by two possible routes (route 1 or route 2 let’s say) is to be calculated as follows:

Φ = Φ1+ Φ2

and P =|Φ|=|Φ1+ Φ2|2

Also, when we have only one route, but that one route consists of two successive stages (for example: to go from A to C, the particle would have first have to go from A to B, and then from B to C, with different probabilities of stage AB and stage BC actually happening), we will not multiply the probabilities (as we would do in the classical world) but the probability amplitudes. So we have:

Φ = ΦAB ΦBC

and P =|Φ|=|ΦAB ΦBC|2

In short, it’s the probability amplitudes (and, as mentioned, these are complex numbers, not real numbers) that are to be added and multiplied etcetera and, hence, the probability amplitudes act as the equivalent, so to say, in quantum mechanics, of the conventional probabilities in classical mechanics. The difference is not subtle. Not at all. I won’t dwell too much on this. Just re-read any account of the double-slit experiment with electrons which you may have read and you’ll remember how fundamental this is. [By the way, I was surprised to learn that the double-slit experiment with electrons has apparently only been done in 2012 in exactly the way as Feynman described it. So when Feynman described it in his 1965 Lectures, it was still very much a ‘thought experiment’ only – even a 1961 experiment (not mentioned by Feynman) had clearly established the reality of electron interference.]

OK. Let’s move on. So we have this complex wave function in quantum mechanics and, as Feynman writes, “It is not like a real wave in space; one cannot picture any kind of reality to this wave as one does for a sound wave.” That being said, one can, however, get pretty close to ‘imagining’ what it actually is IMHO. Let’s go by the example which Feynman gives himself – on the very same page where he writes the above actually. The amplitude for a free particle (i.e. with no forces acting on it) with momentum p = m to go from location rto location ris equal to

Φ12 = (1/r12)eip.r12/ħ with r12 = rr

I agree this looks somewhat ugly again, but so what does it say? First, be aware of the difference between bold and normal type: I am writing p and v in bold type above because they are vectors: they have a magnitude (which I will denote by p and v respectively) as well as a direction in space. Likewise, r12 is a vector going from r1 to r2 (and rand r2 themselves are space vectors themselves obviously) and so r12 (non-bold) is the magnitude of that vector. Keeping that in mind, we know that the dot product p.r12 is equal to the product of the magnitudes of those vectors multiplied by cosα, with α the angle between those two vectors. Hence, p.r12  .= p.r12.cosα. Now, if p and r12 have the same direction, the angle α will be zero and so cosα will be equal to one and so we just have p.r12 = p.r12 or, if we’re considering a particle going from 0 to some position x, p.r12 = p.r12 = px.

Now we also have Planck’s constant there, in its reduced form ħ = h/2π. As you can imagine, this 2π has something to do with the fact that we need radians in the argument. It’s the same as what we did with x in the argument of that cosine function above: if we have to express stuff in radians, then we have to absorb a factor of 2π in that constant. However, here I need to make an additional digression. Planck’s constant is obviously not just any constant: it is the so-called quantum of action. Indeed, it appears in what may well the most fundamental relations in physics.

The first of these fundamental relations is the so-called Planck relation: E = hf. The Planck relation expresses the wave-particle duality of light (or electromagnetic waves in general): light comes in discrete quanta of energy (photons), and the energy of these ‘wave particles’ is directly proportional to the frequency of the wave, and the factor of proportionality is Planck’s constant.

The second fundamental relation, or relations – in plural – I should say, are the de Broglie relations. Indeed, Louis-Victor-Pierre-Raymond, 7th duc de Broglie, turned the above on its head: if the fundamental nature of light is (also) particle-like, then the fundamental nature of particles must (also) be wave-like. So he boldly associated a frequency f and a wavelength λ with all particles, such as electrons for example – but larger-scale objects, such as billiard balls, or planets, also have a de Broglie wavelength and frequency! The de Broglie relation determining the de Broglie frequency is – quite simply – the re-arranged Planck relation: f = E/h. So this relation relates the de Broglie frequency with energy. However, in the above wave function, we’ve got momentum, not energy. Well… Energy and momentum are obviously related, and so we have a second de Broglie relation relating momentum with wavelength: λ = h/p.

We’re almost there: just hang in there. 🙂 When we presented the sinusoidal wave equation, we introduced the angular frequency (ω)  and the wave number (k), instead of working with f and λ. That’s because we want an argument expressed in radians. Here it’s the same. The two de Broglie equations have a equivalent using angular frequency and wave number: ω = E/ħ and k = p/ħ. So we’ll just use the second one (i.e. the relation with the momentum in it) to associate a wave number with the particle (k = p/ħ).

Phew! So, finally, we get that formula which we introduced a while ago already:  Ψ(x) = (1/x)eikx, or, including time as a variable as well (we made abstraction of time so far):

Ψ(x, t) = (1/x)ei(kx – ωt)

The formula above obviously makes sense. For example, the 1/x factor makes the probability amplitude decrease as we get farther away from where the particle started: in fact, this 1/x or 1/r variation is what we see with electromagnetic waves as well: the amplitude of the electric field vector E varies as 1/r and, because we’re talking some real wave here and, hence, its energy is proportional to the square of the field, the energy that the source can deliver varies inversely as the square of the distance. [Another way of saying the same is that the energy we can take out of a wave within a given conical angle is the same, no matter how far away we are: the energy flux is never lost – it just spreads over a greater and greater effective area. But let’s go back to the main story.]

We’ve got the math – I hope. But what does this equation mean really? What’s that de Broglie wavelength or frequency in reality? What wave are we talking about? Well… What’s reality? As mentioned above, the famous de Broglie relations associate a wavelength λ and a frequency f to a particle with momentum p and energy E, but it’s important to mention that the associated de Broglie wave function yields probability amplitudes. So it is, indeed, not a ‘real wave in space’ as Feynman would put it. It is a quantum-mechanical wave equation.

Huh? […] It’s obviously about time I add some illustrations here, and so that’s what I’ll do. Look at the two cases below. The case on top is pretty close to the situation I described above: it’s a de Broglie wave – so that’s a complex wave – traveling through space (in one dimension only here). The real part of the complex amplitude is in blue, and the green is the imaginary part. So the probability of finding that particle at some position x is the modulus squared of this complex amplitude. Now, this particular wave function ignores the 1/x variation and, hence, the squared modulus of Aei(kx – ωt) is equal to a constant. To be precise, it’s equal to A2 (check it: the squared modulus of a complex number z equals the product of z and its complex conjugate, and so we get Aas a result indeed). So what does this mean? It means that the probability of finding that particle (an electron, for example) is the same at all points! In other words, we don’t know where it is! In the illustration below (top part), that’s shown as the (yellow) color opacity: the probability is spread out, just like the wave itself, so there is no definite position of the particle indeed.

2000px-Propagation_of_a_de_broglie_wave

[Note that the formula in the illustration above (which I took from Wikipedia once again) uses p instead of k as the factor in front of x. While it does not make a big difference from a mathematical point of view (ħ is just a factor of proportionality: k = p/ħ), it does make a big difference from a conceptual point of view and, hence, I am puzzled as to why the author of this article did this. Also, there is some variation in the opacity of the yellow (i.e. the color of our tennis (or ping pong) ball representing our ‘wavicle’) which shouldn’t be there because the probability associated with this particular wave function is a constant indeed: so there is no variation in the probability (when squaring the absolute value of a complex number, the phase factor does not come into play). Also note that, because all probabilities have to add up to 100% (or to 1), a wave function like this is quite problematic. However, don’t worry about it just now: just try to go with the flow.]

By now, I must assume you shook your head in disbelief a couple of time already. Surely, this particle (let’s stick to the example of an electron) must be somewhere, yes? Of course.

The problem is that we gave an exact value to its momentum and its energy and, as a result, through the de Broglie relations, we also associated an exact frequency and wavelength to the de Broglie wave associated with this electron.  Hence, Heisenberg’s Uncertainty Principle comes into play: if we have exact knowledge on momentum, then we cannot know anything about its location, and so that’s why we get this wave function covering the whole space, instead of just some region only. Sort of. Here we are, of course, talking about that deep mystery about which I cannot say much – if only because so many eminent physicists have already exhausted the topic. I’ll just state Feynman once more: “Things on a very small scale behave like nothing that you have any direct experience with. […] It is very difficult to get used to, and it appears peculiar and mysterious to everyone – both to the novice and to the experienced scientist. Even the experts do not understand it the way they would like to, and it is perfectly reasonable that they should not because all of direct, human experience and of human intuition applies to large objects. We know how large objects will act, but things on a small scale just do not act that way. So we have to learn about them in a sort of abstract or imaginative fashion and not by connection with our direct experience.” And, after describing the double-slit experiment, he highlights the key conclusion: “In quantum mechanics, it is impossible to predict exactly what will happen. We can only predict the odds [i.e. probabilities]. Physics has given up on the problem of trying to predict exactly what will happen. Yes! Physics has given up. We do not know how to predict what will happen in a given circumstance. It is impossible: the only thing that can be predicted is the probability of different events. It must be recognized that this is a retrenchment in our ideal of understanding nature. It may be a backward step, but no one has seen a way to avoid it.”

[…] That’s enough on this I guess, but let me – as a way to conclude this little digression – just quickly state the Uncertainty Principle in a more or less accurate version here, rather than all of the ‘descriptions’ which you may have seen of it: the Uncertainty Principle refers to any of a variety of mathematical inequalities asserting a fundamental limit (fundamental means it’s got nothing to do with observer or measurement effects, or with the limitations of our experimental technologies) to the precision with which certain pairs of physical properties of a particle (these pairs are known as complementary variables) such as, for example, position (x) and momentum (p), can be known simultaneously. More in particular, for position and momentum, we have that σxσp ≥ ħ/2 (and, in this formulation, σ is, obviously the standard symbol for the standard deviation of our point estimate for x and p respectively).

OK. Back to the illustration above. A particle that is to be found in some specific region – rather than just ‘somewhere’ in space – will have a probability amplitude resembling the wave equation in the bottom half: it’s a wave train, or a wave packet, and we can decompose it, using the Fourier analysis, in a number of sinusoidal waves, but so we do not have a unique wavelength for the wave train as a whole, and that means – as per the de Broglie equations – that there’s some uncertainty about its momentum (or its energy).

I will let this sink in for now. In my next post, I will write some more about these wave equations. They are usually a solution to some differential equation – and that’s where my next post will connect with my previous ones (on differential equations). Just to say goodbye – as for now that is – I will just copy another beautiful illustration from Wikipedia. See below: it represents the (likely) space in which a single electron on the 5d atomic orbital of a hydrogen atom would be found. The solid body shows the places where the electron’s probability density (so that’s the squared modulus of the probability amplitude) is above a certain value – so it’s basically the area where the likelihood of finding the electron is higher than elsewhere. The hue on the colored surface shows the complex phase of the wave function.

Hydrogen_eigenstate_n5_l2_m1

It is a wonderful image, isn’t it? At the very least, it increased my understanding of the mystery surround quantum mechanics somewhat. I hope it helps you too. 🙂

Post scriptum 1: On the need to normalize a wave function

In this post, I wrote something about the need for probabilities to add up to 1. In mathematical terms, this condition will resemble something like

probability amplitude adding up to some constant

In this integral, we’ve got – once again – the squared modulus of the wave function, and so that’s the probability of find the particle somewhere. The integral just states that all of the probabilities added all over space (Rn) should add up to some finite number (a2). Hey! But that’s not equal to 1 you’ll say. Well… That’s a minor problem only: we can create a normalized wave function ψ out of ψ0 by simply dividing ψ by a so we have ψ = ψ0/a, and then all is ‘normal’ indeed. 🙂

Post scriptum 2: On using colors to represent complex numbers

When inserting that beautiful 3D graph of that 5d atomic orbital (again acknowledging its source: Wikipedia), I wrote that “the hue on the colored surface shows the complex phase of the wave function.” Because this kind of visual representation of complex numbers will pop up in other posts as well (and you’ve surely encountered it a couple of times already), it’s probably useful to be explicit on what it represents exactly. Well… I’ll just copy the Wikipedia explanation, which is clear enough: “Given a complex number z = reiθ, the phase (also known as argument) θ can be represented by a hue, and the modulus r =|z| is represented by either intensity or variations in intensity. The arrangement of hues is arbitrary, but often it follows the color wheel. Sometimes the phase is represented by a specific gradient rather than hue.” So here you go…

Unit circle domain coloring.png

Post scriptum 3: On the de Broglie relations

The de Broglie relations are a wonderful pair. They’re obviously equivalent: energy and momentum are related, and wavelength and frequency are obviously related too through the general formula relating frequency, wavelength and wave velocity: fλ = v (the product of the frequency and the wavelength must yield the wave velocity indeed). However, when it comes to the relation between energy and momentum, there is a little catch. What kind of energy are we talking about? We were describing a free particle (e.g. an electron) traveling through space, but with no (other) charges acting on it – in other words: no potential acting upon it), and so we might be tempted to conclude that we’re talking about the kinetic energy (K.E.) here. So, at relatively low speeds (v), we could be tempted to use the equations p = mv and K.E. = p2/2m = mv2/2 (the one electron in a hydrogen atom travels at less than 1% of the speed of light, and so that’s a non-relativistic speed indeed) and try to go from one equation to the other with these simple formulas. Well… Let’s try it.

f = E/h according to de Broglie and, hence, substituting E with p2/2m and f with v/λ, we get v/λ = m2v2/2mh. Some simplification and re-arrangement should then yield the second de Broglie relation: λ = 2h/mv = 2h/p. So there we are. Well… No. The second de Broglie relation is just λ = h/p: there is no factor 2 in it. So what’s wrong? The problem is the energy equation: de Broglie does not use the K.E. formula. [By the way, you should note that the K.E. = mv2/2 equation is only an approximation for low speeds – low compared to c that is.] He takes Einstein’s famous E = mc2 equation (which I am tempted to explain now but I won’t) and just substitutes c, the speed of light, with v, the velocity of the slow-moving particle. This is a very fine but also very deep point which, frankly, I do not yet fully understand. Indeed, Einstein’s E = mcis obviously something much ‘deeper’ than the formula for kinetic energy. The latter has to do with forces acting on masses and, hence, obeys Newton’s laws – so it’s rather familiar stuff. As for Einstein’s formula, well… That’s a result from relativity theory and, as such, something that is much more difficult to explain. While the difference between the two energy formulas is just a factor of 1/2 (which is usually not a big problem when you’re just fiddling with formulas like this), it makes a big conceptual difference.

Hmm… Perhaps we should do some examples. So these de Broglie equations associate a wave with frequency f and wavelength λ with particles with energy E, momentum p and mass m traveling through space with velocity v: E = hf and p = h/λ. [And, if we would want to use some sine or cosine function as an example of such wave function – which is likely – then we need an argument expressed in radians rather than in units of time or distance. In other words, we will need to convert frequency and wavelength to angular frequency and wave number respectively by using the 2π = ωT = ω/f and 2π = kλ relations, with the wavelength (λ), the period (T) and the velocity (v) of the wave being related through the simple equations f = 1/T and λ = vT. So then we can write the de Broglie relations as: E = ħω and p =  ħk, with ħ = h/2π.]

In these equations, the Planck constant (be it h or ħ) appears as a simple factor of proportionality (we will worry about what h actually is in physics in later posts) – but a very tiny one: approximately 6.626×10–34 J·s (Joule is the standard SI unit to measure energy, or work: 1 J = 1 kg·m2/s2), or 4.136×10–15 eV·s when using a more appropriate (i.e. larger) measure of energy for atomic physics: still, 10–15 is only 0.000 000 000 000 001. So how does it work? First note, once again, that we are supposed to use the equivalent for slow-moving particles of Einstein’s famous E = mcequation as a measure of the energy of a particle: E = mv2. We know velocity adds mass to a particle – with mass being a measure for inertia. In fact, the mass of so-called massless particles,  like photons, is nothing but their energy (divided by c2). In other words, they do not have a rest mass, but they do have a relativistic mass m = E/c2, with E = hf (and with f the frequency of the light wave here). Particles, such as electrons, or protons, do have a rest mass, but then they don’t travel at the speed of light. So how does that work out in that E = mvformula which – let me emphasize this point once again – is not the standard formula (for kinetic energy) that we’re used to (i.e. E = mv2/2)? Let’s do the exercise.

For photons, we can re-write E = hf as E = hc/λ. The numerator hc in this expression is 4.136×10–15 eV·s (i.e. the value of the Planck constant h expressed in eV·s) multiplied with 2.998×108 m/s (i.e. the speed of light c) so that’s (more or less) hc ≈ 1.24×10–6 eV·m. For visible light, the denominator will range from 0.38 to 0.75 micrometer (1 μm = 10–6 m), i.e. 380 to 750 nanometer (1 nm = 10–6 m), and, hence, the energy of the photon will be in the range of 3.263 eV to 1.653 eV. So that’s only a few electronvolt (an electronvolt (eV) is, by definition, the amount of energy gained (or lost) by a single electron as it moves across an electric potential difference of one volt). So that’s 2.6 to 5.2 Joule (1 eV = 1.6×10–19 Joule) and, hence, the equivalent relativistic mass of these photons is E/cor 2.9 to 5.8×10–34 kg. That’s tiny – but not insignificant. Indeed, let’s look at an electron now.

The rest mass of an electron is about 9.1×10−31 kg (so that’s a scale factor of a thousand as compared to the values we found for the relativistic mass of photons). Also, in a hydrogen atom, it is expected to speed around the nucleus with a velocity of about 2.2×10m/s. That’s less than 1% of the speed of light but still quite fast obviously: at this speed (2,200 km per second), it could travel around the earth in less than 20 seconds (a photon does better: it travels not less than 7.5 times around the earth in one second). In any case, the electron’s energy – according to the formula to be used as input for calculating the de Broglie frequency – is 9.1×10−31 kg multiplied with the square of 2.2×106 m/s, and so that’s about 44×10–19 Joule or about 70 eV (1 eV = 1.6×10–19 Joule). So that’s – roughly – 35 times more than the energy associated with a photon.

The frequency we should associate with 70 eV can be calculated from E = hv/λ (we should, once again, use v instead of c), but we can also simplify and calculate directly from the mass: λ = hv/E = hv/mv2 = h/m(however, make sure you express h in J·s in this case): we get a value for λ equal to 0.33 nanometer, so that’s more than one thousand times shorter than the above-mentioned wavelengths for visible light. So, once again, we have a scale factor of about a thousand here. That’s reasonable, no? [There is a similar scale factor when moving to the next level: the mass of protons and neutrons is about 2000 times the mass of an electron.] Indeed, note that we would get a value of 0.510 MeV if we would apply the E = mc2, equation to the above-mentioned (rest) mass of the electron (in kg): MeV stands for mega-electronvolt, so 0.510 MeV is 510,000 eV. So that’s a few hundred thousand times the energy of a photon and, hence, it is obvious that we are not using the energy equivalent of an electron’s rest mass when using de Broglie’s equations. No. It’s just that simple but rather mysterious E = mvformula. So it’s not mcnor mv2/2 (kinetic energy). Food for thought, isn’t it? Let’s look at the formulas once again.

They can easily be linked: we can re-write the frequency formula as λ = hv/E = hv/mv2 = h/mand then, using the general definition of momentum (p = mv), we get the second de Broglie equation: p = h/λ. In fact, de Broglie‘s rather particular definition of the energy of a particle (E = mv2) makes v a simple factor of proportionality between the energy and the momentum of a particle: v = E/p or E = pv. [We can also get this result in another way: we have h = E/f = pλ and, hence, E/p = fλ = v.]

Again, this is serious food for thought: I have not seen any ‘easy’ explanation of this relation so far. To appreciate its peculiarity, just compare it to the usual relations relating energy and momentum: E =p2/2m or, in its relativistic form, p2c2 = E2 – m02c4 . So these two equations are both not to be used when going from one de Broglie relation to another. [Of course, it works for massless photons: using the relativistic form, we get p2c2 = E2 – 0 or E = pc, and the de Broglie relation becomes the Planck relation: E = hf (with f the frequency of the photon, i.e. the light beam it is part of). We also have p = h/λ = hf/c, and, hence, the E/p = c comes naturally. But that’s not the case for (slower-moving) particles with some rest mass: why should we use mv2 as a energy measure for them, rather than the kinetic energy formula?

But let’s just accept this weirdness and move on. After all, perhaps there is some mistake here and so, perhaps, we should just accept that factor 2 and replace λ = h/p by λ = 2h/p. Why not? 🙂 In any case, both the λ = h/mv and λ = 2h/p = 2h/mv expressions give the impression that both the mass of a particle as well as its velocity are on a par so to say when it comes to determining the numerical value of the de Broglie wavelength: if we double the speed, or the mass, the wavelength gets shortened by half. So, one would think that larger masses can only be associated with extremely short de Broglie wavelengths if they move at a fairly considerable speed. But that’s where the extremely small value of h changes the arithmetic we would expect to see. Indeed, things work different at the quantum scale, and it’s the tiny value of h that is at the core of this. Indeed, it’s often referred to as the ‘smallest constant’ in physics, and so here’s the place where we should probably say a bit more about what h really stands for.

Planck’s constant h describes the tiny discrete packets in which Nature packs energy: one cannot find any smaller ‘boxes’. As such, it’s referred to as the ‘quantum of action’. But, surely, you’ll immediately say that it’s cousin, ħ = h/2π, is actually smaller. Well… Yes. You’re actually right: ħ = h/2π is actually smaller. It’s the so-called quantum of angular momentum, also (and probably better) known as spin. Angular momentum is a measure of… Well… Let’s call it the ‘amount of rotation’ an object has, taking into account its mass, shape and speed. Just like p, it’s a vector. To be precise, it’s the product of a body’s so-called rotational inertia (so that’s similar to the mass m in p = mv) and its rotational velocity (so that’s like v, but it’s ‘angular’ velocity), so we can write L = Iω but we’ll not go in any more detail here. The point to note is that angular momentum, or spin as it’s known in quantum mechanics, also comes in discrete packets, and these packets are multiples of ħ. [OK. I am simplifying here but the idea or principle that I am explaining here is entirely correct.]

But let’s get back to the de Broglie wavelength now. As mentioned above, one would think that larger masses can only be associated with extremely short de Broglie wavelengths if they move at a fairly considerable speed. Well… It turns out that the extremely small value of h upsets our everyday arithmetic. Indeed, because of the extremely small value of h as compared to the objects we are used to ( in one grain of salt alone, we will find about 1.2×1018 atoms – just write a 1 with 18 zeroes behind and you’ll appreciate this immense numbers somewhat more), it turns out that speed does not matter all that much – at least not in the range we are used to. For example, the de Broglie wavelength associated with a baseball weighing 145 grams and traveling at 90 mph (i.e. approximately 40 m/s) would be 1.1×10–34 m. That’s immeasurably small indeed – literally immeasurably small: not only technically but also theoretically because, at this scale (i.e. the so-called Planck scale), the concepts of size and distance break down as a result of the Uncertainty Principle. But, surely, you’ll think we can improve on this if we’d just be looking at a baseball traveling much slower. Well… It does not much get better for a baseball traveling at a snail’s pace – let’s say 1 cm per hour, i.e. 2.7×10–6 m/s. Indeed, we get a wavelength of 17×10–28 m, which is still nowhere near the nanometer range we found for electrons.  Just to give an idea: the resolving power of the best electron microscope is about 50 picometer (1 pm = ×10–12 m) and so that’s the size of a small atom (the size of an atom ranges between 30 and 300 pm). In short, for all practical purposes, the de Broglie wavelength of the objects we are used to does not matter – and then I mean it does not matter at all. And so that’s why quantum-mechanical phenomena are only relevant at the atomic scale.

An easy piece: Ordinary Differential Equations (I)

Although Richard Feynman’s iconic Lectures on Physics are best read together, as an integrated textbook that is, smart publishers bundled some of the lectures in two separate publications: Six Easy Pieces and Six Not-So-Easy Pieces. Well… Reading Penrose has been quite exhausting so far and, hence, I feel like doing an easy piece here – just for a change. 🙂

In addition, I am half-way through this graduate-level course on Complex variables and Applications (from McGraw-Hill’s Brown—Churchill Series) but I feel that I will gain much more from the remaining chapters (which are focused on applications) if I’d just branch off for a while and first go through another classic graduate-level course dealing with math, but perhaps with some more emphasis on physics. A quick check reveals that Mathematical Methods of Physics, written by Jon Mathews and R.L. Walker will probably fit the bill. This textbook is used it as a graduate course at the University of Chicago and, in addition, Mathews and Walker were colleagues of Feynman and, hence, their course should dovetail nicely with Feynman’s Lectures: that’s why I bought it when I saw this 2004 reprint for the Indian subcontinent in a bookshop in Delhi. [As for Feynman’s Lectures, I wouldn’t recommend these Lectures if you want to know more about quantum mechanics, but for classical mechanics and electromagnetism/electrodynamics they’re still great.]

So here we go: Chapter 1, on Differential Equations.

Of course, I mean ordinary differential equations, so things with one dependent and one independent variable only, as opposed to partial differential equations, which have partial derivatives (i.e. terms with δ symbols in them, as opposed to the used in dy and dy) because there’s more than one independent variable. We’ll need to get into partial differential equations soon enough, if only because wave equations are partial differential equations, but let’s start with the start.

While I thought I knew a thing or two about differential equations from my graduate-level courses in economics, I’ve discovered many new things already. One of them is the concept of a slope field, or a direction field. Below the examples I took from Paul’s Online Notes in Mathematics (http://tutorial.math.lamar.edu/Classes/DE/DirectionFields.aspx), who’s a source I warmly recommend (his full name is Paul Dawkins, and he developed these notes for Lamar University, Texas):

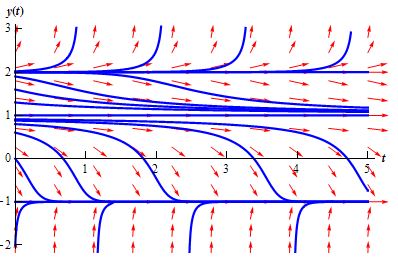

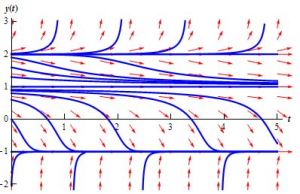

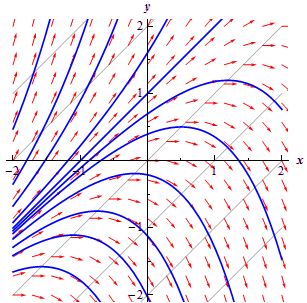

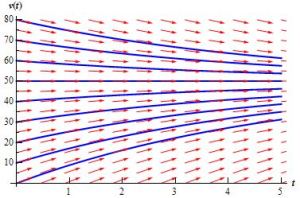

Direction field 1  Direction field 3Direction field 2

These things are great: they helped me to understand what a differential equation actually is. So what is it then? Well, let’s take the example of the first graph. That example models the following situation: we have a falling object with mass m (so the force of gravity acts on it) but its fall gets slowed down because of air resistance. So we have two forces FG and Facting on the object, as depicted below:

Forces on m

Now, the force of gravity is proportional to the mass m of the falling object, with the factor of proportionality equal to the gravitational constant of course. So we have FG = mg with g = 9.8 m/s2. [Note that forces are measured in newtons and 1 N = 1 (kg)(m)/(s2).]

The force due to air resistance has a negative sign because it acts like a brake and, hence, it has the opposite direction of the gravity force. The example assumes that it is proportional to the velocity v of the object, which seems reasonable enough: if it goes faster and faster, the air will slow it down more and more so we have FA = —γv, with v = v(t) the velocity of the object and γ some (positive) constant representing the factor of proportionality for this force. [In fact, the force due to air resistance is usually referred to as the drag, and it is proportional to the square of the velocity, but so let’s keep it simple here.]

Now, when things are being modeled like this, I find the thing that is most difficult is to keep track of what depends on what exactly. For example, it is obvious that, in this example, the total force on the object will also depend on the velocity and so we have a force here which we should write as a function of both time and velocity. Newton’s Law of Motion (the Second Law to be precise, i.e. ma = m(dv/dt) =F) thus becomes

m(dv/dt) = F(t, v) = mg – γv(t).

Note the peculiarity of this F(t, v) function: in the end, we will want to write v(t) as an explicit function of t, but so here we write F as a function with two separate arguments t and v. So what depends on what here? What does this equation represent really?

Well… The equation does surely not represent one or the other implicit function: an implicit function, such as x2 + y2 = 1 for example (i.e. the unit circle), is still a function: it associates one of the variables (usually referred to as the value) to the other variables (the arguments). But, surely, we have that too here? No. If anything, a differential equation represents a family of functions, just like an indefinite integral.

Indeed, you’ll remember that an indefinite integral ∫f(x)dx represents all functions F(x) for which F'(x) = dF(x)/dx = f(x). These functions are, for a very obvious reason, referred to as the anti-derivatives of f(x) and it turns out that all these antiderivatives differ from each other by a constant only, so we can write ∫f(x)dx = F(x) + c, and so the graphs of all the antiderivatives of a given function are, quite simply, vertical translations of each other, i.e. their vertical location depends on the value of c. I don’t want to anticipate too much, but so we’ll have something similar here, except that our ‘constant’ will usually appear in a somewhat more complicated format such as, in this example, as v(t) = 50 + ce—0.196t. So we also have a family of primitive functions v(t) here, which differ from each other by the constant c (and, hence, are ‘indefinite’ so to say), but so when we would graph this particular family of functions, their vertical distance will not only depend on c but also on t. But let us not run before we can walk.

The thing to note – and to always remember when you’re looking at a differential equation – is that the equation itself represents a world of possibilities, or parallel universes if you want :-), but, also, that’s it in only one of them that things are actually happening. That’s why differential equations usually have an infinite number of general (or possible) solutions but only one of these will be the actual solution, and which one that is will depend on the initial conditions, i.e. where we actually start from: is the object at rest when we start looking, is it in equilibrium, or is it somewhere in-between?

What we know for sure is that, at any one point of time t, this object can only have one velocity, and, because it’s also pretty obvious that, in the real world, t is the independent variable and v the dependent one (the velocity of our object does not change time), we can thus write v = v(t) = du/dt indeed. [The variable u = u(t) is the vertical position of the object and its velocity is, obviously, the rate of change of this vertical position, i.e. the derivative with regard to time.]

So that’s the first thing you should note about these direction fields: we’re trying to understand what is going on with these graphs and so we identify the dependent variable with the y axis and the independent variable with the x axis, in line with the general convention that such graphs will usually depict a y = y(x) relationship. In this case, we’re interested in the velocity of the object (not its position), and so v = v(t) is the variable on the y axis of that first graph.

Now, there’s a world of possibilities out there indeed, but let’s suppose we start watching when the object is at rest, i.e. we have v(t) = v(0) = 0 and so that’s depicted by the origin point. Let’s also make it all more real by assigning the values m = 2 kg and γ = 0.392 to m an γ in Newton’s formula. [In case you wonder where this value for γ comes from, note that its value is 1/25 of the gravitational constant and so it’s just a number to make sure the solution for v(t) is a ‘nice’ number, i.e. an integer instead of some decimal. In any case, I am taking this example from Paul’s Online Notes and I won’t try to change it.]

So we start at point zero with zero velocity but so now we’ve got the force F with us. 🙂 Hence, the object’s velocity v(t) will not stay zero. As the clock ticks, its movement will respect Newton’s Law, i.e. m(dv/dt) = F(t, v), which is m(dv/dt) = mg – γv(t) in this case. Now, if we plug in the above-mentioned values for m and γ (as well as the 9.8 approximation for g), we get dv(t)/dt = 9.8 – 0.196v(t) (we brought m over to the other side, and so then it becomes 1/m on the right-hand side).

Now, let’s insert some values into these equation. Let’s first take the value v(0) = 0, i.e. our point of departure. We obviously get d(v(0)/dt = 9.8 – 0.196.0 = 9.8 (so that’s close to 10 but not quite).

Let’s take another value for v(0). If v(0) would be equal to 30 m/s (this means that the object is already moving at a speed of 30 m/s when we start watching), then we’d get a value for dv/dt of 3.92, which is much less – but so that reflects the fact that, at such speed, air resistance is counteracting gravity.

Let’s take yet another value for v(0). Let’s take 100 now for example: we get dv/dt = – 9.8.

Ooops! What’s that? Minus 9.8? A negative value for dv/dt? Yes. It indicates that, at such high speed, air resistance is actually slowing down the object. [Of course, if that’s the case, then you may wonder how it got to go so fast in the first place but so that’s none of our own business: maybe it’s an object that got launched up into the air instead of something that was dropped out of an airplane. Note that a speed of 100 m/s is 360 km/h so we’re not talking any supersonic launch speeds here.]

OK. Enough of that kids’ stuff now. What’s the point?

Well, it’s these values for dv/dt (so these values of 9.8, 3.92, -9.8 etcetera) that we use for that direction field, or slope field as it’s often referred to. Note that we’re currently considering the world of possibilities, not the actual world so to say, and so we are contemplating any possible combination of v and t really.

Also note that, in this particular example that is, it’s only the value of v that determines the value of dv/dt, not the value of t. So, if, at some other point in time (e.g. t = 3), we’d be imagining the same velocities for our object, i.e. 0 m/s, 30 m/s or 100 m/s, we’d get the same values 9.8, 3.92 and -9.8 for dv/dt. So the little red arrows which represent the direction field all have the same magnitude and the same direction for equal values of v(t). [That’s also the case in the second graph above, but not for the third graph, which presents a far more general case: think of a changing electromagnetic field for instance. A second footnote to be made here concerns the length – or magnitude – of these arrows: they obviously depend on the scale we’re using but so they do reflect the values for dv/dt we calculated.]

So that slope field, or direction field, i.e. all of these little red arrows, represents the fact that the world of possibilities, or all parallel universes which may exist out there, have one thing in common: they all need to respect Newton or, at the very least, his m(dv/dt) = mg – γv(t) equation which, in this case, is dv(t)/dt = 9.8 – 0.196v(t). So, wherever we are in this (v, t) space, we look at the nearest arrow and it will tell us how our speed v will change as a function of t.

As you can see from the graph, the slope of these little arrows (i.e. dv/dt) is negative above the v(t) = 50 m/s line, and positive underneath it, and so we should not be surprised that, when we try to calculate at what speed dv/dt would be equal to zero (we do this by writing 9.8 – 0.196v(t) = 0), we find that this is the case if and only if v(t) = 9.8/0.196 = 50 indeed. So that looks like the stable situation: indeed, you’ll remember that derivatives reflect the rate of change, and so when dv/dt = 0, it means the object won’t change speed.

Now, the dynamics behind the graph are obviously clear: above the v(t) = 50 m/s line, the object will be slowing down, and underneath it, it will be speeding up. At the v(t) line itself, the gravity and air resistance forces will balance each other and the object’s speed will be constant – that is until it hits the earth of course :-).

So now we can have a look at these blue lines on the graph. If you understood something of the lengthy story about the red arrows above, then you’ll also understand, intuitively at least, that the blue lines on this graph represent the various solutions to the differential equation. Huh? Well. Yes.

The blue lines show how the velocity of the object will gradually converge to 50 m/s, and that the actual path being followed will depend on our actual starting point, which may be zero, less than 50 m/s, or equal or more than 50 m/s. So these blue lines still represent the world of possibilities, or all of the possible parallel universes, but so one of them – and one of them only – will represent the actual situation. Whatever that actual situation is (i.e. whatever point we start at when t = 0), the dynamics at work will make sure the speed converges to 50 m/s, so that’s the longer-term equilibrium for this situation. [Note that all is relative of course: if the object is being dropped out of a plane at an altitude of two or three km only, then ‘longer-term’ means like a minute or so, after which time the object will hit the ground and so then the equilibrium speed is obviously zero. :-)]

OK. I must assume you’re fine with the intuitive interpretation of these blue curves now. But so what are they really, beyond this ‘intuitive’ interpretation? Well, they are the solutions to the differential equation really and, because these solutions are found through an integration process indeed, they are referred to as the integral curves. I have to refer my imaginary reader here to Paul’s Notes (or any other math course) for as to how exactly that integration process works (it’s not as easy as you might think) but the equation for these blue curves is

v(t) = 50 + ce—0.196t

In this equation, we have Euler’s number e (so that’s the irrational number e = 2.718281… etcetera) and also a constant c which depends on the initial conditions indeed. The graph below shows some of these curves for various values of c. You can calculate some more yourself of course. For example, if we start at the origin indeed, so if we have zero speed at t = 0, then we have v(0) = 50 + ce-0.196.0 = 50 + ce0 = 50 + c and, hence, c = -50 will represent that initial condition. [And, yes, please do note the similarity with the graphs of the antiderivatives (i.e. the indefinite integral) of a given function, because the c in that v(t) function is, effectively, the result of an integration process.]

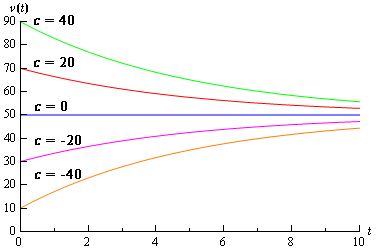

Solution for falling object

So that’s it really: the secret behind differential equations has been unlocked. There’s nothing more to it.

Well… OK. Of course we still need to learn how to actually solve these differential equations, and we’ll also have to learn how to solve partial differential equations, including equations with complex numbers as well obviously, and so on and son on. Even those other two ‘simple’ situations depicted above (see the two other graphs) are obviously more intimidating already (the second graph involves three equilibrium solutions – one stable, one unstable and one semi-stable – while the third graph shows not all situations have equilibrium solutions). However, I am sure I’ll get through it: it has been great fun so far, and what I read so far (i.e. this morning) is surely much easier to digest than all the things I wrote about in my other posts. 🙂

In addition, the example did involve two forces, and so it resembles classical electrodynamics, in which we also have two forces, the electric and magnetic force, which generate force fields that influence each other. However, despite of all the complexities, it is fair to say that, when push comes to shove, understanding Maxwell’s equations is a matter of understanding a particular set of partial differential equations. However, I won’t dwell on that now. My next post might consist of a brief refresher on all of that but I will probably first want to move on a bit with that course of Mathews and Walker. I’ll keep you posted on progress. 🙂

Post scriptum:

My imaginary reader will obviously note that this direction field looks very much like a vector field. In fact, it obviously is a vector field. Remember that a vector field assigns a vector to each point, and so a vector field in the plane is visualized as a collection of arrows indeed, with a given magnitude and direction attached to a point in the plane. As Wikipedia puts it: ‘vector fields are often used to model the strength and direction of some force, such as the electrostatic, magnetic or gravitational force. And so, yes, in the example above, we’re indeed modeling a force obeying Newton’s law: the change in the velocity of the object (i.e. the factor a = dv/dt in the F = ma equation) is proportional to the force (which is a force combining gravity and drag in this example), and the factor of proportionality is the inverse of the object’s mass (a = F/m and, hence, the greater its mass, the less a body accelerates under given force). [Note that the latter remark just underscores the fact that Newton’s formula shows that mass is nothing but a measure of the object’s inertia, i.e. its resistance to being accelerated or change its direction of motion.]

A second post scriptum point to be made, perhaps, is my remark that solving that dv(t)/dt = 9.8 – 0.196v(t) equation is not as easy as it may look. Let me qualify that remark: it actually is an easy differential equation, but don’t make the mistake of just putting an integral sign in front and writing something like ∫(0.196v + v’) dv = ∫9.8 dv, to then solve it as 0.098 v2 + v = 9.8v + c, which is equivalent to 0.098 v2 – 8.8 v + c = 0. That’s nonsensical because it does not give you v as an implicit or explicit function of t and so it’s a useless approach: it just yields a quadratic function in v which may or may not have any physical interpretation.

So should we, perhaps, use t as the variable of integration on one side and, hence, write something like ∫(0.196v + v’) dv = ∫9.8 dt? We then find 0.098 v+ v = 9.8t + c, and so that looks good, doesn’t it?  No. It doesn’t. That’s worse than that other quadratic expression in v (I mean the one which didn’t have t in it), and a lot worse, because it’s not only meaningless but wrongvery wrong. Why? Well, you’re using a different variable of integration (v versus t) on both sides of the equation and you can’t do that: you have to apply the same operation to both sides of the equation, whether that’s multiplying it with some factor or bringing one of the terms over to the other side (which actually mounts to subtracting the same term from both sides) or integrating both sides: we have to integrate both sides over the same variable indeed.

But – hey! – you may remember that’s what we do when differential equations are separable, isn’t? And so that’s the case here, isn’t it?We’ve got all the y’s on one side and all the x’s on the other side of the equation here, don’t we? And so then we surely can integrate one side over y and the other over x, isn’t it? Well… No. And yes. For a differential equation to be separable, all the x‘s and all the y’s must be nicely separated on both sides of the equation indeed but all the y’s in the differential equation (so not just one of them) must be part of the product with the derivative. Remember, a separable equation is an equation in the form of B(y)(dy/dx) = A(x), with B(y) some function of y indeed, and A(x) some function of x, but so the whole B(y) function is multiplied with dy/dx, not just one part of it. If, and only if, the equation can be written in this form, we can (a) integrate both sides over x but (b) also use the fact that ∫[B(y)dy/dx]dx = ∫B(y)dy. So, it looks like we’re effectively integrating one part (or one side) of the equation over the dependent variable y here, and the other over x, but the condition for being allowed to do so is that the whole B(y) function can be written as a factor in a product involving the dy/dx  derivative. Is that clear? I guess not. 😦 But then I need to move on.

The lesson here is that we always have to make sure that we write the differential equation in its ‘proper form’ before we do the integration, and we should note that the ‘proper form’ usually depends on the method we’re going to select to solve the equation: if we can’t write the equation in its proper form, then we can’t apply the method. […] Oh… […] But so how do we solve that equation then? Well… It’s done using a so-called integrating factor but, just as I did in the text above already, I’ll refer you to a standard course on that, such as Paul’s Notes indeed, because otherwise my posts would become even longer than they already are, and I would have even less imaginary readers. 🙂

Euler’s formula

I went trekking (to the Annapurna Base Camp this time) and, hence, left the math and physics books alone for a week or two. When I came back, it was like I had forgotten everything, and I wasn’t able to re-do the exercises. Back to the basics of complex numbers once again. Let’s start with Euler’s formula:

eix = cos(x) + isin(x)

In his Lectures on Physics, Richard Feynman calls this equation ‘one of the most remarkable, almost astounding, formulas in all of mathematics’, so it’s probably no wonder I find it intriguing and, indeed, difficult to grasp. Let’s look at it. So we’ve got the real (but irrational) number e in it. That’s a fascinating number in itself because it pops up in different mathematical expressions which, at first sight, have nothing in common with each other. For example, e can be defined as the sum of the infinite series e = 1/0! + 1/2! + + 1/3! + 1/4! + … etcetera (n! stands for the factorial of n in this formula), but one can also define it as that unique positive real number for which d(et)/dt = et (in other words, as the base of an exponential function which is its own derivative). And, last but not least, there are also some expressions involving limits which can be used to define e. Where to start? More importantly, what’s the relation between all these expressions and Euler’s formula?

First, we should note that eix is not just any number: it is a complex number – as opposed to the more simple ex expression, which denotes the real exponential function (as opposed to the complex exponential function ez). Moreover, we should note that eix is a complex number on the unit circle. So, using polar coordinates, we should say that eix  is a complex number with modulus 1 (the modulus is the absolute value of the complex number (i.e. the distance from 0 to the point we are looking at) or, alternatively, we could say it is the magnitude of the vector defined by the point we are looking at) and argument x (the argument is the angle (expressed in radians) between the positive real axis and the line from 0 to the point we are looking at).

Now, it is self-evident that cos(x) + isin(x) represents exactly the same: a point on the unit circle defined by the angle x. But so that doesn’t prove Euler’s formula: it only illustrates it. So let’s go to one or the other proof of the formula to try to understand it somewhat better. I’ll refer to Wikipedia for proving Euler’s formula in extenso but let me just summarize it. The Wikipedia article (as I looked at it today) gives three proofs.

The first proof uses the power series expansion (yes, the Taylor/Maclaurin series indeed – more about that later) for the exponential function: eix = 1 + ix + (ix)2/2! + (ix)3/3! +… etcetera. We then substitute using i2 = -1, i3 = –i etcetera and so, when we then re-arrange the terms, we find the Maclaurin series for the cos(x) and sin(x) functions indeed. I will come back to these power series in another post.

The second proof uses one of the limit definitions for ex but applies it to the complex exponential function. Indeed, one can write ez (with z = x+iy) as ez = lim(1 + z/n)n for n going to infinity. The proof substitutes ix for z and then calculates the limit for very large (or infinite) n indeed. This proof is less obvious than it seems because we are dealing with power series here and so one has to take into account issues of convergence and all that.

The third proof also looks complicated but, in fact, is probably the most intuitive of the three proofs given because it uses the derivative definition of e. To be more precise, it takes the derivative of both sides of Euler’s formula using the polar coordinates expression for complex numbers. Indeed, eix is a complex number and, hence, can be written as some number z = r(cosθ+ isinθ), and so the question to solve here is: what’s r and θ? We need to write these two values as a function of x. How do we do that? Well… If we take the derivative of both sides, we get d(eix)/dx = ieix = (cosθ + isinθ)dr/dx + r[d(cosθ + isinθ)/dθ]dθ/dx. That’s just the chain rule for derivatives of course. Now, writing it all out and equating the real and imaginary parts on both sides of the expression yields following: dr/dx = 0 and dθ/dx = 1. In addition, we must have that, for x = 0, ei0 = [ei]0 = 1, so we have r(0) = 1 (the modulus of the complex number (1,0) is one) and θ(0) = 0 (the argument of (1,0) is zero). It follows that the functions r and θ are equal to r = 1 and θ = x, which proves the formula.

While these proofs are (relatively) easy to understand, the formula remains weird, as evidenced also from its special cases, like ei0 = ei = 1 = – eiπ = – eiπ or, equivalently, eiπ + 1 = 0, which is a formula which combines the five most basic quantities in mathematics: 0, 1, i, e and π. It is an amazing formula because we have two irrational numbers here, e and π, which have definitions which do not refer to each other at all (last time I checked, π was still being defined as the simple ratio of a circle’s circumference to its diameter, while the various definitions of e have nothing to do with circles), and so we combine these two seemingly unrelated numbers, also inserting the imaginary unit i (using iπ as an exponent for e) and we get minus 1 as a result (eiπ = – 1). Amazing indeed, isn’t it?

[…] Well… I’d say at least as amazing as the Taylor or Maclaurin expansion of a function – but I’ll save my thoughts on these for another post (even if I am using the results of these expansions in this post). In my view, what Euler’s formula shows is the amazing power of mathematical notation really – and the creativity behind. Indeed, let’s look at what we’re doing with complex numbers: we start from one or two definitions only and suddenly all kinds of wonderful stuff starts popping up. It goes more or less like this really:

We start off with these familiar x and y coordinates of points in a plane. Now we call the x-axis the real axis and then, just to distinguish them from the real numbers, we call the numbers on the y-axis imaginary numbers. Again, it is just to distinguish them from the real numbers because, in fact, imaginary numbers are not imaginary at all: they are as real as the real numbers – or perhaps we should say that the real numbers are as imaginary as the imaginary numbers because, when everything is said and done, the real numbers are mental constructs as well, aren’t they? Imaginary numbers just happen to lie on another line, perpendicular to our so-called real line, and so that’s why we add a little symbol i (the so-called imaginary unit) when we write them down. So we write 1i (or i tout court), 2i, 3i etcetera, or i/2 or whatever (it doesn’t matter if we write i before the real number or after – as long as we’re consistent).

Then we combine these two numbers – the real and imaginary numbers – to form a so-called complex number, which is nothing but a point (x, y) in this Cartesian plane. Indeed, while complex numbers are somewhat more complex than the numbers we’re used to in daily life, they are not out of this world I’d say: they’re just points in space, and so we can also represent them as vectors (‘arrows’) from the origin to (x, y).

But so this is what we are doing really: we combine the real and imaginary numbers by using the very familiar plus (+) sign, so we write z = x + iy. Now that is actually where the magic starts: we are not adding the same things here, like we would do when we are counting apples or so, or when we are adding integers or rational or real numbers in general. No, we are adding here two different things here – real and imaginary numbers – which, in fact, we cannot really add. Indeed, your mommy told you that you cannot compare apples with oranges, didn’t she? Well… That’s exactly what we do here really, and so we will keep these real and imaginary numbers separate in our calculations indeed: we will add the real parts of complex numbers with each other only, and the imaginary parts of them also with each other only.

Addition is quite straightforward: we just add the two vectors. Multiplication is somewhat more tricky but (geometrically) easy to interpret as well: the product of two complex numbers is a vector with a length which is equal to the sum of the lengths of the two vectors we are multiplying (i.e. the two complex numbers which make up the product) , and its angle with the real axis is the sum of the angles of the two original vectors. From this definition, many things follow, all equally amazing indeed, but one of these amazing facts is that i2 = -1, i3 = –i, i4 = 1, i5 = i, etcetera. Indeed: multiplying a complex number z = x + iy = (x, y) with the imaginary unit i amounts to rotating it 90° (counterclockwise) about the origin. So we are not defining i2 as being equal to minus 1 (many textbooks treat this equality as a definition indeed): it just comes as a fact which we can derive from the earlier definition of a complex product. Sweet, isn’t it?

So we have addition and multiplication now. We want to do much more of course. After defining addition and multiplication, we want to do complex powers, and so it’s here that this business with e pops up.

We first need to remind ourselves of the simple fact that the number e is just a real number: it’s equal to 2.718281828459045235360287471 etcetera. We have to write ‘etcetera’ because e is an irrational number, which – whatever the term ‘irrational’ may suggest in everyday language – simply means that e is not a fraction of any integer numbers (so irrational means ‘not rational’). e is also a transcendental number – a word which suggest all kinds of mystical properties but which, in mathematics, only means we cannot write it as a root of some polynomial (a polynomial with rational coefficients that is). So it’s a weird number. That being said, it is also the so-called ‘natural’ base for the exponential function. Huh? Why would mathematicians take such a strange number as a so-called ‘natural’ base? They must be irrational, no? Well… No. If we take e as the base for the exponential function ex (so that’s just this real (but irrational) number e to the power x, with x being the variable running along the x-axis: hence, we have a function here which takes a value from the set of real numbers and which yields some other real number), then we have a function here which is its own derivative: d(ex)/dx = ex. It is also the natural base for the logarithmic function and, as mentioned above, it kind of ‘pops up’ – quite ‘naturally’ indeed I’d say – in many other expressions, such as compound interest calculations for example or the general exponential function ax = ex lna. In other words, we need this and exp(x) and ln(x) functions to define powers of real numbers in general. So that’s why mathematicians call it ‘natural’.

While the example of compound interest calculations does not sound very exciting, all these formulas with e and exponential functions and what have you did inspire all these 18th century mathematicians – like Euler – who were in search of a logical definition of complex powers.

Let’s state the problem once again: we can do addition and multiplication of complex numbers but so the question is how to do complex powers. When trying to figure that one out, Euler obviously wanted to preserve the usual properties of powers, like axay = ax+y and, effectively, this property of the so-called ‘natural’ exponential function that d(ex)/dx = ex. In other words, we also want the complex exponential function to be its own derivative so d(ez)/dz should give us ez once again.

Now, while Euler was thinking of that (and of many other things too of course), he was well aware of the fact that you can expand ex into that power series which I mentioned above: ex = 1/0! + x/1! + (x)2/2! + (x)3/3! +… etcetera. So Euler just sat down, substituted the real number x with the imaginary number ix and looked at it: eix = 1 + ix + (ix)2/2! + (ix)3/3! +… etcetera. Now lo and behold! Taking into account that i2 = -1, i3 = –i, i4 = 1, i5 = i, etcetera, we can put that in and re-arrange the terms indeed and so Euler found that this equation becomes eix = (1 – x2/2! + x4/4! – -x6/6! +…) + i(x – x3/3! + x5/5! -… ). Now these two terms do correspond to the Maclaurin series for the cosine and sine function respectively, so there he had it: eix = cos(x) + isin(x). His formula: Euler’s formula!

From there, there was only one more step to take, and that was to write ez = ex+iy as exeiy, and so there we have our definition of a complex power: it is a product of two factors – ex and ei– both of which we have effectively defined now. Note that the ex factor is just a real number, even if we write it as ex: it acts as a sort of scaling factor for eiwhich, you will remember (as we pointed it out above already), is a point on the unit circle. More generally, it can be shown that eis the absolute value of ez (or the modulus or length or magnitude of the vector – whatever term you prefer: they all refer to the same), while y is the argument of the complex number ez (i.e. the angle of the vector ez with the real axis). [And, yes, for those who would still harbor some doubts here: eis just another complex number and, hence, a two-dimensional vector, i.e. just a point in the Cartesian plane, so we have a function which goes from the set of complex numbers here (it takes z as input) and which yields another complex number.]

Of course, you will note that we don’t have something like zw here, i.e. a complex base (i.e. z) with a complex exponent (i.e. w), or even a formula for complex powers of real numbers in general, i.e. a formula for aw with a any real number (so not only e but any real number indeed) and w a complex exponent. However, that’s a problem which can be solved easily through writing z and w in their so-called polar form, so we write z as z = ¦z¦eiθ = ¦z¦(cosθ + isinθ) and w as ¦w¦ eiσ =  ¦w¦(cosσ + isinσ) and then we can take it further from there. [Note that ¦z¦ and ¦w¦represent the modulus (i.e. the length) of z and w respectively, and the angles θ and σ are obviously the arguments of the same z and w respectively.] Of course, if z is a real number (so if y = 0), then the angle θ will obviously be zero (i.e. the angle of the real axis with itself) and so z will be equal to a real number (i.e. its real part only, as its imaginary part is zero) and then we are back to the case of a real base and a complex exponent. In other words, that covers the aw case.

[…] Wel… Easily? OK. I am simplifying a bit here – as I need to keep the length of this post manageable – but, in fact, it actually really is a matter of using these common properties of powers (such as ea+biec = e(a+c)+bi and it actually does all work out. And all of this magic did actually start with simply ‘adding’ the so-called ‘real’ numbers x on the x-axis with the so-called ‘imaginary’ numbers on the y-axis. 🙂

Post scriptum:

Penrose’s Road to Reality dedicates a whole chapter to complex exponentiation (Chapter 5). However, the development is not all that simple and straightforward indeed. The first step in the process is to take integer powers – and integer roots – of complex numbers, so that’s zn for n = 0, ±1, ±2, ±3… etcetera (or z1/2, z1/3, z1/4 if we’re talking integer roots). That’s easy because it can be solved through using the old formula of Abraham de Moivre: (cosθ + sinθ)n = cos(nθ) + isin(nθ) (de Moivre penned this down in 1707 already, more than 40 years before Euler looked at the matter). However, going from there to full-blown complex powers is, unfortunately, not so straightforward, as it involves a bit of a detour: we need to work with the inverse of the (complex) exponential function ez, i.e. the (complex) natural logarithm.

Now that is less easy than it sounds. Indeed, while the definition of a complex logarithm is as straightforward as the definition of real logarithms (lnz is a function for which elnz = z), the function itself is a bit more… well… complex I should say. For starters, it is a multiple-valued function: if we write the solution w = lnz as w = u+iv, then it is obvious that ew will be equal to eu+iv = eueiv and this complex number ew can then be written in its polar form ew = reiθ with r = eu and v = θ + 2nπ. Of course, ln(eu+iv) = u + iv and so the solution of w will look like w = lnr + i(θ + 2nπ) with n = 0, ±1, ±2, ±3 etcetera. In short, we have an infinite number of solutions for w (one for every n we choose) and so we have this problem of multiple-valuedness indeed. We will not dwell on this here (at least not in this post) but simply note that this problem is linked to the properties of the complex exponential function ez itself. Indeed, the complex exponential function ez has very different properties than the real exponential function ex. First, we should note that, unlike e(which, as we know goes from zero at the far end of the negative side of the real axis to infinity as x goes big on the positive side), eis a periodic function – so it oscillates and yields the same values after some time – with this ‘after some time’ being the periodicity of the function. Indeed, e= e+2πi and so its period 2πi (note that this period is an imaginary number – but so it’s a ‘real’ period, if you know what I mean :-)). In addition, and this is also very much unlike the real exponential function ex, ecan be negative (as well as assume all kinds of other complex values). For example, eiπ = -1, as we noted above already.

That being said, the problem of multiple-valuedness can be solved through the definition of a principal value of lnz and that, then, leads us to what we want here: a consistent definition of a complex power of a complex base (or the definition of a true complex exponential (and logarithmic) function in other words). To those who would want to see the details of this (i.e. my imaginary readers :-)), I would say that Penrose’s treatment of the matter in the above-mentioned Chapter 5 of The Road to Reality is rather cryptic – presumably because he has to keep his book around 1000 pages only (not a lot to explain all of the Laws of the Universe) and, hence, Brown & Churchill’s course (or whatever other course dealing with complex analysis) probably makes for easier reading.

[As for the problem of multiple-valuedness, we should probably also note the following: when taking the nth root of a complex number (i.e. z1/n with n = 2, 3, etcetera), we also obtain a set of n values ck (with k = 0, 1, 2,… n-1), rather than one value only. However, once we have one of these values, we have all of them as we can write these cas ck = r1/nei(θ/n+2kπ/n), (with the original complex number z equal to z = reiθ) then so we could also just consider the principal value c0 and, as such, consider the function as a single-valued one. In short, the problem of multiple-valued functions pops up almost everywhere in the complex space, but it is not an issue really. In fact, we encounter the problem of multiple-valuedness as soon as we extend the exponential function in the space of the real numbers and also allow rational and real exponents, instead of positive integers only. For example, 41/2 is equal to ±2, so we have two results here too and, hence, multiple values. Another example would be the 4th root of 16: we have four 4th roots of 16: +2, -2 and then two complex roots +2i and -2i. However, standard practice is that we only take the positive value into account in order to ensure a ‘well-behaved’ exponential function. Indeed, the standard definition of a real exponential function is bx = (elnb)x = elnbex, and so, if x = 1/n, we’ll only assign the positive 4th root to ex. Standard practice will also restrict the value of b to a positive real number (b > 0). These conventions not only ensures a positive result but also continuity of the function and, hence, the existence of a derivative which we can then use to do other things. By the way, the definition also shows – once again – why e is such a nice (or ‘natural’) number: we can use it to calculate the value for any exponential function (for any real base b > 0). But so we had mentioned that already, and it’s now really time to stop writing. I think the point is clear.]
