In my previous posts, it was mentioned repeatedly that the kinetic theory of gases is *not *quite correct: the experimentally measured values of the so-called *specific heat ratio* (γ) vary with temperature and, more importantly, their values differ, in general, from what classical theory would predict. It works, more or less, for noble gases, which do behave as ideal gases and for which γ is what the kinetic theory of gases would want it to be: γ = 5/3—but we get in trouble immediately, even for simple diatomic gases like oxygen or hydrogen, as illustrated below: the theoretical value is 9/7 (so that’s 1.286, more or less), but the measured value is very different.

*Let me quickly remind you how we get the theoretical number. According to classical theory, a diatomic molecule like oxygen can be represented as two atoms connected by a spring. Each of the atoms absorbs kinetic energy, and for each direction of motion (x, y and z), that energy is equal to kT/2, so the kinetic energy of both atoms – added together – is 2·3·kT/2 = 3kT. However, I should immediately add that not all of that energy is to be associated with the center-of-mass motion of the whole molecule, which determines the **temperature *of the gas: that energy is and remains equal to the 3kT/2, *always*. We also have rotational and vibratory motion. The molecule can rotate in two independent directions (and any combination of these directions, of course) and, hence, rotational motion is to absorb an amount of energy equal to 2·kT/2 = kT. Finally, the vibratory motion is to be analyzed as any other oscillation, so like a spring really. There is only one dimension involved and, hence, the kinetic energy here is just kT/2. However, we know that the *total* energy in an oscillator is the *sum* of the kinetic and potential energy, which adds another kT/2 term. Putting it all together, we find that the average energy for each diatomic particle is (or *should be*) equal to 7·kT/2 = (7/2)kT. Now, as mentioned above, the temperature of the gas (T) is proportional to the mean molecular energy of the center-of-mass motion only (in fact, that’s how temperature is *defined*), with the constant of proportionality equal to 3k/2. Hence, for monatomic ideal gases, we can write: U = N·(3k/2)T and, therefore, PV = NkT = (2/3)·U. Now, γ appears as follows in the ideal gas law: PV = (γ–1)U. Therefore, γ = 2/3 + 1 = 5/3, but so that’s for monatomic ideal gases only! The total kinetic energy of our diatomic molecule is U = N·(7k/2)T and, therefore, PV = (2/7)·U. So γ must be γ = 2/7 + 1 = 9/7 ≈ 1.286 for diatomic gases, like oxygen and hydrogen.

* Phew!* So that’s the

*theory*. However, as we can see from the diagram, γ approaches that value only when we heat the gas to a few thousand degrees! So what’s wrong? One assumption is that certain kinds of motions “freeze out” as the temperature falls—although it’s kinda weird to think of something ‘freezing out’ at a thousand degrees Kelvin! In any case, at the end of the 19th century, that was the assumption that was advanced, very reluctantly, by scientists such as James Jeans. However, the mystery was about to be solved then, as Max Planck, even more reluctantly, presented his quantum theory of energy at the turn of the century itself.

But the quantum theory was confirmed and so we should now see how we can apply it to the behavior of gas. In my humble view, it’s a really interesting analysis, because we’re applying quantum theory here to a phenomenon that’s usually being analyzed as a classical problem only.

**Boltzmann’s Law**

We derived Boltzmann’s Law in our post on the First Principles of Statistical Mechanics. To be precise, we gave Boltzmann’s Law for the *density* of a gas (which we denoted by n = N/V) *in a force field*, like a gravitational field, or in an electromagnetic field (assuming our gas particles are electrically charged, of course). We noted, however, Boltzmann’s Law was also applicable to much more complicated situations, like the one below, which shows a potential energy function for two molecules that is quite characteristic of the way molecules actually behave: when they come *very *close together, they repel each other but, at larger distances, there’s a force of attraction. We don’t really know the forces behind but we don’t need to: as long as these forces are conservative, they can combine in whatever way they want to combine, and Boltzmann’s Law will be applicable. [It should be obvious why. If you hesitate, just think of the definition of work and how it affects potential energy and all that. Work is force times distance, but when doing work, we’re also changing potential energy indeed! So if we’ve got a potential energy function, we can get all the rest.]

Boltzmann’s Law itself is illustrated by the graph below, which also gives the formula for it: n = n_{0}·*e*^{−P.E/kT}.

It’s a graph starting at n = n_{0} for P.E. = 0, and it then *decreases* exponentially. [Funny expression, isn’t it? So as to respect mathematical terminology, I should say that it *decays *exponentially.] In any case, if anything, Boltzmann’s Law shows the natural exponential function is quite ‘natural’ indeed, because Boltzmann’s Law pops up in Nature everywhere! Indeed, Boltzmann’s Law is not limited to functions of potential energy only. For example, Feynman derives another Boltzmann Law for the distribution of molecular speeds or, so as to ensure the formula is also valid in relativity, the distribution of molecular *momenta*. In case you forgot, momentum (p) is the product of mass (m) and velocity (u), and the relevant Boltzmann Law is:

f(p)·dp = C·*e*^{−K.E/kT}·dp

The argument is not terribly complicated but somewhat lengthy, and so I’ll refer you to the link for more details. As for the f(p) function (and the dp factor on both sides of the equation), that’s because we’re not talking *exact *values of p but some *range* equal to dp and some *probability* of finding particles that have a momentum *within *that range. The principle is illustrated below for molecular speeds (denoted by u = p/m), so we have a *velocity distribution below*. The illustration for p would look the same: just substitute u for p.

Boltzmann’s Law can be stated, much more generally, as follows:

**The probability of different conditions of energy (E), potential or kinetic, is proportional to e^{−E/kT}. **

As Feynman notes, *“This is a rather beautiful proposition, and a very easy thing to remember too!”* It is, and we’ll need it for the next bit.

**The quantum-mechanical theory of gases**

According to quantum theory, energy comes in *discrete *packets, quanta, and any system, like an oscillator, will only have a *discrete set of energy levels*, i.e. **states of different energy**. An energy state is, obviously, a condition of energy and, hence, Boltzmann’s Law applies. More specifically, if we denote the various energy levels, i.e. the energies of the various molecular states, by E_{0}, E_{1}, E2,…, E_{i},…, and if Boltzmann’s Law applies, then *the probability of finding a molecule in the particular state E _{i} will be proportional to e^{−Ei /kT}.*

Now, we know we’ve got some constant there, but we can get rid of that by calculating *relative *probabilities. For example, the probability of being in state E_{1}, *relative* to the probability of being in state E_{0}, is:

P_{1}/P_{0} = *e*^{−E1 /kT}*/e*^{−E0 /kT} = *e*^{−(E1–E0)/kT}

But the relative probability P_{1 }should, obviously, also be equal to the ratio n_{1}/N, i.e. the ratio of the number of molecules in state E_{1} and the total number of molecules. Likewise, P_{0 }= n_{0}/N. Hence, P_{1}/P_{0} = n_{1}/n_{0 }and, therefore, we can write:

n = n_{0}*e*^{−(E1–E0)/kT}

What can we do with that? Remember we want to explain the behavior of non-monatomic gas—like diatomic gas, for example. Now we need some other assumption, obviously. As it turns out, the assumption that we can represent a system as some kind of oscillation still makes sense! *In fact, the assumption that our diatomic molecule is like a spring is equally crucial to our quantum-theoretical analysis of gases as it is to our classical kinetic theory of gases*. To be precise, in both theories, we look at it as a *harmonic oscillator*.

Don’t panic. A harmonic oscillator is, quite simply, a system that, when displaced from its equilibrium position, experiences some kind of restoring force. Now, for it to be harmonic, the force needs to be linear. For example, when talking springs, the restoring force *F* will be proportional to the displacement *x*). It basically means we can use a linear differential equation to analyze the system, like m·(*d*^{2}x/*d*t^{2}) = –k*x*. […] I hope you recognize this equation, because you should! It’s Newton’s Law: F = m·*a* with F = –k·x. If you remember the equation, you’ll also remember that harmonic oscillations were *sinusoidal* oscillations with a constant *amplitude *and a constant *frequency*. That frequency did not depend on the amplitude: because of the sinusoidal function involved, it was easier to write that frequency as an *angular *frequency, which we denoted by ω_{0} and which, in the case of our spring, was equal to ω_{0} = (k/m)^{1/2}. So it’s a *property *of the system. Indeed, ω_{0 }is the square root of the ratio of (1) k, which characterizes the spring (it’s its *stiffness*), and (2) m, i.e. the mass on the spring. Solving the differential equation yielded x = A·cos(ω_{0}t + Δ) as a general solution, with A the (maximum) amplitude, and Δ some phase shift determined by our t = 0 point. Let me quickly jot down too more formulas: the potential energy in the spring is k*x*^{2}/2, while its kinetic energy is m*v*^{2}/2, as usual (so the kinetic energy depends on the mass and its velocity, while the potential energy only depends on the displacement and the spring’s stiffness). Of course, kinetic and potential energy add up to the *total *energy of the system, which is constant and proportional to the square of the (maximum) amplitude: K.E. + P.E. = E ∝ A^{2}. To be precise, E = kA^{2}/2.

That’s simple enough. Let’s get back to our *molecular *oscillator. While the total energy of an oscillator *in classical theory* can take on any value, Planck challenged that assumption: **according to quantum theory, it can only take up energies equal to ħω at a time**. [Note that we use the so-called *reduced *Planck constant here (i.e. h-*bar*), because we’re dealing with *angular* frequencies.] Hence, according to quantum theory, we have an oscillator with equally spaced energy levels, and the difference between them is ħω. Now, ħω is terribly tiny—but it’s there. Let me visualize what I just wrote:

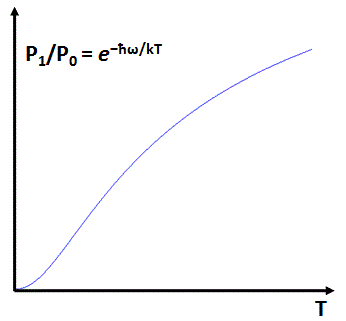

So our expression for P_{1}/P_{0} becomes P_{1}/P_{0} = *e*^{−ħω/kT}/e^{−0/kT} = *e*^{−ħω/kT}. More generally, we have P_{i}/P_{0} = *e*^{−i·ħω/kT}. So what? Well… We’ve got a function here which gives the chance of finding a molecule in state P_{i} relative to that of finding it in state E_{0}, and it’s a function of *temperature*. Now, the graph below illustrates the general shape of that function. It’s a bit peculiar, but you can see that the relative probability goes up and down with temperature. The graph makes it clear that, at *extremely* low temperatures, most particles will be in state E_{0} and, of course, the internal energy of our body of gas will be close to nil.

Now, we can look at the oscillators in the bottom state (i.e. particles in the molecular energy state E_{0}) as being effectively ‘frozen’: they don’t contribute to the specific heat. However, as we increase the temperature, our molecules gradually begin to have an appreciable probability to be in the second state, and then in the next state, and so on, and so the internal energy of the gas increases effectively. Now, when the probability is appreciable for many states, the quantized states become nearly indistinguishable and, hence, the situation is like classical physics: it is nearly indistinguishable from a *continuum *of energies.

Now, while you can imagine such analysis should explain why the specific heat ratio for oxygen and hydrogen varies as it does in the very first graph of this post, you can also imagine the details of that analysis fill quite a few pages! In fact, even Feynman doesn’t include it in his *Lectures*. What he *does *include is the analysis of the blackbody radiation problem, which is remarkably similar. So… Well… For more details on that, I’ll refer you to Feynman indeed. 🙂

I hope you appreciated this little ‘lecture’, as it sort of wraps up my ‘series’ of posts on statistical mechanics, thermodynamics and, central to both, the classical theory of gases. Have fun with it all!
