**Pre-script** (dated 26 June 2020): Our ideas have evolved into a full-blown realistic (or *classical*) interpretation of all things quantum-mechanical. In addition, I note the dark force has amused himself by removing some material. So no use to read this. Read my recent papers instead. 🙂

**Original post**:

We’re going to do a *very* interesting piece of math here. It’s going to bring a lot of things together. The key idea is to present a mathematical construct that effectively presents the electromagnetic force as *one *force, as one physical reality. Indeed, we’ve been *saying* repeatedly that electromagnetism is *one *phenomenon only but we’ve been *writing *it always as something involving *two *vectors: he electric field vector **E** and the magnetic field vector **B**. Of course, Lorentz’ force law **F** = q(**E** + **v**×**B**) makes it clear we’re talking *one force* only but… Well… There is a way of writing it all up that is much more elegant.

I have to warn you though: this post doesn’t add anything to the *physics *we’ve seen so far: it’s all math, really and, to a large extent, math *only*. So if you read this blog because you’re interested in the physics only, then you may just as well skip this post. Having said that, the mathematical concept we’re going to present is that of the ** tensor** and… Well… You’ll have to get to know that animal sooner or later anyway, so you may just as well give it a try right now, and see whatever you can get out of this post.

The concept of a tensor further builds on the concept of the *vector*, which we liked so much because it allows us to write the laws of physics as *vector equations*, which do *not *change when going from one reference frame to another. In fact, we’ll see that a tensor can be described as a ‘special’ vector *cross product* (to be precise, we’ll show that a tensor is a ‘more general’ cross product, really). So the tensor and vector concepts are *very *closely related, but then… Well… If you think about it, the concept of a vector and the concept of a scalar are closely related, too! So we’re just moving up the value chain, so to speak: from scalar fields to vector fields to… Well… Tensor fields! And in quantum mechanics, we’ll introduce spinors, and so we also have spinor fields! Having said that, don’t worry about tensor *fields*. Let’s first try to understand tensors *tout court. *🙂

So… Well… Here we go. Let me start with it all by reminding you of the concept of a vector, and why we like to use vectors and vector equations.

**The invariance of physics and the use of vector equations**

What’s a vector? You may think, naively, that any one-dimensional array of numbers is a vector. But… Well…** No!** In math, we may, effectively, refer to any one-dimensional *array of numbers* as a ‘vector’, perhaps, but in physics, a vector does represent something *real*, something *physical*, and so a vector is only a vector if it *transforms like a vector* under the *transformation* rules that apply when going from one another *frame of reference*, i.e. one *coordinate system*, to another. Examples of vectors in three dimensions are: the velocity vector **v**, or the momentum vector **p** = m·**v**, or the position vector **r**.

Needless to say, the same can be said of scalars: mathematicians may define a scalar as just any real number, but it’s *not *in physics. A scalar in physics refers to something *real*, i.e. a scalar *field*, like the temperature (T) inside of a block of material. In fact, think about your first vector equation: it may have been the one determining the heat flow (** h**), i.e.

**= −**

*h**κ*·

**∇**T = (−

*κ*·∂T/∂x, −

*κ*·∂T/∂y, −

*κ*·∂T/∂z). It immediately shows how scalar and vector fields are intimately related.

Now, when discussing the relativistic framework of physics, we introduced vectors in *four *dimensions, i.e. *four-vectors*. The most basic four-vector is the spacetime four-vector **R** = (*c*t, x, y, z), which is often referred to as an *event*, but it’s just a *point in spacetime*, really. So it’s a ‘point’ with a time as well as a spatial dimension, so it also has t in it, besides x, y and z. It is also known as the *position four-vector *but, again, you should think of a ‘position’ that includes time! Of course, we can re-write **R** as **R** = (*c*t, **r**), with **r** = (x, y, z), so here we sort of ‘break up’ the four-vector in a scalar and a three-dimensional vector, which is something we’ll do from time to time, indeed. 🙂

We also have a *displacement four-vector*, which we can write as Δ**R** = (*c*·Δt, Δ**r**). There are other four-vectors as well, including the *four-velocity*, the *four-momentum* and the *four-force *four-vectors, which we’ll discuss later (in the last section of this post).

So it’s just like using three-dimensional vectors in three-dimensional physics, or ‘Newtonian’ physics, I should say: the use of *four-vectors *is going to allow us to write the laws of physics using *vector equations*, but in four dimensions, rather than three, so we get the ‘Einsteinian’ physics, the *real *physics, so to speak—or the *relativistically correct physics*, I should say. And so these four-dimensional vector equations will also *not *change when going from one reference frame to another, and so our four-vector will be vectors indeed, i.e. they will *transform* like a vector under the *transformation* rules that apply when going from one another *frame of reference*, i.e. one *coordinate system*, to another.

What transformation? Well… In Newtonian or Galilean physics, we had translations and rotations and what have you, but what we* *are interested in right now are ‘Einsteinian’ transformations of coordinate systems, so these have to ensure that ** all** of the laws of physics that we know of, including the principle of relativity, still look the same. You’ve seen these transformation rules. We don’t call them the ‘Einsteinian’ transformation rules, but the

*Lorentz*transformation rules, because it was a Dutch physicist (Hendrik Lorentz) who first wrote them down. So these rules are

*very*different from the Newtonian or Galilean transformation rules which everyone assumed to be valid until the Michelson-Morley experiment unequivocally established that the

*speed of light*did

*not*respect the Galilean transformation rules.

*Very*different? Well… Yes. In their mathematical structure, that is. Of course, when velocities are low, i.e.

*non*-relativistic, then they yield the same result,

*approximately*, that is. However, I explained that in my post on special relativity, and so I won’t dwell on that here.

Let me just jot down both sets of rules assuming that the two reference frames move with respect to each other *along the x- axis only*, so the y- and z-component of * u *is zero.

The Galilean or Newtonian rules are the simple rules on the right. Going from one reference frame to another (let’s call them S and S’ respectively) is just a matter of adding or subtracting speeds: if my car goes 100 km/h, and yours goes 120 km/h, then *you *will see *my* car falling behind at a speed of (minus) 20 km/h. That’s it. We could also *rotate *our reference frame, and our *Newtonian* * vector equations *would still look the same. As Feynman notes, smilingly, it’s what a lot of armchair philosophers think relativity theory is all about, but so it’s got

*nothing*to do with it. It’s plain wrong!

In any case, back to vectors and transformations. The key to the so-called *invariance *of the laws of physics is the use of vectors and vector operators that *transform* like vectors. For example, if we defined **A** and **B** as (A_{x}, A_{y}, A_{z}) and (B_{x}, B_{y}, B_{z}), then we knew that the so-called *inner product* **A**•**B **would look the same in all rotated coordinate systems, so we can write: **A**•**B **= **A’•B’**. So we know that if we have a product like that on both sides of an equation, we’re fine: *the equation will have* *the same form* in all rotated coordinate systems. Also, the ** gradient**, i.e. our

*vector*operator

**∇**= (∂/∂

_{x}, ∂/∂

_{y}, ∂/∂

_{z}), when applied to a scalar function, gave three quantities that also transform like a vector under rotation. We also defined a vector

*cross*product, which yielded a

*vector*(as opposed to the inner product, i.e. the vector

*dot*product, which yields a scalar):

So how does this thing behave under a Galilean transformation? Well… You may or may not remember that we used this cross-product to define the angular momentum **L**, which was a cross product of the radius vector **r** and the momentum vector **p** = m**v**, as illustrated below. The animation also gives the torque **τ**, which is, loosely speaking, a measure of the turning *force*: it’s the cross product of **r** and **F**, i.e. the force on the lever-arm.

The components of **L** are:

Now, we find that these three numbers, or *objects *if you want, transform in *exactly the same way *as the components of a vector. However, as Feynman points out, that’s a matter of ‘luck’ really. It’s something ‘special’. Indeed, you may or may not remember that we distinguished *axial *vectors from *polar *vectors. **L** is an axial vector, while **r** and **p** are polar vectors, and so we find that, in three dimensions, the cross product of two polar vectors will always yields an axial vector. Axial vectors are sometimes referred to as *pseudovectors*, which suggests that they are ‘not so real’ as… Well… Polar vectors, which are sometimes referred to as ‘true’ vectors. However,** it doesn’t matter when doing these Newtonian or Galilean transformations: pseudo or true, both vectors transform like vectors**. 🙂

But so… Well… We’re actually getting a bit of a heads-up here: if we’d be mixing (or ‘crossing’) polar and axial vectors, or mixing axial vectors only, so if we’d define something involving **L **and **p** (rather than **r** and **p**), or something involving **L **and **τ**, then we may *not *be so lucky, and then we’d have to carefully examine our cross-product, or whatever other product we’d want to define, because its components may *not *behave like a vector.

*Huh?**Whatever other product we’d want to define?* *Why are you saying that? *Well… We actually *can* think of other products. For example, if we have two vectors **a** = (a_{x}, a_{y}, a_{z}) and **b** = (b_{x}, b_{y}, b_{z}), then we’ll have *nine *possible combinations of their components, which we can write as T_{ij} = a_{i}b_{j}. So that’s like L_{xy}, L_{yz} and L_{zx} really. Now, you’ll say: “No. It isn’t. We don’t have nine combinations here. Just three numbers.” Well… Think about it: we actually *do* have *nine *L_{ij} combinations too here, as we can write: L_{ij} = **r**_{i}·**p**_{j} – **r**_{j}·**p**_{i}. It just *happens* that, with this definition, only *three *of these combinations L_{ij} are independent. That’s because the other six numbers are either zero or the opposite. Indeed, it’s easy to verify that L_{ij} = –L_{ji} , and L_{ii} = 0. So… Well… It turns out that the three components of our **L** = **r**×**p** ‘vector’ are actually a subset of a set of *nine* L_{ij} numbers. So… Well… Think about it. We can*not* just do whatever we want with our ‘vectors’. We need to watch out.

In fact, I do not want to get too much ahead of myself, but I can already tell you that the matrix with these nine T_{ij} = a_{i}b_{j} combinations is what is referred to as the *tensor*. To be precise, it’s referred to as a tensor of the second rank in three dimensions. The ‘second rank’, aka as ‘degree’ or ‘order’ refers to the fact that we’ve got two indices, and the ‘three dimensions’ is because we’re using three-dimensional vectors. We’ll soon see that the electromagnetic tensor is also of the second rank, but it’s a tensor in four dimensions. In any case, I should *not *get ahead of myself. Just note what I am saying here: the tensor is like a ‘new’ product of two vectors, a new type of ‘cross’ product really (because we’re *mixing* the components, so to say), but it doesn’t yield a vector: it yields a *matrix*. For three-dimensional vectors, we get a 3×3 matrix. For four-vectors, we’ll get a 4×4 matrix. And so the full truth about our angular momentum vector **L**, is the following:

- There is a thing which we call the angular momentum
*tensor*. It’s a 3×3 matrix, so it has nine elements which are defined as: L_{ij}=**r**_{i}·**p**_{j}–**r**_{j}·**p**_{i}.*Because*of this definition, it’s an antisymmetric tensor of the second order in three dimensions, so it’s got*only three independent*components. - The three independent elements are the components of our ‘vector’
**L**, and picking them out and calling these three components a ‘vector’ is actually a ‘trick’ that only works in three dimensions. They really just*happen to*transform like a vector under rotation or under whatever Galilean transformation! [By the way, do you know understand why I was saying that we can look at a tensor as a ‘more general’ cross product?] - In fact, in four dimensions, we’ll use a similar definition and define 16 elements F
_{ij}as F_{ij}= ∇_{i}A_{j}− ∇_{j}A_{i}, using the two*four*-vectors ∇_{μ }and A_{μ}(so we have 4×4 = 16 combinations indeed), out of which*only six*will be independent for the very same reason: we have an antisymmetric vector combination here, F_{ij}= −F_{ji}and F_{ii}= 0. 🙂 However, because we can*not*represent six independent things by four things, we do*not*get some other four-vector, and so that’s why we cannot apply the same ‘trick’ in four dimensions.

However, here I *am *getting* way* ahead of myself and so… Well… Yes. Back to the main story line. 🙂 So let’s try to move to the next level of understanding, which is… Well…

Because of guys like Maxwell and Einstein, we now know that rotations are part of the Newtonian world, in which time and space are neatly separated, and that things are *not *so simple in Einstein’s world, which is the real world, as far as we know, at least! Under a Lorentz transformation, the new ‘primed’ space and time coordinates are a mixture of the ‘unprimed’ ones. Indeed, the new *x’* is a *mixture* of *x* and *t*, and the new *t’ *is a mixture of *x* and *t* as well. [Yes, please scroll all the way up and have a look at the transformation on the left-hand side!]

So you don’t have that under a Galilean transformation: in the Newtonian world, space and time are neatly separated, and time is absolute, i.e. it is the same regardless of the reference frame. In Einstein’s world – our world – that’s not the case: time is relative, or *local *as Hendrik Lorentz termed it quite appropriately, and so it’s *space-time* – i.e. ‘some kind of union of space and time’ as Minkowski termed it *–* that transforms.

So that’s why physicists use *four-vectors* to keep track of things. These four-vectors always have three *space-like* components, but they also include one so-called *time-like *component*. *It’s the only way to ensure that * the laws of physics are unchanged when moving with uniform velocity. *Indeed, any true law of physics we write down must be arranged so that the invariance of physics (as a “fact of Nature”, as Feynman puts it) is built in, and so that’s why we use Lorentz transformations and four-vectors.

In the mentioned post, I gave a few examples illustrating how the Lorentz rules work. Suppose we’re looking at some spaceship that is moving at half the speed of light (i.e. 0.5*c*) and that, inside the spaceship, some object is also moving at half the speed of light, *as measured in the reference frame of the spaceship*, then we get the rather remarkable result that, from *our* point of view (i.e. *our *reference frame as observer on the ground), that object is *not *going as fast as light, as Newton or Galileo – and most present-day armchair philosophers 🙂 – would predict (0.5*c *+ 0.5*c* = *c*). We’d see it move at a speed equal to *v *= 0.8*c*. *Huh? *How do we know that? Well… We can derive a velocity formula from the Lorentz rules:

So now you can just put in the numbers now: *v*_{x} = (0.5*c* + 0.5*c*)/(1 + 0.5·0.5) = 0.8*c*. See?

Let’s do another example. Suppose we’re looking at a light beam inside the spaceship, so something that’s traveling at speed *c* itself in the spaceship. How does that look to us? The Galilean transformation rules say its speed should be 1.5*c*, but that can’t be true of course, and the Lorentz rules save us once more: *v*_{x} = (0.5*c* + *c*)/(1 + 0.5·1) = *c*, so it turns out that the speed of light does *not *depend on the reference frame: it looks the same – both to the man in the ship as well as to the man on the ground. As Feynman puts it: “This is good, for it is, in fact, what the Einstein theory of relativity was designed to do in the first place—so it had *better *work!” 🙂

So **let’s now apply relativity to electromagnetism**. Indeed, that’s what this post is all about! However, before I do so, let me re-write the Lorentz transformation rules for *c *= 1. We can equate the speed of light to one, indeed, when measure time and distance in equivalent units. It’s just a matter of ditching our seconds for meters (so our time unit becomes the time that light needs to travel a distance of one meter), or ditching our meters for seconds (so our distance unit becomes the distance that light travels in one second). You should be familiar with this procedure. If not, well… Check out my posts on relativity. So here’s the same set of rules for *c *= 1:

They’re much easier to remember and work with, and so that’s good, because now we need to look at how these rules work with four-vectors and the various operations and operators we’ll be defining on them. Let’s look at that step by step.

**Electrodynamics in relativistic notation**

Let me copy *the* *Universal Set of Equations and Their Solution* once more:

The solution for Maxwell’s equations is given in terms of the (electric) potential Φ and the (magnetic) *vector *potential **A**. I explained that in my post on this, so I won’t repeat myself too much here either. The only point you should note is that this solution is the result of a special choice of Φ and **A**, which we referred to as the *Lorentz gauge*. We’ll touch upon this condition once more, so just make a mental note of it.

Now, **E** and **B** do *not* correspond to four-vectors: they *depend *on x, y, z and t, but they have *three *components only: E_{x}, E_{y}, E_{z}, and B_{x}, B_{y}, and B_{z} respectively. So we have *six *independent terms here, rather than *four *things that, somehow, we could combine into some four-vector. [Does this ring a bell? It should. :-)] Having said that, it turns out that we *can *combine Φ and **A** into a four-vector, which we’ll refer to as the * four-potential *and which we’ll will write as:

A_{μ }= (Φ, **A**) = (Φ, A_{x}, A_{y}, A_{z}) = (A_{t}, A_{x}, A_{y}, A_{z}) with A_{t} = Φ.

So that’s a four-vector just like **R** = (*c*t, x, y, z).

How do we *know* that A_{μ }is a four-vector? Well… Here I need to say a few things about those Lorentz transformation rules and, more importantly, about the required condition of *invariance *under a Lorentz transformation. So, yes, here we need to dive into the math.

**Four-vectors and invariance under Lorentz transformations**

When you were in high-school, you learned how to *rotate *your coordinate frame. You also learned that the distance of a point from the origin does not change under a rotation, so you’d write r’^{2 }= x’^{2 }+ y’^{2 }+ z’^{2 }= r^{2 }= x^{2 }+ y^{2 }+ z^{2}, and you’d say that r^{2} is an *invariant* quantity under a rotation. Indeed, transformations leave certain things unchanged. From the Lorentz transformation rules itself, it is easy to see that

*c*·t’^{2 }– x’^{2 }– y’^{2 }–z ‘^{2 }= *c*·t^{2 }–x^{2 }– y^{2 } – z^{2}, or,

if *c *= 1, that t’^{2 }– x’^{2 }– y’^{2 }– z’^{2 }= t^{2 }– x^{2 }– y^{2 } – z^{2},

is an *invariant *under a Lorentz transformation. We found the same for the so-called *spacetime *interval Δs^{2 } = Δ**r**^{2 }– *c*Δt^{2}, which we write as Δs^{2 } = Δ**r**^{2 }– Δt^{2} as we chose our time or distance units such that *c *= 1. [Note that, from now on, we’ll assume that’s the case, so *c *= 1 everywhere. We can always change back to our old units when we’re done with the analysis.] Indeed, such invariance allowed us to define *spacelike*, *timelike *and *lightlike* intervals using the so-called *light cone* emanating from a single event and traveling in all directions.

You should note that, for four-vectors, we do not have a simple sum of three terms. Indeed, we don’t write x^{2 }+ y^{2 }+ z^{2} but t^{2 }– x^{2 }– y^{2 } – z^{2}. So we’ve got a +−−− thing here or, it’s just another convention, we could also work with a −+++ sum of terms. The convention is referred to as the *signature*, and *we* will use the so-called *metric *signature here, which is +−−−. Let’s continue the story. Now, **all** *four-vectors *a_{μ }*= *(a_{t}, a_{x}, a_{y}, a_{z}) have this property that:

a_{t}‘^{2 }– a_{x}‘^{2 }– a_{y}‘^{2 }– a_{z}‘^{2 }= a_{t}^{2 }– a_{x}^{2 }– a_{y}^{2 } – a_{z}^{2}.

[The primed quantities are, obviously, the quantities as *measured *in the other reference frame.] So. Well… Yes. 🙂 But… Well… Hmm… We can *say *that our four-potential vector is a four-vector, but so we still have to *prove *that. So we need to prove that Φ’^{2 }– A_{x}‘^{2 }– A_{y}‘^{2 }– A_{z}‘^{2 }= Φ^{2 }– A_{x}^{2 }– A_{y}^{2 } – A_{z}^{2} for our four-potential vector A_{μ }= (Φ, **A**). So… Yes… How can we do that? The proof is *not *so easy, but you need to go through it as it will introduce some more concepts and ideas you need to understand.

In my post on the Lorentz gauge, I mentioned that Maxwell’s equations can be re-written in terms of Φ and **A, **rather than in terms of** E** and** B**. The equations are:

The expression look rather formidable, but don’t panic: just look at it. Of course, you need to be familiar with the operators that are being used here, so that’s the Laplacian ∇^{2} and the divergence operator **∇**• that’s being applied to the scalar Φ and the vector **A**. I can’t re-explain this. I am sorry. Just check my posts on vector analysis. You should also look at the third equation: that’s just the *Lorentz gauge condition*, which we introduced when *deriving *these equations from Maxwell’s equations. Having said that, it’s the first and second equation which describe Φ and **A** as a function of the charges and currents in space, and so that’s what matters here. So let’s unfold the first equation. It says the following:

In fact, if we’d be talking *free *or empty space, i.e. regions where there are no charges and currents, then the right-hand side would be zero and this equation would then represent a *wave* equation, so some potential Φ that is changing in time and moving out at the speed *c*. Here again, I am sorry I can’t write about this here: you’ll need to check one of my posts on wave equations. If you don’t want to do that, you should believe me when I say that, if you see an equation like this:

then the *function* Ψ(x, t) must be some function

Now, that’s a function representing a wave traveling at speed *c*, i.e. the *phase velocity*. Always? Yes. *Always!* It’s got to do with the x − *c*t and/or x + *c*t argument in the function. But, sorry, I need to move on here.

The unfolding of the equation with Φ makes it clear that we have four equations really. Indeed, the second equation is three equations: one for A_{x}, one for A_{y}, and one for A_{z} respectively. The four quantities on the right-hand side of these equations are ρ, j_{x}, j_{y} and j_{z} respectively, divided by ε_{0}, which is a universal constant which does *not *change when going from one coordinate system to another. Now, the quantities ρ, j_{x}, j_{y} and j_{z} transform like a *four-vector*. How do we know that? It’s just the charge conservation law. We used it when solving the problem of the fields around a moving wire, when we demonstrated the *relativity *of the electric and magnetic field. Indeed, the relevant equations were:

You can check that against the Lorentz transformation rules for *c *= 1. *They’re exactly the same*, but so we chose t = 0, so the rules are even simpler. Hence, the (ρ, j_{x}, j_{y}, j_{z}) vector is, effectively, a *four-vector*, and we’ll denote it by j_{μ }*= *(ρ, **j**). I now need to explain something else. [And, yes, I know this is becoming a *very *long story but… Well… That’s how it is.]

It’s about our operators **∇**, **∇•**, **∇**× and ∇^{2 }, so that’s the *gradient*, the *divergence*, *curl *and *Laplacian *operator respectively: they all have a four-dimensional equivalent. Of course, that won’t surprise you. 😦 Let me just jot all of them down, so we’re done with that, and then I’ll focus on the four-dimensional equivalent of the *Laplacian* **∇•∇** = ∇^{2 }, which is referred to as the *D’Alembertian*, and which is denoted by **□**^{2}, because that’s the one we need to prove that our four-potential vector is a *real *four-vector. [I know: **□**^{2 }is a tiny symbol for a pretty monstrous thing, but I can’t help it: my editor tool is pretty limited.]

Now, we’re almost there. Just hang in for a little longer. It should be obvious that we can re-write those two equations with Φ, **A**, ρ and **j**, as:

Just to make sure, let me remind you that A_{μ }= (Φ, **A**) and that j_{μ }*= *(ρ, **j**). Now, our new *D’Alembertian* operator is just an operator—a pretty *formidable *operator but, still, it’s an operator, and so it doesn’t change when the coordinate system changes, so the conclusion is that, * IF* j

_{μ }= (ρ,

**j**) is a four-vector – which it is – and, therefore, transforms like a four-vector,

*the quantities Φ, A*

**THEN**_{x}, A

_{y}, and A

_{z}

**must****also transform****like a four-vector**, which means they

**.**

*are*(the components of) a four-vectorSo… Well… Think about it, but not too long, because it’s just an *intermediate result* we had to prove. So that’s done. But we’re not done here. It’s just the beginning, actually. Let me repeat our intermediate result:

A_{μ }= (Φ, **A**) is a four-vector. We call it **the four-potential vector.**

OK. Let’s continue. Let me first draw your attention to that expression with the D’Alembertian above. Which expression? *This* one:

What about it? Well… You should note that **the physics of that equation is just the same as Maxwell’s equations.** So it’s one equation only, but it’s got it all.

It’s quite a pleasure to re-write it in such elegant form. Why? Think about it: **it’s a four-vector equation**: we’ve got a four-vector on the left-hand side, and a four-vector on the right-hand side. Therefore, this equation is invariant under a transformation. So, therefore,** it directly shows the invariance of electrodynamics under the Lorentz transformation.**

* Huh? *Yes. You may think about this a little longer. 🙂

To wrap this up, I should also note that we can also express the gauge condition using our new four-vector notation. Indeed, we can write it as:

It’s referred to as the ** Lorentz condition** and it is, effectively, a condition for

*invariance*, i.e. it ensures that the four-vector equation above does stay in the form it is in for all reference frames. Note that we’re re-writing it using the four-dimensional equivalent of the divergence operator

**∇**•, but so we don’t have a dot between ∇

_{μ}and A

_{μ}. In fact, the notation is pretty confusing, and it’s easy to think we’re talking some gradient, rather than the divergence. So let me therefore highlight the meaning of both once again. It looks the same, but it’s two

*very*different things: the gradient operates on a scalar, while the divergence operates on a (four-)vector. Also note the +−−− signature is only there for the

*gradient*, not for the divergence!

You’ll wonder why they didn’t use some • or ∗ symbol, and the answer: I don’t know. I know it’s hard to keep inventing symbols for all these different ‘products’ – the ⊗ symbol, for example, is reserved for *tensor *products, which we won’t get into – but… Well… I think they could have done something here. 😦

In any case… Let’s move on. Before we do, please note that we can also re-write our conservation law for electric charge using our new four-vector notation. Indeed, you’ll remember that we wrote that conservation law as:

Using our new four-vector operator ∇_{μ}, we can re-write that as ∇_{μ}j_{μ }= 0. So all of electrodynamics can be summarized in the two equations only—Maxwell’s law and the charge conservation law:

OK. We’re now ready to discuss the electromagnetic tensor. [I know… This is becoming an incredibly long and incredibly complicated piece but, *if *you get through it, you’ll admit it’s really worth it.]

**The electromagnetic tensor**

The whole analysis above was done in terms of the Φ and **A** potentials. It’s time to get back to our field vectors **E** and **B**. We know we can easily get them from Φ and **A**, using the rules we mentioned as solutions:

These two equations should *not *look as yet another formula. They are essential, and you should be able to jot them down anytime anywhere. They should be on your kitchen door, in your toilet and above your bed. 🙂 For example, the second equation gives us the *components *of the magnetic field vector **B**:

Now, look at these equations. The x-component is equal to a couple of terms that involve only y– and z-components. The y-component is equal to something involving only x and z. Finally, the z-component only involves x and y. Interesting. Let’s define a ‘thing’ we’ll denote by F_{zy} and define as:

So now we can write: B_{x} = F_{zy}, B_{y} = F_{xz}, and B_{z} = F_{xy}. Now look at our equation for **E**. It turns out the components of **E** are equal to things like F_{xt}, F_{yt }and F_{zt}! Indeed, F_{xt} = ∂A_{x}/∂t − ∂A_{t}/∂x = E_{x}!

But… Well… No. 😦 *The sign is wrong!* E_{x} = −∂A_{x}/∂t−∂A_{t}/∂x, so we need to *modify* our definition of F_{xt}. When the t-component is involved, we’ll define our ‘F-things’ as:

So we’ve got a plus instead of a minus. It looks quite arbitrary but, frankly, you’ll have to admit it’s sort of consistent with our +−−− *signature* for our four-vectors and, in just a minute, you’ll see it’s fully consistent with our definition of the four-dimensional vector operator ∇_{μ }= (∂/∂t, −∂/∂x, −∂/∂y, −∂/∂z). So… Well… Let’s go along with it.

What about the F_{xx}, F_{yy}, F_{zz }and F_{tt }terms? Well… F_{xx} = ∂A_{x}/∂x − ∂A_{x}/∂x = 0, and it’s easy to see that F_{yy} and F_{zz} are zero too. But F_{tt}? Well… It’s a bit tricky but, applying our definitions carefully, we see that F_{tt} must be zero too. In any case, the F_{tt} = 0 will become obvious as we will be arranging these ‘F-things’ in a matrix, which is what we’ll do now. [Again: does this ring a bell? If not, it should. :-)]

Indeed, we’ve got sixteen possible combinations here, which Feynman denotes as F_{μν}, which is somewhat confusing, because F_{μν} usually denotes the 4×4 *matrix* representing all of these combinations. So let me use the subscripts i and j instead, and define F_{ij} as:

F_{ij} = ∇_{i}A_{j} − ∇_{j}A_{i}

with ∇_{i} being the t-, x-, y- *or *z-component of ∇_{μ} = (∂/∂t, −∂/∂x, −∂/∂y, −∂/∂z) and, likewise, A_{i} being the t-, x-, y- *or *z-component of A_{μ} = (Φ, A_{x}, A_{y}, A_{z}). Just check it: F_{zy} = −∂A_{y}/∂z + ∂A_{z}/∂y = ∂A_{z}/∂y − ∂A_{y}/∂z = B_{x}, for example, and F_{xt} = −∂Φ/∂x − ∂A_{x}/∂t = E_{x}. So the +−−− convention works. [Also note that it’s easier now to see that F_{tt} = ∂Φ/∂t − ∂Φ/∂t = 0.]

We can now arrange the F_{ij} in a matrix. This matrix is antisymmetric, because F_{ij} = – F_{ji}, and its diagonal elements are zero. [For those of you who love math: note that the diagonal elements of an antisymmetric matrix are always zero because of the F_{ij} = – F_{ji} constraint: just use k = i = j in the constraint.]

Now that matrix is referred to as the **electromagnetic tensor** and it’s depicted below (we plugged *c *back in, remember that B’s magnitude is 1/*c* times E’s magnitude).

So… Well… Great ! We’re done! Well… Not quite. 🙂

We can get this matrix in a number of ways. The least complicated way is, of course, just to calculate all F_{ij} components and them put them in a [F_{ij}] matrix using the *i *as the row number and the *j *as the column number. You need to watch out with the conventions though, and so *i *and* j *start* *on t and end on z. 🙂

The other way to do it is to write the ∇_{μ} = (∂/∂t, −∂/∂x, −∂/∂y, −∂/∂z) operator as a 4×1 *column vector*, which you then multiply with the four-vector A_{μ} written as a 4×1 *row vector*. So ∇_{μ}A_{μ }is then a 4×4 matrix, which we combine with its *transpose*, i.e. (∇_{μ}A_{μ})^{T}, as shown below. So what’s written below is (∇_{μ}A_{μ}) − (∇_{μ}A_{μ})^{T}.

If you *google*, you’ll see there’s more than one way to go about it, so I’d recommend you just go through the motions and double-check the whole thing yourself—and please do let me know if you find any mistake! In fact, the Wikipedia article on the electromagnetic tensor denotes the matrix above as F^{μν}, rather than as F_{μν}, which is the same *tensor *but in its so-called *covariant *form, but so I’ll refer you to that article as I don’t want to make things even more complicated here! As said, there’s different *conventions *around here, and so you need to double-check what is what really. 🙂

Where are we heading with all of this? The next thing is to look at the *Lorentz *transformation of these F_{ij} = ∇_{i}A_{j} − ∇_{j}A_{i }components, because then we know how our **E** and **B** fields transform. Before we do so, however, we should note the more general results and definitions which we obtained here:

**1.** The F_{μν} matrix (a matrix is just a multi-dimensional array, of course) is a so-called **tensor**. It’s a tensor of the second rank, because it has two indices in it. We think of it as a very special ‘product’ of two vectors, not unlike the vector cross product **a** × **b**, whose components were also defined by a similar combination of the components of **a** and **b**. Indeed, we wrote:

So one should think of a tensor as “another kind of cross product” or, preferably, and as Feynman puts it, as a “generalization of the cross product”.

**2.** In this case, the four-vectors are ∇_{μ} = (∂/∂t, −∂/∂x, −∂/∂y, −∂/∂z) and A_{μ} = (Φ, A_{x}, A_{y}, A_{z}). Now, you will probably say that ∇_{μ} is an operator, *not* a vector, and you are right. However, we know that ∇_{μ} behaves like a vector, and so this is just a special case. The point is: because the tensor is based on four-vectors, the F_{μν} tensor is referred to as a tensor of the second rank in four dimensions. In addition, because of the F_{ij} = – F_{ji} result, **F _{μν} is an asymmetric tensor of the second rank in four dimensions**.

**3.** Now, the whole point is to examine how tensors transform. We know that the vector dot product, aka the inner product, remains *invariant *under a Lorentz transformation, both in three as well as in four dimensions, but what about the vector cross product, and what about the tensor? That’s what we’ll be looking at now.

**The Lorentz transformation of the electric and magnetic fields**

Cross products are complicated, and tensors will be complicated too. Let’s recall our example in three dimensions, i.e. the angular momentum vector **L**, which was a cross product of the radius vector **r** and the momentum vector **p** = m**v**, as illustrated below (the animation also gives the torque **τ**, which is, loosely speaking, a measure of the turning *force*).

The components of **L** are:

Now, this particular definition ensures that L_{ij }turns out to be an *antisymmetric* object:

So it’s a similar situation here. We have *nine *possible combinations, but only *three *independent numbers. So it’s a bit like our tensor in four dimensions: 16 combinations, but only 6 independent numbers.

Now, it so happens that that these three numbers, or *objects *if you want, transform in *exactly the same way *as the components of a vector. However, as Feynman points out, that’s a matter of ‘luck’ really. In fact, Feynman points out that, when we have two vectors **a** = (a_{x}, a_{y}, a_{z}) and **b** = (b_{x}, b_{y}, b_{z}), we’ll have *nine *products T_{ij} = a_{i}b_{j} which will also form a *tensor *of the second rank (cf. the two indices) but which, in general, will not obey the transformation rules we got for the angular momentum *tensor*, which *happened *to be an *antisymmetric* tensor of the second rank in three dimensions.

To make a long story short, it’s *not *simple in general, and surely not here: with **E** and **B**, we’ve got *six *independent terms, and so we can*not *represent six things by four things, so the transformation rules for **E** and **B** will differ from those for a four-vector. So what *are *they then?

Well… Feynman first works out the rules for the general antisymmetric vector combination G_{ij} = a_{i}b_{j }− a_{j}b_{i}, with a_{i }and b_{j} the t-, x-, y- *or* z-component of the four-vectors a_{μ }*= *(a_{t}, a_{x}, a_{y}, a_{z}) and b_{μ }*= *(b_{t}, b_{x}, b_{y}, b_{z}) respectively. The idea is to first get some general rules, and then replace G_{ij} = a_{i}b_{j }− a_{j}b_{i} by F_{ij} = ∇_{i}A_{j} − ∇_{j}A_{i}, of course! So let’s apply the Lorentz rules, which – let me remind you – are the following ones:

So we get:

The rest is all very tedious: you just need to plug these things into the various G_{ij} = a_{i}b_{j }− a_{j}b_{i} formulas. For example, for G’_{tx}, we get:

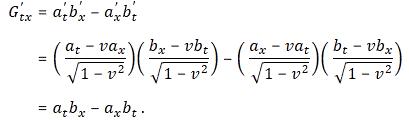

* Hey!* That’s just G’

_{tx}, so we find that G’

_{tx }= G

_{tx}! What about the rest? Well…

*That*yields something

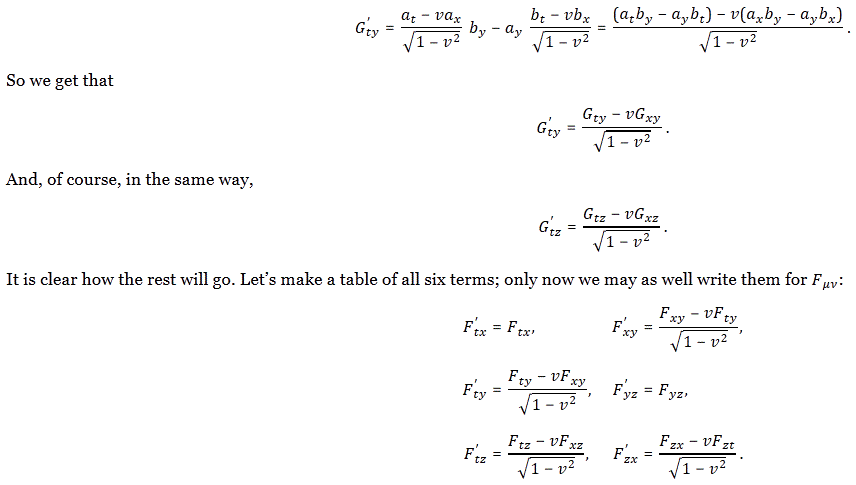

*different*. Let me shorten the story by simply copying Feynman here:

So… **Done!**

*So what?*

Well… Now we just substitute. In fact, there are two alternative formulations of the Lorentz transformations of **E** and **B**. They are given below (note the units are such that *c* = 1):

In addition, there is a *third* equivalent formulation which is more practical, and also simpler, even if it puts the *c*‘s back in. It re-defines the field components, distinguishing only two:

- The ‘parallel’ components E
_{||}and B_{|| }along the*x*-direction ( because they are parallel to the relative velocity of the S and S’ reference frames), and - The ‘perpendicular’ or ‘total transverse’ components E
_{⊥}and B_{⊥}, which are the vector sums of the y- and z-components.

So that gives us four equations only:

And, yes, we *are *done now. **This is the Lorentz transformation of the fields.** I am sure it has left you totally exhausted. Well… If not… […] It sure left *me* totally exhausted. 🙂

To lighten things up, let me insert an image of how the transformed field **E** actually looks like. The first image is the reference frame of a charge itself: we have a simple Coulomb field. The second image shows the charge flying by. Its electric field is ‘squashed up’. To be precise, it’s just like the scale of *x *is squashed up by a factor ((1−v^{2}/*c*^{2})^{1/2}. Let me refer you to Feynman for the detail of the calculations here.

OK. So that’s it. You may wonder: what about that promise I made? Indeed, when I started this post, I said I’d present a mathematical construct that presents the electromagnetic force as *one *force only, as *one* physical reality, but so we’re back writing all of it in terms of *two *vectors—the electric field vector **E** and the magnetic field vector **B**. Well… What can I say? I *did *present the mathematical construct: it’s the electromagnetic tensor. So it’s that antisymmetric matrix really, which one can combine with a *transformation matrix *embodying the Lorentz transformation rules. So, I *did *what I promised to do. But you’re right: I *am *re-presenting stuff in the old style once again.

The second objection that you may have—in fact, that you *should *have, is that all of this has been rather tedious. And you’re right. The whole thing just re-emphasizes the value of using the four-potential vector. It’s obviously *much *easier to take *that *vector from one reference frame to another – so we just apply the Lorentz transformation rules to A_{μ }= (Φ, **A**) and get A_{μ}‘ = (Φ’, **A’**) from it – and then calculate **E’** and **B’** from it, rather than trying to remember those equations above. However, that’s not the point, or…

Well… It is and it isn’t. We wanted to get away from those *two *vectors **E** and **B**, and show that electromagnetism is really *one *phenomenon only, and so that’s where the concept of the electromagnetic tensor came in. There were two objectives here: the first objective was to introduce you to the concept of tensors, which we’ll need in the future. The second objective was to show you that, while Lorentz’ force law – **F** = q(**E** + **v**×**B**) makes it clear we’re talking *one force* only, there is a way of writing it all up that is much more elegant.

I’ve introduced the concept of tensors here, so the first objective should have been achieved. As for the second objective, I’ll discuss that in my next post, in which I’ll introduce the ** four-velocity vector** μ

_{μ }as well as the

*four-force vector**f*

_{μ}. It will explain the following beautiful equation of motion:

Now *that *looks very elegant and unified, doesn’t it? 🙂

[…] Hmm… No reaction. I know… You’re tired now, and you’re thinking: yet another way of representing the same thing? Well… Yes! So…

OK… Enough for today. Let’s follow up tomorrow.
