**Post scriptum note added on 11 July 2016**: This is one of the more speculative posts which led to my e-publication analyzing the wavefunction as an energy propagation. With the benefit of hindsight, I would recommend you to immediately the more recent *exposé *on the matter that is being presented here, which you can find by clicking on the provided link.

**Original post**:

Intriguing title, isn’t it? You’ll think this is going to be highly speculative and you’re right. In fact, I could also have written: the imaginary action space, or the imaginary momentum space. Whatever. It all works ! It’s an *imaginary *space – but a very *real *one, because it holds energy, or momentum, or a combination of both, i.e. *action*. 🙂

So the title is either going to deter you or, else, encourage you to read on. I hope it’s the latter. 🙂

In my post on Richard Feynman’s *exposé* on how Schrödinger got his famous wave equation, I noted an ambiguity in how he deals with the energy concept. I wrote that piece in February, and we are now May. In-between, I looked at Schrödinger’s equation from various perspectives, as evidenced from the many posts that followed that February post, which I summarized on my *Deep Blue *page, where I note the following:

- The argument of the wavefunction (i.e. θ = ωt – kx = [E·t – p·x]/ħ) is just the
*proper*time of the object that’s being represented by the wavefunction (which, in most cases, is an elementary particle—an electron, for example). - The 1/2 factor in Schrödinger’s equation (∂ψ/∂t =
*i*·(ħ/2m)·∇^{2}ψ) doesn’t make all that much sense, so we should just drop it. Writing ∂ψ/∂t =*i*·(m/ħ)∇^{2}ψ (i.e. Schrödinger’s equation*without*the 1/2 factor) does away with the mentioned ambiguities and, more importantly, avoids obvious contradictions.

Both remarks are rather unusual—especially the second one. In fact, if you’re not *shocked* by what I wrote above (Schrödinger got something wrong!), then stop reading—because then you’re likely *not *to understand a thing of what follows. 🙂 In any case, I thought it would be good to follow up by devoting a separate post to this matter.

**The argument of the wavefunction as the proper time**

Frankly, it took me quite a while to see that the argument of the wavefunction is nothing but the t’ = (t − *v*∙x)/√(1−*v*^{2})] formula that we know from the Lorentz transformation of spacetime. Let me quickly give you the formulas (just substitute the *u *for *v*):

In fact, let me be precise: the argument of the wavefunction also has the particle’s rest mass m_{0} in it. That mass factor (m_{0}) appears in it as a general *scaling* factor, so it determines the *density* of the wavefunction both in time as well as in space. Let me jot it down:

ψ(x, t) = *a·e*^{−i·(mv·t − p∙x) }= *a·e*^{−i·[(m0/√(1−v2))·t − (m0·v/√(1−v2))∙x] }=* a·e*^{−i·m0·(t − v∙x)/√(1−v2)}

* Huh? *Yes. Let me show you how we get from θ = ωt – kx = [E·t – p·x]/ħ to θ = m

*·t − p∙x. It’s really easy. We first need to choose our units such that the speed of light and Planck’s constant are*

_{v}*numerically*equal to one, so we write:

*c*= 1 and ħ = 1. So now the 1/ħ factor no longer appears.

[Let me note something here: using natural units does *not *do away with the dimensions: the *dimensions* of whatever is there remain what they are. For example, energy remains what it is, and so that’s force over distance: 1 *joule *= 1 *newton*·*meter *(1 J = 1 N·m. Likewise, momentum remains what it is: force times time (or mass times velocity). Finally, the dimension of the quantum of action doesn’t disappear either: it remains the product of force, distance and time (N·m·s). So you should distinguish between the *numerical *value of our variables and their *dimension*. Always! That’s where physics is different from algebra: the equations actually *mean *something!]

Now, because we’re working in natural units, the *numerical *value of both *c *and *c*^{2 }will be equal to 1. It’s obvious, then, that Einstein’s mass-energy equivalence relation reduces from E = m_{v}c^{2} to E = m* _{v}*. You can work out the rest yourself – noting that p = m

*·*

_{v}*v*and m

_{v }= m

_{0}/√(1−

*v*

^{2}). Done! For a more intuitive explanation, I refer you to the above-mentioned page.

So that’s for the wavefunction. Let’s now look at Schrödinger’s wave *equation*, i.e. that differential equation of which our wavefunction is a *solution*. In my introduction, I bluntly said there was something wrong with it: that 1/2 factor shouldn’t be there. Why not?

**What’s wrong with Schrödinger’s equation?**

When deriving his famous equation, Schrödinger uses the mass concept as it appears in the classical kinetic energy formula: K.E. = m·*v*^{2}/2, and that’s why – after all the complicated turns – that 1/2 factor is there. There are many reasons why that factor doesn’t make sense. Let me sum up a few.

**[I]** The most important reason is that *de Broglie *made it quite clear that the energy concept in his equations for the *temporal *and *spatial *frequency for the wavefunction – i.e. the ω = E/ħ and k = p/ħ relations – is the *total *energy, including rest energy (m_{0}), kinetic energy (m·*v*^{2}/2) and any potential energy (V). In fact, if we just *multiply* the two *de Broglie *(aka as matter-wave equations) and use the old-fashioned *v* = *f·*λ relation (so we write E as E = ω·ħ = (2π·*f*)·(h/2π) = *f*·h, and p as p = k·ħ = (2π/λ)·(h/2π) = h/λ and, therefore, we have *f *= E/h and p = h/p), we find that the energy concept that’s implicit in the two matter-wave equations is equal to E = m∙*v*^{2}, as shown below:

*f*·λ = (E/h)·(h/p) = E/p*v*=*f·*λ ⇒*f*·λ =*v*= E/p ⇔ E =*v*·p =*v*·(m·*v*) ⇒ E = m·*v*^{2}

* Huh? *E = m∙

*v*

^{2}? Yes. Not E = m∙

*c*

^{2}or m·

*v*

^{2}/2 or whatever else you might be thinking of. In fact, this E = m∙

*v*

^{2}formula makes a lot of sense in light of the two following points.

**Skeptical note**: You may – and actually *should *– wonder whether we can use that *v* = *f·*λ relation for a wave like this, i.e. a wave with both a real (*cos*(-θ)) as well as an imaginary component (*i*·*sin*(-θ). It’s a deep question, and I’ll come back to it later. But… Yes. It’s the right question to ask. 😦

**[II]** Newton told us that force is mass time acceleration. Newton’s law is still valid in Einstein’s world. The only difference between Newton’s and Einstein’s world is that, since Einstein, we should treat the mass factor as a variable as well. We write: F = m* _{v}*·

*a*= m

*·*

_{v}*a*= [m

_{0}/√(1−

*v*

^{2})]·

*a*. This formula gives us the

*definition*of the

*newton*as a force unit: 1 N = 1 kg

*·(*m/s)/s = 1 kg

*·*m/s

^{2}. [Note that the 1/√(1−

*v*

^{2}) factor – i.e. the

*Lorentz*factor (γ) – has no dimension, because

*v*is measured as a

*relative*velocity here, i.e. as a fraction between 0 and 1.]

Now, you’ll agree the definition of energy as a force over some distance is valid in Einstein’s world as well. Hence, if 1 *joule *is 1 N·m, then 1 J is also equal to 1 (kg*·*m/s^{2})·m = 1 kg*·(*m^{2}/s^{2}), so this also reflects the E = m∙*v*^{2} concept. [I can hear you mutter: that kg factor refers to the rest mass, no? No. It doesn’t. The kg is just a measure of inertia: as a unit, it applies to both m_{0 }as well as m* _{v}*. Full stop.]

** Very skeptical note**: You will say this doesn’t prove anything – because this argument just shows the dimensional analysis for both equations (i.e. E = m∙

*v*

^{2}and E = m∙

*c*

^{2}) is OK. Hmm… Yes. You’re right. 🙂 But the next point will

*surely*convince you! 🙂

**[III]** The third argument is the most intricate and the most beautiful at the same time—not because it’s simple (like the arguments above) but because it gives us an *interpretation* of what’s going on here. It’s fairly easy to verify that Schrödinger’s equation, ∂ψ/∂t = *i*·(ħ/2m)·∇^{2}ψ equation (*in*cluding the 1/2 factor to which I object), is equivalent to the following *set *of two equations:

*Re*(∂ψ/∂t) = −(ħ/2m)·*Im*(∇^{2}ψ)*Im*(∂ψ/∂t) = (ħ/2m)·*Re*(∇^{2}ψ)

[In case you don’t see it immediately, note that two complex numbers a + *i*·b and c + *i*·d are equal if, and * only if*, their real and imaginary parts are the same. However, here we have something like this: a +

*i*·b =

*i*·(c +

*i*·d) =

*i*·c +

*i*

^{2}·d = − d +

*i*·c (remember

*i*

^{2 }= −1).]

Now, before we proceed (i.e. before I show you what’s wrong here with that 1/2 factor), let us look at the dimensions first. For that, we’d better analyze the *complete* Schrödinger equation so as to make sure we’re not doing anything stupid here by looking at one aspect of the equation only. The complete equation, in its *original *form, is:

Notice that, to simplify the analysis above, I had moved the *i *and the ħ on the left-hand side to the right-hand side (note that 1/*i *= −*i*, so −(ħ^{2}/2m)/(*i*·ħ) = ħ/2m). Now, the ħ^{2 }factor on the right-hand side is expressed in J^{2}·s^{2}. Now that doesn’t make much sense, but then that mass factor in the denominator makes everything come out alright. Indeed, we can use the mass-equivalence relation to express m in J/(m/s)^{2} units. So our ħ^{2}/2m coefficient is expressed in (J^{2}·s^{2})/[J/(m/s)^{2}] = J·m^{2}. Now we multiply that by that Laplacian operating on some scalar, which yields some quantity per square meter. So the whole right-hand side becomes some amount expressed in *joule*, i.e. the unit of energy! *Interesting*, isn’t it?

On the left-hand side, we have *i* and ħ. We shouldn’t worry about the imaginary unit because we can treat that as just another number, albeit a very special number (because its square is *minus *1). However, in this equation, it’s like a *mathematical *constant and you can think of it as something like π or *e*. [Think of the magical formula: *e*^{iπ }= *i*^{2} = −1.] In contrast, ħ is a *physical *constant, and so that constant comes with some dimension and, therefore, we can*not *just do what we want. [I’ll show, later, that even moving it to the other side of the equation comes with interpretation problems, so be careful with physical constants, as they really *mean *something!] In this case, its dimension is the *action *dimension: J·s = N·m·s, so that’s force times distance times time. So we multiply that with a time derivative and we get *joule* once again (N·m·s/s = N·m = J), so that’s the unit of energy. So it works out: we have *joule *units both left and right in Schrödinger’s equation. *Nice! *Yes. But what does it mean? 🙂

Well… You know that we can – and should – think of Schrödinger’s equation as a diffusion equation – just like a heat diffusion equation, for example – but then one describing ** the diffusion of a probability amplitude**. [In case you are

*not*familiar with this interpretation, please do check my post on it, or my Deep Blue page.] But then we didn’t describe the mechanism in very much detail, so let me try to do that now and, in the process, finally explain the problem with the 1/2 factor.

**The missing energy**

There are various ways to explain the problem. One of them involves calculating group and phase velocities of the *elementary *wavefunction satisfying Schrödinger’s equation but that’s a more complicated approach and I’ve done that elsewhere, so just click the reference if you prefer the more complicated stuff. I find it easier to just use those two equations above:

*Re*(∂ψ/∂t) = −(ħ/2m)·*Im*(∇^{2}ψ)*Im*(∂ψ/∂t) = (ħ/2m)·*Re*(∇^{2}ψ)

The argument is the following: if our elementary wavefunction is equal to *e ^{i}*

^{(kx − ωt)}= cos(kx−ωt) +

*i*∙sin(kx−ωt), then it’s easy to proof that this

*pair*of conditions is fulfilled if, and only if, ω = k

^{2}·(ħ/2m). [Note that I am omitting the normalization coefficient in front of the wavefunction: you can put it back in if you want. The argument here is valid, with or without normalization coefficients.] Easy? Yes. Check it out. The time derivative on the left-hand side is equal to:

∂ψ/∂t = −*i*ω·*ie ^{i}*

^{(kx − ωt) }= ω·[cos(kx − ωt) +

*i*·sin(kx − ωt)] = ω·cos(kx − ωt) +

*i*ω·sin(kx − ωt)

And the second-order derivative on the right-hand side is equal to:

∇^{2}ψ** _{ }**= ∂

^{2}ψ/∂x

^{2 }=

*i*·k

^{2}·

*e*

^{i}^{(kx − ωt) }= k

^{2}·cos(kx − ωt) +

*i*·k

^{2}·sin(kx − ωt)

So the two equations above are equivalent to writing:

*Re*(∂ψ/∂t) = −(ħ/2m)·_{B}*Im*(∇^{2}ψ) ⇔ ω·cos(kx − ωt) = k_{B}^{2}·(ħ/2m)·cos(kx − ωt)*Im*(∂ψ/∂t) = (ħ/2m)·_{B}*Re*(∇^{2}ψ) ⇔ ω·sin(kx − ωt) = k_{B}^{2}·(ħ/2m)·sin(kx − ωt)

So both *conditions* are fulfilled if, and only if, ω = k^{2}·(ħ/2m). You’ll say: so what? Well… **We have a contradiction here—something that doesn’t make sense**. Indeed, the second of the two *de Broglie *equations (always look at them as a *pair*) tells us that k = p/ħ, so we can re-write the ω = k^{2}·(ħ/2m) condition as:

ω/k = *v*_{p} = k^{2}·(ħ/2m)/k = k·ħ/(2m) = (p/ħ)·(ħ/2m) = p/2m ⇔ p = 2m

You’ll say: so what? Well… Stop reading, I’d say. That p = 2m doesn’t make sense—** at all! Nope! **In fact, if you thought that the E = m·

*v*

^{2}is weird—which, I hope, is no longer the case by now—then… Well… This p = 2m equation is

*much*weirder. In fact, it’s plain nonsense:

*this condition makes*

*no sense whatsoever.*The only way out is to remove the 1/2 factor, and to re-write the Schrödinger equation as I wrote it, i.e. with an ħ/m coefficient only, rather than an (1/2)·(ħ/m) coefficient.

* Huh? *Yes.

As mentioned above, I could do those group and phase velocity calculations to show you what rubbish that 1/2 factor leads to – and I’ll do that eventually – but let me first find yet another way to present the same paradox. Let’s simplify our life by choosing our units such that *c *= ħ = 1, so we’re using so-called *natural *units rather than our SI units. [Again, note that switching to natural units doesn’t do anything to the physical dimensions: a force remains a force, a distance remains a distance, and so on.] Our mass-energy equivalence then becomes: E = m·*c*^{2 }= m·1^{2 }= m. [Again, note that switching to natural units doesn’t do anything to the physical dimensions: a force remains a force, a distance remains a distance, and so on. So we’d still measure energy and mass in different but *equivalent *units. Hence, the equality sign should not make you think mass and energy *are *actually the same: energy is energy (i.e. force times distance), while mass is mass (i.e. a measure of *inertia*). I am saying this because it’s important, and because it took *me *a while to make these rather subtle distinctions.]

Let’s now go one step further and imagine a hypothetical particle with *zero* rest mass, so m_{0}* *= 0. Hence, all its energy is kinetic and so we write: K.E. = m* _{v}*·

*v*/2

*.*Now, because this particle has zero rest mass, the slightest acceleration will make it travel at the speed of light. In fact, we would

*expect*it to travel at the speed, so m

*= m*

_{v}_{c}and, according to the mass-energy equivalence relation, its total energy is, effectively, E = m

*= m*

_{v}_{c}. However, we just said its total energy is

*kinetic*energy only. Hence, its total energy must be equal to E = K.E. = m

*·*

_{c}*c*/2 = m

_{c}/2. So we’ve got only

*half*the energy we need. Where’s the other half?

**Where’s the missing energy?**

**Is its energy E = m**

*Quid est veritas?*_{c}or E = m

_{c}/2?

It’s just a paradox, of course, but one we have to solve. Of course, we may just say we trust Einstein’s E = m·*c*^{2 }formula more than the kinetic energy formula, but that answer is not very scientific. 🙂 We’ve got a problem here and, in order to solve it, I’ve come to the following conclusion: just because of its sheer *existence*, our zero-mass particle must have some hidden energy, and that hidden energy is also equal to E = m·*c*^{2}/2. Hence, the kinetic and the hidden energy add up to E = m·*c*^{2} and all is alright.

** Huh? Hidden energy?** I must be joking, right?

Well… No. Let me explain. Oh. And just in case you wonder why I bother to try to imagine zero-mass particles. Let me tell you: it’s the first step towards finding a wavefunction for a photon and, secondly, you’ll see it just amounts to modeling the propagation mechanism of energy itself. 🙂

**The hidden energy as imaginary energy**

I am tempted to refer to the missing energy as *imaginary *energy, because it’s linked to the *imaginary *part of the wavefunction. However, it’s anything but imaginary: it’s as real as the imaginary part of the wavefunction. [I know that sounds a bit nonsensical, but… Well… Think about it. And read on!]

Back to that factor 1/2. As mentioned above, it also pops up when calculating the *group *and the *phase *velocity of the wavefunction. In fact, let me show you that calculation now. [Sorry. Just hang in there.] It goes like this.

The *de Broglie *relations tell us that the k and the ω in the *e ^{i}*

^{(kx − ωt)}= cos(kx−ωt) +

*i*∙sin(kx−ωt) wavefunction (i.e. the spatial and temporal frequency respectively) are equal to k = p/ħ, and ω = E/ħ. Let’s now think of that zero-mass particle once more, so we assume

*all of its energy is kinetic*: no rest energy, no potential! So… If we now use the

*kinetic*energy formula E = m·

*v*

^{2}/2 – which we can also write as E = m·

*v*·

*v*/2 = p·

*v*/2 = p·p/2m = p

^{2}/2m, with

*v*= p/m the

*classical velocity of the elementary particle*that

*Louis de Broglie*was thinking of – then we can calculate the

*group*velocity of our

*e*

^{i}^{(kx − ωt)}= cos(kx−ωt) +

*i*∙sin(kx−ωt) wavefunction as:

*v*_{g} = ∂ω/∂k = ∂[E/ħ]/∂[p/ħ] = ∂E/∂p = ∂[p^{2}/2m]/∂p = 2p/2m = p/m = *v*

[Don’t tell me I can’t treat m as a constant when calculating ∂ω/∂k: I can. Think about it.]

Fine. Now the phase velocity. For the *phase *velocity of our *e ^{i}*

^{(kx − ωt)}wavefunction, we find:

*v*_{p} = ω/k = (E/ħ)/(p/ħ) = E/p = (p^{2}/2m)/p = p/2m = *v*/2

So that’s only *half *of *v*: it’s the 1/2 factor once more! Strange, isn’t it? Why would we get a *different *value for the phase velocity here? It’s not like we have *two *different frequencies here, do we? Well… No. You may also note that the phase velocity turns out to be *smaller* than the group velocity (as mentioned, it’s only *half *of the group velocity), which is quite exceptional as well! So… Well… *What’s the matter here? We’ve got a problem!*

What’s going on here? We have only one wave here—one frequency and, hence, only *one* k and ω. However, on the other hand, it’s also true that the *e ^{i}*

^{(kx − ωt)}wavefunction gives us two functions for the price of one—one real and one imaginary:

*e*

^{i}^{(kx − ωt)}= cos(kx−ωt) +

*i*∙sin(kx−ωt). So the question here is:

*are*we

*adding*waves, or are we

*not*? It’s a deep question. If we’re adding waves, we may get different group and phase velocities, but if we’re not, then… Well… Then the group and phase velocity of our wave should be the same, right? The answer is: we are and we aren’t. It all depends on what you mean by ‘adding’ waves. I know you don’t like that answer, but that’s the way it is, really. 🙂

Let me make a small digression here that will make you feel even more confused. You know – or you should know – that the *sine *and the *cosine* function are the same except for a phase difference of 90 degrees: *sin*θ = *cos*(θ + π/2). Now, at the same time, multiplying something with *i *amounts to a rotation by 90 degrees, as shown below.

Hence, in order to sort of visualize what our *e ^{i}*

^{(kx − ωt)}function really looks like, we may want to super-impose the two graphs and think of something like this:

You’ll have to admit that, when you see this, our formulas for the group or phase velocity, or our *v* = *f·*λ relation, do no longer make much sense, do they? 🙂

Having said that, that 1/2 factor is and remains puzzling, and there must be some logical reason for it. For example, it also pops up in the Uncertainty Relations:

Δx·Δp ≥ ħ/2 and ΔE·Δt ≥ ħ/2

So we have ħ/2 in both, *not *ħ. Why do we need to divide the quantum of action here? How do we solve all these paradoxes? It’s easy to see how: the apparent contradiction (i.e. the different group and phase velocity) gets solved if we’d use the E = m∙*v*^{2} formula rather than the *kinetic *energy E = m∙*v*^{2}/2. But then… What energy formula is the correct one: E = m∙*v*^{2} or m∙*c*^{2}? Einstein’s formula is *always* right, isn’t it? It must be, so let me postpone the discussion a bit by looking at a limit situation. If* v* = *c*, then we don’t need to make a choice, obviously. 🙂 So let’s look at that limit situation first. So we’re discussing our zero-mass particle once again, assuming it travels at the speed of light. What do we get?

Well… Measuring time and distance in *natural *units, so *c* = 1, we have:

E = m∙*c*^{2} = m and p = m∙*c*^{ }= m, so we get: E = m = p

** Waw ! E = m = p ! **What a weird combination, isn’t it? Well… Yes. But it’s fully OK. [

*You*tell me why it wouldn’t be OK. It’s true we’re glossing over the dimensions here, but natural units are natural units and, hence, the

*numerical*value of

*c*and

*c*

^{2 }is 1. Just figure it out for yourself.] The point to note is that the E = m = p equality yields extremely simple but also very sensible results. For the group velocity of our

*e*

^{i}^{(kx − ωt)}wavefunction, we get:

*v*_{g} = ∂ω/∂k = ∂[E/ħ]/∂[p/ħ] = ∂E/∂p = ∂p/∂p = 1

So that’s the velocity of our zero-mass particle (remember: the 1 stands for *c* here, i.e. the speed of light) expressed in natural units once more—just like what we found before. For the phase velocity, we get:

*v*_{p} = ω/k = (E/ħ)/(p/ħ) = E/p = p/p = 1

Same result! No factor 1/2 here! ** Isn’t that great?** My ‘hidden energy theory’ makes a lot of sense.

However, if there’s hidden energy, we still need to show *where *it’s hidden. 🙂 Now *that* question is linked to the *propagation mechanism *that’s described by those two equations, which now – leaving the 1/2 factor out, simplify to:

*Re*(∂ψ/∂t) = −(ħ/m)·*Im*(∇^{2}ψ)*Im*(∂ψ/∂t) = (ħ/m)·*Re*(∇^{2}ψ)

*Propagation mechanism? *Yes. That’s what we’re talking about here: the propagation mechanism of energy. * Huh? *Yes. Let me explain in another separate section, so as to improve readability. Before I do, however, let me add another note—for the skeptics among you. 🙂

Indeed, the skeptics among you may wonder whether our zero-mass particle wavefunction makes any sense at all, and they should do so for the following reason: if x = 0 at t = 0, and it’s traveling at the speed of light, then x(t) = t. Always. So if E = m = p, the argument of our wavefunction becomes E·t – p·x = E·t – E·t = 0! So what’s that? The proper time of our zero-mass particle is zero—always and everywhere!?

Well… Yes. That’s why our zero-mass particle – as a *point-like object *– does not really exist. What we’re talking about is energy itself, and its propagation mechanism. 🙂

While I am sure that, by now, you’re very tired of my rambling, I beg you to read on. Frankly, if you got as far as you have, then you should really be able to work yourself through the rest of this post. 🙂 And I am sure that – if anything – you’ll find it stimulating! 🙂

**The imaginary energy space**

Look at the propagation mechanism for the electromagnetic wave in free space, which (for *c *= 1) is represented by the following two equations:

- ∂
**B**/∂t = –∇×**E** - ∂
**E**/∂t = ∇×**B**

[In case you wonder, these are Maxwell’s equations for free space, so we have no stationary nor moving charges around.] ** See how similar this is to the two equations above? **In fact, in my Deep Blue page, I use these two equations to derive the quantum-mechanical wavefunction for the photon (which is

*not*the same as that hypothetical zero-mass particle I introduced above), but I won’t bother you with that here. Just note the so-called

*curl*operator in the two equations above (∇×) can be related to the Laplacian we’ve used so far (∇

^{2}). It’s not the same thing, though: for starters, the curl operator operates on a vector quantity, while the Laplacian operates on a scalar (including

*complex*scalars). But don’t get distracted now. Let’s look at the revised Schrödinger’s equation, i.e. the one

*without*the 1/2 factor:

∂ψ/∂t = *i*·(ħ/m)·∇^{2}ψ

On the left-hand side, we have a time derivative, so that’s a flow *per second*. On the right-hand side we have the Laplacian and the *i*·ħ/m factor. Now, written like this, Schrödinger’s equation really looks *exactly *the same as the general diffusion equation, which is written as: ∂φ/∂t = D·∇^{2}φ, except for the imaginary unit, which makes it clear we’re getting *two *equations for the price of one here, rather than one only! 🙂 The point is: we may now look at that ħ/m factor as a diffusion constant, because it does *exactly* the same thing as the diffusion constant D in the diffusion equation ∂φ/∂t = D·∇^{2}φ, i.e:

- As a
, it*constant of**proportionality**quantifies*the relationship between both derivatives. - As a
, it ensures the*physical constant**dimensions*on both sides of the equation are compatible.

So the diffusion constant for Schrödinger’s equation is ħ/m. What is its dimension? That’s easy: (N·m·s)/(N·s^{2}/m) = m^{2}/s. [Remember: 1 N = 1 kg*·*m/s^{2}.] But then we multiply it with the Laplacian, so that’s something expressed per square meter, so we get something per second on *both* sides.

Of course, you wonder: *what per second*? Not sure. That’s hard to say. Let’s continue with our analogy with the heat diffusion equation so as to try to get a better understanding of what’s being written here. Let me give you that heat diffusion equation here. Assuming the heat per unit volume (q) is proportional to the temperature (T) – which is the case when expressing T in degrees Kelvin (K), so we can write q as q = k·T – we can write it as:

So that’s *structurally* similar to Schrödinger’s equation, and to the two equivalent equations we jotted down above. So we’ve got T (temperature) in the role of ψ here—or, to be precise, in the role of ψ ‘s *real *and *imaginary *part respectively. So what’s temperature? From the kinetic theory of gases, we know that temperature is not just a scalar: temperature measures the mean (kinetic) energy of the molecules in the gas. That’s why we can confidently state that the heat diffusion equation models an *energy* flow, both in space as well as in time.

Let me make the point by doing the dimensional analysis for that heat diffusion equation. The time derivative on the left-hand side (∂T/∂t) is expressed in K/s (*Kelvin *per second). Weird, isn’t it? What’s a Kelvin per second? Well… Think of a Kelvin as some *very* small amount of energy in some equally small amount of space—think of the space that one molecule needs, and its (mean) energy—and then it all makes sense, doesn’t it?

However, in case you find that a bit difficult, just work out the dimensions of all the other constants and variables. The constant in front (k) makes sense of it. That coefficient (k) is the (volume) heat capacity of the substance, which is expressed in J/(m^{3}·K). So the dimension of the whole thing on the left-hand side (k·∂T/∂t) is J/(m^{3}·s), so that’s energy (J) per cubic meter (m^{3}) and per second (s). *Nice*, isn’t it? What about the right-hand side? On the right-hand side we have the Laplacian operator – i.e. ∇^{2 }= **∇**·**∇**, with **∇ = **(∂/∂x, ∂/∂y, ∂/∂z) – operating on T. The Laplacian operator, when operating on a *scalar *quantity, gives us a flux density, i.e. something expressed per square meter (1/m^{2}). In this case, it’s operating on T, so the dimension of ∇^{2}T is K/m^{2}. Again, that doesn’t tell us very much (what’s the meaning of a Kelvin per square meter?) but we multiply it by the thermal conductivity (κ), whose dimension is W/(m·K) = J/(m·s·K). Hence, the dimension of the product is the same as the left-hand side: J/(m^{3}·s). So that’s OK again, as energy (J) per cubic meter (m^{3}) and per second (s) is definitely something we can associate with an *energy flow*.

In fact, we can play with this. We can bring k from the left- to the right-hand side of the equation, for example. The dimension of κ/k is m^{2}/s (check it!), and multiplying that by K/m^{2 }(i.e. the dimension of ∇^{2}T) gives us some quantity expressed in Kelvin per second, and so that’s the same dimension as that of ∂T/∂t. *Done! *

In fact, we’ve got two different ways of writing Schrödinger’s diffusion equation. We can write it as ∂ψ/∂t = *i*·(ħ/m)·∇^{2}ψ or, else, we can write it as ħ·∂ψ/∂t = *i*·(ħ^{2}/m)·∇^{2}ψ. *Does it matter?* I don’t think it does. The dimensions come out OK in both cases. However, *interestingly*, if we do a dimensional analysis of the ħ·∂ψ/∂t = *i*·(ħ^{2}/m)·∇^{2}ψ equation, we get *joule *on both sides. Interesting, isn’t it? The key question, of course, is: *what *is it that is flowing here?

I don’t have a very *convincing* answer to that, but the answer I have is interesting—I think. 🙂 Think of the following: we can multiply Schrödinger’s equation with whatever we want, and then we get all kinds of *flows*. For example, if we multiply both sides with 1/(m^{2}·s) or 1/(m^{3}·s), we get a equation expressing the energy conservation law, indeed! [And you may want to think about the *minus *sign of the right-hand side of Schrödinger’s equation now, because it makes much more sense now!]

We could also multiply both sides with s, so then we get J·s on both sides, i.e. the dimension of physical action (J·s = N·m·s). So then the equation expresses the conservation of *action*! * Huh? *Yes. Let me re-phrase that: then it expresses the conservation of

*angular*momentum—as you’ll surely remember that the dimension of action and angular momentum are the same. 🙂

And then we can divide both sides by m, so then we get N·s on both sides, so that’s momentum. So then Schrödinger’s equation embodies the momentum conservation law.

Isn’t it just *wonderful*? **Schrödinger’s equation packs all of the conservation laws!** The only catch is that it flows back and forth from the real to the imaginary space, using that propagation mechanism as described in those two equations.

Now ** that is really interesting**, because it does provide an explanation – as fuzzy as it may seem – for all those weird concepts one encounters when studying physics, such as the tunneling effect, which amounts to energy flowing from the imaginary space to the real space and, then, inevitably, flowing back. It also allows for borrowing time from the imaginary space. Hmm… Interesting! [I know I still need to make these points much more formally, but… Well… You kinda get what I mean, don’t you?]

To conclude, let me re-baptize my real and imaginary ‘space’ by referring to them to what they really are: **a real and imaginary energy space** respectively. Although… Now that I think of it: it could also be real and imaginary momentum space, or a real and imaginary action space. Hmm… The latter term may be the best. 🙂

Isn’t this all great? I mean… I could go on and on—but I’ll stop here, so you can freewheel around yourself. For example, you may wonder how similar that energy propagation mechanism actually is as compared to the propagation mechanism of the electromagnetic wave? The answer is: * very *similar. You can check

*how*similar in one of my posts on the photon wavefunction or, if you’d want a more general argument, check my Deep Blue page. Have fun exploring! 🙂

So… Well… That’s it, folks. I hope you enjoyed this post—if only because I really enjoyed writing it. 🙂

[…]

OK. You’re right. I still haven’t answered the fundamental question.

**So what about the 1/2 factor?**

What about that 1/2 factor? Did Schrödinger miss it? Well… Think about it for yourself. First, I’d encourage you to further explore that weird graph with the real and imaginary part of the wavefunction. I copied it below, but with an added 45º line—yes, the **green** diagonal. To make it somewhat more real, imagine you’re the zero-mass point-like particle moving along that line, and we observe you from our inertial frame of reference, using equivalent time and distance units.

So we’ve got that cosine (*cos*θ) varying as you travel, and we’ve also got the *i*·*sin*θ part of the wavefunction going while you’re zipping through spacetime. Now, THINK of it: the phase velocity of the cosine bit (i.e. the **red** graph) contributes as much to your lightning speed as the *i*·*sin*θ bit, doesn’t it? Should we* *apply Pythagoras’ basic *r*^{2} = *x*^{2} + *y*^{2 }Theorem here? Yes: the velocity vector along the **green diagonal** is going to be the sum of the velocity vectors along the horizontal and vertical axes. So… That’s great.

Yes. It is. However, we still have a problem here: it’s the velocity *vectors* that add up—not their *magnitudes*. Indeed, if we denote the velocity vector along the **green diagonal** as ** u**, then we can calculate its

*magnitude*as:

*u* = √*u*^{2} = √[(*v*/2)^{2} + (*v*/2)^{2}] = √[2·(*v*^{2}/4) = √[*v*^{2}/2] = *v*/√2 ≈ 0.7·*v*

So, as mentioned, we’re adding the vectors, but not their magnitudes. We’re somewhat better off than we were in terms of showing that the *phase *velocity of those sine and cosine velocities add up—*somehow*, that is—but… Well… We’re not quite there.

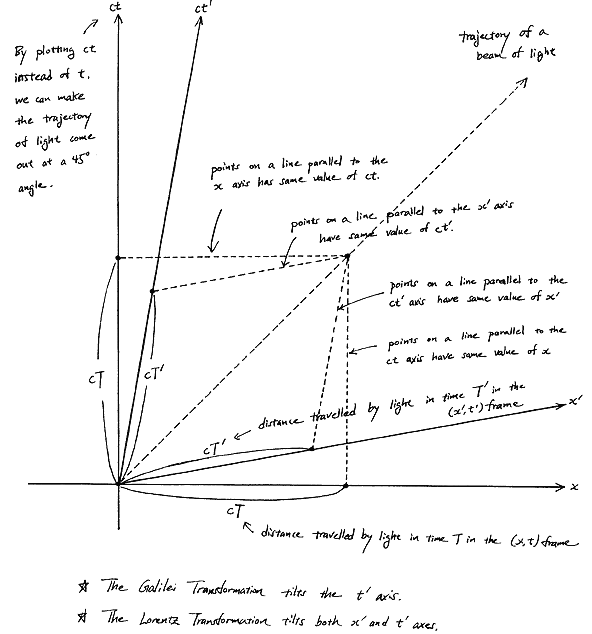

Fortunately, Einstein saves us once again. Remember we’re actually *transforming *our reference frame when working with the wavefunction? Well… Look at the diagram below (for which I thank the author)

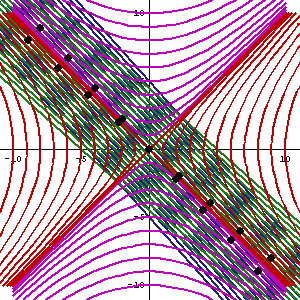

In fact, let me insert an animated illustration, which shows what happens when the velocity *u *goes up and down from (close to) −*c* to +*c* and back again. It’s beautiful, and I must credit the author here too. It sort of speaks for itself, but please do click the link as the accompanying text is quite illuminating. 🙂

The point is: for our zero-mass particle, the x’ and t’ axis will rotate into the diagonal itself which, as I mentioned a couple of times already, represents the speed of light and, therefore, our zero-mass particle traveling at *c*. It’s obvious that we’re now adding two vectors that point in the same direction and, hence, their *magnitudes *just add without any square root factor. So, instead of *u* = √[(*v*/2)^{2} + (*v*/2)^{2}], we just have *v*/2 + *v*/2 = *v*! Done! We solved the phase velocity paradox! 🙂

So… I still haven’t answered that question. Should that 1/2 factor in Schrödinger’s equation be there or not? The answer is, obviously: yes. It should be there. And as for Schrödinger using the mass concept as it appears in the classical kinetic energy formula: K.E. = m·*v*^{2}/2… Well… What other mass concept would he use? I probably got a bit confused with Feynman’s *exposé* – especially this notion of ‘choosing the zero point for the energy’ – but then I should probably just re-visit the thing and adjust the language here and there. But the formula is correct.

Thinking it all through, the ħ/2m constant in Schrödinger’s equation should be thought of as the reciprocal of m/(ħ/2). So what we’re doing basically is measuring the mass of our object in units of ħ/2, rather than units of ħ. That makes perfect sense, if only because it’s ħ/2, rather than ħthe factor that appears in the Uncertainty Relations Δx·Δp ≥ ħ/2 and ΔE·Δt ≥ ħ/2. In fact, in my post on the wavefunction of the zero-mass particle, I noted its *elementary *wavefunction should use the m = E = p = ħ/2 values, so it becomes ψ(x, t) = *a·e*^{−i∙[(ħ/2)∙t − (ħ/2)∙x]/ħ }= *a·e*^{−i∙[t − x]/2}.

Isn’t that just *nice? *🙂 I need to stop here, however, because it looks like this post is becoming a book. Oh—and note that nothing what I wrote above discredits my ‘hidden energy’ theory. On the contrary, it confirms it. In fact, the nice thing about those illustrations above is that it associates the imaginary component of our wavefunction with travel in time, while the real component is associated with travel in space. That makes our theory quite complete: the ‘hidden’ energy is the energy that moves time forward. The only thing I need to do is to connect it to that idea of action expressing itself in time *or *in space, cf. what I wrote on my Deep Blue page: we can look at the dimension of Planck’s constant, or at the concept of ** action** in general, in two very different ways—from two different

*perspectives*, so to speak:

- [Planck’s constant] = [action] = N∙m∙s = (N∙m)∙s = [energy]∙[time]
- [Planck’s constant] = [action] = N∙m∙s = (N∙s)∙m = [momentum]∙[distance]

Hmm… I need to combine that with the idea of the quantum vacuum, i.e. the *mathematical *space that’s associated with time and distance becoming countable variables…. In any case. Next time. 🙂

Before I sign off, however, let’s quickly check if our *a·e*^{−i∙[t − x]/2 }wavefunction solves the Schrödinger equation:

- ∂ψ/∂t = −
*a*·*e*^{−i∙[t − x]/2}·(*i*/2) - ∇
^{2}ψ = ∂^{2}[*a·e*^{−i∙[t − x]/2}]/∂x^{2 }= ∂[*a·e*^{−i∙[t − x]/2}·(*i*/2)]/∂x = −*a·e*^{−i∙[t − x]/2}·(1/4)

So the ∂ψ/∂t = *i*·(ħ/2m)·∇^{2}ψ equation becomes:

−*a*·*e*^{−i∙[t − x]/2}·(*i*/2) = −*i*·(ħ/[2·(ħ/2)])·*a·e*^{−i∙[t − x]/2}·(1/4)

⇔ 1/2 = 1/4 !?

The damn 1/2 factor. Schrödinger wants it in *his *wave equation, but not in the wavefunction—apparently! So what if we take the m = E = p = ħ solution? We get:

- ∂ψ/∂t = −
*a*·*i*·*e*^{−i∙[t − x]} - ∇
^{2}ψ = ∂^{2}[*a·e*^{−i∙[t − x]}]/∂x^{2 }= ∂[*a*·*i*·*e*^{−i∙[t − x]}]/∂x = −*a*·*e*^{−i∙[t − x]}

So the ∂ψ/∂t = *i*·(ħ/2m)·∇^{2}ψ equation now becomes:

−*a*·*i*·*e*^{−i∙[t − x]} = −*i*·(ħ/[2·ħ])·*a*·*e*^{−i∙[t − x]}

⇔ 1 = 1/2 !?

We’re still in trouble! So… Was Schrödinger wrong after all? There’s no difficulty whatsoever with the ∂ψ/∂t = *i*·(ħ/m)·∇^{2}ψ equation:

- −
*a*·*e*^{−i∙[t − x]/2}·(*i*/2) = −*i*·[ħ/(ħ/2)]·*a·e*^{−i∙[t − x]/2}·(1/4) ⇔ 1 = 1 - −
*a*·*i*·*e*^{−i∙[t − x]}= −*i*·(ħ/ħ)·*a*·*e*^{−i∙[t − x] }⇔ 1 = 1

What these equations might tell us is that we should measure mass, energy and momentum in terms of ħ (and *not *in terms of ħ/2) but that the *fundamental *uncertainty is ± ħ/2. That solves it all. So the *magnitude *of the uncertainty is ħ but it separates not 0 and ± 1, but −ħ/2 and −ħ/2. Or, more generally, the following series:

…, −7ħ/2, −5ħ/2, −3ħ/2, −ħ/2, +ħ/2, +3ħ/2,+5ħ/2, +7ħ/2,…

Why are we not surprised? The series represent the energy values that a spin one-half particle can possibly have, and ordinary matter – i.e. all *fermions *– is composed of spin one-half particles.

To conclude this post, let’s see if we can get any indication on the energy *concepts *that Schrödinger’s revised wave equation implies. We’ll do so by just calculating the derivatives in the ∂ψ/∂t = *i*·(ħ/m)·∇^{2}ψ equation (i.e. the equation *without *the 1/2 factor). Let’s also *not* assume we’re measuring stuff in natural units, so our wavefunction is just what it is: *a·e*^{−i·[E·t − p∙x]/ħ}. The derivatives now become:

- ∂ψ/∂t = −
*a*·*i*·(E/ħ)·*e*^{−i∙[E·t − p∙x]/ħ} - ∇
^{2}ψ = ∂^{2}[*a·e*^{−i∙[E·t − p∙x]/ħ}]/∂x^{2 }= ∂[*a*·*i*·(p/ħ)·*e*^{−i∙[E·t − p∙x]/ħ}]/∂x = −*a*·(p^{2}/ħ^{2})·*e*^{−i∙[E·t − p∙x]/ħ}

So the ∂ψ/∂t = *i*·(ħ/m)·∇^{2}ψ = *i*·(1/m)·∇^{2}ψ equation now becomes:

−*a*·*i*·(E/ħ)·*e*^{−i∙[E·t − p∙x]/ħ} = −*i*·(ħ/m)·*a*·(p^{2}/ħ^{2})·*e*^{−i∙[E·t − p∙x]/ħ }⇔ E = p^{2}/m = m·*v*^{2}

It all works like a charm. Note that we do *not *assume stuff like E = m = p here. It’s all quite general. Also note that the E = p^{2}/m closely resembles the kinetic energy formula one often sees: K.E. = m·*v*^{2}/2 = m·m·*v*^{2}/(2m) = p^{2}/(2m). We just don’t have the 1/2 factor in our E = p^{2}/m formula, which is great—because we don’t want it! Of course, if you’d add the 1/2 factor in Schrödinger’s equation again, you’d get it back in your energy formula, which would just be that old kinetic energy formula which gave us all these contradictions and ambiguities. 😦

Finally, and just to make sure: let me add that, when we wrote that E = m = p – like we did above – we mean their *numerical *values are the same. Their dimensions remain what they are, of course. Just to make sure you get that subtle point, we’ll do a quick dimensional analysis of that E = p^{2}/m formula:

[E] = [p^{2}/m] ⇔ N·m = N^{2}·s^{2}/kg = N^{2}·s^{2}/[N·m/s^{2}] = N·m = *joule *(J)

So… Well… It’s all perfect. 🙂

**Post scriptum**: I revised my Deep Blue page after writing this post, and I think that a number of the ideas that I express above are presented more consistently and coherently there. In any case, the missing energy theory makes sense. Think of it: any oscillator involves both kinetic as well as potential energy, and they both add up to twice the *average *kinetic (or potential) energy. So why not here? When everything is said and done, our elementary wavefunction does describe an oscillator. 🙂

Interesting stuff! To be precise, I believe Newton didn’t say “F=m*a”, his law stated that F=delta(p)/delta(t), which, when mass is constant, resolves to F=m*a, so there’s never been any particular conflict… and Newton’s Laws have never been broken, as have people made it sound. I’ve always considered that the 1/2 in E=(1/2)mv^2 part is for consistency since that’s the mathematical definition for KE used elsewhere in physics. Not to say it can’t be changed, though not treating it as such means that when working with someone else’s physics math, you have to take it into account.

Keep writing! This stuff is fun to think about!

Thanks. Always nice to hear someone actually enjoys what I am throwing around. I need to re-work the post though. I think the gist of the argument is essentially correct – but then I am not sure if one can apply the classical velocity = wavelength x frequency formula to a complex wave. So the second of the three points I make may not be correct. As for the K.E. formula, I need to re-check that. If we treat the mass factor as a constant, then the d(K.E)/dm derivative becomes the momentum. Conversely, integrating the momentum gives us the K.E. But Einstein told us we cannot treat m as a constant, so that changes. I’ll have a look at it once more. Thanks again and Godspeed !

Et-px isn’t the proper time, though — it’s the angular momentum in the t-x plane.
