The mystery of the elementary charge

As part of my ‘debunking quantum-mechanical myths’ drive, I re-wrote Feynman’s introductory lecture on quantum mechanics. Of course, it has got nothing to do with Feynman’s original lecture—titled: on Quantum Behavior: I just made some fun of Feynman’s preface and that’s basically it in terms of this iconic reference. Hence, Mr. Gottlieb should not make too much of a fuss—although I hope he will, of course, because it would draw more attention to the paper. It was a fun exercise because it encouraged me to join an interesting discussion on ResearchGate (I copied the topic and some up and down below) which, in turn, made me think some more about what I wrote about the form factor in the explanation of the electron, muon and proton. Let me copy the relevant paragraph:

When we talked about the radius of a proton, we promised you we would talk some more about the form factor. The idea is very simple: an angular momentum (L) can always be written as the product of a moment of inertia (I) and an angular frequency (ω). We also know that the moment of inertia for a rotating mass or a hoop is equal to I = mr2, while it is equal to I = mr2/4 for a solid disk. So you might think this explains the 1/4 factor: a proton is just an anti-muon but in disk version, right? It is like a muon because of the strong force inside, but it is even smaller because it packs its charge differently, right?

Maybe. Maybe not. We think probably not. Maybe you will have more luck when playing with the formulas but we could not demonstrate this. First, we must note, once again, that the radius of a muon (about 1.87 fm) and a proton (0.83-0.84 fm) are both smaller than the radius of the pointlike charge inside of an electron (α·ħ/mec ≈ 2.818 fm). Hence, we should start by suggesting how we would pack the elementary charge into a muon first!

Second, we noted that the proton mass is 8.88 times that of the muon, while the radius is only 2.22 times smaller – so, yes, that 1/4 ratio once more – but these numbers are still weird: even if we would manage to, somehow, make abstraction of this form factor by accounting for the different angular momentum of a muon and a proton, we would probably still be left with a mass difference we cannot explain in terms of a unique force geometry.

Perhaps we should introduce other hypotheses: a muon is, after all, unstable, and so there may be another factor there: excited states of electrons are unstable too and involve an n = 2 or some other number in Planck’s E = n·h·f equation, so perhaps we can play with that too.

Our answer to such musings is: yes, you can. But please do let us know if you have more luck then us when playing with these formulas: it is the key to the mystery of the strong force, and we did not find it—so we hope you do!

So… Well… This is really as far as a realist interpretation of quantum mechanics will take you. One can solve most so-called mysteries in quantum mechanics (interference of electrons, tunneling and what have you) with plain old classical equations (applying Planck’s relation to electromagnetic theory, basically) but here we are stuck: the elementary charge itself is a most mysterious thing. When packing it into an electron, a muon or a proton, Nature gives it a very different shape and size.

The shape or form factor is related to the angular momentum, while the size has got to do with scale: the scale of a muon and proton is very different than that of an electron—smaller even than the pointlike Zitterbewegung charge which we used to explain the electron. So that’s where we are. It’s like we’ve got two quanta—rather than one only: Planck’s quantum of action, and the elementary charge. Indeed, Planck’s quantum of action may also be said to express itself itself very differently in space or in time (h = E·T versus h = p·λ). Perhaps there is room for additional simplification, but I doubt it. Something inside of me says that, when everything is said and done, I will just have to accept that electrons are electrons, and protons are protons, and a muon is a weird unstable thing in-between—and all other weird unstable things in-between are non-equilibrium states which one cannot explain with easy math.

Would that be good enough? For you? I cannot speak for you. Is it a good enough explanation for me? I am not sure. I have not made my mind up yet. I am taking a bit of a break from physics for the time being, but the question will surely continue to linger in the back of my mind. We’ll keep you updated on progress ! Thanks for staying tuned ! JL

PS: I realize the above might sound a bit like crackpot theory but that is just because it is very dense and very light writing at the same time. If you read the paper in full, you should be able to make sense of it. 🙂 You should also check the formulas for the moments of inertia: the I = mr2/4 formula for a solid disk depends on your choice of the axis of symmetry.

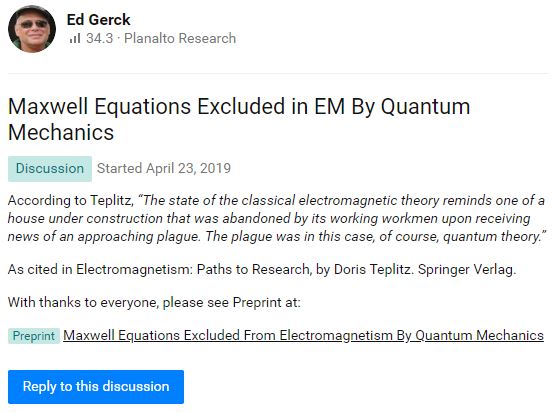

Research Gate

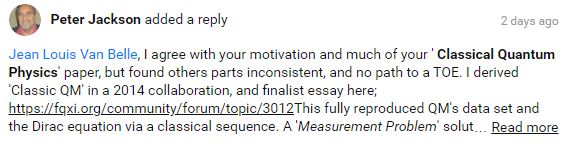

Peter Jackson

Dear Peter – Thanks so much for checking the paper and your frank comments. That is very much appreciated. I know I have gone totally overboard in dismissing much of post-WW II developments in quantum physics – most notably the idea of force-carrying particles (bosons – including Higgs, W/Z bosons and gluons). My fundamental intuition here is that field theories should be fine for modeling interactions (I’ll quote Dirac’s 1958 comments on that at the very end of my reply here) and, yes, we should not be limiting the idea of a field to EM fields only. So I surely do not want to give the impression I think classical 19th/early 20th century physics – Planck’s relation, electromagnetic theory and relativity – can explain everything.

Having said that, the current state of physics does resemble the state of scholastic philosophy before it was swept away by rationalism: I feel there has been a multiplication of ill-defined concepts that did not add much additional explanation of what might be the case (the latter expression is Wittgenstein’s definition of reality). So, yes, I feel we need some reincarnation of William of Occam to apply his Razor and kick ass. Fortunately, it looks like there are many people trying to do exactly that now – a return to basics – so that’s good: I feel like I can almost hear the tectonic plates moving. 🙂

My last paper is a half-serious rewrite of Feynman’s first Lecture on Quantum Mechanics. Its intention is merely provocative: I want to highlight what of the ‘mystery’ in quantum physics is truly mysterious and what is humbug or – as Feynman would call it – Cargo Cult Science. The section on the ‘form factor’ (what is the ‘geometry’ of the strong force?) in that paper is the shortest and most naive paragraph in that text but it actually does highlight the one and only question that keeps me awake: what is that form factor, what different geometry do we need to explain a proton (or a muon) as opposed to, say, an electron? I know I have to dig into the kind of stuff that you are highlighting – and Alex Burinskii’s Dirac-Kerr-Newman models (also integrating gravity) to find elements that – one day – may explain why a muon is not an electron, and why a proton is not a positron.

Indeed, I think the electron and photon model are just fine: classical EM and Planck’s relation are all that’s needed and so I actually don’t waste to more time on the QED sector. But a decent muon and proton model will, obviously, require ”something else’ than Planck’s relation, the electric charge and electromagnetic theory. The question here is: what is that ‘something else’, exactly?

Even if we find another charge or another field theory to explain the proton, then we’re just at the beginning of explaining the QCD sector. Indeed, the proton and muon are stable (fairly stable – I should say – in case of the muon – which I want to investigate because of the question of matter generations). In contrast, transient particles and resonances do not respect Planck’s relation – that’s why they are unstable – and so we are talking non-equilibrium states and so that’s an entirely different ballgame. In short, I think Dirac’s final words in the very last (fourth) edition of his ‘Principles of Quantum Mechanics’ still ring very true today. They were written in 1958 so Dirac was aware of the work of Gell-Man and Nishijima (the contours of quark-gluon theory) and, clearly, did not think much of it (I understand he also had conversations with Feynman on this):

“Quantum mechanics may be defined as the application of equations of motion to particles. […] The domain of applicability of the theory is mainly the treatment of electrons and other charged particles interacting with the electromagnetic field⎯a domain which includes most of low-energy physics and chemistry.

Now there are other kinds of interactions, which are revealed in high-energy physics and are important for the description of atomic nuclei. These interactions are not at present sufficiently well understood to be incorporated into a system of equations of motion. Theories of them have been set up and much developed and useful results obtained from them. But in the absence of equations of motion these theories cannot be presented as a logical development of the principles set up in this book. We are effectively in the pre-Bohr era with regard to these other interactions. It is to be hoped that with increasing knowledge a way will eventually be found for adapting the high-energy theories into a scheme based on equations of motion, and so unifying them with those of low-energy physics.”

Again, many thanks for reacting and, yes, I will study the references you gave – even if I am a bit skeptical of Wolfram’s new project. Cheers – JL

3 thoughts on “The mystery of the elementary charge

  1. Jean. what’s all this about a point charge? I’ts the wave nature of matter. Schrodinger and de Broglie and others talked about a wave in a closed path. To get a handle on it, cut a sinusoidal strip of paper and form it into a Mobius strip. When you wrap a sinusoidal electromagnetic field variation into a twisted double loop, the minimum and maximum field variation combine, along with all points in between, to leave you with an all-round standing field. See the Wikipedia atomic orbitals article: “electrons do not orbit the nucleus in the sense of a planet orbiting the sun, but instead exist as standing waves”.

    1. Pointlike but not dimensionless, John. In an electron and a muon-electron, at least. I am writing about the ring current model here. Matter-particles carry charge. The wave nature of matter-particles is in the Zitterbewegung oscillation. In fact, if you read the paper (and what I write here in this post) somewhat more carefully, you’ll see that’s actually the whole point. The anomalous magnetic moment tells us the zittering charge inside an electron must have some radius or size – and the calculations give us the classical electron radius – about 2.82 fm. Now, the proton and muon are smaller than that. Hence, we’re surely not talking a dimensionless or even pointlike charge inside of a proton or a muon. The form factor tells us it must be different – and then the question is: how exactly? […] Any case… Bit long and difficult to explain in a quick answer-reply type of comment. 🙂 Cheers and txs for the quick reaction ! 🙂 – JL

  2. Pingback: From QED to QCD
