# The geometry of the wavefunction, electron spin and the form factor

Our previous posts showed how a simple geometric interpretation of the elementary wavefunction yielded the (Compton scattering) radius of an elementary particle—for an electron, at least: for the proton, we only got the order of magnitude right—but then a proton is not an elementary particle. We got lots of other interesting equations as well… But… Well… When everything is said and done, it’s that equivalence between the E = m·a2·ω2 and E = m·c2 relations that we… Well… We need to be more specific about it.

Indeed, I’ve been ambiguous here and there—oscillating between various interpretations, so to speak. 🙂 In my own mind, I refer to my unanswered questions, or my ambiguous answers to them, as the form factor problem. So… Well… That explains the title of my post. But so… Well… I do want to be somewhat more conclusive in this post. So let’s go and see where we end up. 🙂

To help focus our mind, let us recall the metaphor of the V-2 perpetuum mobile, as illustrated below. With permanently closed valves, the air inside the cylinder compresses and decompresses as the pistons move up and down. It provides, therefore, a restoring force. As such, it will store potential energy, just like a spring, and the motion of the pistons will also reflect that of a mass on a spring: it is described by a sinusoidal function, with the zero point at the center of each cylinder. We can, therefore, think of the moving pistons as harmonic oscillators, just like mechanical springs. Of course, instead of two cylinders with pistons, one may also think of connecting two springs with a crankshaft, but then that’s not fancy enough for me. 🙂

At first sight, the analogy between our flywheel model of an electron and the V-twin engine seems to be complete: the 90 degree angle of our V-2 engine makes it possible to perfectly balance the pistons and we may, therefore, think of the flywheel as a (symmetric) rotating mass, whose angular momentum is given by the product of the angular frequency and the moment of inertia: L = ω·I. Of course, the moment of inertia (aka the angular mass) will depend on the form (or shape) of our flywheel:

1. I = m·a2 for a rotating point mass m or, what amounts to the same, for a circular hoop of mass m and radius a.
2. For a rotating (uniformly solid) disk, we must add a 1/2 factor: I = m·a2/2.

How can we relate those formulas to the E = m·a2·ω2 formula? The kinetic energy that is being stored in a flywheel is equal Ekinetic = I·ω2/2, so that is only half of the E = m·a2·ω2 product if we substitute I for I = m·a2. [For a disk, we get a factor 1/4, so that’s even worse!] However, our flywheel model of an electron incorporates potential energy too. In fact, the E = m·a2·ω2 formula just adds the (kinetic and potential) energy of two oscillators: we do not really consider the energy in the flywheel itself because… Well… The essence of our flywheel model of an electron is not the flywheel: the flywheel just transfers energy from one oscillator to the other, but so… Well… We don’t include it in our energy calculations. The essence of our model is that two-dimensional oscillation which drives the electron, and which is reflected in Einstein’s E = m·c2 formula. That two-dimensional oscillation—the a2·ω2 = c2 equation, really—tells us that the resonant (or natural) frequency of the fabric of spacetime is given by the speed of light—but measured in units of a. [If you don’t quite get this, re-write the a2·ω2 = c2 equation as ω = c/a: the radius of our electron appears as a natural distance unit here.]

Now, we were extremely happy with this interpretation not only because of the key results mentioned above, but also because it has lots of other nice consequences. Think of our probabilities as being proportional to energy densities, for example—and all of the other stuff I describe in my published paper on this. But there is even more on the horizon: a follower of this blog (a reader with an actual PhD in physics, for a change) sent me an article analyzing elementary particles as tiny black holes because… Well… If our electron is effectively spinning around, then its tangential velocity is equal to ω = c. Now, recent research suggest black holes are also spinning at (nearly) the speed of light. Interesting, right? However, in order to understand what she’s trying to tell me, I’ll first need to get a better grasp of general relativity, so I can relate what I’ve been writing here and in previous posts to the Schwarzschild radius and other stuff.

Let me get back to the lesson here. In the reference frame of our particle, the wavefunction really looks like the animation below: it has two components, and the amplitude of the two-dimensional oscillation is equal to a, which we calculated as = ħ·/(m·c) = 3.8616×10−13 m, so that’s the (reduced) Compton scattering radius of an electron.

In my original article on this, I used a more complicated argument involving the angular momentum formula, but I now prefer a more straightforward calculation:

c = a·ω = a·E/ħ = a·m·c2/ħ  ⇔ = ħ/(m·c)

The question is: what is that rotating arrow? I’ve been vague and not so vague on this. The thing is: I can’t prove anything in this regard. But my hypothesis is that it is, in effect, a rotating field vector, so it’s just like the electric field vector of a (circularly polarized) electromagnetic wave (illustrated below).

There are a number of crucial differences though:

1. The (physical) dimension of the field vector of the matter-wave is different: I associate the real and imaginary component of the wavefunction with a force per unit mass (as opposed to the force per unit charge dimension of the electric field vector). Of course, the newton/kg dimension reduces to the dimension of acceleration (m/s2), so that’s the dimension of a gravitational field.
2. I do believe this gravitational disturbance, so to speak, does cause an electron to move about some center, and I believe it does so at the speed of light. In contrast, electromagnetic waves do not involve any mass: they’re just an oscillating field. Nothing more. Nothing less. In contrast, as Feynman puts it: “When you do find the electron some place, the entire charge is there.” (Feynman’s Lectures, III-21-4)
3. The third difference is one that I thought of only recently: the plane of the oscillation cannot be perpendicular to the direction of motion of our electron, because then we can’t explain the direction of its magnetic moment, which is either up or down when traveling through a Stern-Gerlach apparatus.

I mentioned that in my previous post but, for your convenience, I’ll repeat what I wrote there. The basic idea here is illustrated below (credit for this illustration goes to another blogger on physics). As for the Stern-Gerlach experiment itself, let me refer you to a YouTube video from the Quantum Made Simple site.

The point is: the direction of the angular momentum (and the magnetic moment) of an electron—or, to be precise, its component as measured in the direction of the (inhomogeneous) magnetic field through which our electron is traveling—cannot be parallel to the direction of motion. On the contrary, it is perpendicular to the direction of motion. In other words, if we imagine our electron as spinning around some center, then the disk it circumscribes will comprise the direction of motion.

However, we need to add an interesting detail here. As you know, we don’t really have a precise direction of angular momentum in quantum physics. [If you don’t know this… Well… Just look at one of my many posts on spin and angular momentum in quantum physics.] Now, we’ve explored a number of hypotheses but, when everything is said and done, a rather classical explanation turns out to be the best: an object with an angular momentum J and a magnetic moment μ (I used bold-face because these are vector quantities) that is parallel to some magnetic field B, will not line up, as you’d expect a tiny magnet to do in a magnetic field—or not completely, at least: it will precess. I explained that in another post on quantum-mechanical spin, which I advise you to re-read if you want to appreciate the point that I am trying to make here. That post integrates some interesting formulas, and so one of the things on my ‘to do’ list is to prove that these formulas are, effectively, compatible with the electron model we’ve presented in this and previous posts.

Indeed, when one advances a hypothesis like this, it’s not enough to just sort of show that the general geometry of the situation makes sense: we also need to show the numbers come out alright. So… Well… Whatever we think our electron—or its wavefunction—might be, it needs to be compatible with stuff like the observed precession frequency of an electron in a magnetic field.

Our model also needs to be compatible with the transformation formulas for amplitudes. I’ve been talking about this for quite a while now, and so it’s about time I get going on that.

Last but not least, those articles that relate matter-particles to (quantum) gravity—such as the one I mentioned above—are intriguing too and, hence, whatever hypotheses I advance here, I’d better check them against those more advanced theories too, right? 🙂 Unfortunately, that’s going to take me a few more years of studying… But… Well… I still have many years ahead—I hope. 🙂

Post scriptum: It’s funny how one’s brain keeps working when sleeping. When I woke up this morning, I thought: “But it is that flywheel that matters, right? That’s the energy storage mechanism and also explains how photons possibly interact with electrons. The oscillators drive the flywheel but, without the flywheel, nothing is happening. It is really the transfer of energy—through the flywheel—which explains why our flywheel goes round and round.”

It may or may not be useful to remind ourselves of the math in this regard. The motion of our first oscillator is given by the cos(ω·t) = cosθ function (θ = ω·t), and its kinetic energy will be equal to sin2θ. Hence, the (instantaneous) change in kinetic energy at any point in time (as a function of the angle θ) is equal to: d(sin2θ)/dθ = 2∙sinθ∙d(sinθ)/dθ = 2∙sinθ∙cosθ. Now, the motion of the second oscillator (just look at that second piston going up and down in the V-2 engine) is given by the sinθ function, which is equal to cos(θ − π /2). Hence, its kinetic energy is equal to sin2(θ − π /2), and how it changes (as a function of θ again) is equal to 2∙sin(θ − π /2)∙cos(θ − π /2) = = −2∙cosθ∙sinθ = −2∙sinθ∙cosθ. So here we have our energy transfer: the flywheel organizes the borrowing and returning of energy, so to speak. That’s the crux of the matter.

So… Well… What if the relevant energy formula is E = m·a2·ω2/2 instead of E = m·a2·ω2? What are the implications? Well… We get a √2 factor in our formula for the radius a, as shown below.

Now that is not so nice. For the tangential velocity, we get a·ω = √2·c. This is also not so nice. How can we save our model? I am not sure, but here I am thinking of the mentioned precession—the wobbling of our flywheel in a magnetic field. Remember we may think of Jz—the angular momentum or, to be precise, its component in the z-direction (the direction in which we measure it—as the projection of the real angular momentum J. Let me insert Feynman’s illustration here again (Feynman’s Lectures, II-34-3), so you get what I am talking about.

Now, all depends on the angle (θ) between Jz and J, of course. We did a rather obscure post on these angles, but the formulas there come in handy now. Just click the link and review it if and when you’d want to understand the following formulas for the magnitude of the presumed actual momentum:In this particular case (spin-1/2 particles), j is equal to 1/2 (in units of ħ, of course). Hence, is equal to √0.75 ≈ 0.866. Elementary geometry then tells us cos(θ) = (1/2)/√(3/4) =  = 1/√3. Hence, θ ≈ 54.73561°. That’s a big angle—larger than the 45° angle we had secretly expected because… Well… The 45° angle has that √2 factor in it: cos(45°) = sin(45°) = 1/√2.

Hmm… As you can see, there is no easy fix here. Those damn 1/2 factors! They pop up everywhere, don’t they? 🙂 We’ll solve the puzzle. One day… But not today, I am afraid. I’ll call it the form factor problem… Because… Well… It sounds better than the 1/2 or √2 problem, right? 🙂

Note: If you’re into quantum math, you’ll note ħ/(m·c) is the reduced Compton scattering radius. The standard Compton scattering radius is equal to  = (2π·ħ)/(m·c) =  h/(m·c) = h/(m·c). It doesn’t solve the √2 problem. Sorry. The form factor problem. 🙂

To be honest, I finished my published paper on all of this with a suggestion that, perhaps, we should think of two circular oscillations, as opposed to linear ones. Think of a tiny ball, whose center of mass stays where it is, as depicted below. Any rotation – around any axis – will be some combination of a rotation around the two other axes. Hence, we may want to think of our two-dimensional oscillation as an oscillation of a polar and azimuthal angle. It’s just a thought but… Well… I am sure it’s going to keep me busy for a while. 🙂They are oscillations, still, so I am not thinking of two flywheels that keep going around in the same direction. No. More like a wobbling object on a spring. Something like the movement of a bobblehead on a spring perhaps. 🙂

# The speed of light as an angular velocity (2)

My previous post on the speed of light as an angular velocity was rather cryptic. This post will be a bit more elaborate. Not all that much, however: this stuff is and remains quite dense, unfortunately. 😦 But I’ll do my best to try to explain what I am thinking of. Remember the formula (or definition) of the elementary wavefunction:

ψ = a·ei[E·t − px]/ħa·cos(px/ħ − E∙t/ħ) + i·a·sin(px/ħ − E∙t/ħ)

How should we interpret this? We know an actual particle will be represented by a wave packet: a sum of wavefunctions, each with its own amplitude ak and its own argument θk = (Ek∙t − pkx)/ħ. But… Well… Let’s see how far we get when analyzing the elementary wavefunction itself only.

According to mathematical convention, the imaginary unit (i) is a 90° angle in the counterclockwise direction. However, Nature surely cannot be bothered about our convention of measuring phase angles – or time itself – clockwise or counterclockwise. Therefore, both right- as well as left-handed polarization may be possible, as illustrated below.

The left-handed elementary wavefunction would be written as:

ψ = a·ei[E·t − px]/ħa·cos(px/ħ − E∙t/ħ) − i·a·sin(px/ħ − E∙t/ħ)

In my previous posts, I hypothesized that the two physical possibilities correspond to the angular momentum of our particle – say, an electron – being either positive or negative: J = +ħ/2 or, else, J = −ħ/2. I will come back to this in a moment. Let us first further examine the functional form of the wavefunction.

We should note that both the direction as well as the magnitude of the (linear) momentum (p) are relative: they depend on the orientation and relative velocity of our reference frame – which are, in effect, relative to the reference frame of our object. As such, the wavefunction itself is relative: another observer will obtain a different value for both the momentum (p) as well as for the energy (E). Of course, this makes us think of the relativity of the electric and magnetic field vectors (E and B) but… Well… It’s not quite the same because – as I will explain in a moment – the argument of the wavefunction, considered as a whole, is actually invariant under a Lorentz transformation.

Let me elaborate this point. If we consider the reference frame of the particle itself, then the idea of direction and momentum sort of vanishes, as the momentum vector shrinks to the origin itself: p = 0. Let us now look at how the argument of the wavefunction transforms. The E and p in the argument of the wavefunction (θ = ω∙t – kx = (E/ħ)∙t – (p/ħ)∙x = (E∙t – px)/ħ) are, of course, the energy and momentum as measured in our frame of reference. Hence, we will want to write these quantities as E = Ev and p = pv = pvv. If we then use natural time and distance units (hence, the numerical value of c is equal to 1 and, hence, the (relative) velocity is then measured as a fraction of c, with a value between 0 and 1), we can relate the energy and momentum of a moving object to its energy and momentum when at rest using the following relativistic formulas:

E= γ·E0 and p= γ·m0v = γ·E0v/c2

The argument of the wavefunction can then be re-written as:

θ = [γ·E0/ħ]∙t – [(γ·E0v/c2)/ħ]∙x = (E0/ħ)·(t − v∙x/c2)·γ = (E0/ħ)∙t’

The γ in these formulas is, of course, the Lorentz factor, and t’ is the proper time: t’ = (t − v∙x/c2)/√(1−v2/c2). Two essential points should be noted here:

1. The argument of the wavefunction is invariant. There is a primed time (t’) but there is no primed θ (θ’): θ = (Ev/ħ)·t – (pv/ħ)·x = (E0/ħ)∙t’.

2. The E0/ħ coefficient pops up as an angular frequency: E0/ħ = ω0. We may refer to it as the frequency of the elementary wavefunction.

Now, if you don’t like the concept of angular frequency, we can also write: f0 = ω0/2π = (E0/ħ)/2π = E0/h. Alternatively, and perhaps more elucidating, we get the following formula for the period of the oscillation:

T0 = 1/f0 = h/E0

This is interesting, because we can look at the period as a natural unit of time for our particle. This period is inversely proportional to the (rest) energy of the particle, and the constant of proportionality is h. Substituting Efor m0·c2, we may also say it’s inversely proportional to the (rest) mass of the particle, with the constant of proportionality equal to h/c2. The period of an electron, for example, would be equal to about 8×10−21 s. That’s very small, and it only gets smaller for larger objects ! But what does all of this really tell us? What does it actually mean?

We can look at the sine and cosine components of the wavefunction as an oscillation in two dimensions, as illustrated below.

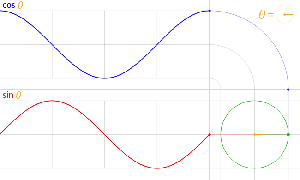

Look at the little green dot going around. Imagine it is some mass going around and around. Its circular motion is equivalent to the two-dimensional oscillation. Indeed, instead of saying it moves along a circle, we may also say it moves simultaneously (1) left and right and back again (the cosine) while also moving (2) up and down and back again (the sine).

Now, a mass that rotates about a fixed axis has angular momentum, which we can write as the vector cross-product L = r×p or, alternatively, as the product of an angular velocity (ω) and rotational inertia (I), aka as the moment of inertia or the angular massL = I·ω. [Note we write L and ω in boldface here because they are (axial) vectors. If we consider their magnitudes only, we write L = I·ω (no boldface).]

We can now do some calculations. We already know the angular velocity (ω) is equal to E0/ħ. Now, the magnitude of r in the Lr×p vector cross-product should equal the magnitude of ψ = a·ei∙E·t/ħ, so we write: r = a. What’s next? Well… The momentum (p) is the product of a linear velocity (v) – in this case, the tangential velocity – and some mass (m): p = m·v. If we switch to scalar instead of vector quantities, then the (tangential) velocity is given by v = r·ω.

So now we only need to think about what formula we should use for the angular mass. If we’re thinking, as we are doing here, of some point mass going around some center, then the formula to use is I = m·r2. However, we may also want to think that the two-dimensional oscillation of our point mass actually describes the surface of a disk, in which case the formula for I becomes I = m·r2/2. Of course, the addition of this 1/2 factor may seem arbitrary but, as you will see, it will give us a more intuitive result. This is what we get:

L = I·ω = (m·r2/2)·(E/ħ) = (1/2)·a2·(E/c2)·(E/ħ) = a2·E2/(2·ħ·c2)

Note that our frame of reference is that of the particle itself, so we should actually write ω0, m0 and E0 instead of ω, m and E. The value of the rest energy of an electron is about 0.510 MeV, or 8.1871×10−14 N∙m. Now, this momentum should equal J = ±ħ/2. We can, therefore, derive the (Compton scattering) radius of an electron:Substituting the various constants with their numerical values, we find that a is equal 3.8616×10−13 m, which is the (reduced) Compton scattering radius of an electron. The (tangential) velocity (v) can now be calculated as being equal to v = r·ω = a·ω = [ħ·/(m·c)]·(E/ħ) = c. This is an amazing result. Let us think about it.

In our previous posts, we introduced the metaphor of two springs or oscillators, whose energy was equal to E = m·ω2. Is this compatible with Einstein’s E = m·c2 mass-energy equivalence relation? It is. The E = m·c2 implies E/m = c2. We, therefore, can write the following:

ω = E/ħ = m·c2/ħ = m·(E/m)·/ħ ⇔ ω = E/ħ

Hence, we should actually have titled this and the previous post somewhat differently: the speed of light appears as a tangential velocity. Think of the following: the ratio of c and ω is equal to c/ω = a·ω/ω = a. Hence, the tangential and angular velocity would be the same if we’d measure distance in units of a. In other words, the radius of an electron appears as a natural distance unit here: if we’d measure ω in units of per second, rather than in radians (which are expressed in the SI unit of distance, i.e. the meter) per second, the two concepts would coincide.

More fundamentally, we may want to look at the radius of an electron as a natural unit of velocityHuh? Yes. Just re-write the c/ω = a as ω = c/a. What does it say? Exactly what I said, right? As such, the radius of an electron is not only a norm for measuring distance but also for time. 🙂

If you don’t quite get this, think of the following. For an electron, we get an angular frequency that is equal to ω = E/ħ = (8.19×10−14 N·m)/(1.05×10−34 N·m·s) ≈ 7.76×1020 radians per second. That’s an incredible velocity, because radians are expressed in distance units—so that’s in meter. However, our mass is not moving along the unit circle, but along a much tinier orbit. The ratio of the radius of the unit circle and is equal to 1/a ≈ (1 m)/(3.86×10−13 m) ≈ 2.59×1012. Now, if we divide the above-mentioned velocity of 7.76×1020 radians per second by this factor, we get… Right ! The speed of light: 2.998×1082 m/s. 🙂

Post scriptum: I have no clear answer to the question as to why we should use the I = m·r2/2 formula, as opposed to the I = m·r2 formula. It ensures we get the result we want, but this 1/2 factor is actually rather enigmatic. It makes me think of the 1/2 factor in Schrödinger’s equation, which is also quite enigmatic. In my view, the 1/2 factor should not be there in Schrödinger’s equation. Electron orbitals tend to be occupied by two electrons with opposite spin. That’s why their energy levels should be twice as much. And so I’d get rid of the 1/2 factor, solve for the energy levels, and then divide them by two again. Or something like that. 🙂 But then that’s just my personal opinion or… Well… I’ve always been intrigued by the difference between the original printed edition of the Feynman Lectures and the online version, which has been edited on this point. My printed edition is the third printing, which is dated July 1966, and – on this point – it says the following:

“Don’t forget that meff has nothing to do with the real mass of an electron. It may be quite different—although in commonly used metals and semiconductors it often happens to turn out to be the same general order of magnitude, about 2 to 20 times the free-space mass of the electron.”

Two to twenty times. Not 1 or 0.5 to 20 times. No. Two times. As I’ve explained a couple of times, if we’d define a new effective mass which would be twice the old concept – so meffNEW = 2∙meffOLD – then such re-definition would not only solve a number of paradoxes and inconsistencies, but it will also justify my interpretation of energy as a two-dimensional oscillation of mass.

However, the online edition has been edited here to reflect the current knowledge about the behavior of an electron in a medium. Hence, if you click on the link above, you will read that the effective mass can be “about 0.1 to 30 times” the free-space mass of the electron. Well… This is another topic altogether, and so I’ll sign off here and let you think about it all. 🙂

# Wavefunctions as gravitational waves

This is the paper I always wanted to write. It is there now, and I think it is good – and that‘s an understatement. 🙂 It is probably best to download it as a pdf-file from the viXra.org site because this was a rather fast ‘copy and paste’ job from the Word version of the paper, so there may be issues with boldface notation (vector notation), italics and, most importantly, with formulas – which I, sadly, have to ‘snip’ into this WordPress blog, as they don’t have an easy copy function for mathematical formulas.

It’s great stuff. If you have been following my blog – and many of you have – you will want to digest this. 🙂

Abstract : This paper explores the implications of associating the components of the wavefunction with a physical dimension: force per unit mass – which is, of course, the dimension of acceleration (m/s2) and gravitational fields. The classical electromagnetic field equations for energy densities, the Poynting vector and spin angular momentum are then re-derived by substituting the electromagnetic N/C unit of field strength (mass per unit charge) by the new N/kg = m/s2 dimension.

The results are elegant and insightful. For example, the energy densities are proportional to the square of the absolute value of the wavefunction and, hence, to the probabilities, which establishes a physical normalization condition. Also, Schrödinger’s wave equation may then, effectively, be interpreted as a diffusion equation for energy, and the wavefunction itself can be interpreted as a propagating gravitational wave. Finally, as an added bonus, concepts such as the Compton scattering radius for a particle, spin angular momentum, and the boson-fermion dichotomy, can also be explained more intuitively.

While the approach offers a physical interpretation of the wavefunction, the author argues that the core of the Copenhagen interpretations revolves around the complementarity principle, which remains unchallenged because the interpretation of amplitude waves as traveling fields does not explain the particle nature of matter.

# Introduction

This is not another introduction to quantum mechanics. We assume the reader is already familiar with the key principles and, importantly, with the basic math. We offer an interpretation of wave mechanics. As such, we do not challenge the complementarity principle: the physical interpretation of the wavefunction that is offered here explains the wave nature of matter only. It explains diffraction and interference of amplitudes but it does not explain why a particle will hit the detector not as a wave but as a particle. Hence, the Copenhagen interpretation of the wavefunction remains relevant: we just push its boundaries.

The basic ideas in this paper stem from a simple observation: the geometric similarity between the quantum-mechanical wavefunctions and electromagnetic waves is remarkably similar. The components of both waves are orthogonal to the direction of propagation and to each other. Only the relative phase differs : the electric and magnetic field vectors (E and B) have the same phase. In contrast, the phase of the real and imaginary part of the (elementary) wavefunction (ψ = a·ei∙θ = a∙cosθ – a∙sinθ) differ by 90 degrees (π/2).[1] Pursuing the analogy, we explore the following question: if the oscillating electric and magnetic field vectors of an electromagnetic wave carry the energy that one associates with the wave, can we analyze the real and imaginary part of the wavefunction in a similar way?

We show the answer is positive and remarkably straightforward.  If the physical dimension of the electromagnetic field is expressed in newton per coulomb (force per unit charge), then the physical dimension of the components of the wavefunction may be associated with force per unit mass (newton per kg).[2] Of course, force over some distance is energy. The question then becomes: what is the energy concept here? Kinetic? Potential? Both?

The similarity between the energy of a (one-dimensional) linear oscillator (E = m·a2·ω2/2) and Einstein’s relativistic energy equation E = m∙c2 inspires us to interpret the energy as a two-dimensional oscillation of mass. To assist the reader, we construct a two-piston engine metaphor.[3] We then adapt the formula for the electromagnetic energy density to calculate the energy densities for the wave function. The results are elegant and intuitive: the energy densities are proportional to the square of the absolute value of the wavefunction and, hence, to the probabilities. Schrödinger’s wave equation may then, effectively, be interpreted as a diffusion equation for energy itself.

As an added bonus, concepts such as the Compton scattering radius for a particle and spin angular, as well as the boson-fermion dichotomy can be explained in a fully intuitive way.[4]

Of course, such interpretation is also an interpretation of the wavefunction itself, and the immediate reaction of the reader is predictable: the electric and magnetic field vectors are, somehow, to be looked at as real vectors. In contrast, the real and imaginary components of the wavefunction are not. However, this objection needs to be phrased more carefully. First, it may be noted that, in a classical analysis, the magnetic force is a pseudovector itself.[5] Second, a suitable choice of coordinates may make quantum-mechanical rotation matrices irrelevant.[6]

Therefore, the author is of the opinion that this little paper may provide some fresh perspective on the question, thereby further exploring Einstein’s basic sentiment in regard to quantum mechanics, which may be summarized as follows: there must be some physical explanation for the calculated probabilities.[7]

We will, therefore, start with Einstein’s relativistic energy equation (E = mc2) and wonder what it could possibly tell us.

# I. Energy as a two-dimensional oscillation of mass

The structural similarity between the relativistic energy formula, the formula for the total energy of an oscillator, and the kinetic energy of a moving body, is striking:

1. E = mc2
2. E = mω2/2
3. E = mv2/2

In these formulas, ω, v and c all describe some velocity.[8] Of course, there is the 1/2 factor in the E = mω2/2 formula[9], but that is exactly the point we are going to explore here: can we think of an oscillation in two dimensions, so it stores an amount of energy that is equal to E = 2·m·ω2/2 = m·ω2?

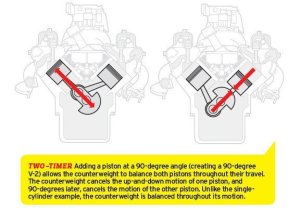

That is easy enough. Think, for example, of a V-2 engine with the pistons at a 90-degree angle, as illustrated below. The 90° angle makes it possible to perfectly balance the counterweight and the pistons, thereby ensuring smooth travel at all times. With permanently closed valves, the air inside the cylinder compresses and decompresses as the pistons move up and down and provides, therefore, a restoring force. As such, it will store potential energy, just like a spring, and the motion of the pistons will also reflect that of a mass on a spring. Hence, we can describe it by a sinusoidal function, with the zero point at the center of each cylinder. We can, therefore, think of the moving pistons as harmonic oscillators, just like mechanical springs.

Figure 1: Oscillations in two dimensions

If we assume there is no friction, we have a perpetuum mobile here. The compressed air and the rotating counterweight (which, combined with the crankshaft, acts as a flywheel[10]) store the potential energy. The moving masses of the pistons store the kinetic energy of the system.[11]

At this point, it is probably good to quickly review the relevant math. If the magnitude of the oscillation is equal to a, then the motion of the piston (or the mass on a spring) will be described by x = a·cos(ω·t + Δ).[12] Needless to say, Δ is just a phase factor which defines our t = 0 point, and ω is the natural angular frequency of our oscillator. Because of the 90° angle between the two cylinders, Δ would be 0 for one oscillator, and –π/2 for the other. Hence, the motion of one piston is given by x = a·cos(ω·t), while the motion of the other is given by x = a·cos(ω·t–π/2) = a·sin(ω·t).

The kinetic and potential energy of one oscillator (think of one piston or one spring only) can then be calculated as:

1. K.E. = T = m·v2/2 = (1/2)·m·ω2·a2·sin2(ω·t + Δ)
2. P.E. = U = k·x2/2 = (1/2)·k·a2·cos2(ω·t + Δ)

The coefficient k in the potential energy formula characterizes the restoring force: F = −k·x. From the dynamics involved, it is obvious that k must be equal to m·ω2. Hence, the total energy is equal to:

E = T + U = (1/2)· m·ω2·a2·[sin2(ω·t + Δ) + cos2(ω·t + Δ)] = m·a2·ω2/2

To facilitate the calculations, we will briefly assume k = m·ω2 and a are equal to 1. The motion of our first oscillator is given by the cos(ω·t) = cosθ function (θ = ω·t), and its kinetic energy will be equal to sin2θ. Hence, the (instantaneous) change in kinetic energy at any point in time will be equal to:

d(sin2θ)/dθ = 2∙sinθ∙d(sinθ)/dθ = 2∙sinθ∙cosθ

Let us look at the second oscillator now. Just think of the second piston going up and down in the V-2 engine. Its motion is given by the sinθ function, which is equal to cos(θ−π /2). Hence, its kinetic energy is equal to sin2(θ−π /2), and how it changes – as a function of θ – will be equal to:

2∙sin(θ−π /2)∙cos(θ−π /2) = = −2∙cosθ∙sinθ = −2∙sinθ∙cosθ

We have our perpetuum mobile! While transferring kinetic energy from one piston to the other, the crankshaft will rotate with a constant angular velocity: linear motion becomes circular motion, and vice versa, and the total energy that is stored in the system is T + U = ma2ω2.

We have a great metaphor here. Somehow, in this beautiful interplay between linear and circular motion, energy is borrowed from one place and then returns to the other, cycle after cycle. We know the wavefunction consist of a sine and a cosine: the cosine is the real component, and the sine is the imaginary component. Could they be equally real? Could each represent half of the total energy of our particle? Should we think of the c in our E = mc2 formula as an angular velocity?

These are sensible questions. Let us explore them.

# II. The wavefunction as a two-dimensional oscillation

The elementary wavefunction is written as:

ψ = a·ei[E·t − px]/ħa·ei[E·t − px]/ħ = a·cos(px E∙t/ħ) + i·a·sin(px E∙t/ħ)

When considering a particle at rest (p = 0) this reduces to:

ψ = a·ei∙E·t/ħ = a·cos(E∙t/ħ) + i·a·sin(E∙t/ħ) = a·cos(E∙t/ħ) i·a·sin(E∙t/ħ)

Let us remind ourselves of the geometry involved, which is illustrated below. Note that the argument of the wavefunction rotates clockwise with time, while the mathematical convention for measuring the phase angle (ϕ) is counter-clockwise.

Figure 2: Euler’s formula

If we assume the momentum p is all in the x-direction, then the p and x vectors will have the same direction, and px/ħ reduces to p∙x/ħ. Most illustrations – such as the one below – will either freeze x or, else, t. Alternatively, one can google web animations varying both. The point is: we also have a two-dimensional oscillation here. These two dimensions are perpendicular to the direction of propagation of the wavefunction. For example, if the wavefunction propagates in the x-direction, then the oscillations are along the y– and z-axis, which we may refer to as the real and imaginary axis. Note how the phase difference between the cosine and the sine  – the real and imaginary part of our wavefunction – appear to give some spin to the whole. I will come back to this.

Figure 3: Geometric representation of the wavefunction

Hence, if we would say these oscillations carry half of the total energy of the particle, then we may refer to the real and imaginary energy of the particle respectively, and the interplay between the real and the imaginary part of the wavefunction may then describe how energy propagates through space over time.

Let us consider, once again, a particle at rest. Hence, p = 0 and the (elementary) wavefunction reduces to ψ = a·ei∙E·t/ħ. Hence, the angular velocity of both oscillations, at some point x, is given by ω = -E/ħ. Now, the energy of our particle includes all of the energy – kinetic, potential and rest energy – and is, therefore, equal to E = mc2.

Can we, somehow, relate this to the m·a2·ω2 energy formula for our V-2 perpetuum mobile? Our wavefunction has an amplitude too. Now, if the oscillations of the real and imaginary wavefunction store the energy of our particle, then their amplitude will surely matter. In fact, the energy of an oscillation is, in general, proportional to the square of the amplitude: E µ a2. We may, therefore, think that the a2 factor in the E = m·a2·ω2 energy will surely be relevant as well.

However, here is a complication: an actual particle is localized in space and can, therefore, not be represented by the elementary wavefunction. We must build a wave packet for that: a sum of wavefunctions, each with their own amplitude ak, and their own ωi = -Ei/ħ. Each of these wavefunctions will contribute some energy to the total energy of the wave packet. To calculate the contribution of each wave to the total, both ai as well as Ei will matter.

What is Ei? Ei varies around some average E, which we can associate with some average mass m: m = E/c2. The Uncertainty Principle kicks in here. The analysis becomes more complicated, but a formula such as the one below might make sense:We can re-write this as:What is the meaning of this equation? We may look at it as some sort of physical normalization condition when building up the Fourier sum. Of course, we should relate this to the mathematical normalization condition for the wavefunction. Our intuition tells us that the probabilities must be related to the energy densities, but how exactly? We will come back to this question in a moment. Let us first think some more about the enigma: what is mass?

Before we do so, let us quickly calculate the value of c2ħ2: it is about 1´1051 N2∙m4. Let us also do a dimensional analysis: the physical dimensions of the E = m·a2·ω2 equation make sense if we express m in kg, a in m, and ω in rad/s. We then get: [E] = kg∙m2/s2 = (N∙s2/m)∙m2/s2 = N∙m = J. The dimensions of the left- and right-hand side of the physical normalization condition is N3∙m5.

# III. What is mass?

We came up, playfully, with a meaningful interpretation for energy: it is a two-dimensional oscillation of mass. But what is mass? A new aether theory is, of course, not an option, but then what is it that is oscillating? To understand the physics behind equations, it is always good to do an analysis of the physical dimensions in the equation. Let us start with Einstein’s energy equation once again. If we want to look at mass, we should re-write it as m = E/c2:

[m] = [E/c2] = J/(m/s)2 = N·m∙s2/m2 = N·s2/m = kg

This is not very helpful. It only reminds us of Newton’s definition of a mass: mass is that what gets accelerated by a force. At this point, we may want to think of the physical significance of the absolute nature of the speed of light. Einstein’s E = mc2 equation implies we can write the ratio between the energy and the mass of any particle is always the same, so we can write, for example:This reminds us of the ω2= C1/L or ω2 = k/m of harmonic oscillators once again.[13] The key difference is that the ω2= C1/L and ω2 = k/m formulas introduce two or more degrees of freedom.[14] In contrast, c2= E/m for any particle, always. However, that is exactly the point: we can modulate the resistance, inductance and capacitance of electric circuits, and the stiffness of springs and the masses we put on them, but we live in one physical space only: our spacetime. Hence, the speed of light c emerges here as the defining property of spacetime – the resonant frequency, so to speak. We have no further degrees of freedom here.

The Planck-Einstein relation (for photons) and the de Broglie equation (for matter-particles) have an interesting feature: both imply that the energy of the oscillation is proportional to the frequency, with Planck’s constant as the constant of proportionality. Now, for one-dimensional oscillations – think of a guitar string, for example – we know the energy will be proportional to the square of the frequency. It is a remarkable observation: the two-dimensional matter-wave, or the electromagnetic wave, gives us two waves for the price of one, so to speak, each carrying half of the total energy of the oscillation but, as a result, we get a proportionality between E and f instead of between E and f2.

However, such reflections do not answer the fundamental question we started out with: what is mass? At this point, it is hard to go beyond the circular definition that is implied by Einstein’s formula: energy is a two-dimensional oscillation of mass, and mass packs energy, and c emerges us as the property of spacetime that defines how exactly.

When everything is said and done, this does not go beyond stating that mass is some scalar field. Now, a scalar field is, quite simply, some real number that we associate with a position in spacetime. The Higgs field is a scalar field but, of course, the theory behind it goes much beyond stating that we should think of mass as some scalar field. The fundamental question is: why and how does energy, or matter, condense into elementary particles? That is what the Higgs mechanism is about but, as this paper is exploratory only, we cannot even start explaining the basics of it.

What we can do, however, is look at the wave equation again (Schrödinger’s equation), as we can now analyze it as an energy diffusion equation.

# IV. Schrödinger’s equation as an energy diffusion equation

The interpretation of Schrödinger’s equation as a diffusion equation is straightforward. Feynman (Lectures, III-16-1) briefly summarizes it as follows:

“We can think of Schrödinger’s equation as describing the diffusion of the probability amplitude from one point to the next. […] But the imaginary coefficient in front of the derivative makes the behavior completely different from the ordinary diffusion such as you would have for a gas spreading out along a thin tube. Ordinary diffusion gives rise to real exponential solutions, whereas the solutions of Schrödinger’s equation are complex waves.”[17]

Let us review the basic math. For a particle moving in free space – with no external force fields acting on it – there is no potential (U = 0) and, therefore, the Uψ term disappears. Therefore, Schrödinger’s equation reduces to:

∂ψ(x, t)/∂t = i·(1/2)·(ħ/meff)·∇2ψ(x, t)

The ubiquitous diffusion equation in physics is:

∂φ(x, t)/∂t = D·∇2φ(x, t)

The structural similarity is obvious. The key difference between both equations is that the wave equation gives us two equations for the price of one. Indeed, because ψ is a complex-valued function, with a real and an imaginary part, we get the following equations[18]:

1. Re(∂ψ/∂t) = −(1/2)·(ħ/meffIm(∇2ψ)
2. Im(∂ψ/∂t) = (1/2)·(ħ/meffRe(∇2ψ)

These equations make us think of the equations for an electromagnetic wave in free space (no stationary charges or currents):

1. B/∂t = –∇×E
2. E/∂t = c2∇×B

The above equations effectively describe a propagation mechanism in spacetime, as illustrated below.

Figure 4: Propagation mechanisms

The Laplacian operator (∇2), when operating on a scalar quantity, gives us a flux density, i.e. something expressed per square meter (1/m2). In this case, it is operating on ψ(x, t), so what is the dimension of our wavefunction ψ(x, t)? To answer that question, we should analyze the diffusion constant in Schrödinger’s equation, i.e. the (1/2)·(ħ/meff) factor:

1. As a mathematical constant of proportionality, it will quantify the relationship between both derivatives (i.e. the time derivative and the Laplacian);
2. As a physical constant, it will ensure the physical dimensions on both sides of the equation are compatible.

Now, the ħ/meff factor is expressed in (N·m·s)/(N· s2/m) = m2/s. Hence, it does ensure the dimensions on both sides of the equation are, effectively, the same: ∂ψ/∂t is a time derivative and, therefore, its dimension is s1 while, as mentioned above, the dimension of ∇2ψ is m2. However, this does not solve our basic question: what is the dimension of the real and imaginary part of our wavefunction?

At this point, mainstream physicists will say: it does not have a physical dimension, and there is no geometric interpretation of Schrödinger’s equation. One may argue, effectively, that its argument, (px – E∙t)/ħ, is just a number and, therefore, that the real and imaginary part of ψ is also just some number.

To this, we may object that ħ may be looked as a mathematical scaling constant only. If we do that, then the argument of ψ will, effectively, be expressed in action units, i.e. in N·m·s. It then does make sense to also associate a physical dimension with the real and imaginary part of ψ. What could it be?

We may have a closer look at Maxwell’s equations for inspiration here. The electric field vector is expressed in newton (the unit of force) per unit of charge (coulomb). Now, there is something interesting here. The physical dimension of the magnetic field is N/C divided by m/s.[19] We may write B as the following vector cross-product: B = (1/c)∙ex×E, with ex the unit vector pointing in the x-direction (i.e. the direction of propagation of the wave). Hence, we may associate the (1/c)∙ex× operator, which amounts to a rotation by 90 degrees, with the s/m dimension. Now, multiplication by i also amounts to a rotation by 90° degrees. Hence, we may boldly write: B = (1/c)∙ex×E = (1/c)∙iE. This allows us to also geometrically interpret Schrödinger’s equation in the way we interpreted it above (see Figure 3).[20]

Still, we have not answered the question as to what the physical dimension of the real and imaginary part of our wavefunction should be. At this point, we may be inspired by the structural similarity between Newton’s and Coulomb’s force laws:Hence, if the electric field vector E is expressed in force per unit charge (N/C), then we may want to think of associating the real part of our wavefunction with a force per unit mass (N/kg). We can, of course, do a substitution here, because the mass unit (1 kg) is equivalent to 1 N·s2/m. Hence, our N/kg dimension becomes:

N/kg = N/(N·s2/m)= m/s2

What is this: m/s2? Is that the dimension of the a·cosθ term in the a·eiθ a·cosθ − i·a·sinθ wavefunction?

My answer is: why not? Think of it: m/s2 is the physical dimension of acceleration: the increase or decrease in velocity (m/s) per second. It ensures the wavefunction for any particle – matter-particles or particles with zero rest mass (photons) – and the associated wave equation (which has to be the same for all, as the spacetime we live in is one) are mutually consistent.

In this regard, we should think of how we would model a gravitational wave. The physical dimension would surely be the same: force per mass unit. It all makes sense: wavefunctions may, perhaps, be interpreted as traveling distortions of spacetime, i.e. as tiny gravitational waves.

# V. Energy densities and flows

Pursuing the geometric equivalence between the equations for an electromagnetic wave and Schrödinger’s equation, we can now, perhaps, see if there is an equivalent for the energy density. For an electromagnetic wave, we know that the energy density is given by the following formula:E and B are the electric and magnetic field vector respectively. The Poynting vector will give us the directional energy flux, i.e. the energy flow per unit area per unit time. We write:Needless to say, the ∙ operator is the divergence and, therefore, gives us the magnitude of a (vector) field’s source or sink at a given point. To be precise, the divergence gives us the volume density of the outward flux of a vector field from an infinitesimal volume around a given point. In this case, it gives us the volume density of the flux of S.

We can analyze the dimensions of the equation for the energy density as follows:

1. E is measured in newton per coulomb, so [EE] = [E2] = N2/C2.
2. B is measured in (N/C)/(m/s), so we get [BB] = [B2] = (N2/C2)·(s2/m2). However, the dimension of our c2 factor is (m2/s2) and so we’re also left with N2/C2.
3. The ϵ0 is the electric constant, aka as the vacuum permittivity. As a physical constant, it should ensure the dimensions on both sides of the equation work out, and they do: [ε0] = C2/(N·m2) and, therefore, if we multiply that with N2/C2, we find that is expressed in J/m3.[21]

Replacing the newton per coulomb unit (N/C) by the newton per kg unit (N/kg) in the formulas above should give us the equivalent of the energy density for the wavefunction. We just need to substitute ϵ0 for an equivalent constant. We may to give it a try. If the energy densities can be calculated – which are also mass densities, obviously – then the probabilities should be proportional to them.

Let us first see what we get for a photon, assuming the electromagnetic wave represents its wavefunction. Substituting B for (1/c)∙iE or for −(1/c)∙iE gives us the following result:Zero!? An unexpected result! Or not? We have no stationary charges and no currents: only an electromagnetic wave in free space. Hence, the local energy conservation principle needs to be respected at all points in space and in time. The geometry makes sense of the result: for an electromagnetic wave, the magnitudes of E and B reach their maximum, minimum and zero point simultaneously, as shown below.[22] This is because their phase is the same.

Figure 5: Electromagnetic wave: E and B

Should we expect a similar result for the energy densities that we would associate with the real and imaginary part of the matter-wave? For the matter-wave, we have a phase difference between a·cosθ and a·sinθ, which gives a different picture of the propagation of the wave (see Figure 3).[23] In fact, the geometry of the suggestion suggests some inherent spin, which is interesting. I will come back to this. Let us first guess those densities. Making abstraction of any scaling constants, we may write:We get what we hoped to get: the absolute square of our amplitude is, effectively, an energy density !

|ψ|2  = |a·ei∙E·t/ħ|2 = a2 = u

This is very deep. A photon has no rest mass, so it borrows and returns energy from empty space as it travels through it. In contrast, a matter-wave carries energy and, therefore, has some (rest) mass. It is therefore associated with an energy density, and this energy density gives us the probabilities. Of course, we need to fine-tune the analysis to account for the fact that we have a wave packet rather than a single wave, but that should be feasible.

As mentioned, the phase difference between the real and imaginary part of our wavefunction (a cosine and a sine function) appear to give some spin to our particle. We do not have this particularity for a photon. Of course, photons are bosons, i.e. spin-zero particles, while elementary matter-particles are fermions with spin-1/2. Hence, our geometric interpretation of the wavefunction suggests that, after all, there may be some more intuitive explanation of the fundamental dichotomy between bosons and fermions, which puzzled even Feynman:

“Why is it that particles with half-integral spin are Fermi particles, whereas particles with integral spin are Bose particles? We apologize for the fact that we cannot give you an elementary explanation. An explanation has been worked out by Pauli from complicated arguments of quantum field theory and relativity. He has shown that the two must necessarily go together, but we have not been able to find a way of reproducing his arguments on an elementary level. It appears to be one of the few places in physics where there is a rule which can be stated very simply, but for which no one has found a simple and easy explanation. The explanation is deep down in relativistic quantum mechanics. This probably means that we do not have a complete understanding of the fundamental principle involved.” (Feynman, Lectures, III-4-1)

The physical interpretation of the wavefunction, as presented here, may provide some better understanding of ‘the fundamental principle involved’: the physical dimension of the oscillation is just very different. That is all: it is force per unit charge for photons, and force per unit mass for matter-particles. We will examine the question of spin somewhat more carefully in section VII. Let us first examine the matter-wave some more.

# VI. Group and phase velocity of the matter-wave

The geometric representation of the matter-wave (see Figure 3) suggests a traveling wave and, yes, of course: the matter-wave effectively travels through space and time. But what is traveling, exactly? It is the pulse – or the signal – only: the phase velocity of the wave is just a mathematical concept and, even in our physical interpretation of the wavefunction, the same is true for the group velocity of our wave packet. The oscillation is two-dimensional, but perpendicular to the direction of travel of the wave. Hence, nothing actually moves with our particle.

Here, we should also reiterate that we did not answer the question as to what is oscillating up and down and/or sideways: we only associated a physical dimension with the components of the wavefunction – newton per kg (force per unit mass), to be precise. We were inspired to do so because of the physical dimension of the electric and magnetic field vectors (newton per coulomb, i.e. force per unit charge) we associate with electromagnetic waves which, for all practical purposes, we currently treat as the wavefunction for a photon. This made it possible to calculate the associated energy densities and a Poynting vector for energy dissipation. In addition, we showed that Schrödinger’s equation itself then becomes a diffusion equation for energy. However, let us now focus some more on the asymmetry which is introduced by the phase difference between the real and the imaginary part of the wavefunction. Look at the mathematical shape of the elementary wavefunction once again:

ψ = a·ei[E·t − px]/ħa·ei[E·t − px]/ħ = a·cos(px/ħ − E∙t/ħ) + i·a·sin(px/ħ − E∙t/ħ)

The minus sign in the argument of our sine and cosine function defines the direction of travel: an F(x−v∙t) wavefunction will always describe some wave that is traveling in the positive x-direction (with the wave velocity), while an F(x+v∙t) wavefunction will travel in the negative x-direction. For a geometric interpretation of the wavefunction in three dimensions, we need to agree on how to define i or, what amounts to the same, a convention on how to define clockwise and counterclockwise directions: if we look at a clock from the back, then its hand will be moving counterclockwise. So we need to establish the equivalent of the right-hand rule. However, let us not worry about that now. Let us focus on the interpretation. To ease the analysis, we’ll assume we’re looking at a particle at rest. Hence, p = 0, and the wavefunction reduces to:

ψ = a·ei∙E·t/ħ = a·cos(−E∙t/ħ) + i·a·sin(−E0∙t/ħ) = a·cos(E0∙t/ħ) − i·a·sin(E0∙t/ħ)

E0 is, of course, the rest mass of our particle and, now that we are here, we should probably wonder whose time we are talking about: is it our time, or is the proper time of our particle? Well… In this situation, we are both at rest so it does not matter: t is, effectively, the proper time so perhaps we should write it as t0. It does not matter. You can see what we expect to see: E0/ħ pops up as the natural frequency of our matter-particle: (E0/ħ)∙t = ω∙t. Remembering the ω = 2π·f = 2π/T and T = 1/formulas, we can associate a period and a frequency with this wave, using the ω = 2π·f = 2π/T. Noting that ħ = h/2π, we find the following:

T = 2π·(ħ/E0) = h/E0 ⇔ = E0/h = m0c2/h

This is interesting, because we can look at the period as a natural unit of time for our particle. What about the wavelength? That is tricky because we need to distinguish between group and phase velocity here. The group velocity (vg) should be zero here, because we assume our particle does not move. In contrast, the phase velocity is given by vp = λ·= (2π/k)·(ω/2π) = ω/k. In fact, we’ve got something funny here: the wavenumber k = p/ħ is zero, because we assume the particle is at rest, so p = 0. So we have a division by zero here, which is rather strange. What do we get assuming the particle is not at rest? We write:

vp = ω/k = (E/ħ)/(p/ħ) = E/p = E/(m·vg) = (m·c2)/(m·vg) = c2/vg

This is interesting: it establishes a reciprocal relation between the phase and the group velocity, with as a simple scaling constant. Indeed, the graph below shows the shape of the function does not change with the value of c, and we may also re-write the relation above as:

vp/= βp = c/vp = 1/βg = 1/(c/vp)

Figure 6: Reciprocal relation between phase and group velocity

We can also write the mentioned relationship as vp·vg = c2, which reminds us of the relationship between the electric and magnetic constant (1/ε0)·(1/μ0) = c2. This is interesting in light of the fact we can re-write this as (c·ε0)·(c·μ0) = 1, which shows electricity and magnetism are just two sides of the same coin, so to speak.[24]

Interesting, but how do we interpret the math? What about the implications of the zero value for wavenumber k = p/ħ. We would probably like to think it implies the elementary wavefunction should always be associated with some momentum, because the concept of zero momentum clearly leads to weird math: something times zero cannot be equal to c2! Such interpretation is also consistent with the Uncertainty Principle: if Δx·Δp ≥ ħ, then neither Δx nor Δp can be zero. In other words, the Uncertainty Principle tells us that the idea of a pointlike particle actually being at some specific point in time and in space does not make sense: it has to move. It tells us that our concept of dimensionless points in time and space are mathematical notions only. Actual particles – including photons – are always a bit spread out, so to speak, and – importantly – they have to move.

For a photon, this is self-evident. It has no rest mass, no rest energy, and, therefore, it is going to move at the speed of light itself. We write: p = m·c = m·c2/= E/c. Using the relationship above, we get:

vp = ω/k = (E/ħ)/(p/ħ) = E/p = c ⇒ vg = c2/vp = c2/c = c

This is good: we started out with some reflections on the matter-wave, but here we get an interpretation of the electromagnetic wave as a wavefunction for the photon. But let us get back to our matter-wave. In regard to our interpretation of a particle having to move, we should remind ourselves, once again, of the fact that an actual particle is always localized in space and that it can, therefore, not be represented by the elementary wavefunction ψ = a·ei[E·t − px]/ħ or, for a particle at rest, the ψ = a·ei∙E·t/ħ function. We must build a wave packet for that: a sum of wavefunctions, each with their own amplitude ai, and their own ωi = −Ei/ħ. Indeed, in section II, we showed that each of these wavefunctions will contribute some energy to the total energy of the wave packet and that, to calculate the contribution of each wave to the total, both ai as well as Ei matter. This may or may not resolve the apparent paradox. Let us look at the group velocity.

To calculate a meaningful group velocity, we must assume the vg = ∂ωi/∂ki = ∂(Ei/ħ)/∂(pi/ħ) = ∂(Ei)/∂(pi) exists. So we must have some dispersion relation. How do we calculate it? We need to calculate ωi as a function of ki here, or Ei as a function of pi. How do we do that? Well… There are a few ways to go about it but one interesting way of doing it is to re-write Schrödinger’s equation as we did, i.e. by distinguishing the real and imaginary parts of the ∂ψ/∂t =i·[ħ/(2m)]·∇2ψ wave equation and, hence, re-write it as the following pair of two equations:

1. Re(∂ψ/∂t) = −[ħ/(2meff)]·Im(∇2ψ) ⇔ ω·cos(kx − ωt) = k2·[ħ/(2meff)]·cos(kx − ωt)
2. Im(∂ψ/∂t) = [ħ/(2meff)]·Re(∇2ψ) ⇔ ω·sin(kx − ωt) = k2·[ħ/(2meff)]·sin(kx − ωt)

Both equations imply the following dispersion relation:

ω = ħ·k2/(2meff)

Of course, we need to think about the subscripts now: we have ωi, ki, but… What about meff or, dropping the subscript, m? Do we write it as mi? If so, what is it? Well… It is the equivalent mass of Ei obviously, and so we get it from the mass-energy equivalence relation: mi = Ei/c2. It is a fine point, but one most people forget about: they usually just write m. However, if there is uncertainty in the energy, then Einstein’s mass-energy relation tells us we must have some uncertainty in the (equivalent) mass too. Here, I should refer back to Section II: Ei varies around some average energy E and, therefore, the Uncertainty Principle kicks in.

# VII. Explaining spin

The elementary wavefunction vector – i.e. the vector sum of the real and imaginary component – rotates around the x-axis, which gives us the direction of propagation of the wave (see Figure 3). Its magnitude remains constant. In contrast, the magnitude of the electromagnetic vector – defined as the vector sum of the electric and magnetic field vectors – oscillates between zero and some maximum (see Figure 5).

We already mentioned that the rotation of the wavefunction vector appears to give some spin to the particle. Of course, a circularly polarized wave would also appear to have spin (think of the E and B vectors rotating around the direction of propagation – as opposed to oscillating up and down or sideways only). In fact, a circularly polarized light does carry angular momentum, as the equivalent mass of its energy may be thought of as rotating as well. But so here we are looking at a matter-wave.

The basic idea is the following: if we look at ψ = a·ei∙E·t/ħ as some real vector – as a two-dimensional oscillation of mass, to be precise – then we may associate its rotation around the direction of propagation with some torque. The illustration below reminds of the math here.

Figure 7: Torque and angular momentum vectors

A torque on some mass about a fixed axis gives it angular momentum, which we can write as the vector cross-product L = r×p or, perhaps easier for our purposes here as the product of an angular velocity (ω) and rotational inertia (I), aka as the moment of inertia or the angular mass. We write:

L = I·ω

Note we can write L and ω in boldface here because they are (axial) vectors. If we consider their magnitudes only, we write L = I·ω (no boldface). We can now do some calculations. Let us start with the angular velocity. In our previous posts, we showed that the period of the matter-wave is equal to T = 2π·(ħ/E0). Hence, the angular velocity must be equal to:

ω = 2π/[2π·(ħ/E0)] = E0

We also know the distance r, so that is the magnitude of r in the Lr×p vector cross-product: it is just a, so that is the magnitude of ψ = a·ei∙E·t/ħ. Now, the momentum (p) is the product of a linear velocity (v) – in this case, the tangential velocity – and some mass (m): p = m·v. If we switch to scalar instead of vector quantities, then the (tangential) velocity is given by v = r·ω. So now we only need to think about what we should use for m or, if we want to work with the angular velocity (ω), the angular mass (I). Here we need to make some assumption about the mass (or energy) distribution. Now, it may or may not sense to assume the energy in the oscillation – and, therefore, the mass – is distributed uniformly. In that case, we may use the formula for the angular mass of a solid cylinder: I = m·r2/2. If we keep the analysis non-relativistic, then m = m0. Of course, the energy-mass equivalence tells us that m0 = E0/c2. Hence, this is what we get:

L = I·ω = (m0·r2/2)·(E0/ħ) = (1/2)·a2·(E0/c2)·(E0/ħ) = a2·E02/(2·ħ·c2)

Does it make sense? Maybe. Maybe not. Let us do a dimensional analysis: that won’t check our logic, but it makes sure we made no mistakes when mapping mathematical and physical spaces. We have m2·J2 = m2·N2·m2 in the numerator and N·m·s·m2/s2 in the denominator. Hence, the dimensions work out: we get N·m·s as the dimension for L, which is, effectively, the physical dimension of angular momentum. It is also the action dimension, of course, and that cannot be a coincidence. Also note that the E = mc2 equation allows us to re-write it as:

L = a2·E02/(2·ħ·c2)

Of course, in quantum mechanics, we associate spin with the magnetic moment of a charged particle, not with its mass as such. Is there way to link the formula above to the one we have for the quantum-mechanical angular momentum, which is also measured in N·m·s units, and which can only take on one of two possible values: J = +ħ/2 and −ħ/2? It looks like a long shot, right? How do we go from (1/2)·a2·m02/ħ to ± (1/2)∙ħ? Let us do a numerical example. The energy of an electron is typically 0.510 MeV » 8.1871×10−14 N∙m, and a… What value should we take for a?

We have an obvious trio of candidates here: the Bohr radius, the classical electron radius (aka the Thompon scattering length), and the Compton scattering radius.

Let us start with the Bohr radius, so that is about 0.×10−10 N∙m. We get L = a2·E02/(2·ħ·c2) = 9.9×10−31 N∙m∙s. Now that is about 1.88×104 times ħ/2. That is a huge factor. The Bohr radius cannot be right: we are not looking at an electron in an orbital here. To show it does not make sense, we may want to double-check the analysis by doing the calculation in another way. We said each oscillation will always pack 6.626070040(81)×10−34 joule in energy. So our electron should pack about 1.24×10−20 oscillations. The angular momentum (L) we get when using the Bohr radius for a and the value of 6.626×10−34 joule for E0 and the Bohr radius is equal to 6.49×10−59 N∙m∙s. So that is the angular momentum per oscillation. When we multiply this with the number of oscillations (1.24×10−20), we get about 8.01×10−51 N∙m∙s, so that is a totally different number.

The classical electron radius is about 2.818×10−15 m. We get an L that is equal to about 2.81×10−39 N∙m∙s, so now it is a tiny fraction of ħ/2! Hence, this leads us nowhere. Let us go for our last chance to get a meaningful result! Let us use the Compton scattering length, so that is about 2.42631×10−12 m.

This gives us an L of 2.08×10−33 N∙m∙s, which is only 20 times ħ. This is not so bad, but it is good enough? Let us calculate it the other way around: what value should we take for a so as to ensure L = a2·E02/(2·ħ·c2) = ħ/2? Let us write it out:

In fact, this is the formula for the so-called reduced Compton wavelength. This is perfect. We found what we wanted to find. Substituting this value for a (you can calculate it: it is about 3.8616×10−33 m), we get what we should find:

This is a rather spectacular result, and one that would – a priori – support the interpretation of the wavefunction that is being suggested in this paper.

# VIII. The boson-fermion dichotomy

Let us do some more thinking on the boson-fermion dichotomy. Again, we should remind ourselves that an actual particle is localized in space and that it can, therefore, not be represented by the elementary wavefunction ψ = a·ei[E·t − px]/ħ or, for a particle at rest, the ψ = a·ei∙E·t/ħ function. We must build a wave packet for that: a sum of wavefunctions, each with their own amplitude ai, and their own ωi = −Ei/ħ. Each of these wavefunctions will contribute some energy to the total energy of the wave packet. Now, we can have another wild but logical theory about this.

Think of the apparent right-handedness of the elementary wavefunction: surely, Nature can’t be bothered about our convention of measuring phase angles clockwise or counterclockwise. Also, the angular momentum can be positive or negative: J = +ħ/2 or −ħ/2. Hence, we would probably like to think that an actual particle – think of an electron, or whatever other particle you’d think of – may consist of right-handed as well as left-handed elementary waves. To be precise, we may think they either consist of (elementary) right-handed waves or, else, of (elementary) left-handed waves. An elementary right-handed wave would be written as:

ψ(θi= ai·(cosθi + i·sinθi)

In contrast, an elementary left-handed wave would be written as:

ψ(θi= ai·(cosθii·sinθi)

How does that work out with the E0·t argument of our wavefunction? Position is position, and direction is direction, but time? Time has only one direction, but Nature surely does not care how we count time: counting like 1, 2, 3, etcetera or like −1, −2, −3, etcetera is just the same. If we count like 1, 2, 3, etcetera, then we write our wavefunction like:

ψ = a·cos(E0∙t/ħ) − i·a·sin(E0∙t/ħ)

If we count time like −1, −2, −3, etcetera then we write it as:

ψ = a·cos(E0∙t/ħ) − i·a·sin(E0∙t/ħ)= a·cos(E0∙t/ħ) + i·a·sin(E0∙t/ħ)

Hence, it is just like the left- or right-handed circular polarization of an electromagnetic wave: we can have both for the matter-wave too! This, then, should explain why we can have either positive or negative quantum-mechanical spin (+ħ/2 or −ħ/2). It is the usual thing: we have two mathematical possibilities here, and so we must have two physical situations that correspond to it.

It is only natural. If we have left- and right-handed photons – or, generalizing, left- and right-handed bosons – then we should also have left- and right-handed fermions (electrons, protons, etcetera). Back to the dichotomy. The textbook analysis of the dichotomy between bosons and fermions may be epitomized by Richard Feynman’s Lecture on it (Feynman, III-4), which is confusing and – I would dare to say – even inconsistent: how are photons or electrons supposed to know that they need to interfere with a positive or a negative sign? They are not supposed to know anything: knowledge is part of our interpretation of whatever it is that is going on there.

Hence, it is probably best to keep it simple, and think of the dichotomy in terms of the different physical dimensions of the oscillation: newton per kg versus newton per coulomb. And then, of course, we should also note that matter-particles have a rest mass and, therefore, actually carry charge. Photons do not. But both are two-dimensional oscillations, and the point is: the so-called vacuum – and the rest mass of our particle (which is zero for the photon and non-zero for everything else) – give us the natural frequency for both oscillations, which is beautifully summed up in that remarkable equation for the group and phase velocity of the wavefunction, which applies to photons as well as matter-particles:

(vphase·c)·(vgroup·c) = 1 ⇔ vp·vg = c2

The final question then is: why are photons spin-zero particles? Well… We should first remind ourselves of the fact that they do have spin when circularly polarized.[25] Here we may think of the rotation of the equivalent mass of their energy. However, if they are linearly polarized, then there is no spin. Even for circularly polarized waves, the spin angular momentum of photons is a weird concept. If photons have no (rest) mass, then they cannot carry any charge. They should, therefore, not have any magnetic moment. Indeed, what I wrote above shows an explanation of quantum-mechanical spin requires both mass as well as charge.[26]

# IX. Concluding remarks

There are, of course, other ways to look at the matter – literally. For example, we can imagine two-dimensional oscillations as circular rather than linear oscillations. Think of a tiny ball, whose center of mass stays where it is, as depicted below. Any rotation – around any axis – will be some combination of a rotation around the two other axes. Hence, we may want to think of a two-dimensional oscillation as an oscillation of a polar and azimuthal angle.

Figure 8: Two-dimensional circular movement

The point of this paper is not to make any definite statements. That would be foolish. Its objective is just to challenge the simplistic mainstream viewpoint on the reality of the wavefunction. Stating that it is a mathematical construct only without physical significance amounts to saying it has no meaning at all. That is, clearly, a non-sustainable proposition.

The interpretation that is offered here looks at amplitude waves as traveling fields. Their physical dimension may be expressed in force per mass unit, as opposed to electromagnetic waves, whose amplitudes are expressed in force per (electric) charge unit. Also, the amplitudes of matter-waves incorporate a phase factor, but this may actually explain the rather enigmatic dichotomy between fermions and bosons and is, therefore, an added bonus.

The interpretation that is offered here has some advantages over other explanations, as it explains the how of diffraction and interference. However, while it offers a great explanation of the wave nature of matter, it does not explain its particle nature: while we think of the energy as being spread out, we will still observe electrons and photons as pointlike particles once they hit the detector. Why is it that a detector can sort of ‘hook’ the whole blob of energy, so to speak?

The interpretation of the wavefunction that is offered here does not explain this. Hence, the complementarity principle of the Copenhagen interpretation of the wavefunction surely remains relevant.

# Appendix 1: The de Broglie relations and energy

The 1/2 factor in Schrödinger’s equation is related to the concept of the effective mass (meff). It is easy to make the wrong calculations. For example, when playing with the famous de Broglie relations – aka as the matter-wave equations – one may be tempted to derive the following energy concept:

1. E = h·f and p = h/λ. Therefore, f = E/h and λ = p/h.
2. v = λ = (E/h)∙(p/h) = E/p
3. p = m·v. Therefore, E = v·p = m·v2

E = m·v2? This resembles the E = mc2 equation and, therefore, one may be enthused by the discovery, especially because the m·v2 also pops up when working with the Least Action Principle in classical mechanics, which states that the path that is followed by a particle will minimize the following integral:Now, we can choose any reference point for the potential energy but, to reflect the energy conservation law, we can select a reference point that ensures the sum of the kinetic and the potential energy is zero throughout the time interval. If the force field is uniform, then the integrand will, effectively, be equal to KE − PE = m·v2.[27]

However, that is classical mechanics and, therefore, not so relevant in the context of the de Broglie equations, and the apparent paradox should be solved by distinguishing between the group and the phase velocity of the matter wave.

# Appendix 2: The concept of the effective mass

The effective mass – as used in Schrödinger’s equation – is a rather enigmatic concept. To make sure we are making the right analysis here, I should start by noting you will usually see Schrödinger’s equation written as:This formulation includes a term with the potential energy (U). In free space (no potential), this term disappears, and the equation can be re-written as:

∂ψ(x, t)/∂t = i·(1/2)·(ħ/meff)·∇2ψ(x, t)

We just moved the i·ħ coefficient to the other side, noting that 1/i = –i. Now, in one-dimensional space, and assuming ψ is just the elementary wavefunction (so we substitute a·ei∙[E·t − p∙x]/ħ for ψ), this implies the following:

a·i·(E/ħ)·ei∙[E·t − p∙x]/ħ = −i·(ħ/2meffa·(p22 ei∙[E·t − p∙x]/ħ

⇔ E = p2/(2meff) ⇔ meff = m∙(v/c)2/2 = m∙β2/2

It is an ugly formula: it resembles the kinetic energy formula (K.E. = m∙v2/2) but it is, in fact, something completely different. The β2/2 factor ensures the effective mass is always a fraction of the mass itself. To get rid of the ugly 1/2 factor, we may re-define meff as two times the old meff (hence, meffNEW = 2∙meffOLD), as a result of which the formula will look somewhat better:

meff = m∙(v/c)2 = m∙β2

We know β varies between 0 and 1 and, therefore, meff will vary between 0 and m. Feynman drops the subscript, and just writes meff as m in his textbook (see Feynman, III-19). On the other hand, the electron mass as used is also the electron mass that is used to calculate the size of an atom (see Feynman, III-2-4). As such, the two mass concepts are, effectively, mutually compatible. It is confusing because the same mass is often defined as the mass of a stationary electron (see, for example, the article on it in the online Wikipedia encyclopedia[28]).

In the context of the derivation of the electron orbitals, we do have the potential energy term – which is the equivalent of a source term in a diffusion equation – and that may explain why the above-mentioned meff = m∙(v/c)2 = m∙β2 formula does not apply.

# References

This paper discusses general principles in physics only. Hence, references can be limited to references to physics textbooks only. For ease of reading, any reference to additional material has been limited to a more popular undergrad textbook that can be consulted online: Feynman’s Lectures on Physics (http://www.feynmanlectures.caltech.edu). References are per volume, per chapter and per section. For example, Feynman III-19-3 refers to Volume III, Chapter 19, Section 3.

# Notes

[1] Of course, an actual particle is localized in space and can, therefore, not be represented by the elementary wavefunction ψ = a·ei∙θa·ei[E·t − px]/ħ = a·(cosθ i·a·sinθ). We must build a wave packet for that: a sum of wavefunctions, each with its own amplitude ak and its own argument θk = (Ek∙t – pkx)/ħ. This is dealt with in this paper as part of the discussion on the mathematical and physical interpretation of the normalization condition.

[2] The N/kg dimension immediately, and naturally, reduces to the dimension of acceleration (m/s2), thereby facilitating a direct interpretation in terms of Newton’s force law.

[3] In physics, a two-spring metaphor is more common. Hence, the pistons in the author’s perpetuum mobile may be replaced by springs.

[4] The author re-derives the equation for the Compton scattering radius in section VII of the paper.

[5] The magnetic force can be analyzed as a relativistic effect (see Feynman II-13-6). The dichotomy between the electric force as a polar vector and the magnetic force as an axial vector disappears in the relativistic four-vector representation of electromagnetism.

[6] For example, when using Schrödinger’s equation in a central field (think of the electron around a proton), the use of polar coordinates is recommended, as it ensures the symmetry of the Hamiltonian under all rotations (see Feynman III-19-3)

[7] This sentiment is usually summed up in the apocryphal quote: “God does not play dice.”The actual quote comes out of one of Einstein’s private letters to Cornelius Lanczos, another scientist who had also emigrated to the US. The full quote is as follows: “You are the only person I know who has the same attitude towards physics as I have: belief in the comprehension of reality through something basically simple and unified… It seems hard to sneak a look at God’s cards. But that He plays dice and uses ‘telepathic’ methods… is something that I cannot believe for a single moment.” (Helen Dukas and Banesh Hoffman, Albert Einstein, the Human Side: New Glimpses from His Archives, 1979)

[8] Of course, both are different velocities: ω is an angular velocity, while v is a linear velocity: ω is measured in radians per second, while v is measured in meter per second. However, the definition of a radian implies radians are measured in distance units. Hence, the physical dimensions are, effectively, the same. As for the formula for the total energy of an oscillator, we should actually write: E = m·a2∙ω2/2. The additional factor (a) is the (maximum) amplitude of the oscillator.

[9] We also have a 1/2 factor in the E = mv2/2 formula. Two remarks may be made here. First, it may be noted this is a non-relativistic formula and, more importantly, incorporates kinetic energy only. Using the Lorentz factor (γ), we can write the relativistically correct formula for the kinetic energy as K.E. = E − E0 = mvc2 − m0c2 = m0γc2 − m0c2 = m0c2(γ − 1). As for the exclusion of the potential energy, we may note that we may choose our reference point for the potential energy such that the kinetic and potential energy mirror each other. The energy concept that then emerges is the one that is used in the context of the Principle of Least Action: it equals E = mv2. Appendix 1 provides some notes on that.

[10] Instead of two cylinders with pistons, one may also think of connecting two springs with a crankshaft.

[11] It is interesting to note that we may look at the energy in the rotating flywheel as potential energy because it is energy that is associated with motion, albeit circular motion. In physics, one may associate a rotating object with kinetic energy using the rotational equivalent of mass and linear velocity, i.e. rotational inertia (I) and angular velocity ω. The kinetic energy of a rotating object is then given by K.E. = (1/2)·I·ω2.

[12] Because of the sideways motion of the connecting rods, the sinusoidal function will describe the linear motion only approximately, but you can easily imagine the idealized limit situation.

[13] The ω2= 1/LC formula gives us the natural or resonant frequency for a electric circuit consisting of a resistor (R), an inductor (L), and a capacitor (C). Writing the formula as ω2= C1/L introduces the concept of elastance, which is the equivalent of the mechanical stiffness (k) of a spring.

[14] The resistance in an electric circuit introduces a damping factor. When analyzing a mechanical spring, one may also want to introduce a drag coefficient. Both are usually defined as a fraction of the inertia, which is the mass for a spring and the inductance for an electric circuit. Hence, we would write the resistance for a spring as γm and as R = γL respectively.

[15] Photons are emitted by atomic oscillators: atoms going from one state (energy level) to another. Feynman (Lectures, I-33-3) shows us how to calculate the Q of these atomic oscillators: it is of the order of 108, which means the wave train will last about 10–8 seconds (to be precise, that is the time it takes for the radiation to die out by a factor 1/e). For example, for sodium light, the radiation will last about 3.2×10–8 seconds (this is the so-called decay time τ). Now, because the frequency of sodium light is some 500 THz (500×1012 oscillations per second), this makes for some 16 million oscillations. There is an interesting paradox here: the speed of light tells us that such wave train will have a length of about 9.6 m! How is that to be reconciled with the pointlike nature of a photon? The paradox can only be explained by relativistic length contraction: in an analysis like this, one need to distinguish the reference frame of the photon – riding along the wave as it is being emitted, so to speak – and our stationary reference frame, which is that of the emitting atom.

[16] This is a general result and is reflected in the K.E. = T = (1/2)·m·ω2·a2·sin2(ω·t + Δ) and the P.E. = U = k·x2/2 = (1/2)· m·ω2·a2·cos2(ω·t + Δ) formulas for the linear oscillator.

[17] Feynman further formalizes this in his Lecture on Superconductivity (Feynman, III-21-2), in which he refers to Schrödinger’s equation as the “equation for continuity of probabilities”. The analysis is centered on the local conservation of energy, which confirms the interpretation of Schrödinger’s equation as an energy diffusion equation.

[18] The meff is the effective mass of the particle, which depends on the medium. For example, an electron traveling in a solid (a transistor, for example) will have a different effective mass than in an atom. In free space, we can drop the subscript and just write meff = m. Appendix 2 provides some additional notes on the concept. As for the equations, they are easily derived from noting that two complex numbers a + i∙b and c + i∙d are equal if, and only if, their real and imaginary parts are the same. Now, the ∂ψ/∂t = i∙(ħ/meff)∙∇2ψ equation amounts to writing something like this: a + i∙b = i∙(c + i∙d). Now, remembering that i2 = −1, you can easily figure out that i∙(c + i∙d) = i∙c + i2∙d = − d + i∙c.

[19] The dimension of B is usually written as N/(m∙A), using the SI unit for current, i.e. the ampere (A). However, 1 C = 1 A∙s and, hence, 1 N/(m∙A) = 1 (N/C)/(m/s).

[20] Of course, multiplication with i amounts to a counterclockwise rotation. Hence, multiplication by –i also amounts to a rotation by 90 degrees, but clockwise. Now, to uniquely identify the clockwise and counterclockwise directions, we need to establish the equivalent of the right-hand rule for a proper geometric interpretation of Schrödinger’s equation in three-dimensional space: if we look at a clock from the back, then its hand will be moving counterclockwise. When writing B = (1/c)∙iE, we assume we are looking in the negative x-direction. If we are looking in the positive x-direction, we should write: B = -(1/c)∙iE. Of course, Nature does not care about our conventions. Hence, both should give the same results in calculations. We will show in a moment they do.

[21] In fact, when multiplying C2/(N·m2) with N2/C2, we get N/m2, but we can multiply this with 1 = m/m to get the desired result. It is significant that an energy density (joule per unit volume) can also be measured in newton (force per unit area.

[22] The illustration shows a linearly polarized wave, but the obtained result is general.

[23] The sine and cosine are essentially the same functions, except for the difference in the phase: sinθ = cos(θ−π /2).

[24] I must thank a physics blogger for re-writing the 1/(ε0·μ0) = c2 equation like this. See: http://reciprocal.systems/phpBB3/viewtopic.php?t=236 (retrieved on 29 September 2017).

[25] A circularly polarized electromagnetic wave may be analyzed as consisting of two perpendicular electromagnetic plane waves of equal amplitude and 90° difference in phase.

[26] Of course, the reader will now wonder: what about neutrons? How to explain neutron spin? Neutrons are neutral. That is correct, but neutrons are not elementary: they consist of (charged) quarks. Hence, neutron spin can (or should) be explained by the spin of the underlying quarks.

[27] We detailed the mathematical framework and detailed calculations in the following online article: https://readingfeynman.org/2017/09/15/the-principle-of-least-action-re-visited.

[28] https://en.wikipedia.org/wiki/Electron_rest_mass (retrieved on 29 September 2017).

# Thinking again…

One of the comments on my other blog made me think I should, perhaps, write something on waves again. The animation below shows the elementary wavefunction ψ = a·eiθ = ψ = a·ei·θ  = a·ei(ω·t−k·x) = a·e(i/ħ)·(E·t−p·x) .We know this elementary wavefunction cannot represent a real-life particle. Indeed, the a·ei·θ function implies the probability of finding the particle – an electron, a photon, or whatever – would be equal to P(x, t) = |ψ(x, t)|2 = |a·e(i/ħ)·(E·t−p·x)|2 = |a|2·|e(i/ħ)·(E·t−p·x)|2 = |a|2·12= a2 everywhere. Hence, the particle would be everywhere – and, therefore, nowhere really. We need to localize the wave – or build a wave packet. We can do so by introducing uncertainty: we then add a potentially infinite number of these elementary wavefunctions with slightly different values for E and p, and various amplitudes a. Each of these amplitudes will then reflect the contribution to the composite wave, which – in three-dimensional space – we can write as:

ψ(r, t) = ei·(E/ħ)·t·f(r)

As I explained in previous posts (see, for example, my recent post on reality and perception), the f(r) function basically provides some envelope for the two-dimensional ei·θ = ei·(E/ħ)·t = cosθ + i·sinθ oscillation, with r = (x, y, z), θ = (E/ħ)·t = ω·t and ω = E/ħ.

Note that it looks like the wave propagates from left to right – in the positive direction of an axis which we may refer to as the x-axis. Also note this perception results from the fact that, naturally, we’d associate time with the rotation of that arrow at the center – i.e. with the motion in the illustration, while the spatial dimensions are just what they are: linear spatial dimensions. [This point is, perhaps, somewhat less self-evident than you may think at first.]

Now, the axis which points upwards is usually referred to as the z-axis, and the third and final axis – which points towards us – would then be the y-axis, obviously. Unfortunately, this definition would violate the so-called right-hand rule for defining a proper reference frame: the figures below shows the two possibilities – a left-handed and a right-handed reference frame – and it’s the right-handed reference (i.e. the illustration on the right) which we have to use in order to correctly define all directions, including the direction of rotation of the argument of the wavefunction.Hence, if we don’t change the direction of the y– and z-axes – so we keep defining the z-axis as the axis pointing upwards, and the y-axis as the axis pointing towards us – then the positive direction of the x-axis would actually be the direction from right to left, and we should say that the elementary wavefunction in the animation above seems to propagate in the negative x-direction. [Note that this left- or right-hand rule is quite astonishing: simply swapping the direction of one axis of a left-handed frame makes it right-handed, and vice versa.]

Note my language when I talk about the direction of propagation of our wave. I wrote: it looks like, or it seems to go in this or that direction. And I mean that: there is no real traveling here. At this point, you may want to review a post I wrote for my son, which explains the basic math behind waves, and in which I also explained the animation below.

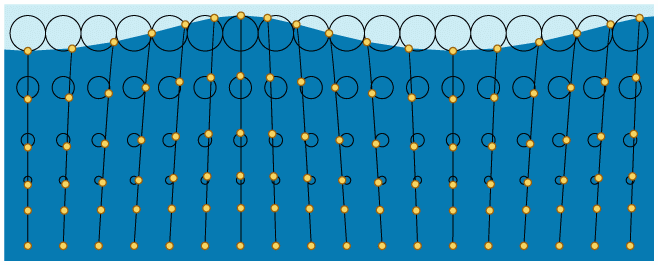

Note how the peaks and troughs of this pulse seem to move leftwards, but the wave packet (or the group or the envelope of the wave—whatever you want to call it) moves to the right. The point is: the pulse itself doesn’t travel left or right. Think of the horizontal axis in the illustration above as an oscillating guitar string: each point on the string just moves up and down. Likewise, if our repeated pulse would represent a physical wave in water, for example, then the water just stays where it is: it just moves up and down. Likewise, if we shake up some rope, the rope is not going anywhere: we just started some motion that is traveling down the rope. In other words, the phase velocity is just a mathematical concept. The peaks and troughs that seem to be traveling are just mathematical points that are ‘traveling’ left or right. That’s why there’s no limit on the phase velocity: it can – and, according to quantum mechanics, actually will – exceed the speed of light. In contrast, the group velocity – which is the actual speed of the particle that is being represented by the wavefunction – may approach – or, in the case of a massless photon, will actually equal – the speed of light, but will never exceed it, and its direction will, obviously, have a physical significance as it is, effectively, the direction of travel of our particle – be it an electron, a photon (electromagnetic radiation), or whatever.

Hence, you should not think the spin of a particle – integer or half-integer – is somehow related to the direction of rotation of the argument of the elementary wavefunction. It isn’t: Nature doesn’t give a damn about our mathematical conventions, and that’s what the direction of rotation of the argument of that wavefunction is: just some mathematical convention. That’s why we write a·ei(ω·t−k·x) rather than a·ei(ω·t+k·x) or a·ei(ω·t−k·x): it’s just because of the right-hand rule for coordinate frames, and also because Euler defined the counter-clockwise direction as the positive direction of an angle. There’s nothing more to it.

OK. That’s obvious. Let me now return to my interpretation of Einstein’s E = m·c2 formula (see my previous posts on this). I noted that, in the reference frame of the particle itself (see my basics page), the elementary wavefunction a·e(i/ħ)·(E·t−p·x) reduces to a·e(i/ħ)·(E’·t’): the origin of the reference frame then coincides with (the center of) our particle itself, and the wavefunction only varies with the time in the inertial reference frame (i.e. the proper time t’), with the rest energy of the object (E’) as the time scale factor. How should we interpret this?

Well… Energy is force times distance, and force is defined as that what causes some mass to accelerate. To be precise, the newton – as the unit of force – is defined as the magnitude of a force which would cause a mass of one kg to accelerate with one meter per second per second. Per second per second. This is not a typo: 1 N corresponds to 1 kg times 1 m/s per second, i.e. 1 kg·m/s2. So… Because energy is force times distance, the unit of energy may be expressed in units of kg·m/s2·m, or kg·m2/s2, i.e. the unit of mass times the unit of velocity squared. To sum it all up:

1 J = 1 N·m = 1 kg·(m/s)2

This reflects the physical dimensions on both sides of the E = m·c2 formula again but… Well… How should we interpret this? Look at the animation below once more, and imagine the green dot is some tiny mass moving around the origin, in an equally tiny circle. We’ve got two oscillations here: each packing half of the total energy of… Well… Whatever it is that our elementary wavefunction might represent in reality – which we don’t know, of course.

Now, the blue and the red dot – i.e. the horizontal and vertical projection of the green dot – accelerate up and down. If we look carefully, we see these dots accelerate towards the zero point and, once they’ve crossed it, they decelerate, so as to allow for a reversal of direction: the blue dot goes up, and then down. Likewise, the red dot does the same. The interplay between the two oscillations, because of the 90° phase difference, is interesting: if the blue dot is at maximum speed (near or at the origin), the red dot reverses speed (its speed is, therefore, (almost) nil), and vice versa. The metaphor of our frictionless V-2 engine, our perpetuum mobile, comes to mind once more.

The question is: what’s going on, really?

My answer is: I don’t know. I do think that, somehow, energy should be thought of as some two-dimensional oscillation of something – something which we refer to as mass, but we didn’t define mass very clearly either. It also, somehow, combines linear and rotational motion. Each of the two dimensions packs half of the energy of the particle that is being represented by our wavefunction. It is, therefore, only logical that the physical unit of both is to be expressed as a force over some distance – which is, effectively, the physical dimension of energy – or the rotational equivalent of them: torque over some angle. Indeed, the analogy between linear and angular movement is obvious: the kinetic energy of a rotating object is equal to K.E. = (1/2)·I·ω2. In this formula, I is the rotational inertia – i.e. the rotational equivalent of mass – and ω is the angular velocity – i.e. the rotational equivalent of linear velocity. Noting that the (average) kinetic energy in any system must be equal to the (average) potential energy in the system, we can add both, so we get a formula which is structurally similar to the E = m·c2 formula. But is it the same? Is the effective mass of some object the sum of an almost infinite number of quanta that incorporate some kind of rotational motion? And – if we use the right units – is the angular velocity of these infinitesimally small rotations effectively equal to the speed of light?

I am not sure. Not at all, really. But, so far, I can’t think of any explanation of the wavefunction that would make more sense than this one. I just need to keep trying to find better ways to articulate or imagine what might be going on. 🙂 In this regard, I’d like to add a point – which may or may not be relevant. When I talked about that guitar string, or the water wave, and wrote that each point on the string – or each water drop – just moves up and down, we should think of the physicality of the situation: when the string oscillates, its length increases. So it’s only because our string is flexible that it can vibrate between the fixed points at its ends. For a rope that’s not flexible, the end points would need to move in and out with the oscillation. Look at the illustration below, for example: the two kids who are holding rope must come closer to each other, so as to provide the necessary space inside of the oscillation for the other kid. 🙂The next illustration – of how water waves actually propagate – is, perhaps, more relevant. Just think of a two-dimensional equivalent – and of the two oscillations as being transverse waves, as opposed to longitudinal. See how string theory starts making sense? 🙂

The most fundamental question remains the same: what is it, exactly, that is oscillating here? What is the field? It’s always some force on some charge – but what charge, exactly? Mass? What is it? Well… I don’t have the answer to that. It’s the same as asking: what is electric charge, really? So the question is: what’s the reality of mass, of electric charge, or whatever other charge that causes a force to act on it?

If you know, please let me know. 🙂

Post scriptum: The fact that we’re talking some two-dimensional oscillation here – think of a surface now – explains the probability formula: we need to square the absolute value of the amplitude to get it. And normalize, of course. Also note that, when normalizing, we’d expect to get some factor involving π somewhere, because we’re talking some circular surface – as opposed to a rectangular one. But I’ll let you figure that out. 🙂

# Reality and perception

It’s quite easy to get lost in all of the math when talking quantum mechanics. In this post, I’d like to freewheel a bit. I’ll basically try to relate the wavefunction we’ve derived for the electron orbitals to the more speculative posts I wrote on how to interpret the wavefunction. So… Well… Let’s go. 🙂

If there is one thing you should remember from all of the stuff I wrote in my previous posts, then it’s that the wavefunction for an electron orbital – ψ(x, t), so that’s a complex-valued function in two variables (position and time) – can be written as the product of two functions in one variable:

ψ(x, t) = ei·(E/ħ)·t·f(x)

In fact, we wrote f(x) as ψ(x), but I told you how confusing that is: the ψ(x) and ψ(x, t) functions are, obviously, very different. To be precise, the f(x) = ψ(x) function basically provides some envelope for the two-dimensional eiθ = ei·(E/ħ)·t = cosθ + i·sinθ oscillation – as depicted below (θ = −(E/ħ)·t = ω·t with ω = −E/ħ).When analyzing this animation – look at the movement of the green, red and blue dots respectively – one cannot miss the equivalence between this oscillation and the movement of a mass on a spring – as depicted below.The ei·(E/ħ)·t function just gives us two springs for the price of one. 🙂 Now, you may want to imagine some kind of elastic medium – Feynman’s famous drum-head, perhaps 🙂 – and you may also want to think of all of this in terms of superimposed waves but… Well… I’d need to review if that’s really relevant to what we’re discussing here, so I’d rather not make things too complicated and stick to basics.

First note that the amplitude of the two linear oscillations above is normalized: the maximum displacement of the object from equilibrium, in the positive or negative direction, which we may denote by x = ±A, is equal to one. Hence, the energy formula is just the sum of the potential and kinetic energy: T + U = (1/2)·A2·m·ω2 = (1/2)·m·ω2. But so we have two springs and, therefore, the energy in this two-dimensional oscillation is equal to E = 2·(1/2)·m·ω2 = m·ω2.

This formula is structurally similar to Einstein’s E = m·c2 formula. Hence, one may want to assume that the energy of some particle (an electron, in our case, because we’re discussing electron orbitals here) is just the two-dimensional motion of its mass. To put it differently, we might also want to think that the oscillating real and imaginary component of our wavefunction each store one half of the total energy of our particle.

However, the interpretation of this rather bold statement is not so straightforward. First, you should note that the ω in the E = m·ω2 formula is an angular velocity, as opposed to the in the E = m·c2 formula, which is a linear velocity. Angular velocities are expressed in radians per second, while linear velocities are expressed in meter per second. However, while the radian measures an angle, we know it does so by measuring a length. Hence, if our distance unit is 1 m, an angle of 2π rad will correspond to a length of 2π meter, i.e. the circumference of the unit circle. So… Well… The two velocities may not be so different after all.

There are other questions here. In fact, the other questions are probably more relevant. First, we should note that the ω in the E = m·ω2 can take on any value. For a mechanical spring, ω will be a function of (1) the stiffness of the spring (which we usually denote by k, and which is typically measured in newton (N) per meter) and (2) the mass (m) on the spring. To be precise, we write: ω2 = k/m – or, what amounts to the same, ω = √(k/m). Both k and m are variables and, therefore, ω can really be anything. In contrast, we know that c is a constant: equals 299,792,458 meter per second, to be precise. So we have this rather remarkable expression: c = √(E/m), and it is valid for any particle – our electron, or the proton at the center, or our hydrogen atom as a whole. It is also valid for more complicated atoms, of course. In fact, it is valid for any system.

Hence, we need to take another look at the energy concept that is used in our ψ(x, t) = ei·(E/ħ)·t·f(x) wavefunction. You’ll remember (if not, you should) that the E here is equal to En = −13.6 eV, −3.4 eV, −1.5 eV and so on, for = 1, 2, 3, etc. Hence, this energy concept is rather particular. As Feynman puts it: “The energies are negative because we picked our zero point as the energy of an electron located far from the proton. When it is close to the proton, its energy is less, so somewhat below zero. The energy is lowest (most negative) for n = 1, and increases toward zero with increasing n.”

Now, this is the one and only issue I have with the standard physics story. I mentioned it in one of my previous posts and, just for clarity, let me copy what I wrote at the time:

Feynman gives us a rather casual explanation [on choosing a zero point for measuring energy] in one of his very first Lectures on quantum mechanics, where he writes the following: “If we have a “condition” which is a mixture of two different states with different energies, then the amplitude for each of the two states will vary with time according to an equation like a·eiωt, with ħ·ω = E = m·c2. Hence, we can write the amplitude for the two states, for example as:

ei(E1/ħ)·t and ei(E2/ħ)·t

And if we have some combination of the two, we will have an interference. But notice that if we added a constant to both energies, it wouldn’t make any difference. If somebody else were to use a different scale of energy in which all the energies were increased (or decreased) by a constant amount—say, by the amount A—then the amplitudes in the two states would, from his point of view, be:

ei(E1+A)·t/ħ and ei(E2+A)·t/ħ

All of his amplitudes would be multiplied by the same factor ei(A/ħ)·t, and all linear combinations, or interferences, would have the same factor. When we take the absolute squares to find the probabilities, all the answers would be the same. The choice of an origin for our energy scale makes no difference; we can measure energy from any zero we want. For relativistic purposes it is nice to measure the energy so that the rest mass is included, but for many purposes that aren’t relativistic it is often nice to subtract some standard amount from all energies that appear. For instance, in the case of an atom, it is usually convenient to subtract the energy Ms·c2, where Ms is the mass of all the separate pieces—the nucleus and the electrons—which is, of course, different from the mass of the atom. For other problems, it may be useful to subtract from all energies the amount Mg·c2, where Mg is the mass of the whole atom in the ground state; then the energy that appears is just the excitation energy of the atom. So, sometimes we may shift our zero of energy by some very large constant, but it doesn’t make any difference, provided we shift all the energies in a particular calculation by the same constant.”

It’s a rather long quotation, but it’s important. The key phrase here is, obviously, the following: “For other problems, it may be useful to subtract from all energies the amount Mg·c2, where Mg is the mass of the whole atom in the ground state; then the energy that appears is just the excitation energy of the atom.” So that’s what he’s doing when solving Schrödinger’s equation. However, I should make the following point here: if we shift the origin of our energy scale, it does not make any difference in regard to the probabilities we calculate, but it obviously does make a difference in terms of our wavefunction itself. To be precise, its density in time will be very different. Hence, if we’d want to give the wavefunction some physical meaning – which is what I’ve been trying to do all along – it does make a huge difference. When we leave the rest mass of all of the pieces in our system out, we can no longer pretend we capture their energy.

So… Well… There you go. If we’d want to try to interpret our ψ(x, t) = ei·(En/ħ)·t·f(x) function as a two-dimensional oscillation of the mass of our electron, the energy concept in it – so that’s the Ein it – should include all pieces. Most notably, it should also include the electron’s rest energy, i.e. its energy when it is not in a bound state. This rest energy is equal to 0.511 MeV. […] Read this again: 0.511 mega-electronvolt (106 eV), so that’s huge as compared to the tiny energy values we mentioned so far (−13.6 eV, −3.4 eV, −1.5 eV,…).

Of course, this gives us a rather phenomenal order of magnitude for the oscillation that we’re looking at. Let’s quickly calculate it. We need to convert to SI units, of course: 0.511 MeV is about 8.2×10−14 joule (J), and so the associated frequency is equal to ν = E/h = (8.2×10−14 J)/(6.626×10−34 J·s) ≈ 1.23559×1020 cycles per second. Now, I know such number doesn’t say all that much: just note it’s the same order of magnitude as the frequency of gamma rays and… Well… No. I won’t say more. You should try to think about this for yourself. [If you do, think – for starters – about the difference between bosons and fermions: matter-particles are fermions, and photons are bosons. Their nature is very different.]

The corresponding angular frequency is just the same number but multiplied by 2π (one cycle corresponds to 2π radians and, hence, ω = 2π·ν = 7.76344×1020 rad per second. Now, if our green dot would be moving around the origin, along the circumference of our unit circle, then its horizontal and/or vertical velocity would approach the same value. Think of it. We have this eiθ = ei·(E/ħ)·t = ei·ω·t = cos(ω·t) + i·sin(ω·t) function, with ω = E/ħ. So the cos(ω·t) captures the motion along the horizontal axis, while the sin(ω·t) function captures the motion along the vertical axis. Now, the velocity along the horizontal axis as a function of time is given by the following formula:

v(t) = d[x(t)]/dt = d[cos(ω·t)]/dt = −ω·sin(ω·t)

Likewise, the velocity along the vertical axis is given by v(t) = d[sin(ω·t)]/dt = ω·cos(ω·t). These are interesting formulas: they show the velocity (v) along one of the two axes is always less than the angular velocity (ω). To be precise, the velocity approaches – or, in the limit, is equal to – the angular velocity ω when ω·t is equal to ω·= 0, π/2, π or 3π/2. So… Well… 7.76344×1020 meter per second!? That’s like 2.6 trillion times the speed of light. So that’s not possible, of course!

That’s where the amplitude of our wavefunction comes in – our envelope function f(x): the green dot does not move along the unit circle. The circle is much tinier and, hence, the oscillation should not exceed the speed of light. In fact, I should probably try to prove it oscillates at the speed of light, thereby respecting Einstein’s universal formula:

c = √(E/m)

Written like this – rather than as you know it: E = m·c2 – this formula shows the speed of light is just a property of spacetime, just like the ω = √(k/m) formula (or the ω = √(1/LC) formula for a resonant AC circuit) shows that ω, the natural frequency of our oscillator, is a characteristic of the system.

Am I absolutely certain of what I am writing here? No. My level of understanding of physics is still that of an undergrad. But… Well… It all makes a lot of sense, doesn’t it? 🙂

Now, I said there were a few obvious questions, and so far I answered only one. The other obvious question is why energy would appear to us as mass in motion in two dimensions only. Why is it an oscillation in a plane? We might imagine a third spring, so to speak, moving in and out from us, right? Also, energy densities are measured per unit volume, right?

Now that‘s a clever question, and I must admit I can’t answer it right now. However, I do suspect it’s got to do with the fact that the wavefunction depends on the orientation of our reference frame. If we rotate it, it changes. So it’s like we’ve lost one degree of freedom already, so only two are left. Or think of the third direction as the direction of propagation of the wave. 🙂 Also, we should re-read what we wrote about the Poynting vector for the matter wave, or what Feynman wrote about probability currents. Let me give you some appetite for that by noting that we can re-write joule per cubic meter (J/m3) as newton per square meter: J/m3 = N·m/m3 = N/m2. [Remember: the unit of energy is force times distance. In fact, looking at Einstein’s formula, I’d say it’s kg·m2/s2 (mass times a squared velocity), but that simplifies to the same: kg·m2/s2 = [N/(m/s2)]·m2/s2.]

I should probably also remind you that there is no three-dimensional equivalent of Euler’s formula, and the way the kinetic and potential energy of those two oscillations works together is rather unique. Remember I illustrated it with the image of a V-2 engine in previous posts. There is no such thing as a V-3 engine. [Well… There actually is – but not with the third cylinder being positioned sideways.]

But… Then… Well… Perhaps we should think of some weird combination of two V-2 engines. The illustration below shows the superposition of two one-dimensional waves – I think – one traveling east-west and back, and the other one traveling north-south and back. So, yes, we may to think of Feynman’s drum-head again – but combining two-dimensional waves – two waves that both have an imaginary as well as a real dimension

Hmm… Not sure. If we go down this path, we’d need to add a third dimension – so w’d have a super-weird V-6 engine! As mentioned above, the wavefunction does depend on our reference frame: we’re looking at stuff from a certain direction and, therefore, we can only see what goes up and down, and what goes left or right. We can’t see what comes near and what goes away from us. Also think of the particularities involved in measuring angular momentum – or the magnetic moment of some particle. We’re measuring that along one direction only! Hence, it’s probably no use to imagine we’re looking at three waves simultaneously!

In any case… I’ll let you think about all of this. I do feel I am on to something. I am convinced that my interpretation of the wavefunction as an energy propagation mechanism, or as energy itself – as a two-dimensional oscillation of mass – makes sense. 🙂

Of course, I haven’t answered one key question here: what is mass? What is that green dot – in reality, that is? At this point, we can only waffle – probably best to just give its standard definition: mass is a measure of inertia. A resistance to acceleration or deceleration, or to changing direction. But that doesn’t say much. I hate to say that – in many ways – all that I’ve learned so far has deepened the mystery, rather than solve it. The more we understand, the less we understand? But… Well… That’s all for today, folks ! Have fun working through it for yourself. 🙂

Post scriptum: I’ve simplified the wavefunction a bit. As I noted in my post on it, the complex exponential is actually equal to ei·[(E/ħ)·− m·φ], so we’ve got a phase shift because of m, the quantum number which denotes the z-component of the angular momentum. But that’s a minor detail that shouldn’t trouble or worry you here.
